Reading Reproductive Histology in Bivalves

A self-guided, hands-on tutorial for new lab members and undergraduates. Learn to look at a stained slice of clam gonad and answer two questions: What sex is it? and How far along is it?

~45 min Undergraduate level Interactive self-checks Real H&E slides

Section 1

How to use this tutorial

Reproductive (gonad) histology is one of the most useful — and most intimidating — skills in shellfish biology. The good news: the logic is simple and repeatable. By the end of this tutorial you will be able to pick up an unlabeled gonad slide and reason your way to a sex and a maturity stage, the same way researchers do in the lab.

Work through the sections in order. Each one builds on the last. Diagrams explain the structures, real stained slides show you what they actually look like, and short self-checks let you test yourself before moving on. Nothing is graded and nothing is sent anywhere — this all runs in your browser.

What you'll be able to do

Explain what a bivalve gonad is and where it sits in the animal.
Read an hematoxylin & eosin (H&E) slide and name the major structures.
Distinguish a female gonad (oocytes, follicles) from a male gonad (acini packed with sperm).
Assign a maturity stage using a published staging scheme.
Recognize a simultaneous hermaphrodite, where one animal carries both.
Avoid the most common rookie mistakes.

Two worked examples run through this tutorial. The Pacific geoduck (Panopea generosa) — a clam with separate sexes — and the basket cockle (Clinocardium nuttallii) — a clam that is male and female at the same time. Seeing both teaches you the rule and its most important exception.

Mark this section as done

Section 2

Why reproductive histology matters

Most bivalves give away nothing about their reproduction from the outside. A geoduck shows no color, size, or shape difference between the sexes — the only reliable way to know its sex, short of watching it spawn, is to take a piece of gonad tissue and look at it under a microscope. That single limitation drives a surprising amount of shellfish science and aquaculture.

For aquaculture

Hatcheries need eggs and sperm at the same time. But in a tank of brood animals, some will spawn early, some late, and some not at all. Knowing the sex ratio and the maturity stage of the broodstock lets a hatchery time a spawning event, balance males and females, and protect genetic diversity — if only a few females fertilize all the eggs, the offspring become inbred and fragile. Histology is how that hidden state is measured.

For science

Staging tells you when in the reproductive cycle an animal was sampled. That is the backbone for studying spawning seasons, the effects of temperature or ocean acidification on reproduction, and the search for molecular biomarkers that might one day let us sex an animal from a drop of hemolymph instead of killing it.

The recurring goal: turn an invisible internal state — sex and ripeness — into something you can see, measure, and compare across animals, sites, and seasons.

QWhy can't you just sort geoducks into males and females by looking at them?

Mark this section as done

Section 3

Bivalve reproductive biology in five minutes

Where is the gonad?

In clams the gonad is not a tidy, discrete organ like an ovary in a mammal. It is a diffuse tissue that spreads through the body around the visceral mass and digestive gland. When you slice and stain it, you are looking at a field of small sac-like compartments — follicles (in females) and acini (in males) — embedded in connective tissue. Gametes develop inside these compartments.

Schematic (not to scale). A gonad sample is a small block of this tissue, fixed and sliced thin so the internal follicles and acini can be seen.

Gametogenesis: gametes are built in stages

Gametogenesis is the production of gametes. It runs as an assembly line, and that is exactly why we can "stage" it — different time points look different under the microscope.

Females — oogenesis

Oogonia — tiny stem cells lining the follicle wall.
Primary & secondary oocytes — grow larger; often pear-shaped while still attached to the wall by a stalk.
Mature ova — large, round, and free in the follicle center, each with a big nucleus.

Males — spermatogenesis

Spermatogonia — stem cells on the acinus wall.
Spermatocytes & spermatids — successively smaller dividing cells moving inward.
Spermatozoa — tiny, dense, packed in the center, often in radial bands with tails pointing to the lumen.

The single most useful idea in this tutorial: in females, cells get bigger and fewer as they mature; in males, cells get smaller and far more numerous as they mature. Hold onto that and most slides make sense.

Not every clam has two sexes

Bivalves use several reproductive strategies. The two we focus on bracket the range:

Strategy	What it means	Example here
Dioecious	Separate sexes — an individual is male or female	Geoduck Panopea generosa
Simultaneous hermaphrodite	One individual carries mature male and female tissue at once	Basket cockle Clinocardium nuttallii
Mostly dioecious (sometimes hermaphrodite)	Usually separate sexes, occasional exceptions	Manila clam, Pacific oyster

QAs a female gonad matures, the egg cells generally become…

Mark this section as done

Section 4

From clam to slide: the H&E workflow

A slide doesn't come from the animal directly. The tissue is processed so that a microscope can resolve individual cells. Knowing the steps helps you read — and trust — what you see.

Sample a small block of gonad tissue (a few millimeters across) from around the visceral mass.
Fix it in a chemical fixative to lock the cells in place and stop decay. (Both studies here used fixation before processing; poorly fixed tissue can be unreadable — more on that later.)
Embed, section, and mount — the tissue is sliced into ribbons only a few microns thick and laid on a glass slide.
Stain with hematoxylin and eosin.

What the two stains do

H&E is the workhorse stain in histology, and the color code is the same on every slide you will ever read:

Hematoxylin → purple / blue

Binds acidic material — above all DNA in nuclei.
So nuclei look purple-blue. Sperm, which are almost pure nucleus, appear as a dense purple haze.

Eosin → pink / red

Binds basic material — mostly cytoplasm and connective tissue proteins.
So cytoplasm and the body of an egg look pink, with a purple nucleus inside.

Mental shortcut: purple = "where the DNA is" (nuclei, sperm); pink = "the stuff around it" (cytoplasm, connective tissue). A follicle full of big pink cells with purple dots = eggs. A follicle full of solid purple swirls = sperm.

Magnification: zoom for different jobs

The studies imaged slides at several magnifications, and each answers a different question:

Power	What it's good for
4× / 10×	The big picture — how much of the field is follicle/acinus vs. connective tissue, and how full the compartments are. Most staging starts here.
40×	Cell-level detail — measuring an oocyte, checking whether sperm are arranged in bands, telling a spermatid from a spermatozoon.

Follicletap to flip

Sac-like compartment in the female gonad where oocytes develop.

Acinustap to flip

Sac-like compartment in the male gonad where sperm develop. Plural: acini.

Lumentap to flip

The open central space of a follicle or acinus that fills with mature gametes.

Connective tissuetap to flip

The "packing" tissue between follicles/acini. Lots of it = immature; little = ripe.

QYou see a compartment crammed with a swirling, solid purple mass and almost no pink. What is the most likely content?

Mark this section as done

Section 5

Telling the sexes apart

This is the first question on any slide. The rule is short:

See oocytes → female. See spermatids or spermatozoa → male. Everything else is just learning what those cells look like.

The female follicle, labeled

A female follicle. Eggs are large, round, pink-bodied cells with a prominent purple nucleus. Immature ones cling to the wall (often pear-shaped); mature ones float free in the lumen.

The male acinus, labeled

A male acinus. Sperm are almost pure nucleus, so a ripe acinus reads as a solid purple mass — often with a pinwheel of radial bands, heads on the outside and tails sweeping into the center.

Female — look for

Large, round, individually visible cells.
Pink cytoplasm with one big purple nucleus each.
Some attached to the wall (pear-shaped), some free in the center.
You can count and measure them.

Male — look for

A dense, fine, purple mass — too small to count.
Radial bands / whorls in ripe acini.
A size gradient: bigger cells on the wall, tiny sperm in the center.
Little to no pink inside a full acinus.

Q1A compartment contains a dozen large round cells, each with pink cytoplasm and a single big purple nucleus; a few are still attached to the wall by a stalk. Sex?

Q2At 40× you see countless tiny dense nuclei sweeping toward an open center in radial bands, with very little pink. Sex?

Mark this section as done

Section 6

Staging female development — the geoduck scheme

Once you know it's female, the second question is how ripe? Crandall & Roberts staged 70 geoduck gonads sampled weekly across one winter. They built a fine-scale, 7-stage scheme for females based on two measurable things:

Secondary (2°) oocyte size, in microns (µ) — bigger eggs = more mature.
Follicle size and how much of the field is follicle vs. connective tissue.

Stage	Defining characteristics
1	No secondary oocytes, or 2° oocytes only ~5–15 µ
2	Follicles ~200–300 µ; 2° oocytes ~20–35 µ
3	Follicles ~300–500 µ; 2° oocytes ~20–35 µ
4	Very few follicles; 2° oocytes ~45–60 µ
5	More follicles than Stage 4; 2° oocytes ~50–75 µ
6	More connective tissue than Stage 7; 2° oocytes ~65–85 µ
7	Almost no connective tissue, mostly follicles; 2° oocytes ~65–85 µ

How to read this table. Two things climb together as you go down: oocyte size and how packed with follicles the tissue is. By Stage 7 the field is nearly wall-to-wall follicles full of large eggs, and connective tissue has all but vanished.

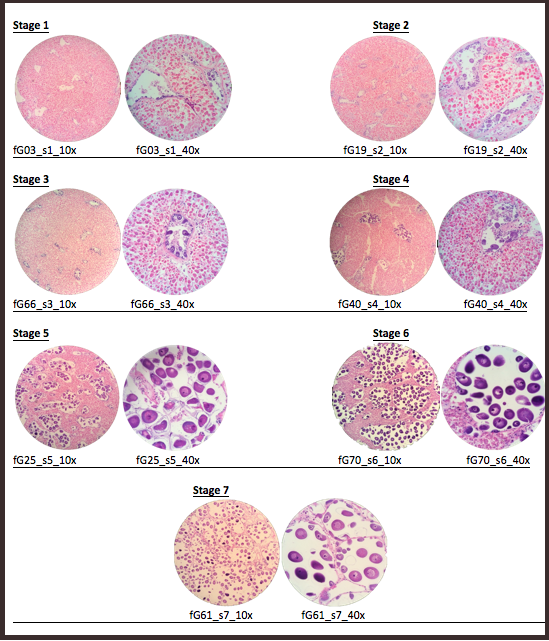

Composite of geoduck female gonad histology, stages 1 through 7, each shown at 10x and 40x. — **Real geoduck female slides, Stages 1–7** (10× left, 40× right of each pair). Trace the progression: in early stages the field is pale and mostly connective tissue with tiny cells; by the late stages it fills with large, well-defined oocytes. Source: Crandall & Roberts, geoduck reproductive-maturation report.

Fine-scale staging is relative, not universal. Because this scheme was built to resolve small weekly changes across one winter, its "Stage 3" is not the same as a "Stage 3" in the broader literature, where stage 3 may mean fully mature. Always know which scheme you're using before comparing numbers.

Practice — you're handed an unlabeled female geoduck slide:

At 40× the secondary oocytes measure about 70 µ. At 10× the field is wall-to-wall follicles with almost no connective tissue between them. What stage, roughly?

Around Stage 7. Oocytes of 65–85 µ place it at Stage 6 or 7; "almost no connective tissue, mostly follicles" is the feature that distinguishes Stage 7 from Stage 6 (which keeps more connective tissue). This is a ripe female.

QTwo female slides have the same oocyte size (~70 µ), but one has noticeably more connective tissue between follicles than the other. Which is more advanced?

Mark this section as done

Section 7

Staging male development — the geoduck scheme

Males can't be staged by "egg size" — sperm are all tiny. Instead, Crandall & Roberts used two coverage measures:

How much of the tissue is acini (vs. connective tissue) — and how large the acini are.
What fraction of each acinus is filled with spermatids/spermatozoa — i.e., how "full" it is.

Stage	Defining characteristics
1	Mostly connective tissue; small acini; ~<5% spermatids per acinus
2	Larger acini than Stage 1; ~5–10% spermatids per acinus
3	More connective tissue than Stage 4; smaller acini than Stages 4–5; ~50% spermatids per acinus
4	More connective tissue than Stage 5; large acini; ~50–75% spermatids per acinus
5	Very little connective tissue; large acini; ~75–90% spermatids per acinus

Read it as "filling up." Early acini are small and nearly empty (mostly connective tissue around them). As the male ripens, acini grow, connective tissue shrinks, and each acinus fills with sperm — until at Stage 5 the field is large acini packed 75–90% full.

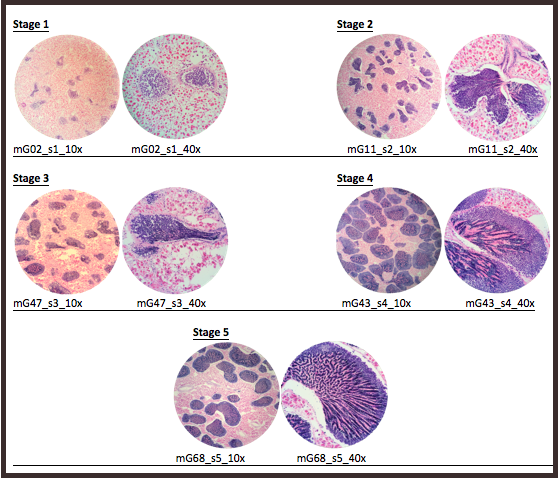

Composite of geoduck male gonad histology, stages 1 through 5, each shown at 10x and 40x. — **Real geoduck male slides, Stages 1–5** (10× left, 40× right of each pair). Watch the purple take over: early stages are pale with small, mostly empty acini; by Stage 5 the acini are large and densely filled with banded spermatozoa. Source: Crandall & Roberts.

Practice — an unlabeled male geoduck slide:

The acini are large and there is very little connective tissue left. At 40× each acinus looks roughly 80% packed with banded spermatozoa. Stage?

Stage 5. "Very little connective tissue, large acini, ~75–90% spermatids" is the Stage 5 signature — a ripe male, ready to spawn.

QWhich combination indicates the least mature male gonad?

Mark this section as done

Section 8

The hermaphrodite twist — the basket cockle

Now the exception that makes you a careful reader. The basket cockle (Clinocardium nuttallii) is a simultaneous hermaphrodite: a single animal carries both male and female tissue at the same time, in separate follicles sitting side by side in the same section.

Don't panic when you see both. In a cockle, finding oocytes and spermatozoa on one slide is not a mistake, not contamination, and not a mixed-up sample — it's the normal biology. You stage the female follicles and the male follicles separately, then compare them.

The cockle 5-grade scale

Lawson & Roberts (following Gallucci & Gallucci 1982) used a single 1–5 grade scale applied to each gonad type. Notice it runs further than the geoduck scheme — it also covers spawned and spent tissue.

Grade	Female tissue	Male tissue
1 underdeveloped	Oogonia + a few oocytes line the follicle; follicles generally collapsed.	Spermatogonia and spermatocytes partially line the wall; follicles generally collapsed.
2 developing	Rounded and many pear-shaped oocytes attached to the wall; 1–2 detached; follicle walls breaking down so follicles look larger.	Spermatocytes and spermatids predominate; <⅓ of the follicle filled with spermatozoa.
3 ripe	Some oocytes still attached; many now free within the follicle.	Follicle >⅔ full of spermatozoa, arranged in characteristic bands.
4 recently spawned	Occasional free oocyte; many remaining oocytes undergoing karyolysis & cytolysis (breaking down).	Follicle collapsed with some residual spermatozoa; a few spermatids still on the wall.
5 spent	Hard to tell the sexes apart. Follicles collapsed; only rare residual eggs or sperm reveal a follicle's sex; pigmented cells present.

See it on real slides

In these cockle sections the male gonad is circled in white and the female gonad in red — both in the same animal.

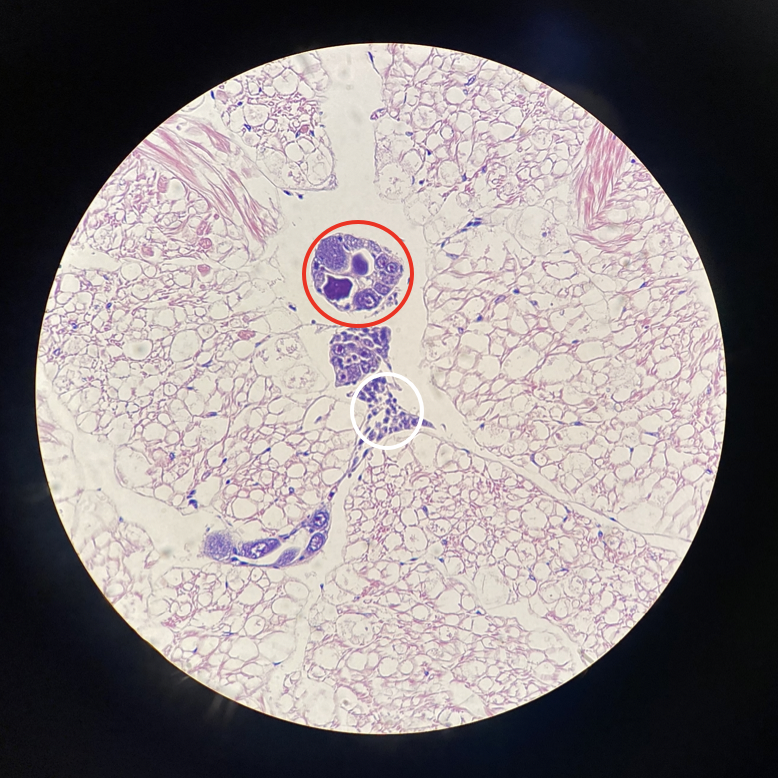

Cockle stage 1 gonad, underdeveloped, male circled white and female circled red. — **Grade 1 — underdeveloped.** Collapsed follicles, sparse cells, lots of pale connective tissue.

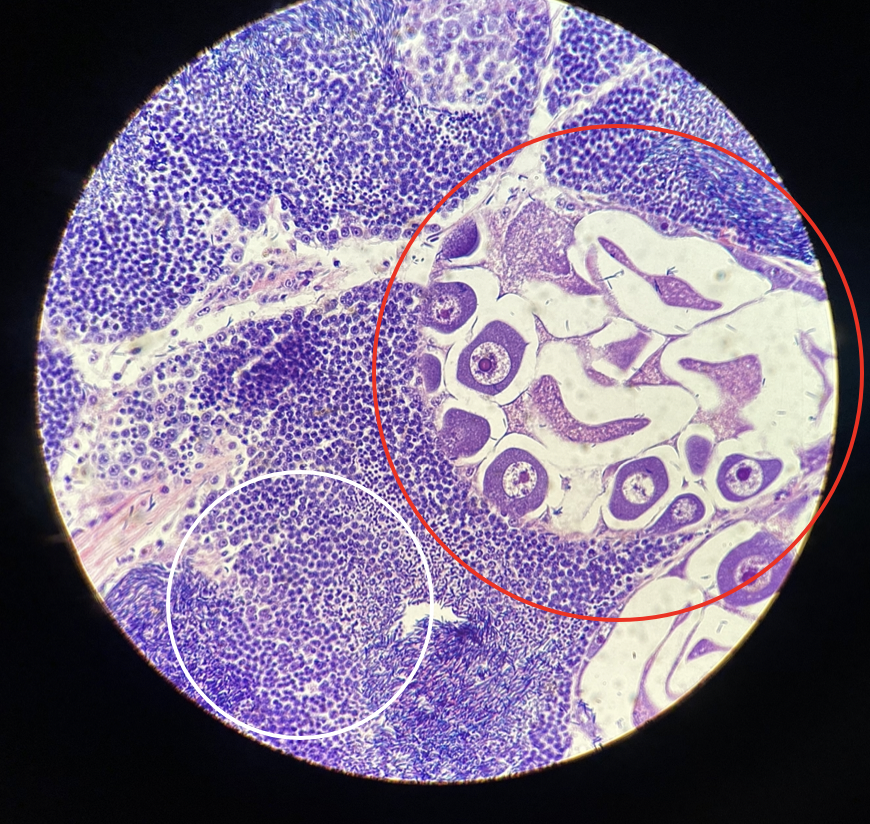

Cockle stage 2 gonad, developing, male circled white and female circled red. — **Grade 2 — developing.** Follicles filling; oocytes attached to walls; acini partly filling with sperm.

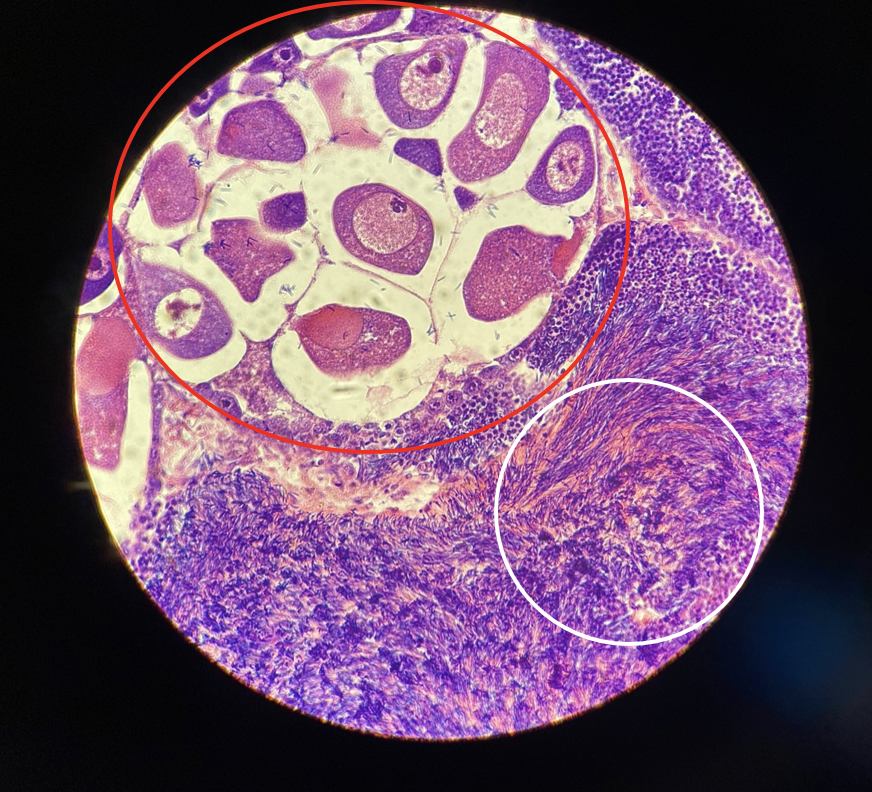

Cockle stage 3 gonad, developed, male circled white and female circled red. — **Grade 3 — ripe.** Female follicle (red) packed with large free oocytes; male follicle (white) more than two-thirds full of banded spermatozoa. Source: Lawson & Roberts, basket-cockle report.

Relative maturity — a real finding you can use

Because both sexes sit in one animal, you can ask whether they ripen in step. Lawson & Roberts found that when the two differed, the male gonad was usually ahead of the female, and that larger cockles (>3.5 cm) showed more uniform, predictable maturity between the two. Practical upshot: the female gonad is the more conservative indicator — if the female tissue is ripe, the male almost certainly is too.

Q1On a basket cockle slide you clearly see both mature oocytes and bands of spermatozoa in neighboring follicles. The correct interpretation is:

Q2A cockle follicle is collapsed, holds only a few oocytes that are visibly breaking down (karyolysis), with little else. Best grade?

Mark this section as done

Section 9

Cautions & common pitfalls

Histological staging is powerful but human. Keep these in mind so your calls are honest and reproducible.

Staging is partly subjective

The cutoffs between stages are drawn by people. Crandall & Roberts explicitly note their stage boundaries were set subjectively. That's normal — but it means you should stage a whole set with the same eyes and same criteria, ideally without knowing which week or treatment a slide came from (to avoid bias), and have a second reader check tricky ones.

Know which scheme you're using

A fine-scale scheme (designed to catch small weekly changes) and a broad-scale scheme (immature → ripe → spent) use the same numbers to mean different things. A geoduck "Stage 3" on the fine winter scheme is fairly immature; a "Stage 3" in much of the literature is mature. Never compare stage numbers across schemes without checking the definitions.

Fixation and section quality

Poorly fixed tissue can be distorted or unreadable — Crandall & Roberts flagged several specimens as incorrectly fixed and had to set them aside. Before you stage, ask: is this section intact, or am I looking at an artifact (a tear, a fold, shrinkage)? Don't over-interpret damaged tissue.

Size and age are clues, not proof

It's tempting to guess ripeness from how big the animal is. In geoduck, Crandall & Roberts found no reliable correlation between weight or length and stage at their fine time scale. In cockle, size was a better predictor (bigger = more developed), but still a tendency, not a guarantee. The slide is the ground truth; morphometrics only support it.

Good practice checklist: stage blind to treatment · apply one consistent scheme · note fixation quality · use a second reader for borderline calls · let the tissue, not the animal's size, make the final call.

QA classmate stages a batch knowing which were "spring-conditioned," and reports those as more advanced. The biggest methodological concern is:

Mark this section as done

Section 10

Putting it together

Here is the whole workflow on one card. Run every new slide through it.

The staging decision flow. Quality first, then sex, then stage — and note which scheme you applied.

Capstone self-check

Five mixed questions. No peeking at earlier sections first — see how much stuck.

1On an H&E slide, which structure will stain the deepest purple?

2A geoduck female slide: oocytes ~25 µ, follicles ~250 µ, plenty of connective tissue. Closest stage?

3A geoduck male slide: large acini, very little connective tissue, ~85% filled with banded sperm. Stage?

4You find eggs and sperm together on one section. Before calling it a hermaphrodite, what should you confirm?

5A cockle follicle is collapsed with only rare residual gametes and some pigmented cells; sex is hard to call. Grade?

Mark this section as done

Section 11

Glossary & sources

Glossary

Acinus: Sac-like compartment of the male gonad where sperm develop (plural: acini).
Connective tissue: Packing tissue between follicles/acini; abundant when immature, scarce when ripe.
Cytolysis / karyolysis: Breakdown of a cell / its nucleus — seen in spawned, degrading oocytes.
Dioecious: Having separate sexes; an individual is male or female (e.g., geoduck).
Eosin: The pink/red H&E dye that stains cytoplasm and connective tissue.
Follicle: Sac-like compartment of the female gonad where oocytes develop.
Gametogenesis: Production of gametes — oogenesis (eggs) and spermatogenesis (sperm).
Gonad: The reproductive tissue; in bivalves it is diffuse, around the visceral mass.
Hematoxylin: The purple/blue H&E dye that stains nuclei (DNA).
Lumen: The open central space of a follicle or acinus.
Oocyte: A developing egg cell; "secondary" (2°) oocytes are the larger, later ones used for sizing.
Simultaneous hermaphrodite: One animal bearing functional male and female tissue at the same time (e.g., basket cockle).
Spermatid / spermatozoon: Late-stage / final male gametes; their dense nuclei make ripe acini read solid purple.
Spent: Post-spawning gonad, largely emptied and collapsed.
Staging: Assigning a maturity rank to a gonad using defined histological criteria.

Source reports

This tutorial is built from two Roberts Lab reproductive-maturation studies. The staging tables, criteria, and all histology images come directly from them:

Crandall, G., and S. B. Roberts. Characterization of Reproductive Maturation in Geoduck Clams (Panopea generosa). Roberts Lab Current Findings. — the geoduck 7-stage female and 5-stage male schemes and slide images.
Lawson, D., and S. B. Roberts. Characterization of Reproductive Maturation in the Basket Cockle, Clinocardium nuttallii. Roberts Lab Current Findings. — the 5-grade hermaphrodite scale (after Gallucci & Gallucci 1982), relative-maturity findings, and cockle slide images.

Want to go deeper? Read the two source reports in full for the sampling design, statistics, and the aquaculture context behind the staging schemes you just learned.

Mark this section as done
