Using cDNA from 20230713, performed qPCR on the following primer sets selected by Steven:
SRID | Primer-name |
---|---|
1408 | Cg_18s_F |
1409 | Cg_18s_R |
1385 | Cg_ATPsynthase_F |
1386 | Cg_ATPsynthase_R |
1383 | Cg_citratesynthase_F |
1384 | Cg_citratesynthase_R |
1172 | Cg_GAPDH_205_F |
1173 | Cg_GAPDH_355_R |
599 | Cg_HSP70_F |
598 | Cg_HSP70_R |
1532 | Cg_Hsp90_F |
1533 | Cg_Hsp90_R |
1829 | Cg_VIPERIN_F |
1828 | Cg_VIPERIN_R |
qPCR calcs:
- 20230719 - qPCR Calcs Noah gigas ctenidia cDNA (Google Sheet)
Reactions were run on white, low-profile, 96-well qPCR plates (USA Scientific). A total of two plates were run. One was run on a CFC Connect (BioRad) and the other on a CFX96 (BioRad). See the qPCR Report in the RESULTS section below for cycling params, plate layouts, etc.
All samples were run in singular. Normally duplicates/triplicates are run. However, due to time and sample constraints for Noah’s project/poster, samples were just run in singular. No template controls were run in duplicate.
RESULTS
Here’s a brief summary of the qPCR data, based on looking at the amplification and melt curve plots below.
18s
: No Template Controls (NTCs) show contamination in melt curve and will need to be rerun.
ATP_synthase
: Melt curve looks good. Amplification looks good.
Citrate_synthase
: Melt curve looks good. Amplification looks good.

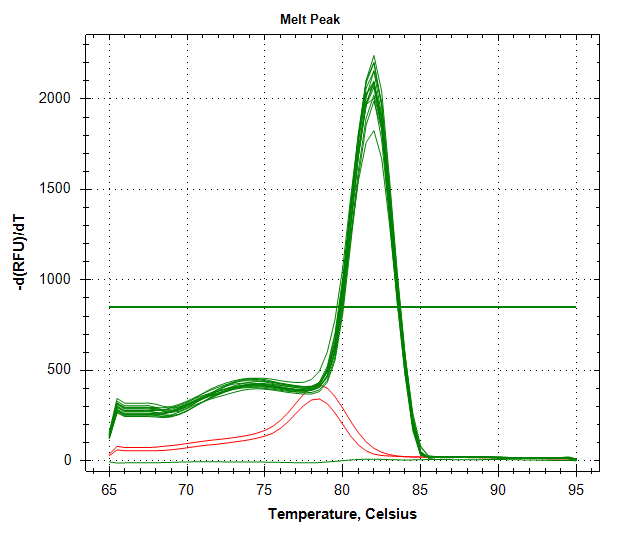

GAPDH
: NTC’s do show some very late amplification, but does not cross Cq threshold. Amplification plots show distinct separation between groups of samples, suggesting some response to treatments. Needs to be explored further.

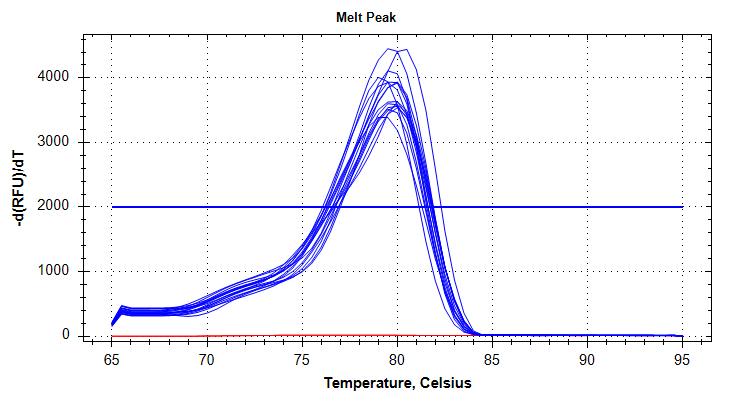

HSP70
: Amplification looks good. Melt curves are noticeably more broad than other primer sets. Additional scrutiny reveals a potential additional peak. Both aspects suggest that more than one product is being amplified. This is not terribly surprising, as there are numerous HSP70 present in organisms and they share a great deal of sequence homology to one another. Without careful primer design, it’s very easy to end up amplifying more than one gene in the HSP70 family.
HSP90
: Melt curve looks good. Amplification looks good.
VIPERIN
: Melt curve looks good. Amplification looks good.
qPCR Results file (CSV)
qPCR Data file (QPCRD - CFX Maestro required)
qPCR Report (PDF)
qPCR Results file (CSV)
qPCR Data file (QPCRD - CFX Maestro required)
qPCR Report (PDF)
PLOTS
NOTE: NTCs are denoted by red lines in all plots.
Target | Amplification | Melt Curve |
---|---|---|

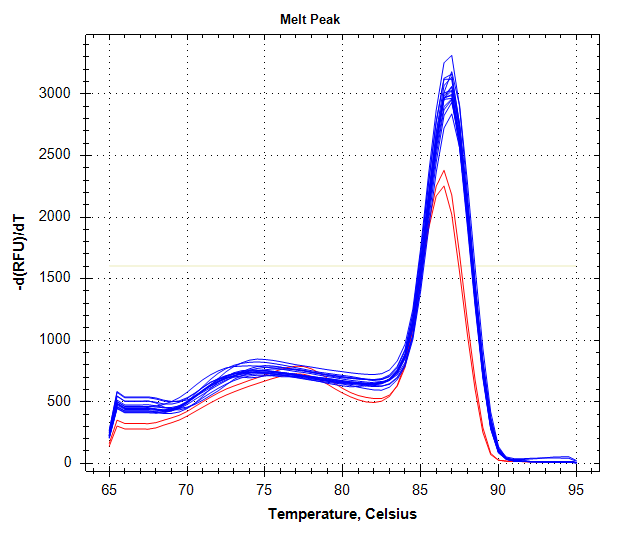

Cg_18s | ||

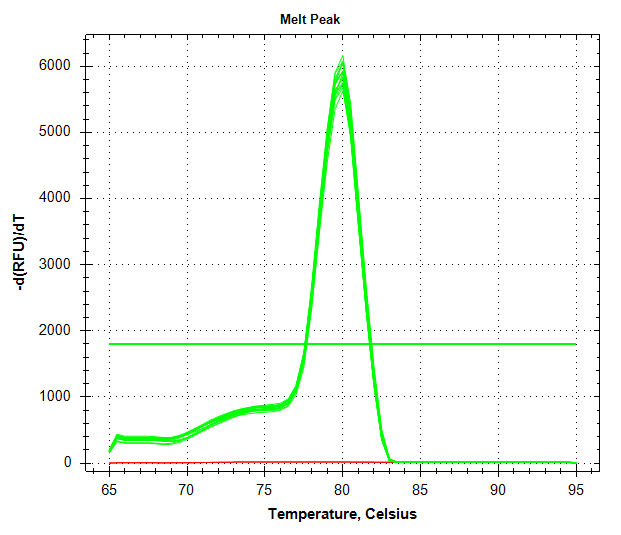

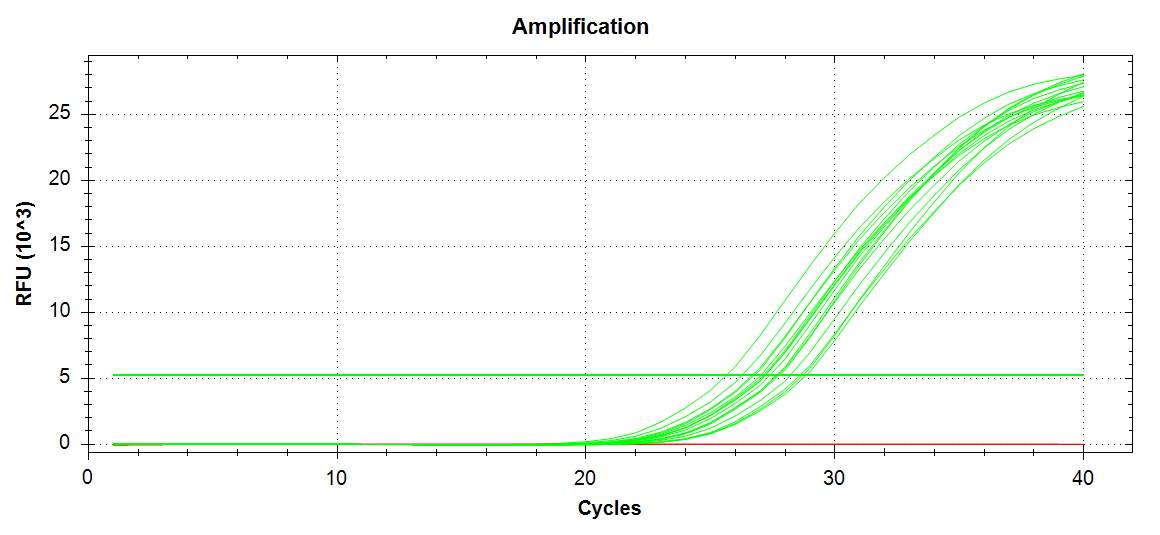

Cg_ATPsynthase | ||

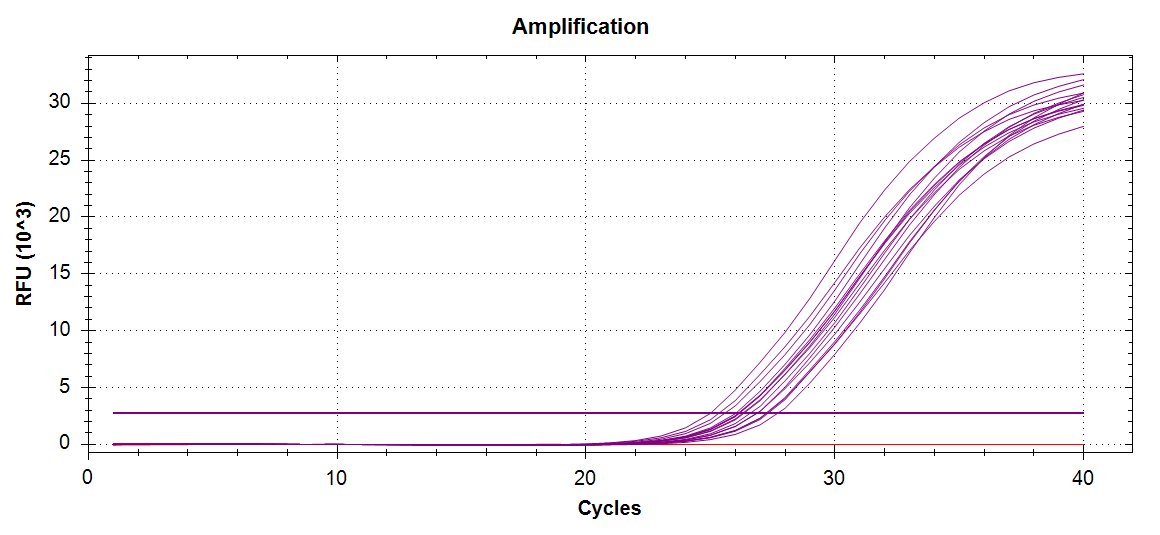

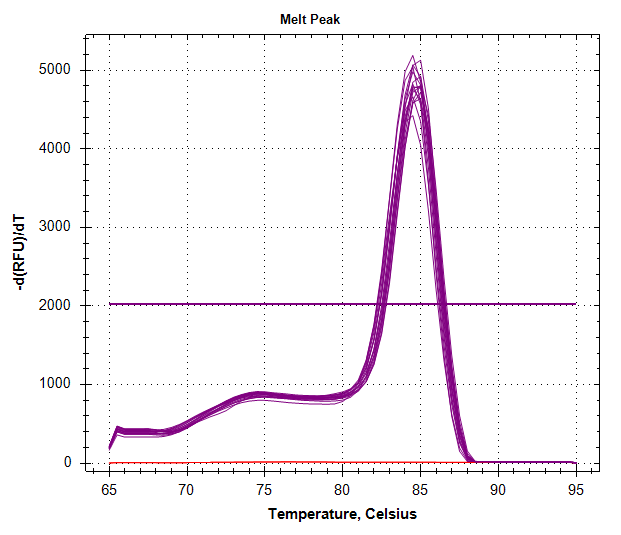

Cg_citratesynthase | ||

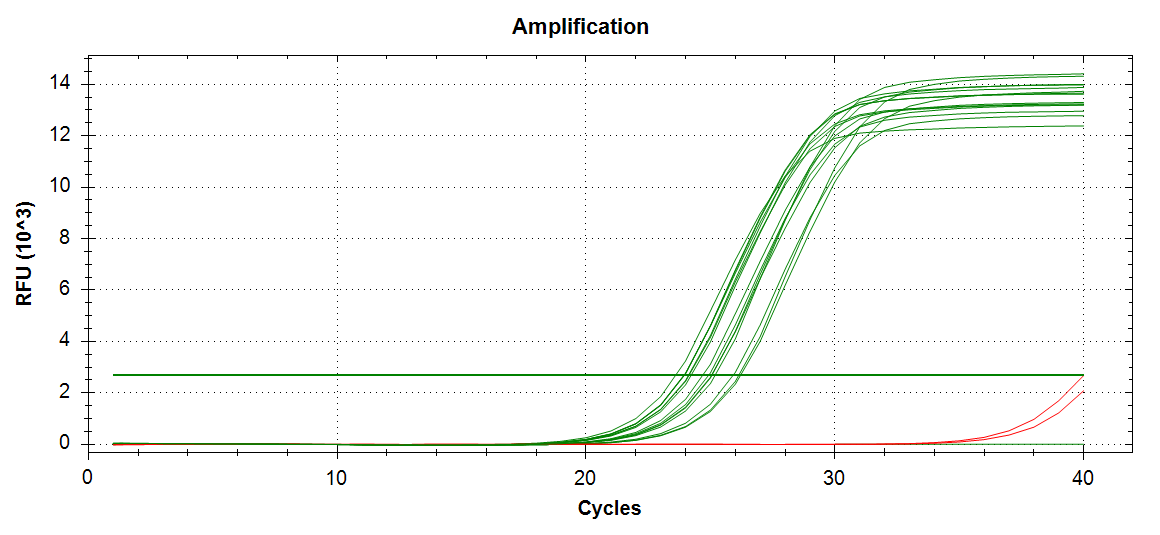

Cg_GAPDH | ||

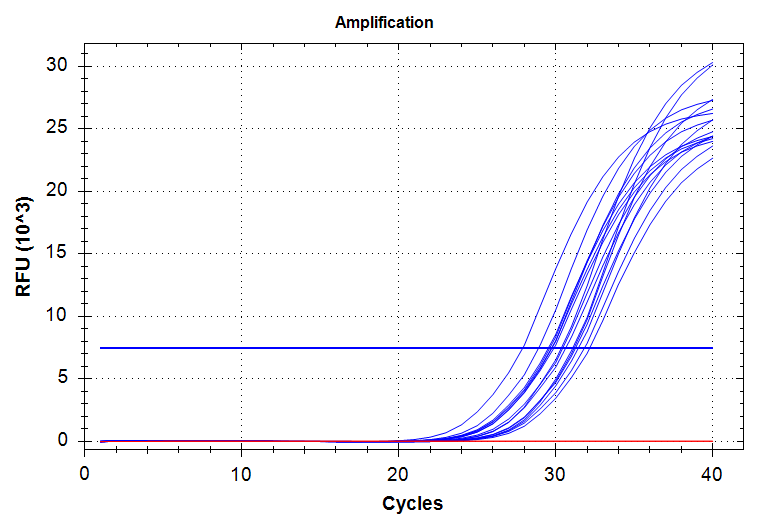

Cg_HSP70 | ||

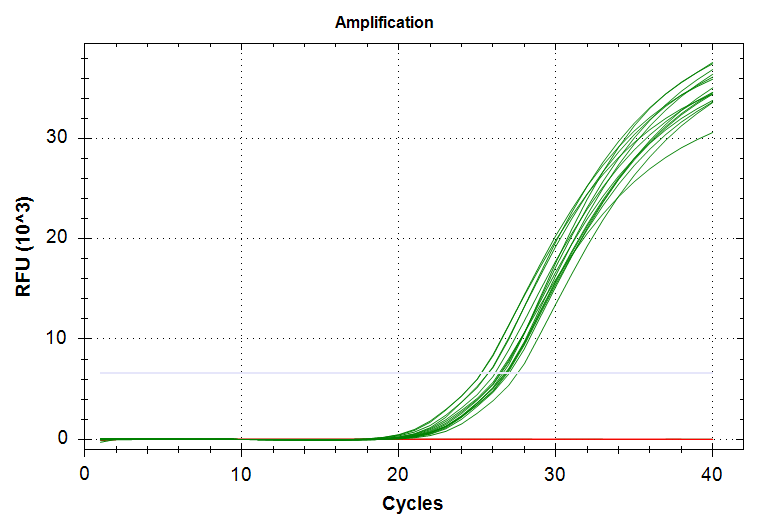

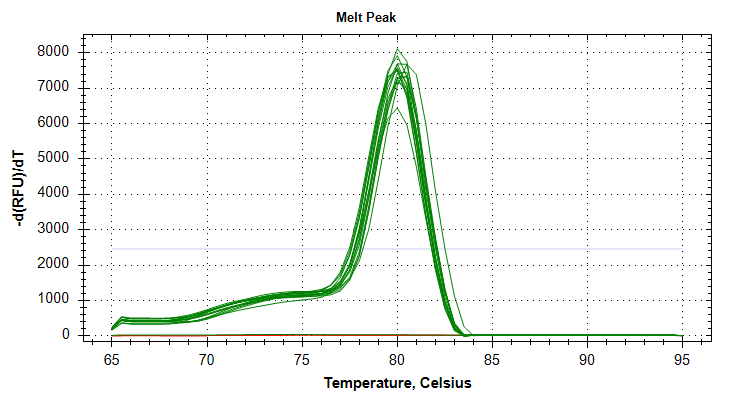

Cg_Hsp90 | ||

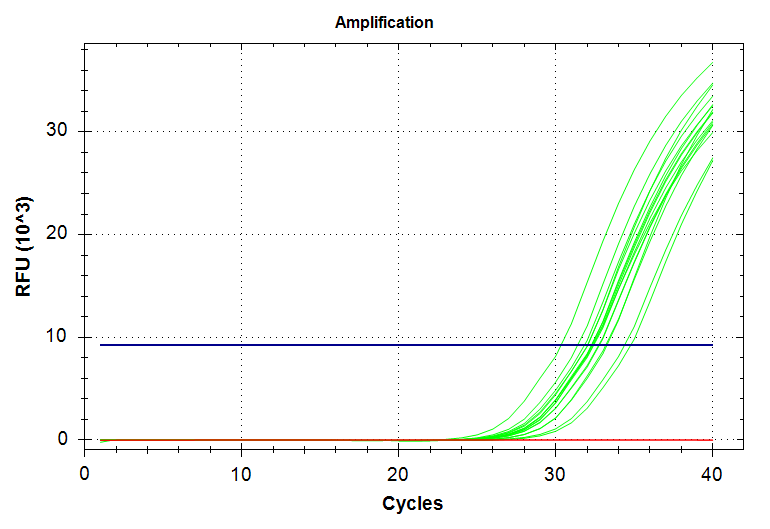

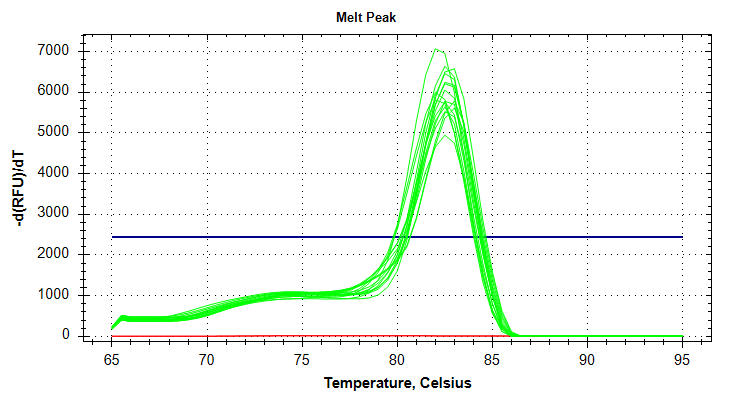

Cg_VIPERIN |
