INTRO

This post presents results from resazurin assays conducted on families of Magallana gigas (Pacific oyster) in response to freshwater stress at room temperature (~21°C) over the course of 28hrs.

METHODS

Resazurin assays

11 oysters from each of the nine families were distributed across nine, 12-well plates and submerged in 4mL of resazurin working solution prepared with TAPWATER. Each plate included one well with working solution only, as a negative control. Plates were held at room temperature (~21°C) for 28hrs, and fluorescence was measured periodically using a Synergy HTX (Agilent) plate reader.

Oyster measurements

Oyster area was measured using ImageJ. Oysters were photographed in their plates with a ruler for scale, and the area of each oyster was calculated using ImageJ “Measure Particles” tool.

Data analysis

Analysis was conducted in this R Markdown file:

Important

AI Use Level 4: Substantial AI contribution

The rendered markdown is below.

RESULTS

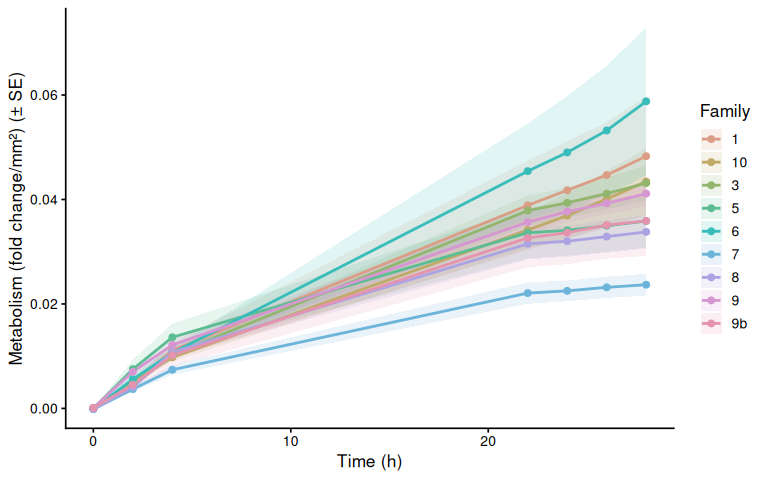

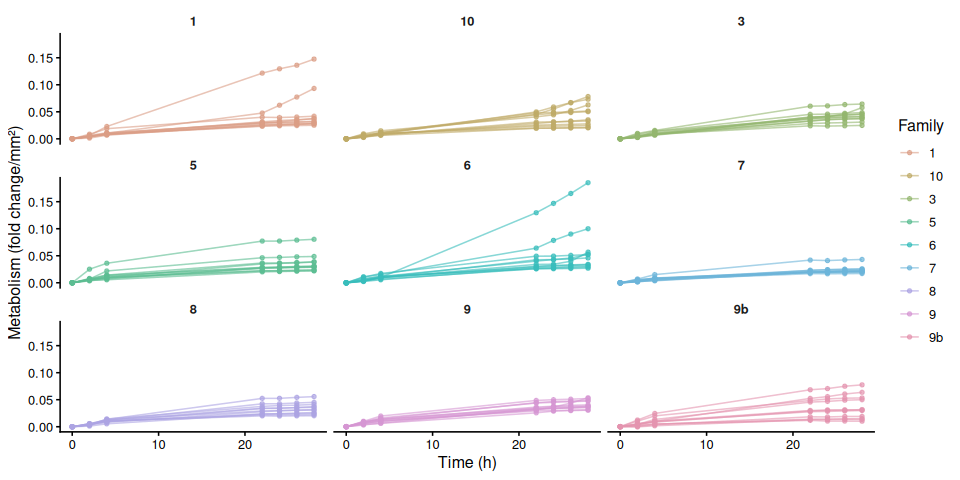

Size-normalized metabolic rate (resazurin fluorescence fold-change per mm² body area, integrated as AUC over ~28 h) did not differ significantly among the nine USDA M. gigas families exposed to freshwater stress at room temperature.

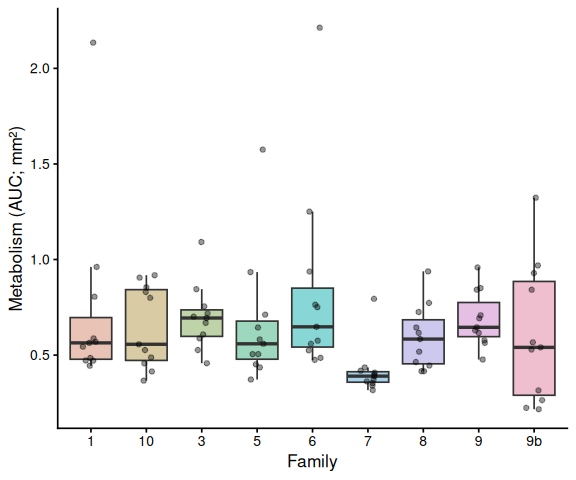

No Tukey-adjusted pairwise comparisons on AUC reached significance. Despite the non-significant AUC result, the time-series linear mixed model identified a consistent and strengthening contrast between families 6 and 7 across the later timepoints: the 6 vs. 7 contrast was significant at 22 h (p = 0.018), 24 h (p = 0.004), 26 h (p < 0.001), and 28 h (p < 0.0001). At 28 h, family 6 also differed significantly from families 5 (p = 0.023), 8 (p = 0.008), and 9b (p = 0.023), and family 1 differed from family 7 (p = 0.010).

1 Background

M. gigas oysters from nine USDA families were placed individually in clear 12-well plates and submerged in 4 mL of resazurin working solution prepared with tap water to assess freshwater stress responses at room temperature (20°C). Plates were left at room temperature for the duration of the experiment. At each designated timepoint, plates were transferred to a Synergy HTX (Agilent) plate reader and fluorescence was measured directly in the 12-well plates using the Gen5 software (Agilent).

See Resazurin/data/20260505-mgig-freshwater-RT/README.md for full experimental notes.

1.1 Expected inputs

Path Description
Resazurin/data/20260505-mgig-freshwater-RT/plate-*-T*.txt Plate reader fluorescence exports (one file per plate per timepoint)
Resazurin/data/20260505-mgig-freshwater-RT/layout.csv Well metadata: plate ID, well ID, blank flag, family groups, sample IDs, area measurements (mm², from ImageJ)

1.2 Expected outputs

All outputs are written to Resazurin/outputs/01.00-resazurin-20260505-mgig-freshwater-RT/.

File Description
figures/ All plots generated by this script
auc_all_metrics.csv Per-individual AUC values for every active measurement metric
auc_summary.csv Group-level AUC summary statistics (mean, SD, SE, median)
metabolism.csv Full per-well per-timepoint metabolism data frame
pairwise_stats.csv Tukey-adjusted pairwise comparisons from AUC linear models

2 Setup

2.1 Knitr options

knitr::opts_chunk$set(
  echo = TRUE,         # Display code chunks
  eval = TRUE,        # Evaluate code chunks
  warning = FALSE,     # Hide warnings
  message = FALSE,     # Hide messages
  comment = "",         # Prevents appending '##' to beginning of lines in code output
  results = 'hold'     # Holds output so it's all printed together after code chunk
)

2.2 Load libraries

library(tidyverse)
library(pracma)       # trapz()
library(lme4)
library(lmerTest)
library(emmeans)
library(multcompView)
library(cowplot)
library(colorspace)   # qualitative_hcl() for large palettes

3 Helper Functions

normalize_well_id <- function(x) {
  x <- toupper(trimws(x))
  valid <- str_detect(x, "^[A-Z]+[0-9]+$")
  out <- rep(NA_character_, length(x))
  if (!any(valid)) return(out)
  m <- str_match(x[valid], "^([A-Z]+)([0-9]+)$")
  out[valid] <- paste0(m[, 2], as.integer(m[, 3]))
  out
}

parse_time_hr <- function(path) {
  hit <- str_match(basename(path),
                   "(?i)-T([0-9]+(?:\\.[0-9]+)?)\\.txt$")
  as.numeric(hit[, 2])
}

parse_plate_id <- function(path) {
  hit <- str_match(basename(path),
    "(?i)^plate-([A-Za-z0-9-]+)-T[0-9]+(?:\\.[0-9]+)?\\.txt$")
  id <- hit[, 2]
  ifelse(is.na(id), "unknown", id)
}

extract_results_block <- function(lines) {
  results_idx <- which(trimws(lines) == "Results")
  if (length(results_idx) == 0) stop("No Results section found")
  idx <- results_idx[1]
  header_tokens <- str_split(lines[idx + 1], "\\t")[[1]] |> trimws()
  col_ids <- header_tokens[
    header_tokens != "" & str_detect(header_tokens, "^[0-9]+$")]
  j <- idx + 2
  data_lines <- character()
  while (j <= length(lines)) {
    line <- lines[j]
    if (trimws(line) == "") break
    if (!str_detect(line, "^[A-Za-z]\\t")) break
    data_lines <- c(data_lines, line)
    j <- j + 1
  }
  list(col_ids = col_ids, data_lines = data_lines)
}

parse_plate_export <- function(path) {
  lines <- readLines(path, warn = FALSE)
  res <- extract_results_block(lines)

  map_dfr(res$data_lines, function(line) {
    tokens <- str_split(line, "\\t")[[1]] |> trimws()
    tokens <- tokens[tokens != ""]
    row_letter <- tokens[1]
    nums <- suppressWarnings(as.numeric(tokens[-1]))
    valid_idx <- which(!is.na(nums))
    if (length(valid_idx) == 0) return(tibble())
    vals <- nums[valid_idx]
    n <- min(length(vals), length(res$col_ids))
    tibble(
      row_id  = toupper(row_letter),
      col_id  = as.integer(res$col_ids[seq_len(n)]),
      well_id = normalize_well_id(
        paste0(toupper(row_letter), res$col_ids[seq_len(n)])),
      value   = vals[seq_len(n)]
    )
  }) %>%
    mutate(
      plate_id = str_to_lower(parse_plate_id(path)),
      time_hr  = parse_time_hr(path)
    )
}

trapezoid_auc <- function(time_hr, value) {
  ok <- is.finite(time_hr) & is.finite(value)
  t <- time_hr[ok]
  v <- value[ok]
  if (length(t) < 2) return(NA_real_)
  ord <- order(t)
  t <- t[ord]; v <- v[ord]
  sum(diff(t) * (head(v, -1) + tail(v, -1)) / 2)
}

# Shared helper: extract display unit string from a measurement column name.
# e.g. "area_mm2_measurement" -> "mm²", "weight_mg_measurement" -> "mg"
parse_meas_unit <- function(col_name) {
  unit_raw <- col_name |>
    str_remove("^metabolism_per_") |>
    str_remove("_measurement$") |>
    str_extract("[^_]+$")
  case_when(
    unit_raw == "mm2" ~ "mm²",
    unit_raw == "cm2" ~ "cm²",
    unit_raw == "mm3" ~ "mm³",
    unit_raw == "cm3" ~ "cm³",
    TRUE              ~ unit_raw
  )
}

# y-axis label for metabolism line plots: "fold change/mm²"
metabolism_y_label <- function(col_name) {
  paste0("Metabolism (fold change/", parse_meas_unit(col_name), ")")
}

# y-axis label for AUC box plots: "Metabolism (AUC; mm²)"
auc_y_label <- function(metric_name) {
  paste0("Metabolism (AUC; ", parse_meas_unit(metric_name), ")")
}

4 Load Data

4.1 Plate export files

proj_root <- rprojroot::find_rstudio_root_file()
data_dir  <- file.path(proj_root, "Resazurin", "data", "20260505-mgig-freshwater-RT")
out_dir   <- file.path(proj_root, "Resazurin", "outputs",
                        "01.00-resazurin-20260505-mgig-freshwater-RT")
fig_dir   <- file.path(out_dir, "figures")

dir.create(fig_dir, recursive = TRUE, showWarnings = FALSE)
dir.create(out_dir, recursive = TRUE, showWarnings = FALSE)

plate_files <- list.files(
  data_dir,
  pattern = "(?i)^plate-.*-T[0-9]+(?:\\.[0-9]+)?\\.txt$",
  full.names = TRUE
)

plate_raw <- map_dfr(plate_files, function(path) {
  tryCatch(parse_plate_export(path),
           error = function(e) {
             message("Parse error in ", basename(path), ": ", e$message)
             tibble()
           })
})

str(plate_raw)
tibble [756 × 6] (S3: tbl_df/tbl/data.frame)
 $ row_id  : chr [1:756] "A" "A" "A" "A" ...
 $ col_id  : int [1:756] 1 2 3 4 1 2 3 4 1 2 ...
 $ well_id : chr [1:756] "A1" "A2" "A3" "A4" ...
 $ value   : num [1:756] 122 118 118 124 111 114 112 121 120 121 ...
 $ plate_id: chr [1:756] "a" "a" "a" "a" ...
 $ time_hr : num [1:756] 0 0 0 0 0 0 0 0 0 0 ...

4.2 Plate consistency check

Checks that every plate has the same number of wells at every timepoint. The expected well count is the mode across all plate × timepoint reads. Any plate with at least one deviating read is flagged and dropped entirely before any further analysis — removing only the aberrant timepoint would break the fold-change baseline calculation.

well_counts <- plate_raw %>%
  group_by(plate_id, time_hr) %>%
  summarise(n_wells = n_distinct(well_id), .groups = "drop")

expected_n_wells <- as.integer(
  names(which.max(table(well_counts$n_wells)))
)

inconsistent_reads <- well_counts %>%
  filter(n_wells != expected_n_wells) %>%
  arrange(plate_id, time_hr)

inconsistent_plate_ids <- unique(inconsistent_reads$plate_id)

if (nrow(inconsistent_reads) > 0) {
  cat("**Plate consistency check FAILED.**",
      "Expected", expected_n_wells, "wells per plate-timepoint read.",
      length(inconsistent_plate_ids),
      "plate(s) have at least one deviating read and are excluded",
      "from all analyses:\n\n")
  cat(knitr::kable(
    inconsistent_reads,
    col.names = c("Plate", "Time (h)", "Wells read"),
    caption   = paste("Expected:", expected_n_wells, "wells per read")
  ), sep = "\n")
  cat("\n")
  plate_raw <- plate_raw %>%
    filter(!plate_id %in% inconsistent_plate_ids)
  message(length(inconsistent_plate_ids),
          " plate(s) removed from plate_raw: ",
          paste(inconsistent_plate_ids, collapse = ", "))
} else {
  cat("Plate consistency check passed: all",
      n_distinct(well_counts$plate_id), "plates have",
      expected_n_wells, "wells at every timepoint.\n")
}

Plate consistency check passed: all 9 plates have 12 wells at every timepoint.

4.3 Layout file

layout_path <- file.path(data_dir, "layout.csv")

layout_raw <- read_csv(layout_path,
                       col_types = cols(.default = "c"),
                       show_col_types = FALSE)

# Standardise column names to snake_case
names(layout_raw) <- names(layout_raw) |>
  str_to_lower() |>
  str_replace_all("[^a-z0-9]+", "_") |>
  str_replace_all("_+", "_") |>
  str_replace("_$", "")

# Normalise plate_id to match plate file ids (strip "plate-" prefix)
layout_clean <- layout_raw %>%
  mutate(
    plate_id = str_remove(str_to_lower(plate_id), "^plate-"),
    well_id  = normalize_well_id(plate_well),
    is_blank = if ("is_blank" %in% names(layout_raw))
      toupper(trimws(is_blank)) %in% c("TRUE", "T", "1", "YES", "Y")
    else
      FALSE
  )

found_exclude_col <- intersect(
  c("exclude_from_analysis", "exclude", "omit", "not_analyzed"),
  names(layout_clean)
)[1]
layout_clean <- layout_clean %>%
  mutate(
    exclude_from_analysis = if (!is.na(found_exclude_col))
      toupper(trimws(.data[[found_exclude_col]])) %in%
        c("TRUE", "T", "1", "YES", "Y")
    else
      FALSE
  )

# Identify measurement columns and group columns
measurement_cols <- names(layout_clean)[
  str_detect(names(layout_clean), "_measurement$")]
group_cols <- names(layout_clean)[
  str_detect(names(layout_clean), "_group$")]

# Cast measurement columns to numeric
layout_clean <- layout_clean %>%
  mutate(across(all_of(measurement_cols),
                ~ suppressWarnings(as.numeric(.x))))

# Determine which measurement columns actually contain finite data
active_meas_cols <- measurement_cols[
  sapply(measurement_cols, function(col)
    any(is.finite(layout_clean[[col]]), na.rm = TRUE))]

# Normalise group values to lowercase so they match colour scale definitions
layout_clean <- layout_clean %>%
  mutate(across(all_of(group_cols),
                ~ str_to_lower(trimws(as.character(.x)))))

message("Group columns: ", paste(group_cols, collapse = ", "))
message("Active measurement columns: ",
        paste(active_meas_cols, collapse = ", "))

str(layout_clean)
tibble [108 × 13] (S3: tbl_df/tbl/data.frame)
 $ plate_id             : chr [1:108] "a" "a" "a" "a" ...
 $ plate_well           : chr [1:108] "A01" "A02" "A03" "A04" ...
 $ is_blank             : logi [1:108] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ family_id_group      : chr [1:108] "6" "6" "6" "6" ...
 $ sample_id_group      : chr [1:108] "1" "2" "3" "4" ...
 $ weight_g_measurement : num [1:108] NA NA NA NA NA NA NA NA NA NA ...
 $ width_mm_measurement : num [1:108] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:108] NA NA NA NA NA NA NA NA NA NA ...
 $ treatment_group      : chr [1:108] NA NA NA NA ...
 $ area_mm2_measurement : num [1:108] 194 170 141 135 107 ...
 $ imagej_id            : chr [1:108] "1" "3" "4" "2" ...
 $ well_id              : chr [1:108] "A1" "A2" "A3" "A4" ...
 $ exclude_from_analysis: logi [1:108] FALSE FALSE FALSE FALSE FALSE FALSE ...

5 Merge Plate Data with Layout

dat <- plate_raw %>%
  left_join(
    layout_clean %>%
      select(plate_id, well_id, is_blank, exclude_from_analysis,
             any_of("exclude_reason"),
             all_of(group_cols), all_of(measurement_cols)),
    by = c("plate_id", "well_id")
  ) %>%
  mutate(
    is_blank = replace_na(is_blank, FALSE),
    exclude_from_analysis = replace_na(exclude_from_analysis, FALSE)
  )

str(dat)
tibble [756 × 15] (S3: tbl_df/tbl/data.frame)
 $ row_id               : chr [1:756] "A" "A" "A" "A" ...
 $ col_id               : int [1:756] 1 2 3 4 1 2 3 4 1 2 ...
 $ well_id              : chr [1:756] "A1" "A2" "A3" "A4" ...
 $ value                : num [1:756] 122 118 118 124 111 114 112 121 120 121 ...
 $ plate_id             : chr [1:756] "a" "a" "a" "a" ...
 $ time_hr              : num [1:756] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank             : logi [1:756] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis: logi [1:756] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ family_id_group      : chr [1:756] "6" "6" "6" "6" ...
 $ sample_id_group      : chr [1:756] "1" "2" "3" "4" ...
 $ treatment_group      : chr [1:756] NA NA NA NA ...
 $ weight_g_measurement : num [1:756] NA NA NA NA NA NA NA NA NA NA ...
 $ width_mm_measurement : num [1:756] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:756] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement : num [1:756] 194 170 141 135 107 ...

6 Raw Fluorescence

6.1 Data frame

# Wells in the plate reader output that have no layout entry get all-NA group
# columns after the join. Keep only wells assigned to at least one group.
active_gc <- intersect(group_cols, names(dat))

raw_df <- dat %>%
  filter(
    !is_blank,
    if (length(active_gc) > 0)
      if_any(all_of(active_gc), ~ !is.na(.))
    else
      TRUE
  ) %>%
  mutate(
    trace_id = if_else(
      !is.na(sample_id_group) & trimws(as.character(sample_id_group)) != "",
      as.character(sample_id_group),
      paste(plate_id, well_id, sep = "_")
    )
  )

families   <- sort(unique(na.omit(raw_df$family_id_group)))
treatments <- sort(unique(na.omit(raw_df$treatment_group)))

n_fam <- length(families)
n_trt <- length(treatments)

# Palette strategy:
#   <= 7 groups : Okabe-Ito (gold standard for colorblind-safe figures).
#   >  7 groups : colorspace::qualitative_hcl("Dynamic") scales to any N
#                 using perceptually uniform HCL space — no colour collisions.
# Black (#000000) is excluded from both and reserved for blank wells.
okabe_ito_7 <- c(
  "#E69F00", "#56B4E9", "#009E73", "#F0E442",
  "#0072B2", "#D55E00", "#CC79A7"
)
make_palette <- function(n) {
  if (n == 0L) return(character(0))
  if (n <= length(okabe_ito_7)) return(okabe_ito_7[seq_len(n)])
  colorspace::qualitative_hcl(n, palette = "Dynamic")
}

all_colours   <- make_palette(n_fam + n_trt)
fam_colours   <- setNames(all_colours[seq_len(n_fam)], families)
trt_colours   <- setNames(all_colours[n_fam + seq_len(n_trt)], treatments)

lty_pool <- c("solid", "dashed", "dotted", "dotdash", "longdash")
trt_linetypes <- setNames(
  lty_pool[(seq_len(n_trt) - 1L) %% length(lty_pool) + 1L],
  treatments
)
plate_well_colours <- c(blank = "black", fam_colours)

has_trt <- n_trt > 0

str(raw_df)
tibble [693 × 16] (S3: tbl_df/tbl/data.frame)
 $ row_id               : chr [1:693] "A" "A" "A" "A" ...
 $ col_id               : int [1:693] 1 2 3 4 1 2 3 4 1 2 ...
 $ well_id              : chr [1:693] "A1" "A2" "A3" "A4" ...
 $ value                : num [1:693] 122 118 118 124 111 114 112 121 120 121 ...
 $ plate_id             : chr [1:693] "a" "a" "a" "a" ...
 $ time_hr              : num [1:693] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank             : logi [1:693] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis: logi [1:693] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ family_id_group      : chr [1:693] "6" "6" "6" "6" ...
 $ sample_id_group      : chr [1:693] "1" "2" "3" "4" ...
 $ treatment_group      : chr [1:693] NA NA NA NA ...
 $ weight_g_measurement : num [1:693] NA NA NA NA NA NA NA NA NA NA ...
 $ width_mm_measurement : num [1:693] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:693] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement : num [1:693] 194 170 141 135 107 ...
 $ trace_id             : chr [1:693] "1" "2" "3" "4" ...

6.2 Raw fluorescence by plate (including blanks)

p_raw_plates <- dat %>%
  filter(is.finite(time_hr), is.finite(value)) %>%
  mutate(
    colour_group = if_else(is_blank, "blank",
                           coalesce(family_id_group, "sample")),
    trace_id     = paste(plate_id, well_id, sep = "_")
  ) %>%
  ggplot(aes(x = time_hr, y = value,
             group = trace_id, colour = colour_group)) +
  geom_line(alpha = 0.6) +
  geom_point(size = 1, alpha = 0.7) +
  facet_wrap(~ plate_id) +
  scale_colour_manual(
    values   = plate_well_colours,
    name     = "Group",
    breaks   = names(plate_well_colours),
    na.value = "grey80"
  ) +
  labs(x = "Time (h)", y = "Raw fluorescence (RFU)") +
  theme_classic(base_size = 12) +
  theme(strip.background = element_blank(),
        strip.text       = element_text(face = "bold"))

p_raw_plates

ggsave(file.path(fig_dir, "raw_fluor_by_plate.png"),
       p_raw_plates, width = 10, height = 8)

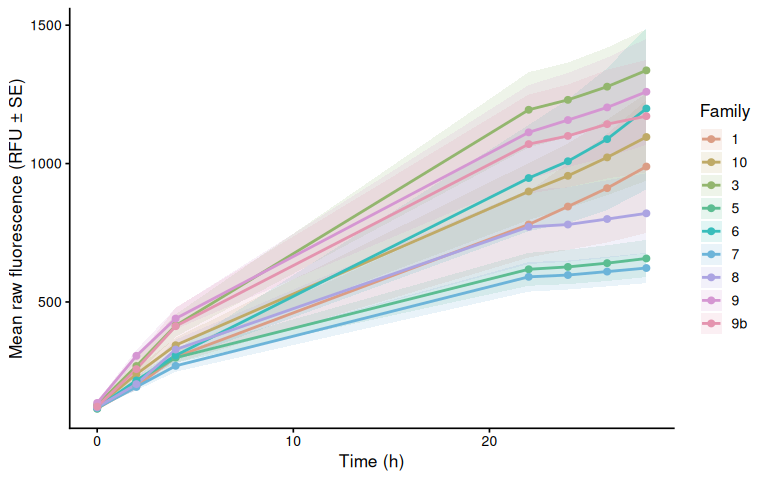

6.3 Mean raw fluorescence by family

raw_family_summary <- raw_df %>%
  filter(!is.na(family_id_group), !exclude_from_analysis) %>%
  group_by(family_id_group, treatment_group, time_hr) %>%
  summarise(
    mean_fluor = mean(value, na.rm = TRUE),
    se_fluor   = sd(value, na.rm = TRUE) /
      sqrt(sum(!is.na(value))),
    n          = sum(!is.na(value)),
    .groups    = "drop"
  ) %>%
  mutate(group_var = if (has_trt)
    paste(family_id_group, treatment_group, sep = ".")
  else
    family_id_group)

p_raw_mean <- ggplot(raw_family_summary,
    aes(x = time_hr, y = mean_fluor,
        colour = family_id_group,
        group = group_var)) +
  geom_ribbon(aes(ymin = mean_fluor - se_fluor,
                  ymax = mean_fluor + se_fluor,
                  fill = family_id_group),
              alpha = 0.15, colour = NA) +
  geom_line(
    mapping   = if (has_trt) aes(linetype = treatment_group) else NULL,
    linewidth = 1) +
  geom_point(size = 2) +
  scale_colour_manual(values = fam_colours, name = "Family") +
  scale_fill_manual(values = fam_colours, name = "Family") +
  labs(x = "Time (h)", y = "Mean raw fluorescence (RFU ± SE)") +
  theme_classic(base_size = 13) +
  if (has_trt) scale_linetype_manual(values = trt_linetypes, name = "Treatment") else NULL

p_raw_mean

ggsave(file.path(fig_dir, "raw_mean_by_family.png"),
       p_raw_mean, width = 8, height = 5)

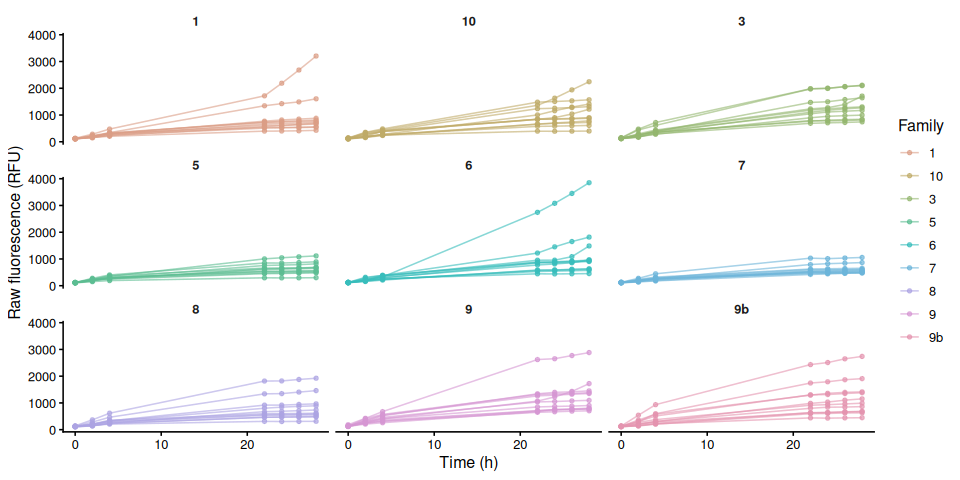

6.4 Individual raw fluorescence traces by family

p_raw_by_family <- raw_df %>%
  filter(!is.na(family_id_group)) %>%
  ggplot(aes(x = time_hr, y = value, group = trace_id,
             colour = .data[[if (has_trt) "treatment_group" else "family_id_group"]])) +
  geom_line(alpha = 0.6) +
  geom_point(size = 1.2, alpha = 0.7) +
  facet_wrap(~ family_id_group) +
  scale_colour_manual(
    values = if (has_trt) trt_colours else fam_colours,
    name   = if (has_trt) "Treatment" else "Family") +
  labs(x = "Time (h)", y = "Raw fluorescence (RFU)") +
  theme_classic(base_size = 12) +
  theme(strip.background = element_blank(),
        strip.text       = element_text(face = "bold"))

p_raw_by_family

ggsave(file.path(fig_dir, "raw_individual_by_family.png"),
       p_raw_by_family, width = 10, height = 5)

6.5 Individual raw fluorescence traces by treatment

if (has_trt) {
  p_raw_by_treatment <- raw_df %>%
    ggplot(aes(x = time_hr, y = value,
               group = trace_id, colour = family_id_group)) +
    geom_line(alpha = 0.6) +
    geom_point(size = 1.2, alpha = 0.7) +
    facet_wrap(~ treatment_group) +
    scale_colour_manual(values = fam_colours, name = "Family") +
    labs(x = "Time (h)", y = "Raw fluorescence (RFU)") +
    theme_classic(base_size = 12) +
    theme(strip.background = element_blank(),
          strip.text       = element_text(face = "bold"))

  p_raw_by_treatment
  ggsave(file.path(fig_dir, "raw_individual_by_treatment.png"),
         p_raw_by_treatment, width = 10, height = 5)
}

6.6 Excluded samples

Wells flagged exclude_from_analysis = TRUE appear in the raw fluorescence plots above but are omitted from all analyses that follow.

excluded_wells <- dat %>%
  filter(!is_blank, exclude_from_analysis) %>%
  mutate(
    sample = if_else(
      !is.na(sample_id_group) & trimws(as.character(sample_id_group)) != "",
      as.character(sample_id_group),
      paste(plate_id, well_id, sep = "_")
    )
  ) %>%
  select(plate_id, well_id, sample, family_id_group, treatment_group,
         any_of("exclude_reason")) %>%
  distinct() %>%
  arrange(plate_id, well_id)

if (nrow(excluded_wells) > 0) {
  col_names <- c("Plate", "Well", "Sample", "Family", "Treatment")
  if ("exclude_reason" %in% names(excluded_wells))
    col_names <- c(col_names, "Reason")
  cat(knitr::kable(excluded_wells, col.names = col_names), sep = "\n")
} else {
  cat("No wells are excluded from analysis.\n")
}

No wells are excluded from analysis.

7 Blank Correction via Fold-Change Normalization

T0 is the earliest timepoint present in the dataset (not necessarily 0 hr). Sample fold-change is expressed relative to each individual’s T0 reading, resolved by sample_id_group when that column is populated — allowing the same animal to be tracked across plates — or by plate_id + well_id when no sample IDs exist (backward-compatible with single-plate, multi-timepoint designs). Blank fold-change is the per-plate mean blank RFU at each timepoint divided by the pooled mean blank RFU at T0. Subtracting blank fold-change from sample fold-change removes background fluorescence drift; all samples start at exactly 0 at T0 by construction.

7.1 Step 1 – Identify T0 and compute per-sample fold-change

# T0 = earliest timepoint present in the dataset
t0_time <- min(dat$time_hr[is.finite(dat$time_hr)], na.rm = TRUE)
message("T0 timepoint: ", t0_time, " hr")

# T0 reference value per individual.
# Resolved by sample_id_group (cross-plate tracking) when available;
# falls back to plate+well for layouts without explicit sample IDs.
t0_all <- dat %>%
  filter(time_hr == t0_time, !is_blank, is.finite(value)) %>%
  mutate(sample_key = if_else(
    !is.na(sample_id_group) & trimws(as.character(sample_id_group)) != "",
    as.character(sample_id_group),
    paste(plate_id, well_id, sep = "_")
  )) %>%
  group_by(sample_key) %>%
  summarise(value_t0 = mean(value, na.rm = TRUE), .groups = "drop")

dat_fc <- dat %>%
  mutate(sample_key = if_else(
    !is_blank &
      !is.na(sample_id_group) & trimws(as.character(sample_id_group)) != "",
    as.character(sample_id_group),
    paste(plate_id, well_id, sep = "_")
  )) %>%
  left_join(t0_all, by = "sample_key") %>%
  mutate(fold_change = if_else(
    !is_blank & is.finite(value_t0) & value_t0 > 0,
    value / value_t0,
    NA_real_
  ))

str(dat_fc)
tibble [756 × 18] (S3: tbl_df/tbl/data.frame)
 $ row_id               : chr [1:756] "A" "A" "A" "A" ...
 $ col_id               : int [1:756] 1 2 3 4 1 2 3 4 1 2 ...
 $ well_id              : chr [1:756] "A1" "A2" "A3" "A4" ...
 $ value                : num [1:756] 122 118 118 124 111 114 112 121 120 121 ...
 $ plate_id             : chr [1:756] "a" "a" "a" "a" ...
 $ time_hr              : num [1:756] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank             : logi [1:756] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis: logi [1:756] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ family_id_group      : chr [1:756] "6" "6" "6" "6" ...
 $ sample_id_group      : chr [1:756] "1" "2" "3" "4" ...
 $ treatment_group      : chr [1:756] NA NA NA NA ...
 $ weight_g_measurement : num [1:756] NA NA NA NA NA NA NA NA NA NA ...
 $ width_mm_measurement : num [1:756] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:756] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement : num [1:756] 194 170 141 135 107 ...
 $ sample_key           : chr [1:756] "1" "2" "3" "4" ...
 $ value_t0             : num [1:756] 122 118 118 124 111 114 112 121 120 121 ...
 $ fold_change          : num [1:756] 1 1 1 1 1 1 1 1 1 1 ...

7.2 Step 2 – Blank fold-change reference per plate per timepoint

# Pooled mean blank RFU at T0 across all T0 plates
mean_blank_t0 <- dat %>%
  filter(is_blank, time_hr == t0_time, is.finite(value)) %>%
  pull(value) %>%
  mean(na.rm = TRUE)

if (!is.finite(mean_blank_t0))
  message("No blank readings found at T0 (", t0_time,
          " hr); blank correction will produce NA.")

# Per-plate per-timepoint mean blank expressed as fold-change relative to T0
blank_fc_ref <- dat %>%
  filter(is_blank, is.finite(value)) %>%
  group_by(plate_id, time_hr) %>%
  summarise(mean_blank_rfu = mean(value, na.rm = TRUE), .groups = "drop") %>%
  mutate(mean_blank_fc = mean_blank_rfu / mean_blank_t0)

str(blank_fc_ref)
tibble [63 × 4] (S3: tbl_df/tbl/data.frame)
 $ plate_id      : chr [1:63] "a" "a" "a" "a" ...
 $ time_hr       : num [1:63] 0 2 4 22 24 26 28 0 2 4 ...
 $ mean_blank_rfu: num [1:63] 102 106 108 123 119 120 121 101 103 106 ...
 $ mean_blank_fc : num [1:63] 1.01 1.05 1.07 1.22 1.18 ...

7.3 Step 3 – Subtract blank fold-change from sample fold-change

samples <- dat_fc %>%
  filter(!is_blank, !exclude_from_analysis) %>%
  mutate(
    trace_id = if_else(
      !is.na(sample_id_group) & trimws(as.character(sample_id_group)) != "",
      as.character(sample_id_group),
      paste(plate_id, well_id, sep = "_")
    )
  ) %>%
  left_join(blank_fc_ref, by = c("plate_id", "time_hr")) %>%
  mutate(corrected_fc = fold_change - mean_blank_fc)

str(samples)
tibble [693 × 22] (S3: tbl_df/tbl/data.frame)
 $ row_id               : chr [1:693] "A" "A" "A" "A" ...
 $ col_id               : int [1:693] 1 2 3 4 1 2 3 4 1 2 ...
 $ well_id              : chr [1:693] "A1" "A2" "A3" "A4" ...
 $ value                : num [1:693] 122 118 118 124 111 114 112 121 120 121 ...
 $ plate_id             : chr [1:693] "a" "a" "a" "a" ...
 $ time_hr              : num [1:693] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank             : logi [1:693] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis: logi [1:693] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ family_id_group      : chr [1:693] "6" "6" "6" "6" ...
 $ sample_id_group      : chr [1:693] "1" "2" "3" "4" ...
 $ treatment_group      : chr [1:693] NA NA NA NA ...
 $ weight_g_measurement : num [1:693] NA NA NA NA NA NA NA NA NA NA ...
 $ width_mm_measurement : num [1:693] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:693] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement : num [1:693] 194 170 141 135 107 ...
 $ sample_key           : chr [1:693] "1" "2" "3" "4" ...
 $ value_t0             : num [1:693] 122 118 118 124 111 114 112 121 120 121 ...
 $ fold_change          : num [1:693] 1 1 1 1 1 1 1 1 1 1 ...
 $ trace_id             : chr [1:693] "1" "2" "3" "4" ...
 $ mean_blank_rfu       : num [1:693] 102 102 102 102 102 102 102 102 102 102 ...
 $ mean_blank_fc        : num [1:693] 1.01 1.01 1.01 1.01 1.01 ...
 $ corrected_fc         : num [1:693] -0.0132 -0.0132 -0.0132 -0.0132 -0.0132 ...

8 Blank-Corrected Fold-Change

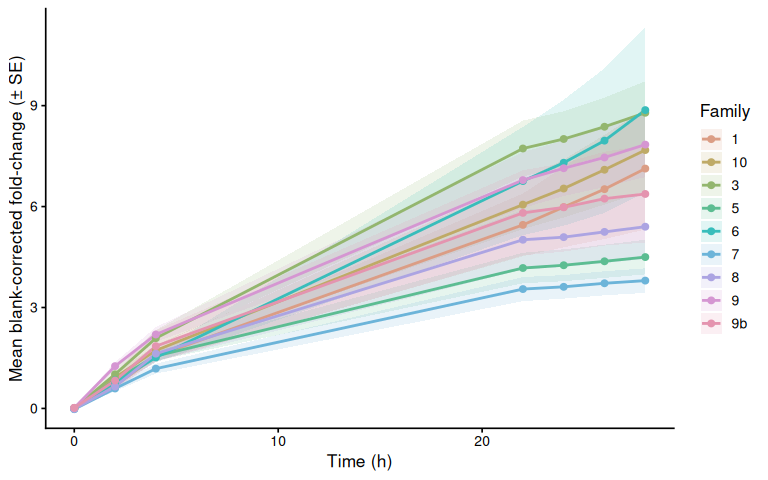

8.1 Mean by family

bc_fc_summary <- samples %>%
  filter(!is.na(family_id_group), !exclude_from_analysis) %>%
  group_by(family_id_group, treatment_group, time_hr) %>%
  summarise(
    mean_val = mean(corrected_fc, na.rm = TRUE),
    se_val   = sd(corrected_fc, na.rm = TRUE) /
      sqrt(sum(!is.na(corrected_fc))),
    n        = sum(!is.na(corrected_fc)),
    .groups  = "drop"
  ) %>%
  mutate(group_var = if (has_trt)
    paste(family_id_group, treatment_group, sep = ".")
  else
    family_id_group)

p_bc_fc_mean <- ggplot(bc_fc_summary,
    aes(x = time_hr, y = mean_val,
        colour = family_id_group,
        group = group_var)) +
  geom_ribbon(aes(ymin = mean_val - se_val,
                  ymax = mean_val + se_val,
                  fill = family_id_group),
              alpha = 0.15, colour = NA) +
  geom_line(
    mapping   = if (has_trt) aes(linetype = treatment_group) else NULL,
    linewidth = 1) +
  geom_point(size = 2) +
  scale_colour_manual(values = fam_colours, name = "Family") +
  scale_fill_manual(values = fam_colours, name = "Family") +
  labs(x = "Time (h)",
       y = "Mean blank-corrected fold-change (± SE)") +
  theme_classic(base_size = 13) +
  if (has_trt) scale_linetype_manual(values = trt_linetypes, name = "Treatment") else NULL

p_bc_fc_mean

ggsave(file.path(fig_dir, "blank_corrected_fc_mean_by_family.png"),
       p_bc_fc_mean, width = 8, height = 5)

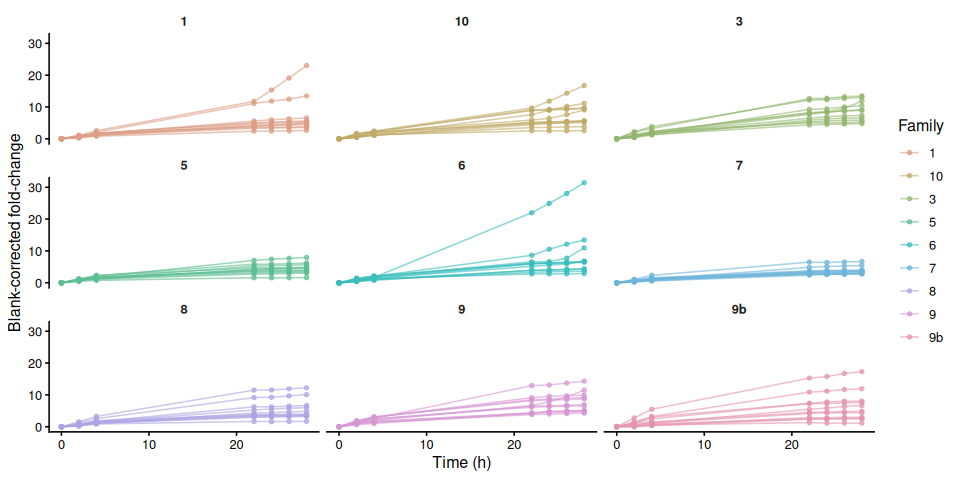

8.2 Individual traces by family

p_bc_fc_by_family <- samples %>%
  filter(!is.na(family_id_group)) %>%
  ggplot(aes(x = time_hr, y = corrected_fc, group = trace_id,
             colour = .data[[if (has_trt) "treatment_group" else "family_id_group"]])) +
  geom_line(alpha = 0.6) +
  geom_point(size = 1.2, alpha = 0.7) +
  facet_wrap(~ family_id_group) +
  scale_colour_manual(
    values = if (has_trt) trt_colours else fam_colours,
    name   = if (has_trt) "Treatment" else "Family") +
  labs(x = "Time (h)", y = "Blank-corrected fold-change") +
  theme_classic(base_size = 12) +
  theme(strip.background = element_blank(),
        strip.text       = element_text(face = "bold"))

p_bc_fc_by_family

ggsave(file.path(fig_dir, "blank_corrected_fc_by_family.png"),
       p_bc_fc_by_family, width = 10, height = 5)

8.3 Individual blank-corrected fold-change traces by treatment

if (has_trt) {
  p_bc_fc_by_treatment <- samples %>%
    ggplot(aes(x = time_hr, y = corrected_fc,
               group = trace_id, colour = family_id_group)) +
    geom_line(alpha = 0.6) +
    geom_point(size = 1.2, alpha = 0.7) +
    facet_wrap(~ treatment_group) +
    scale_colour_manual(values = fam_colours, name = "Family") +
    labs(x = "Time (h)", y = "Blank-corrected fold-change") +
    theme_classic(base_size = 12) +
    theme(strip.background = element_blank(),
          strip.text       = element_text(face = "bold"))

  p_bc_fc_by_treatment
  ggsave(file.path(fig_dir, "blank_corrected_fc_by_treatment.png"),
         p_bc_fc_by_treatment, width = 10, height = 5)
}

9 Metabolism (Size-Normalised Fold-Change)

Blank-corrected fold-change divided by each active measurement column. This is “metabolism” as defined in Huffmyer et al.

if (length(active_meas_cols) == 0) {
  message("No active measurement columns: skipping metabolism calculation.")
  metabolism_df <- tibble()
} else {
  metabolism_df <- samples
  for (mc in active_meas_cols) {
    out_col <- paste0("metabolism_per_", mc)
    metabolism_df <- metabolism_df %>%
      mutate(!!out_col := if_else(
        is.finite(.data[[mc]]) & .data[[mc]] > 0 &
          is.finite(corrected_fc),
        corrected_fc / .data[[mc]],
        NA_real_
      ))
  }
}

str(metabolism_df)
tibble [693 × 23] (S3: tbl_df/tbl/data.frame)
 $ row_id                             : chr [1:693] "A" "A" "A" "A" ...
 $ col_id                             : int [1:693] 1 2 3 4 1 2 3 4 1 2 ...
 $ well_id                            : chr [1:693] "A1" "A2" "A3" "A4" ...
 $ value                              : num [1:693] 122 118 118 124 111 114 112 121 120 121 ...
 $ plate_id                           : chr [1:693] "a" "a" "a" "a" ...
 $ time_hr                            : num [1:693] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank                           : logi [1:693] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis              : logi [1:693] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ family_id_group                    : chr [1:693] "6" "6" "6" "6" ...
 $ sample_id_group                    : chr [1:693] "1" "2" "3" "4" ...
 $ treatment_group                    : chr [1:693] NA NA NA NA ...
 $ weight_g_measurement               : num [1:693] NA NA NA NA NA NA NA NA NA NA ...
 $ width_mm_measurement               : num [1:693] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement              : num [1:693] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement               : num [1:693] 194 170 141 135 107 ...
 $ sample_key                         : chr [1:693] "1" "2" "3" "4" ...
 $ value_t0                           : num [1:693] 122 118 118 124 111 114 112 121 120 121 ...
 $ fold_change                        : num [1:693] 1 1 1 1 1 1 1 1 1 1 ...
 $ trace_id                           : chr [1:693] "1" "2" "3" "4" ...
 $ mean_blank_rfu                     : num [1:693] 102 102 102 102 102 102 102 102 102 102 ...
 $ mean_blank_fc                      : num [1:693] 1.01 1.01 1.01 1.01 1.01 ...
 $ corrected_fc                       : num [1:693] -0.0132 -0.0132 -0.0132 -0.0132 -0.0132 ...
 $ metabolism_per_area_mm2_measurement: num [1:693] -6.84e-05 -7.80e-05 -9.39e-05 -9.85e-05 -1.24e-04 ...

9.1 Mean metabolism by family

if (nrow(metabolism_df) > 0) {

  metab_cols <- paste0("metabolism_per_", active_meas_cols)

  for (col in metab_cols) {
    if (!col %in% names(metabolism_df)) next
    mc_label <- str_remove(col, "^metabolism_per_")

    metab_summary <- metabolism_df %>%
      filter(!is.na(family_id_group), !exclude_from_analysis) %>%
      group_by(family_id_group, treatment_group, time_hr) %>%
      summarise(
        mean_val = mean(.data[[col]], na.rm = TRUE),
        se_val   = sd(.data[[col]], na.rm = TRUE) /
          sqrt(sum(!is.na(.data[[col]]))),
        .groups  = "drop"
      ) %>%
      mutate(group_var = if (has_trt)
        paste(family_id_group, treatment_group, sep = ".")
      else
        family_id_group)

    p_metab_mean <- ggplot(metab_summary,
        aes(x = time_hr, y = mean_val,
            colour = family_id_group,
            group = group_var)) +
      geom_ribbon(aes(ymin = mean_val - se_val,
                      ymax = mean_val + se_val,
                      fill = family_id_group),
                  alpha = 0.15, colour = NA) +
      geom_line(
        mapping   = if (has_trt) aes(linetype = treatment_group) else NULL,
        linewidth = 1) +
      geom_point(size = 2) +
      scale_colour_manual(values = fam_colours, name = "Family") +
      scale_fill_manual(values = fam_colours, name = "Family") +
      labs(x = "Time (h)",
           y = paste0(metabolism_y_label(col), " (± SE)")) +
      theme_classic(base_size = 13) +
      if (has_trt) scale_linetype_manual(values = trt_linetypes, name = "Treatment") else NULL

    print(p_metab_mean)
    ggsave(
      file.path(fig_dir,
                paste0("metabolism_mean_", mc_label, ".png")),
      p_metab_mean, width = 8, height = 5)
  }
}

9.2 Individual metabolism traces by family

if (nrow(metabolism_df) > 0) {

  for (col in metab_cols) {
    if (!col %in% names(metabolism_df)) next
    mc_label <- str_remove(col, "^metabolism_per_")

    p_metab_by_family <- metabolism_df %>%
      filter(!is.na(family_id_group)) %>%
      ggplot(aes(x = time_hr, y = .data[[col]], group = trace_id,
                 colour = .data[[if (has_trt) "treatment_group" else "family_id_group"]])) +
      geom_line(alpha = 0.6) +
      geom_point(size = 1.2, alpha = 0.7) +
      facet_wrap(~ family_id_group) +
      scale_colour_manual(
        values = if (has_trt) trt_colours else fam_colours,
        name   = if (has_trt) "Treatment" else "Family") +
      labs(x = "Time (h)", y = metabolism_y_label(col)) +
      theme_classic(base_size = 12) +
      theme(strip.background = element_blank(),
            strip.text       = element_text(face = "bold"))

    print(p_metab_by_family)
    ggsave(
      file.path(fig_dir,
                paste0("metabolism_individual_", mc_label, "_by_family.png")),
      p_metab_by_family, width = 10, height = 5)

    if (has_trt) {
      p_metab_by_treatment <- ggplot(metabolism_df,
          aes(x = time_hr, y = .data[[col]],
              group = trace_id, colour = family_id_group)) +
        geom_line(alpha = 0.6) +
        geom_point(size = 1.2, alpha = 0.7) +
        facet_wrap(~ treatment_group) +
        scale_colour_manual(values = fam_colours, name = "Family") +
        labs(x = "Time (h)", y = metabolism_y_label(col)) +
        theme_classic(base_size = 12) +
        theme(strip.background = element_blank(),
              strip.text       = element_text(face = "bold"))

      print(p_metab_by_treatment)
      ggsave(
        file.path(fig_dir,
                  paste0("metabolism_individual_", mc_label, "_by_treatment.png")),
        p_metab_by_treatment, width = 10, height = 5)
    }
  }
}

10 Time-Series Statistical Analysis

Linear mixed effects models test the effect of experimental variables on metabolism over time. Individual (sample_id_group) is included as a random intercept to account for repeated measures across timepoints. Type III ANOVA with Satterthwaite’s approximation (lmerTest) assesses significance; post-hoc pairwise comparisons use estimated marginal means (emmeans, Tukey adjustment).

run_ts_stats <- function(df, value_col) {
  has_family    <- "family_id_group" %in% names(df) &&
    length(unique(na.omit(df$family_id_group))) > 1
  has_treatment <- "treatment_group" %in% names(df) &&
    length(unique(na.omit(df$treatment_group))) > 1

  if (!has_family && !has_treatment) return(NULL)

  df <- df %>%
    filter(is.finite(.data[[value_col]]), is.finite(time_hr)) %>%
    mutate(
      time_f     = factor(time_hr),
      individual = factor(trace_id)
    )

  if (nrow(df) == 0) return(NULL)

  if (has_family)    df <- df %>% mutate(family    = factor(family_id_group))
  if (has_treatment) df <- df %>% mutate(treatment = factor(treatment_group))

  if (has_family    && length(unique(na.omit(df$family)))    < 2) return(NULL)
  if (has_treatment && length(unique(na.omit(df$treatment))) < 2) return(NULL)

  fixed <- if (has_family && has_treatment) {
    paste0(value_col, " ~ time_f * family * treatment")
  } else if (has_family) {
    paste0(value_col, " ~ time_f * family")
  } else {
    paste0(value_col, " ~ time_f * treatment")
  }

  model <- lmer(
    as.formula(paste0(fixed, " + (1 | individual)")),
    data = df
  )

  anova_res <- anova(model, type = 3, ddf = "Satterthwaite")

  # Pairwise comparisons of group combinations at each timepoint
  emm_spec <- if (has_family && has_treatment) {
    ~ family * treatment | time_f
  } else if (has_family) {
    ~ family | time_f
  } else {
    ~ treatment | time_f
  }

  emm       <- emmeans(model, emm_spec)
  pairs_res <- as.data.frame(pairs(emm, adjust = "tukey"))

  # Main-effect marginal means (collapsed across time)
  emm_main <- if (has_family && has_treatment) {
    emmeans(model, ~ family * treatment)
  } else if (has_family) {
    emmeans(model, ~ family)
  } else {
    emmeans(model, ~ treatment)
  }

  pairs_main <- as.data.frame(pairs(emm_main, adjust = "tukey"))

  list(
    model         = model,
    anova         = anova_res,
    pairs_by_time = pairs_res,
    pairs_main    = pairs_main,
    has_family    = has_family,
    has_treatment = has_treatment
  )
}

ts_stats <- list()
if (nrow(metabolism_df) > 0) {
  for (mc in active_meas_cols) {
    col <- paste0("metabolism_per_", mc)
    if (col %in% names(metabolism_df))
      ts_stats[[col]] <- run_ts_stats(metabolism_df, col)
  }
}

10.1 Results

for (col in names(ts_stats)) {
  res <- ts_stats[[col]]
  if (is.null(res)) next

  cat("\n\n### Metric:", col, "\n\n")

  cat("**Type III ANOVA (Satterthwaite approximation):**\n\n")
  cat(knitr::kable(as.data.frame(res$anova), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")

  cat("**Marginal means – main effects (collapsed across time):**\n\n")
  cat(knitr::kable(as.data.frame(res$pairs_main), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")

  cat("**Pairwise comparisons by timepoint (Tukey):**\n\n")
  cat(knitr::kable(as.data.frame(res$pairs_by_time), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")
}

10.1.1 Metric: metabolism_per_area_mm2_measurement

Type III ANOVA (Satterthwaite approximation):

Sum Sq Mean Sq NumDF DenDF F value Pr(>F)
time_f 0.1827 0.0305 6 540 262.9905 0.0000
family 0.0015 0.0002 8 90 1.6018 0.1354
time_f:family 0.0097 0.0002 48 540 1.7387 0.0021

Marginal means – main effects (collapsed across time):

contrast estimate SE df t.ratio p.value
1 - 10 0.0029 0.0052 90 0.5476 0.9998
1 - 3 0.0018 0.0052 90 0.3506 1.0000
1 - 5 0.0043 0.0052 90 0.8138 0.9962
1 - 6 -0.0047 0.0052 90 -0.8978 0.9926
1 - 7 0.0125 0.0052 90 2.3726 0.3118
1 - 8 0.0064 0.0052 90 1.2144 0.9513
1 - 9 0.0024 0.0052 90 0.4512 0.9999
1 - 9b 0.0054 0.0052 90 1.0197 0.9830
10 - 3 -0.0010 0.0052 90 -0.1970 1.0000
10 - 5 0.0014 0.0052 90 0.2662 1.0000
10 - 6 -0.0076 0.0052 90 -1.4453 0.8769
10 - 7 0.0096 0.0052 90 1.8250 0.6656
10 - 8 0.0035 0.0052 90 0.6668 0.9991
10 - 9 -0.0005 0.0052 90 -0.0964 1.0000
10 - 9b 0.0025 0.0052 90 0.4721 0.9999
3 - 5 0.0024 0.0052 90 0.4632 0.9999
3 - 6 -0.0066 0.0052 90 -1.2483 0.9431
3 - 7 0.0106 0.0052 90 2.0220 0.5325
3 - 8 0.0045 0.0052 90 0.8638 0.9943
3 - 9 0.0005 0.0052 90 0.1006 1.0000
3 - 9b 0.0035 0.0052 90 0.6691 0.9990
5 - 6 -0.0090 0.0052 90 -1.7115 0.7379
5 - 7 0.0082 0.0052 90 1.5588 0.8240
5 - 8 0.0021 0.0052 90 0.4006 1.0000
5 - 9 -0.0019 0.0052 90 -0.3626 1.0000
5 - 9b 0.0011 0.0052 90 0.2059 1.0000
6 - 7 0.0172 0.0052 90 3.2703 0.0388
6 - 8 0.0111 0.0052 90 2.1122 0.4718
6 - 9 0.0071 0.0052 90 1.3489 0.9133
6 - 9b 0.0101 0.0052 90 1.9175 0.6037
7 - 8 -0.0061 0.0052 90 -1.1582 0.9630
7 - 9 -0.0101 0.0052 90 -1.9214 0.6010
7 - 9b -0.0071 0.0052 90 -1.3529 0.9120
8 - 9 -0.0040 0.0052 90 -0.7632 0.9976
8 - 9b -0.0010 0.0052 90 -0.1947 1.0000
9 - 9b 0.0030 0.0052 90 0.5685 0.9997

Pairwise comparisons by timepoint (Tukey):

contrast time_f estimate SE df t.ratio p.value
1 - 10 0 0.0001 0.0068 230.0413 0.0210 1.0000
1 - 3 0 0.0001 0.0068 230.0413 0.0130 1.0000
1 - 5 0 0.0002 0.0068 230.0413 0.0225 1.0000
1 - 6 0 0.0002 0.0068 230.0413 0.0321 1.0000
1 - 7 0 0.0003 0.0068 230.0413 0.0399 1.0000
1 - 8 0 0.0002 0.0068 230.0413 0.0328 1.0000
1 - 9 0 0.0000 0.0068 230.0413 0.0036 1.0000
1 - 9b 0 0.0000 0.0068 230.0413 0.0027 1.0000
10 - 3 0 -0.0001 0.0068 230.0413 -0.0079 1.0000
10 - 5 0 0.0000 0.0068 230.0413 0.0015 1.0000
10 - 6 0 0.0001 0.0068 230.0413 0.0111 1.0000
10 - 7 0 0.0001 0.0068 230.0413 0.0189 1.0000
10 - 8 0 0.0001 0.0068 230.0413 0.0119 1.0000
10 - 9 0 -0.0001 0.0068 230.0413 -0.0174 1.0000
10 - 9b 0 -0.0001 0.0068 230.0413 -0.0183 1.0000
3 - 5 0 0.0001 0.0068 230.0413 0.0094 1.0000
3 - 6 0 0.0001 0.0068 230.0413 0.0191 1.0000
3 - 7 0 0.0002 0.0068 230.0413 0.0269 1.0000
3 - 8 0 0.0001 0.0068 230.0413 0.0198 1.0000
3 - 9 0 -0.0001 0.0068 230.0413 -0.0094 1.0000
3 - 9b 0 -0.0001 0.0068 230.0413 -0.0103 1.0000
5 - 6 0 0.0001 0.0068 230.0413 0.0096 1.0000
5 - 7 0 0.0001 0.0068 230.0413 0.0174 1.0000
5 - 8 0 0.0001 0.0068 230.0413 0.0104 1.0000
5 - 9 0 -0.0001 0.0068 230.0413 -0.0189 1.0000
5 - 9b 0 -0.0001 0.0068 230.0413 -0.0198 1.0000
6 - 7 0 0.0001 0.0068 230.0413 0.0078 1.0000
6 - 8 0 0.0000 0.0068 230.0413 0.0007 1.0000
6 - 9 0 -0.0002 0.0068 230.0413 -0.0285 1.0000
6 - 9b 0 -0.0002 0.0068 230.0413 -0.0294 1.0000
7 - 8 0 0.0000 0.0068 230.0413 -0.0071 1.0000
7 - 9 0 -0.0002 0.0068 230.0413 -0.0363 1.0000
7 - 9b 0 -0.0003 0.0068 230.0413 -0.0372 1.0000
8 - 9 0 -0.0002 0.0068 230.0413 -0.0292 1.0000
8 - 9b 0 -0.0002 0.0068 230.0413 -0.0301 1.0000
9 - 9b 0 0.0000 0.0068 230.0413 -0.0009 1.0000
1 - 10 2 -0.0004 0.0068 230.0413 -0.0571 1.0000
1 - 3 2 -0.0001 0.0068 230.0413 -0.0178 1.0000
1 - 5 2 -0.0028 0.0068 230.0413 -0.4132 1.0000
1 - 6 2 -0.0009 0.0068 230.0413 -0.1298 1.0000
1 - 7 2 0.0010 0.0068 230.0413 0.1524 1.0000
1 - 8 2 0.0007 0.0068 230.0413 0.0968 1.0000
1 - 9 2 -0.0023 0.0068 230.0413 -0.3389 1.0000
1 - 9b 2 0.0002 0.0068 230.0413 0.0289 1.0000
10 - 3 2 0.0003 0.0068 230.0413 0.0393 1.0000
10 - 5 2 -0.0024 0.0068 230.0413 -0.3561 1.0000
10 - 6 2 -0.0005 0.0068 230.0413 -0.0727 1.0000
10 - 7 2 0.0014 0.0068 230.0413 0.2095 1.0000
10 - 8 2 0.0010 0.0068 230.0413 0.1540 1.0000
10 - 9 2 -0.0019 0.0068 230.0413 -0.2817 1.0000
10 - 9b 2 0.0006 0.0068 230.0413 0.0860 1.0000
3 - 5 2 -0.0027 0.0068 230.0413 -0.3954 1.0000
3 - 6 2 -0.0008 0.0068 230.0413 -0.1120 1.0000
3 - 7 2 0.0011 0.0068 230.0413 0.1702 1.0000
3 - 8 2 0.0008 0.0068 230.0413 0.1146 1.0000
3 - 9 2 -0.0022 0.0068 230.0413 -0.3211 1.0000
3 - 9b 2 0.0003 0.0068 230.0413 0.0467 1.0000
5 - 6 2 0.0019 0.0068 230.0413 0.2835 1.0000
5 - 7 2 0.0038 0.0068 230.0413 0.5656 0.9997
5 - 8 2 0.0034 0.0068 230.0413 0.5101 0.9999
5 - 9 2 0.0005 0.0068 230.0413 0.0744 1.0000
5 - 9b 2 0.0030 0.0068 230.0413 0.4421 1.0000
6 - 7 2 0.0019 0.0068 230.0413 0.2822 1.0000
6 - 8 2 0.0015 0.0068 230.0413 0.2266 1.0000
6 - 9 2 -0.0014 0.0068 230.0413 -0.2091 1.0000
6 - 9b 2 0.0011 0.0068 230.0413 0.1587 1.0000
7 - 8 2 -0.0004 0.0068 230.0413 -0.0556 1.0000
7 - 9 2 -0.0033 0.0068 230.0413 -0.4913 0.9999
7 - 9b 2 -0.0008 0.0068 230.0413 -0.1235 1.0000
8 - 9 2 -0.0029 0.0068 230.0413 -0.4357 1.0000
8 - 9b 2 -0.0005 0.0068 230.0413 -0.0679 1.0000
9 - 9b 2 0.0025 0.0068 230.0413 0.3678 1.0000
1 - 10 4 0.0013 0.0068 230.0413 0.1988 1.0000
1 - 3 4 0.0008 0.0068 230.0413 0.1183 1.0000
1 - 5 4 -0.0025 0.0068 230.0413 -0.3714 1.0000
1 - 6 4 0.0005 0.0068 230.0413 0.0725 1.0000
1 - 7 4 0.0037 0.0068 230.0413 0.5496 0.9998
1 - 8 4 0.0003 0.0068 230.0413 0.0499 1.0000
1 - 9 4 -0.0010 0.0068 230.0413 -0.1540 1.0000
1 - 9b 4 0.0009 0.0068 230.0413 0.1374 1.0000
10 - 3 4 -0.0005 0.0068 230.0413 -0.0806 1.0000
10 - 5 4 -0.0039 0.0068 230.0413 -0.5702 0.9997
10 - 6 4 -0.0009 0.0068 230.0413 -0.1263 1.0000
10 - 7 4 0.0024 0.0068 230.0413 0.3508 1.0000
10 - 8 4 -0.0010 0.0068 230.0413 -0.1489 1.0000
10 - 9 4 -0.0024 0.0068 230.0413 -0.3529 1.0000
10 - 9b 4 -0.0004 0.0068 230.0413 -0.0614 1.0000
3 - 5 4 -0.0033 0.0068 230.0413 -0.4897 0.9999
3 - 6 4 -0.0003 0.0068 230.0413 -0.0457 1.0000
3 - 7 4 0.0029 0.0068 230.0413 0.4313 1.0000
3 - 8 4 -0.0005 0.0068 230.0413 -0.0683 1.0000
3 - 9 4 -0.0018 0.0068 230.0413 -0.2723 1.0000
3 - 9b 4 0.0001 0.0068 230.0413 0.0192 1.0000
5 - 6 4 0.0030 0.0068 230.0413 0.4439 1.0000
5 - 7 4 0.0062 0.0068 230.0413 0.9210 0.9916
5 - 8 4 0.0028 0.0068 230.0413 0.4213 1.0000
5 - 9 4 0.0015 0.0068 230.0413 0.2174 1.0000
5 - 9b 4 0.0034 0.0068 230.0413 0.5088 0.9999
6 - 7 4 0.0032 0.0068 230.0413 0.4771 0.9999
6 - 8 4 -0.0002 0.0068 230.0413 -0.0226 1.0000
6 - 9 4 -0.0015 0.0068 230.0413 -0.2265 1.0000
6 - 9b 4 0.0004 0.0068 230.0413 0.0649 1.0000
7 - 8 4 -0.0034 0.0068 230.0413 -0.4997 0.9999
7 - 9 4 -0.0048 0.0068 230.0413 -0.7036 0.9987
7 - 9b 4 -0.0028 0.0068 230.0413 -0.4122 1.0000
8 - 9 4 -0.0014 0.0068 230.0413 -0.2039 1.0000
8 - 9b 4 0.0006 0.0068 230.0413 0.0875 1.0000
9 - 9b 4 0.0020 0.0068 230.0413 0.2914 1.0000
1 - 10 22 0.0047 0.0068 230.0413 0.6994 0.9988
1 - 3 22 0.0010 0.0068 230.0413 0.1480 1.0000
1 - 5 22 0.0053 0.0068 230.0413 0.7777 0.9974
1 - 6 22 -0.0065 0.0068 230.0413 -0.9692 0.9882
1 - 7 22 0.0168 0.0068 230.0413 2.4883 0.2432
1 - 8 22 0.0074 0.0068 230.0413 1.0915 0.9750
1 - 9 22 0.0032 0.0068 230.0413 0.4744 0.9999
1 - 9b 22 0.0062 0.0068 230.0413 0.9228 0.9915
10 - 3 22 -0.0037 0.0068 230.0413 -0.5514 0.9998
10 - 5 22 0.0005 0.0068 230.0413 0.0783 1.0000
10 - 6 22 -0.0113 0.0068 230.0413 -1.6685 0.7650
10 - 7 22 0.0121 0.0068 230.0413 1.7889 0.6895
10 - 8 22 0.0026 0.0068 230.0413 0.3921 1.0000
10 - 9 22 -0.0015 0.0068 230.0413 -0.2250 1.0000
10 - 9b 22 0.0015 0.0068 230.0413 0.2234 1.0000
3 - 5 22 0.0043 0.0068 230.0413 0.6297 0.9994
3 - 6 22 -0.0075 0.0068 230.0413 -1.1172 0.9712
3 - 7 22 0.0158 0.0068 230.0413 2.3403 0.3226
3 - 8 22 0.0064 0.0068 230.0413 0.9435 0.9901
3 - 9 22 0.0022 0.0068 230.0413 0.3264 1.0000
3 - 9b 22 0.0052 0.0068 230.0413 0.7748 0.9974
5 - 6 22 -0.0118 0.0068 230.0413 -1.7469 0.7167
5 - 7 22 0.0116 0.0068 230.0413 1.7105 0.7396
5 - 8 22 0.0021 0.0068 230.0413 0.3138 1.0000
5 - 9 22 -0.0020 0.0068 230.0413 -0.3033 1.0000
5 - 9b 22 0.0010 0.0068 230.0413 0.1451 1.0000
6 - 7 22 0.0233 0.0068 230.0413 3.4574 0.0184
6 - 8 22 0.0139 0.0068 230.0413 2.0607 0.5029
6 - 9 22 0.0097 0.0068 230.0413 1.4436 0.8796
6 - 9b 22 0.0128 0.0068 230.0413 1.8919 0.6200
7 - 8 22 -0.0094 0.0068 230.0413 -1.3967 0.8982
7 - 9 22 -0.0136 0.0068 230.0413 -2.0139 0.5353
7 - 9b 22 -0.0106 0.0068 230.0413 -1.5655 0.8224
8 - 9 22 -0.0042 0.0068 230.0413 -0.6171 0.9995
8 - 9b 22 -0.0011 0.0068 230.0413 -0.1687 1.0000
9 - 9b 22 0.0030 0.0068 230.0413 0.4484 1.0000
1 - 10 24 0.0049 0.0068 230.0413 0.7196 0.9985
1 - 3 24 0.0024 0.0068 230.0413 0.3558 1.0000
1 - 5 24 0.0077 0.0068 230.0413 1.1357 0.9682
1 - 6 24 -0.0072 0.0068 230.0413 -1.0730 0.9775
1 - 7 24 0.0193 0.0068 230.0413 2.8525 0.1062
1 - 8 24 0.0098 0.0068 230.0413 1.4442 0.8793
1 - 9 24 0.0041 0.0068 230.0413 0.6044 0.9996
1 - 9b 24 0.0081 0.0068 230.0413 1.2041 0.9550
10 - 3 24 -0.0025 0.0068 230.0413 -0.3639 1.0000
10 - 5 24 0.0028 0.0068 230.0413 0.4161 1.0000
10 - 6 24 -0.0121 0.0068 230.0413 -1.7926 0.6871
10 - 7 24 0.0144 0.0068 230.0413 2.1329 0.4536
10 - 8 24 0.0049 0.0068 230.0413 0.7246 0.9984
10 - 9 24 -0.0008 0.0068 230.0413 -0.1152 1.0000
10 - 9b 24 0.0033 0.0068 230.0413 0.4845 0.9999
3 - 5 24 0.0053 0.0068 230.0413 0.7799 0.9973
3 - 6 24 -0.0096 0.0068 230.0413 -1.4288 0.8857
3 - 7 24 0.0169 0.0068 230.0413 2.4968 0.2390
3 - 8 24 0.0074 0.0068 230.0413 1.0885 0.9754
3 - 9 24 0.0017 0.0068 230.0413 0.2486 1.0000
3 - 9b 24 0.0057 0.0068 230.0413 0.8484 0.9952
5 - 6 24 -0.0149 0.0068 230.0413 -2.2087 0.4036
5 - 7 24 0.0116 0.0068 230.0413 1.7168 0.7357
5 - 8 24 0.0021 0.0068 230.0413 0.3085 1.0000
5 - 9 24 -0.0036 0.0068 230.0413 -0.5313 0.9998
5 - 9b 24 0.0005 0.0068 230.0413 0.0684 1.0000
6 - 7 24 0.0265 0.0068 230.0413 3.9255 0.0036
6 - 8 24 0.0170 0.0068 230.0413 2.5172 0.2292
6 - 9 24 0.0113 0.0068 230.0413 1.6774 0.7597
6 - 9b 24 0.0154 0.0068 230.0413 2.2771 0.3604
7 - 8 24 -0.0095 0.0068 230.0413 -1.4083 0.8938
7 - 9 24 -0.0152 0.0068 230.0413 -2.2481 0.3784
7 - 9b 24 -0.0111 0.0068 230.0413 -1.6484 0.7768
8 - 9 24 -0.0057 0.0068 230.0413 -0.8398 0.9955
8 - 9b 24 -0.0016 0.0068 230.0413 -0.2401 1.0000
9 - 9b 24 0.0040 0.0068 230.0413 0.5997 0.9996
1 - 10 26 0.0046 0.0068 230.0413 0.6788 0.9990
1 - 3 26 0.0036 0.0068 230.0413 0.5261 0.9998
1 - 5 26 0.0097 0.0068 230.0413 1.4377 0.8820
1 - 6 26 -0.0085 0.0068 230.0413 -1.2633 0.9408
1 - 7 26 0.0215 0.0068 230.0413 3.1834 0.0430
1 - 8 26 0.0118 0.0068 230.0413 1.7454 0.7177
1 - 9 26 0.0054 0.0068 230.0413 0.8035 0.9967
1 - 9b 26 0.0096 0.0068 230.0413 1.4180 0.8900
10 - 3 26 -0.0010 0.0068 230.0413 -0.1528 1.0000
10 - 5 26 0.0051 0.0068 230.0413 0.7588 0.9978
10 - 6 26 -0.0131 0.0068 230.0413 -1.9421 0.5853
10 - 7 26 0.0169 0.0068 230.0413 2.5045 0.2353
10 - 8 26 0.0072 0.0068 230.0413 1.0666 0.9783
10 - 9 26 0.0008 0.0068 230.0413 0.1247 1.0000
10 - 9b 26 0.0050 0.0068 230.0413 0.7392 0.9982
3 - 5 26 0.0062 0.0068 230.0413 0.9116 0.9922
3 - 6 26 -0.0121 0.0068 230.0413 -1.7894 0.6892
3 - 7 26 0.0179 0.0068 230.0413 2.6573 0.1694
3 - 8 26 0.0082 0.0068 230.0413 1.2194 0.9516
3 - 9 26 0.0019 0.0068 230.0413 0.2775 1.0000
3 - 9b 26 0.0060 0.0068 230.0413 0.8919 0.9932
5 - 6 26 -0.0182 0.0068 230.0413 -2.7010 0.1533
5 - 7 26 0.0118 0.0068 230.0413 1.7457 0.7175
5 - 8 26 0.0021 0.0068 230.0413 0.3078 1.0000
5 - 9 26 -0.0043 0.0068 230.0413 -0.6341 0.9994
5 - 9b 26 -0.0001 0.0068 230.0413 -0.0197 1.0000
6 - 7 26 0.0300 0.0068 230.0413 4.4467 0.0005
6 - 8 26 0.0203 0.0068 230.0413 3.0087 0.0705
6 - 9 26 0.0140 0.0068 230.0413 2.0668 0.4986
6 - 9b 26 0.0181 0.0068 230.0413 2.6813 0.1604
7 - 8 26 -0.0097 0.0068 230.0413 -1.4379 0.8819
7 - 9 26 -0.0161 0.0068 230.0413 -2.3798 0.3001
7 - 9b 26 -0.0119 0.0068 230.0413 -1.7653 0.7049
8 - 9 26 -0.0064 0.0068 230.0413 -0.9419 0.9903
8 - 9b 26 -0.0022 0.0068 230.0413 -0.3274 1.0000
9 - 9b 26 0.0041 0.0068 230.0413 0.6145 0.9995
1 - 10 28 0.0049 0.0068 230.0413 0.7190 0.9985
1 - 3 28 0.0052 0.0068 230.0413 0.7644 0.9977
1 - 5 28 0.0124 0.0068 230.0413 1.8392 0.6560
1 - 6 28 -0.0105 0.0068 230.0413 -1.5544 0.8281
1 - 7 28 0.0246 0.0068 230.0413 3.6442 0.0099
1 - 8 28 0.0145 0.0068 230.0413 2.1473 0.4440
1 - 9 28 0.0072 0.0068 230.0413 1.0620 0.9789
1 - 9b 28 0.0124 0.0068 230.0413 1.8347 0.6590
10 - 3 28 0.0003 0.0068 230.0413 0.0454 1.0000
10 - 5 28 0.0076 0.0068 230.0413 1.1202 0.9707
10 - 6 28 -0.0154 0.0068 230.0413 -2.2734 0.3627
10 - 7 28 0.0198 0.0068 230.0413 2.9252 0.0881
10 - 8 28 0.0096 0.0068 230.0413 1.4283 0.8859
10 - 9 28 0.0023 0.0068 230.0413 0.3430 1.0000
10 - 9b 28 0.0075 0.0068 230.0413 1.1157 0.9714
3 - 5 28 0.0073 0.0068 230.0413 1.0748 0.9773
3 - 6 28 -0.0157 0.0068 230.0413 -2.3188 0.3352
3 - 7 28 0.0194 0.0068 230.0413 2.8798 0.0991
3 - 8 28 0.0093 0.0068 230.0413 1.3829 0.9033
3 - 9 28 0.0020 0.0068 230.0413 0.2976 1.0000
3 - 9b 28 0.0072 0.0068 230.0413 1.0703 0.9779
5 - 6 28 -0.0229 0.0068 230.0413 -3.3936 0.0226
5 - 7 28 0.0122 0.0068 230.0413 1.8050 0.6789
5 - 8 28 0.0021 0.0068 230.0413 0.3081 1.0000
5 - 9 28 -0.0052 0.0068 230.0413 -0.7772 0.9974
5 - 9b 28 0.0000 0.0068 230.0413 -0.0045 1.0000
6 - 7 28 0.0351 0.0068 230.0413 5.1986 0.0000
6 - 8 28 0.0250 0.0068 230.0413 3.7017 0.0081
6 - 9 28 0.0177 0.0068 230.0413 2.6164 0.1856
6 - 9b 28 0.0229 0.0068 230.0413 3.3891 0.0230
7 - 8 28 -0.0101 0.0068 230.0413 -1.4969 0.8561
7 - 9 28 -0.0174 0.0068 230.0413 -2.5822 0.1999
7 - 9b 28 -0.0122 0.0068 230.0413 -1.8095 0.6759
8 - 9 28 -0.0073 0.0068 230.0413 -1.0853 0.9759
8 - 9b 28 -0.0021 0.0068 230.0413 -0.3126 1.0000
9 - 9b 28 0.0052 0.0068 230.0413 0.7727 0.9975

11 Area Under the Curve (AUC)

AUC computed per individual via the trapezoid rule across all timepoints. metabolism_per_* is the primary metric matching the paper; corrected_fc and raw_fluorescence are retained for reference.

compute_auc <- function(df, value_col, group_vars) {
  df %>%
    filter(is.finite(time_hr), is.finite(.data[[value_col]])) %>%
    group_by(across(all_of(group_vars))) %>%
    summarise(
      AUC          = trapezoid_auc(time_hr, .data[[value_col]]),
      n_timepoints = n(),
      .groups      = "drop"
    ) %>%
    filter(is.finite(AUC))
}

# Only include grouping columns that are actually present in the data
individual_vars <- intersect(
  c("trace_id", "family_id_group", "treatment_group"),
  names(metabolism_df)
)

auc_metab_list <- list()
if (nrow(metabolism_df) > 0) {
  for (mc in active_meas_cols) {
    col <- paste0("metabolism_per_", mc)
    if (col %in% names(metabolism_df)) {
      auc_metab_list[[col]] <-
        compute_auc(metabolism_df, col, individual_vars) %>%
        mutate(metric = col)
    }
  }
}

auc_all <- bind_rows(auc_metab_list)

str(auc_all)
tibble [99 × 6] (S3: tbl_df/tbl/data.frame)
 $ trace_id       : chr [1:99] "1" "10" "11" "12" ...
 $ family_id_group: chr [1:99] "6" "6" "6" "5" ...
 $ treatment_group: chr [1:99] NA NA NA NA ...
 $ AUC            : num [1:99] 0.648 0.559 0.575 0.559 0.582 ...
 $ n_timepoints   : int [1:99] 7 7 7 7 7 7 7 7 7 7 ...
 $ metric         : chr [1:99] "metabolism_per_area_mm2_measurement" "metabolism_per_area_mm2_measurement" "metabolism_per_area_mm2_measurement" "metabolism_per_area_mm2_measurement" ...

11.1 AUC summary tables

sum_vars <- intersect(
  c("metric", "family_id_group", "treatment_group"),
  names(auc_all)
)
auc_summary <- auc_all %>%
  group_by(across(all_of(sum_vars))) %>%
  summarise(
    n      = n(),
    mean   = mean(AUC, na.rm = TRUE),
    sd     = sd(AUC, na.rm = TRUE),
    se     = sd / sqrt(n),
    median = median(AUC, na.rm = TRUE),
    .groups = "drop"
  )

print(auc_summary)
# A tibble: 9 × 8
  metric         family_id_group treatment_group     n  mean    sd     se median
  <chr>          <chr>           <chr>           <int> <dbl> <dbl>  <dbl>  <dbl>
1 metabolism_pe… 1               <NA>               11 0.731 0.492 0.148   0.564
2 metabolism_pe… 10              <NA>               11 0.647 0.214 0.0645  0.557
3 metabolism_pe… 3               <NA>               11 0.696 0.170 0.0512  0.694
4 metabolism_pe… 5               <NA>               11 0.661 0.340 0.103   0.559
5 metabolism_pe… 6               <NA>               11 0.835 0.512 0.154   0.648
6 metabolism_pe… 7               <NA>               11 0.417 0.130 0.0392  0.390
7 metabolism_pe… 8               <NA>               11 0.594 0.167 0.0504  0.584
8 metabolism_pe… 9               <NA>               11 0.687 0.144 0.0433  0.645
9 metabolism_pe… 9b              <NA>               11 0.611 0.363 0.109   0.540

12 Statistical Analysis

Each individual oyster (sample_id_group) is the observational unit. The model is built from whichever grouping factors are present: both family and treatment (with interaction) when both exist, or a one-way model when only one factor is available. Each plate maps to a unique family × treatment combination, so plate-level and group-level variance are confounded; interpret accordingly.

run_auc_stats <- function(auc_df) {
  empty <- tibble()

  has_family    <- "family_id_group" %in% names(auc_df) &&
    length(unique(na.omit(auc_df$family_id_group))) > 1
  has_treatment <- "treatment_group" %in% names(auc_df) &&
    length(unique(na.omit(auc_df$treatment_group))) > 1

  if (!has_family && !has_treatment) {
    return(list(model = NULL, anova = NULL,
                pairs_full = empty, pairs_family = empty,
                pairs_trt = empty,
                has_family = FALSE, has_treatment = FALSE))
  }

  if (has_family)    auc_df <- auc_df %>% mutate(family    = factor(family_id_group))
  if (has_treatment) auc_df <- auc_df %>% mutate(treatment = factor(treatment_group))

  formula_str <- if (has_family && has_treatment) {
    "AUC ~ family * treatment"
  } else if (has_family) {
    "AUC ~ family"
  } else {
    "AUC ~ treatment"
  }
  model     <- lm(as.formula(formula_str), data = auc_df)
  anova_res <- anova(model)

  if (has_family && has_treatment) {
    pairs_full   <- as.data.frame(pairs(emmeans(model, ~ family * treatment),
                                        adjust = "tukey"))
    pairs_family <- as.data.frame(pairs(emmeans(model, ~ family),
                                        adjust = "tukey"))
    pairs_trt    <- as.data.frame(pairs(emmeans(model, ~ treatment),
                                        adjust = "tukey"))
  } else if (has_family) {
    pairs_family <- as.data.frame(pairs(emmeans(model, ~ family),
                                        adjust = "tukey"))
    pairs_full   <- pairs_family
    pairs_trt    <- empty
  } else {
    pairs_trt    <- as.data.frame(pairs(emmeans(model, ~ treatment),
                                        adjust = "tukey"))
    pairs_full   <- pairs_trt
    pairs_family <- empty
  }

  list(
    model         = model,
    anova         = anova_res,
    pairs_full    = pairs_full,
    pairs_family  = pairs_family,
    pairs_trt     = pairs_trt,
    has_family    = has_family,
    has_treatment = has_treatment
  )
}

metrics_to_test <- unique(auc_all$metric)
stats_results   <- map(
  set_names(metrics_to_test),
  ~ run_auc_stats(auc_all %>% filter(metric == .x))
)

12.1 Results by metric

for (met in metrics_to_test) {
  stats <- stats_results[[met]]
  cat("\n\n### Metric:", met, "\n\n")
  cat("**ANOVA:**\n\n")
  cat(knitr::kable(as.data.frame(stats$anova), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")
  if (stats$has_family && stats$has_treatment) {
    cat("**Pairwise: family × treatment (Tukey):**\n\n")
    cat(knitr::kable(as.data.frame(stats$pairs_full), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")
    cat("**Pairwise: family main effect:**\n\n")
    cat(knitr::kable(as.data.frame(stats$pairs_family), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")
    cat("**Pairwise: treatment main effect:**\n\n")
    cat(knitr::kable(as.data.frame(stats$pairs_trt), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")
  } else if (stats$has_family) {
    cat("**Pairwise: family (Tukey):**\n\n")
    cat(knitr::kable(as.data.frame(stats$pairs_family), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")
  } else if (stats$has_treatment) {
    cat("**Pairwise: treatment (Tukey):**\n\n")
    cat(knitr::kable(as.data.frame(stats$pairs_trt), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")
  }
}

12.1.1 Metric: metabolism_per_area_mm2_measurement

ANOVA:

Df Sum Sq Mean Sq F value Pr(>F)
family 8 1.1337 0.1417 1.4318 0.1942
Residuals 90 8.9077 0.0990 NA NA

Pairwise: family (Tukey):

contrast estimate SE df t.ratio p.value
1 - 10 0.0838 0.1341 90 0.6244 0.9994
1 - 3 0.0349 0.1341 90 0.2602 1.0000
1 - 5 0.0692 0.1341 90 0.5157 0.9999
1 - 6 -0.1041 0.1341 90 -0.7763 0.9973
1 - 7 0.3136 0.1341 90 2.3377 0.3314
1 - 8 0.1362 0.1341 90 1.0152 0.9835
1 - 9 0.0433 0.1341 90 0.3225 1.0000
1 - 9b 0.1198 0.1341 90 0.8931 0.9928
10 - 3 -0.0489 0.1341 90 -0.3643 1.0000
10 - 5 -0.0146 0.1341 90 -0.1087 1.0000
10 - 6 -0.1879 0.1341 90 -1.4007 0.8947
10 - 7 0.2298 0.1341 90 1.7132 0.7369
10 - 8 0.0524 0.1341 90 0.3908 1.0000
10 - 9 -0.0405 0.1341 90 -0.3019 1.0000
10 - 9b 0.0360 0.1341 90 0.2686 1.0000
3 - 5 0.0343 0.1341 90 0.2556 1.0000
3 - 6 -0.1390 0.1341 90 -1.0364 0.9812
3 - 7 0.2787 0.1341 90 2.0775 0.4950
3 - 8 0.1013 0.1341 90 0.7550 0.9977
3 - 9 0.0084 0.1341 90 0.0624 1.0000
3 - 9b 0.0849 0.1341 90 0.6329 0.9994
5 - 6 -0.1733 0.1341 90 -1.2920 0.9312
5 - 7 0.2444 0.1341 90 1.8220 0.6677
5 - 8 0.0670 0.1341 90 0.4995 0.9999
5 - 9 -0.0259 0.1341 90 -0.1932 1.0000
5 - 9b 0.0506 0.1341 90 0.3774 1.0000
6 - 7 0.4177 0.1341 90 3.1139 0.0595
6 - 8 0.2403 0.1341 90 1.7915 0.6876
6 - 9 0.1474 0.1341 90 1.0988 0.9730
6 - 9b 0.2239 0.1341 90 1.6693 0.7632
7 - 8 -0.1774 0.1341 90 -1.3225 0.9220
7 - 9 -0.2703 0.1341 90 -2.0151 0.5372
7 - 9b -0.1938 0.1341 90 -1.4446 0.8772
8 - 9 -0.0929 0.1341 90 -0.6927 0.9988
8 - 9b -0.0164 0.1341 90 -0.1221 1.0000
9 - 9b 0.0765 0.1341 90 0.5705 0.9997

13 AUC Box Plots with Statistical Annotations

13.1 Significance labels

Significance labels: *** p < 0.001, ** p < 0.01, * p < 0.05. Brackets are drawn only for significant pairs (p < 0.05). Plots are generated for whichever grouping factors are present: treatment-only, family-only, all-groups, within-family, and within-treatment.

sig_label <- function(p) {
  case_when(p < 0.001 ~ "***", p < 0.01 ~ "**", p < 0.05 ~ "*",
            TRUE ~ "ns")
}

# Add significance brackets to an existing ggplot.
# pairs_df   : data frame with $contrast and $p.value columns
# group_levels: ordered character vector matching x-axis factor levels
# y_vals     : numeric vector of AUC values used to set bracket heights
add_sig_brackets <- function(p, pairs_df, group_levels, y_vals) {
  sig_pairs <- pairs_df %>%
    mutate(label = sig_label(p.value)) %>%
    filter(label != "ns")
  if (nrow(sig_pairs) == 0) return(p)

  y_max   <- max(y_vals, na.rm = TRUE)
  y_range <- diff(range(y_vals, na.rm = TRUE))
  step    <- y_range * 0.12

  for (i in seq_len(nrow(sig_pairs))) {
    parts <- str_split(as.character(sig_pairs$contrast[i]), " - ", 2)[[1]]
    g1 <- trimws(parts[1])
    g2 <- trimws(parts[2])
    x1 <- match(g1, group_levels)
    x2 <- match(g2, group_levels)
    if (is.na(x1) || is.na(x2)) next
    bar_y <- y_max + i * step
    p <- p +
      annotate("segment", x = x1, xend = x2,
               y = bar_y, yend = bar_y,
               colour = "black", linewidth = 0.6) +
      annotate("segment", x = x1, xend = x1,
               y = bar_y, yend = bar_y - step * 0.3,
               colour = "black", linewidth = 0.6) +
      annotate("segment", x = x2, xend = x2,
               y = bar_y, yend = bar_y - step * 0.3,
               colour = "black", linewidth = 0.6) +
      annotate("text", x = (x1 + x2) / 2,
               y = bar_y + step * 0.15,
               label = sig_pairs$label[i], size = 4.5)
  }
  p
}

13.2 AUC Boxplots

for (met in metrics_to_test) {
  df      <- auc_all %>% filter(metric == met)
  stats   <- stats_results[[met]]
  y_lab   <- auc_y_label(met)
  has_fam <- stats$has_family
  has_trt <- stats$has_treatment

  # ── Treatment main effect (x = treatment, tick = treatment name) ───────
  if (has_trt) {
    df_p <- df %>%
      mutate(x = factor(treatment_group, levels = sort(unique(treatment_group))))
    grps <- levels(df_p$x)
    p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
      geom_boxplot(alpha = 0.6, outlier.shape = NA) +
      geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
      scale_fill_manual(values = trt_colours[grps], guide = "none") +
      labs(x = "Treatment", y = y_lab) +
      theme_classic(base_size = 13)
    p <- add_sig_brackets(p, stats$pairs_trt, grps, df_p$AUC)
    print(p)
    ggsave(file.path(fig_dir, paste0("auc_treatment_", met, ".png")),
           p, width = 5, height = 5)
  }

  # ── Family main effect (x = family, tick = family name) ───────────────
  if (has_fam) {
    df_p <- df %>%
      mutate(x = factor(family_id_group, levels = sort(unique(family_id_group))))
    grps <- levels(df_p$x)
    p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
      geom_boxplot(alpha = 0.6, outlier.shape = NA) +
      geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
      scale_fill_manual(values = fam_colours[grps], guide = "none") +
      labs(x = "Family", y = y_lab) +
      theme_classic(base_size = 13)
    p <- add_sig_brackets(p, stats$pairs_family, grps, df_p$AUC)
    print(p)
    ggsave(file.path(fig_dir, paste0("auc_family_", met, ".png")),
           p, width = 5, height = 5)
  }

  # Remaining plots require both factors
  if (!has_fam || !has_trt) next

  # ── All family:treatment groups (x = family:treatment) ─────────────────
  # emmeans contrasts use spaces; convert to colon to match tick labels
  pairs_fc <- stats$pairs_full %>%
    mutate(contrast = str_replace_all(
      contrast,
      "([a-z]+) ([a-z]+)( - )([a-z]+) ([a-z]+)",
      "\\1:\\2\\3\\4:\\5"
    ))
  df_p <- df %>%
    mutate(x = factor(
      paste(family_id_group, treatment_group, sep = ":"),
      levels = sort(unique(paste(family_id_group, treatment_group, sep = ":")))
    ))
  grps     <- levels(df_p$x)
  fill_map <- setNames(make_palette(length(grps)), grps)
  p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
    geom_boxplot(alpha = 0.6, outlier.shape = NA) +
    geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
    scale_fill_manual(values = fill_map, guide = "none") +
    labs(x = "Family : Treatment", y = y_lab) +
    theme_classic(base_size = 13) +
    theme(axis.text.x = element_text(angle = 20, hjust = 1))
  p <- add_sig_brackets(p, pairs_fc, grps, df_p$AUC)
  print(p)
  ggsave(file.path(fig_dir, paste0("auc_all_groups_", met, ".png")),
         p, width = 6, height = 5)

  # ── Within each family: treatment comparison (x = family:treatment) ────
  # Tick labels are family:treatment so these plots are visually distinct
  # from the treatment main-effect plot above.
  for (fam in sort(unique(df$family_id_group))) {
    df_p <- df %>%
      filter(family_id_group == fam) %>%
      mutate(x = factor(
        paste(family_id_group, treatment_group, sep = ":"),
        levels = sort(unique(paste(family_id_group, treatment_group, sep = ":")))
      ))
    grps     <- levels(df_p$x)
    pairs_sub <- pairs_fc %>%
      filter(str_count(contrast, paste0(fam, ":")) == 2)
    p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
      geom_boxplot(alpha = 0.6, outlier.shape = NA) +
      geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
      scale_fill_manual(values = fill_map[grps], guide = "none") +
      labs(x = "Family : Treatment", y = y_lab) +
      theme_classic(base_size = 13)
    p <- add_sig_brackets(p, pairs_sub, grps, df_p$AUC)
    print(p)
    ggsave(file.path(fig_dir, paste0("auc_", fam, "_trt_", met, ".png")),
           p, width = 5, height = 5)
  }

  # ── Within each treatment: family comparison (x = family:treatment) ────
  # Tick labels are family:treatment so these plots are visually distinct
  # from the family main-effect plot above.
  for (trt in sort(unique(df$treatment_group))) {
    df_p <- df %>%
      filter(treatment_group == trt) %>%
      mutate(x = factor(
        paste(family_id_group, treatment_group, sep = ":"),
        levels = sort(unique(paste(family_id_group, treatment_group, sep = ":")))
      ))
    grps      <- levels(df_p$x)
    pairs_sub <- pairs_fc %>%
      filter(str_count(contrast, paste0(":", trt)) == 2)
    p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
      geom_boxplot(alpha = 0.6, outlier.shape = NA) +
      geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
      scale_fill_manual(values = fill_map[grps], guide = "none") +
      labs(x = "Family : Treatment", y = y_lab) +
      theme_classic(base_size = 13)
    p <- add_sig_brackets(p, pairs_sub, grps, df_p$AUC)
    print(p)
    ggsave(file.path(fig_dir, paste0("auc_", trt, "_fam_", met, ".png")),
           p, width = 5, height = 5)
  }
}

14 Save Output Data

write_csv(auc_all,      file.path(out_dir, "auc_all_metrics.csv"))
write_csv(auc_summary,  file.path(out_dir, "auc_summary.csv"))

if (nrow(metabolism_df) > 0)
  write_csv(metabolism_df,
            file.path(out_dir, "metabolism.csv"))

stats_compiled <- map_dfr(metrics_to_test, function(met) {
  bind_rows(
    stats_results[[met]]$pairs_full %>%
      mutate(comparison = "family:treatment"),
    stats_results[[met]]$pairs_family %>%
      mutate(comparison = "family"),
    stats_results[[met]]$pairs_trt %>%
      mutate(comparison = "treatment")
  ) %>% mutate(metric = met)
})

write_csv(stats_compiled,
          file.path(out_dir, "pairwise_stats.csv"))

message("Output files written to: ", out_dir)
