Resazurin Assays - Low Salinity Selected Juvenile Ruditapes phillippinarum Exposed to 36C Acute Heat Stress

2026
Ruditapes phillippinarum
heat stress
resazurin
Author

Sam White

Published

May 28, 2026

INTRO

This post presents the results of resazurin assays conducted on low-salinity selected juvenile Ruditapes phillippinarum exposed to acute heat stress at 36°C. Additionally, this compared two families of clams, Tweed and Blue, across selected and control treatments.

MATERIALS & METHODS

Experimental design

Manila clams (Ruditapes phillippinarum) from both tweed/blue control/selected (low salinity tolerance) were distributed across six 12-well plates. Clams were photographed. Clams were submerged in 4mL of resazurin working solution (prepared 20260528 by SJW) and incubated at 36°C. Resazurin fluorescence was measured every 30mins using a Synergy HTX (Agilent) plate reader.

ImageJ Analysis

Clam images were analysed in ImageJ to obtain area measurements. Briefly, images were converted to 8-bit, and thresholded. Then images were converted to binary, applying the “fill holes” operation. The clams were selected using a the rectangular selection tool. The “Analyze Particles” function was used to identify and measure clams.

Data Analysis

Data analysis was performed in R. See 00.00-resazurin-20260528-clam-36C.Rmd.

https://github.com/RobertsLab/resazurin-assay-development/tree/main/data/clam/20260528-rphi-36C

Results are here:

https://github.com/RobertsLab/resazurin-assay-development/tree/main/output/clam/20260528-rphi-36C

The section below was knitted from the R Markdown file: 00.00-resazurin-20260528-clam-36C.Rmd

SUMMARY

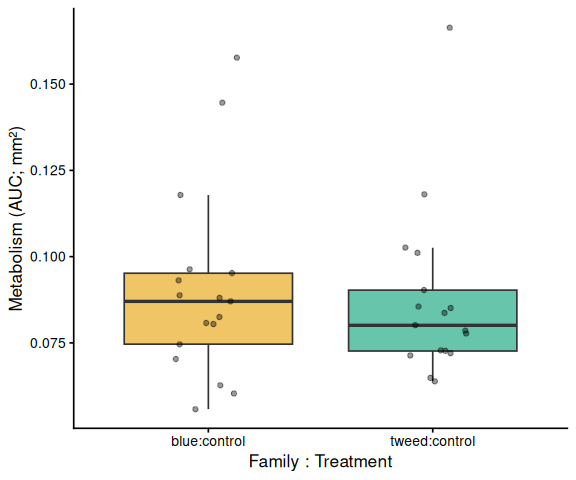

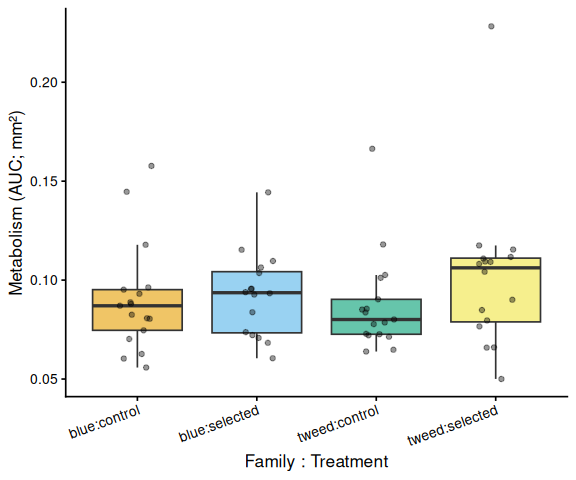

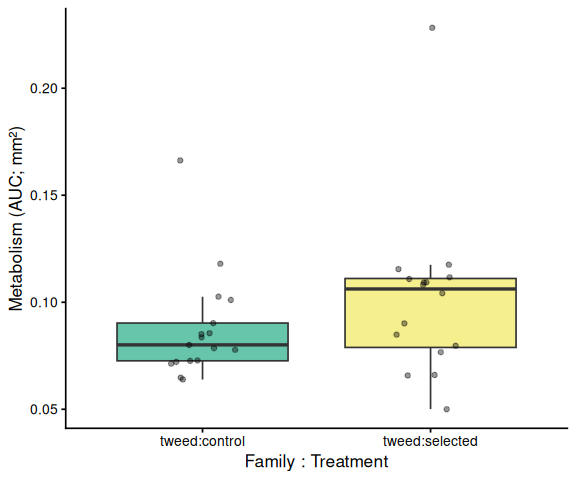

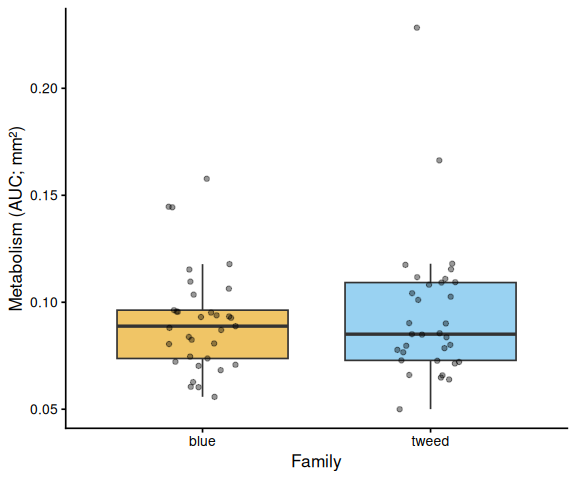

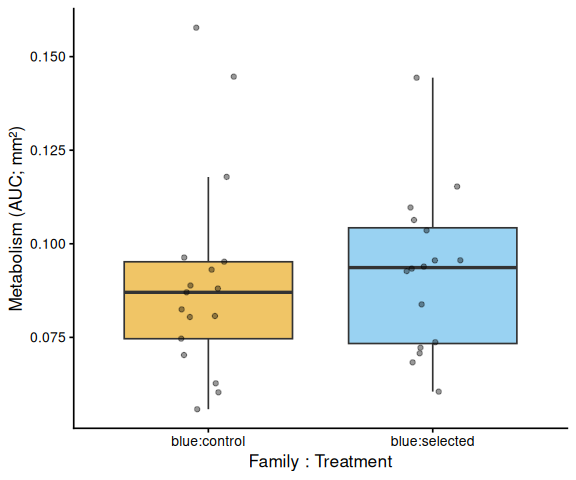

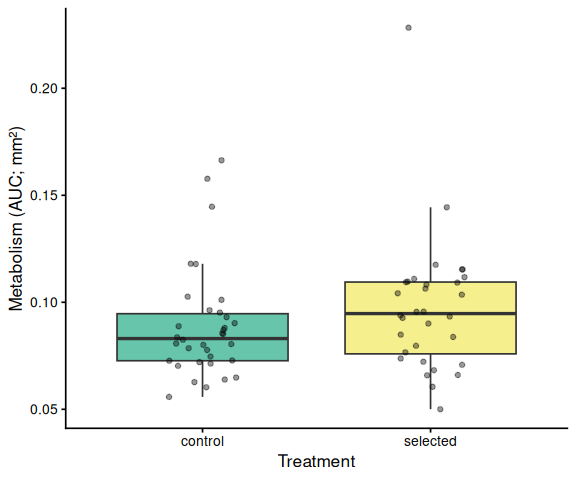

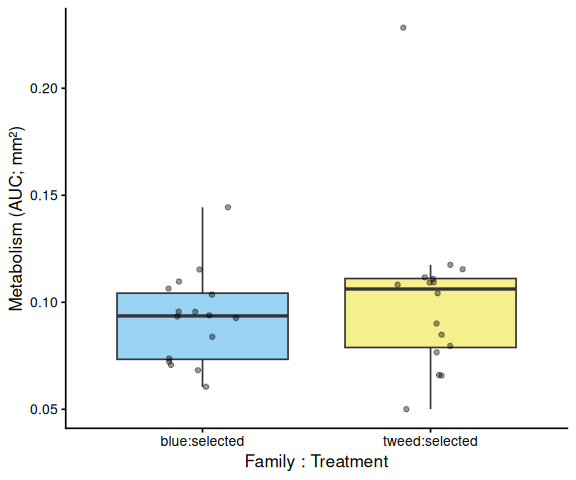

No statistical differences in metabolic activity (AUC) were detected between selected and control clams at 36°C, nor between the two families.

1 Background

Control clams (C) compared with selected clams (S) at 36°C using a resazurin metabolic assay. Clams were placed in 12-well plates submerged in 4.0 mL resazurin working solution (prepared 2026-05-28 by SJW). Plate layout was randomised. Fluorescence was measured every 30 min on a Synergy HTX (Agilent) plate reader.

See data/clam/20260528-rphi-36C/README.md for full experimental notes including per-timepoint temperature spot checks.

1.1 Expected inputs

Path Description
data/clam/20260528-rphi-36C/plate-*-T*.txt Plate reader fluorescence exports (one file per plate per timepoint)
data/clam/20260528-rphi-36C/layout.csv Well metadata: plate ID, well ID, blank flag, family/treatment groups, size measurements, exclusion flags

1.2 Expected outputs

All outputs are written to output/clam/20260528-rphi-36C/.

File Description
figures/ All plots generated by this script
auc_all_metrics.csv Per-individual AUC values for every active measurement metric
auc_summary.csv Group-level AUC summary statistics (mean, SD, SE, median)
metabolism.csv Full per-well per-timepoint metabolism data frame
pairwise_stats.csv Tukey-adjusted pairwise comparisons from AUC linear models

2 Setup

knitr::opts_chunk$set(
  echo = TRUE,         # Display code chunks
  eval = TRUE,        # Evaluate code chunks
  warning = FALSE,     # Hide warnings
  message = FALSE,     # Hide messages
  comment = "",         # Prevents appending '##' to beginning of lines in code output
  results = 'hold'     # Holds output so it's all printed together after code chunk
)
library(tidyverse)
library(pracma)       # trapz()
library(lme4)
library(lmerTest)
library(emmeans)
library(multcompView)
library(cowplot)
library(colorspace)   # qualitative_hcl() for large palettes

3 Helper Functions

normalize_well_id <- function(x) {
  x <- toupper(trimws(x))
  valid <- str_detect(x, "^[A-Z]+[0-9]+$")
  out <- rep(NA_character_, length(x))
  if (!any(valid)) return(out)
  m <- str_match(x[valid], "^([A-Z]+)([0-9]+)$")
  out[valid] <- paste0(m[, 2], as.integer(m[, 3]))
  out
}

parse_time_hr <- function(path) {
  hit <- str_match(basename(path),
                   "(?i)-T([0-9]+(?:\\.[0-9]+)?)\\.txt$")
  as.numeric(hit[, 2])
}

parse_plate_id <- function(path) {
  hit <- str_match(basename(path),
    "(?i)^plate-([A-Za-z0-9-]+)-T[0-9]+(?:\\.[0-9]+)?\\.txt$")
  id <- hit[, 2]
  ifelse(is.na(id), "unknown", id)
}

extract_results_block <- function(lines) {
  results_idx <- which(trimws(lines) == "Results")
  if (length(results_idx) == 0) stop("No Results section found")
  idx <- results_idx[1]
  header_tokens <- str_split(lines[idx + 1], "\\t")[[1]] |> trimws()
  col_ids <- header_tokens[
    header_tokens != "" & str_detect(header_tokens, "^[0-9]+$")]
  j <- idx + 2
  data_lines <- character()
  while (j <= length(lines)) {
    line <- lines[j]
    if (trimws(line) == "") break
    if (!str_detect(line, "^[A-Za-z]\\t")) break
    data_lines <- c(data_lines, line)
    j <- j + 1
  }
  list(col_ids = col_ids, data_lines = data_lines)
}

parse_plate_export <- function(path) {
  lines <- readLines(path, warn = FALSE)
  res <- extract_results_block(lines)

  map_dfr(res$data_lines, function(line) {
    tokens <- str_split(line, "\\t")[[1]] |> trimws()
    tokens <- tokens[tokens != ""]
    row_letter <- tokens[1]
    nums <- suppressWarnings(as.numeric(tokens[-1]))
    valid_idx <- which(!is.na(nums))
    if (length(valid_idx) == 0) return(tibble())
    vals <- nums[valid_idx]
    n <- min(length(vals), length(res$col_ids))
    tibble(
      row_id  = toupper(row_letter),
      col_id  = as.integer(res$col_ids[seq_len(n)]),
      well_id = normalize_well_id(
        paste0(toupper(row_letter), res$col_ids[seq_len(n)])),
      value   = vals[seq_len(n)]
    )
  }) %>%
    mutate(
      plate_id = str_to_lower(parse_plate_id(path)),
      time_hr  = parse_time_hr(path)
    )
}

trapezoid_auc <- function(time_hr, value) {
  ok <- is.finite(time_hr) & is.finite(value)
  t <- time_hr[ok]
  v <- value[ok]
  if (length(t) < 2) return(NA_real_)
  ord <- order(t)
  t <- t[ord]; v <- v[ord]
  sum(diff(t) * (head(v, -1) + tail(v, -1)) / 2)
}

# Shared helper: extract display unit string from a measurement column name.
# e.g. "area_mm2_measurement" -> "mm²", "weight_mg_measurement" -> "mg"
parse_meas_unit <- function(col_name) {
  unit_raw <- col_name |>
    str_remove("^metabolism_per_") |>
    str_remove("_measurement$") |>
    str_extract("[^_]+$")
  case_when(
    unit_raw == "mm2" ~ "mm²",
    unit_raw == "cm2" ~ "cm²",
    unit_raw == "mm3" ~ "mm³",
    unit_raw == "cm3" ~ "cm³",
    TRUE              ~ unit_raw
  )
}

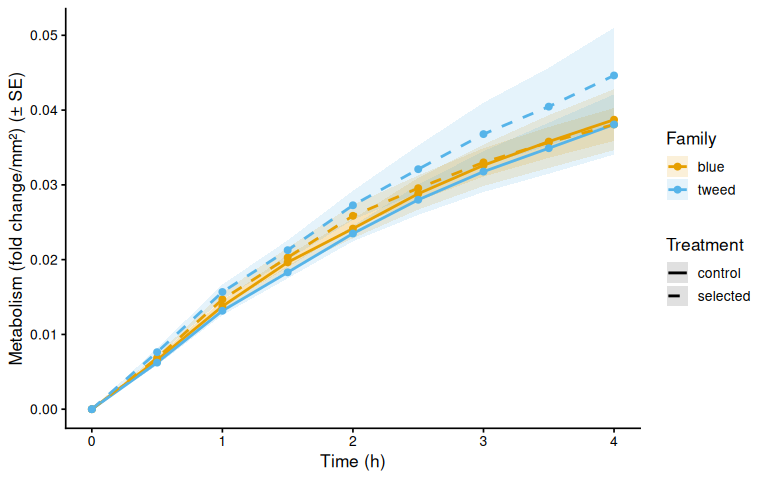

# y-axis label for metabolism line plots: "fold change/mm²"
metabolism_y_label <- function(col_name) {
  paste0("Metabolism (fold change/", parse_meas_unit(col_name), ")")
}

# y-axis label for AUC box plots: "Metabolism (AUC; mm²)"
auc_y_label <- function(metric_name) {
  paste0("Metabolism (AUC; ", parse_meas_unit(metric_name), ")")
}

4 Load Data

4.1 Plate export files

proj_root <- rprojroot::find_rstudio_root_file()
data_dir  <- file.path(proj_root, "data", "clam",
                        "20260528-rphi-36C")
fig_dir   <- file.path(proj_root, "output", "clam",
                        "20260528-rphi-36C", "figures")
out_dir   <- file.path(proj_root, "output", "clam",
                        "20260528-rphi-36C")

dir.create(fig_dir, recursive = TRUE, showWarnings = FALSE)
dir.create(out_dir, recursive = TRUE, showWarnings = FALSE)

plate_files <- list.files(
  data_dir,
  pattern = "(?i)^plate-.*-T[0-9]+(?:\\.[0-9]+)?\\.txt$",
  full.names = TRUE
)

plate_raw <- map_dfr(plate_files, function(path) {
  tryCatch(parse_plate_export(path),
           error = function(e) {
             message("Parse error in ", basename(path), ": ", e$message)
             tibble()
           })
})

str(plate_raw)
tibble [648 × 6] (S3: tbl_df/tbl/data.frame)
 $ row_id  : chr [1:648] "A" "A" "A" "A" ...
 $ col_id  : int [1:648] 1 2 3 4 1 2 3 4 1 2 ...
 $ well_id : chr [1:648] "A1" "A2" "A3" "A4" ...
 $ value   : num [1:648] 178 183 192 149 224 149 161 164 114 178 ...
 $ plate_id: chr [1:648] "b" "b" "b" "b" ...
 $ time_hr : num [1:648] 0 0 0 0 0 0 0 0 0 0 ...

4.2 Plate consistency check

Checks that every plate has the same number of wells at every timepoint. The expected well count is the mode across all plate × timepoint reads. Any plate with at least one deviating read is flagged and dropped entirely before any further analysis — removing only the aberrant timepoint would break the fold-change baseline calculation.

well_counts <- plate_raw %>%
  group_by(plate_id, time_hr) %>%
  summarise(n_wells = n_distinct(well_id), .groups = "drop")

expected_n_wells <- as.integer(
  names(which.max(table(well_counts$n_wells)))
)

inconsistent_reads <- well_counts %>%
  filter(n_wells != expected_n_wells) %>%
  arrange(plate_id, time_hr)

inconsistent_plate_ids <- unique(inconsistent_reads$plate_id)

if (nrow(inconsistent_reads) > 0) {
  cat("**Plate consistency check FAILED.**",
      "Expected", expected_n_wells, "wells per plate-timepoint read.",
      length(inconsistent_plate_ids),
      "plate(s) have at least one deviating read and are excluded",
      "from all analyses:\n\n")
  cat(knitr::kable(
    inconsistent_reads,
    col.names = c("Plate", "Time (h)", "Wells read"),
    caption   = paste("Expected:", expected_n_wells, "wells per read")
  ), sep = "\n")
  cat("\n")
  plate_raw <- plate_raw %>%
    filter(!plate_id %in% inconsistent_plate_ids)
  message(length(inconsistent_plate_ids),
          " plate(s) removed from plate_raw: ",
          paste(inconsistent_plate_ids, collapse = ", "))
} else {
  cat("Plate consistency check passed: all",
      n_distinct(well_counts$plate_id), "plates have",
      expected_n_wells, "wells at every timepoint.\n")
}

Plate consistency check passed: all 6 plates have 12 wells at every timepoint.

4.3 Layout file

layout_path <- file.path(data_dir, "layout.csv")

layout_raw <- read_csv(layout_path,
                       col_types = cols(.default = "c"),
                       show_col_types = FALSE)

# Standardise column names to snake_case
names(layout_raw) <- names(layout_raw) |>
  str_to_lower() |>
  str_replace_all("[^a-z0-9]+", "_") |>
  str_replace_all("_+", "_") |>
  str_replace("_$", "")

# Normalise plate_id to match plate file ids (strip "plate-" prefix)
layout_clean <- layout_raw %>%
  mutate(
    plate_id = str_remove(str_to_lower(plate_id), "^plate-"),
    well_id  = normalize_well_id(plate_well),
    is_blank = if ("is_blank" %in% names(layout_raw))
      toupper(trimws(is_blank)) %in% c("TRUE", "T", "1", "YES", "Y")
    else
      FALSE
  )

found_exclude_col <- intersect(
  c("exclude_from_analysis", "exclude", "omit", "not_analyzed"),
  names(layout_clean)
)[1]
layout_clean <- layout_clean %>%
  mutate(
    exclude_from_analysis = if (!is.na(found_exclude_col))
      toupper(trimws(.data[[found_exclude_col]])) %in%
        c("TRUE", "T", "1", "YES", "Y")
    else
      FALSE
  )

# Identify measurement columns and group columns
measurement_cols <- names(layout_clean)[
  str_detect(names(layout_clean), "_measurement$")]
group_cols <- names(layout_clean)[
  str_detect(names(layout_clean), "_group$")]

# Cast measurement columns to numeric
layout_clean <- layout_clean %>%
  mutate(across(all_of(measurement_cols),
                ~ suppressWarnings(as.numeric(.x))))

# Determine which measurement columns actually contain finite data
active_meas_cols <- measurement_cols[
  sapply(measurement_cols, function(col)
    any(is.finite(layout_clean[[col]]), na.rm = TRUE))]

# Normalise group values to lowercase so they match colour scale definitions
layout_clean <- layout_clean %>%
  mutate(across(all_of(group_cols),
                ~ str_to_lower(trimws(as.character(.x)))))

message("Group columns: ", paste(group_cols, collapse = ", "))
message("Active measurement columns: ",
        paste(active_meas_cols, collapse = ", "))

str(layout_clean)
tibble [72 × 14] (S3: tbl_df/tbl/data.frame)
 $ plate_id             : chr [1:72] "b" "b" "b" "b" ...
 $ plate_well           : chr [1:72] "A01" "A02" "A03" "A04" ...
 $ is_blank             : logi [1:72] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ family_id_group      : chr [1:72] "tweed" "blue" "tweed" "blue" ...
 $ sample_id_group      : chr [1:72] "1" "2" "3" "4" ...
 $ treatment_group      : chr [1:72] "selected" "selected" "control" "control" ...
 $ exclude_from_analysis: logi [1:72] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_reason       : chr [1:72] NA NA NA NA ...
 $ width_mm_measurement : num [1:72] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:72] NA NA NA NA NA NA NA NA NA NA ...
 $ weight_mg_measurement: num [1:72] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement : num [1:72] 212 194 184 125 298 ...
 $ imagej_id            : chr [1:72] "1" "3" "2" "4" ...
 $ well_id              : chr [1:72] "A1" "A2" "A3" "A4" ...

5 Merge Plate Data with Layout

dat <- plate_raw %>%
  left_join(
    layout_clean %>%
      select(plate_id, well_id, is_blank, exclude_from_analysis,
             any_of("exclude_reason"),
             all_of(group_cols), all_of(measurement_cols)),
    by = c("plate_id", "well_id")
  ) %>%
  mutate(
    is_blank = replace_na(is_blank, FALSE),
    exclude_from_analysis = replace_na(exclude_from_analysis, FALSE)
  )

str(dat)
tibble [648 × 16] (S3: tbl_df/tbl/data.frame)
 $ row_id               : chr [1:648] "A" "A" "A" "A" ...
 $ col_id               : int [1:648] 1 2 3 4 1 2 3 4 1 2 ...
 $ well_id              : chr [1:648] "A1" "A2" "A3" "A4" ...
 $ value                : num [1:648] 178 183 192 149 224 149 161 164 114 178 ...
 $ plate_id             : chr [1:648] "b" "b" "b" "b" ...
 $ time_hr              : num [1:648] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank             : logi [1:648] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis: logi [1:648] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_reason       : chr [1:648] NA NA NA NA ...
 $ family_id_group      : chr [1:648] "tweed" "blue" "tweed" "blue" ...
 $ sample_id_group      : chr [1:648] "1" "2" "3" "4" ...
 $ treatment_group      : chr [1:648] "selected" "selected" "control" "control" ...
 $ width_mm_measurement : num [1:648] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:648] NA NA NA NA NA NA NA NA NA NA ...
 $ weight_mg_measurement: num [1:648] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement : num [1:648] 212 194 184 125 298 ...

6 Raw Fluorescence

6.1 Data frame

# Wells in the plate reader output that have no layout entry get all-NA group
# columns after the join. Keep only wells assigned to at least one group.
active_gc <- intersect(group_cols, names(dat))

raw_df <- dat %>%
  filter(
    !is_blank,
    if (length(active_gc) > 0)
      if_any(all_of(active_gc), ~ !is.na(.))
    else
      TRUE
  ) %>%
  mutate(
    trace_id = if_else(
      !is.na(sample_id_group) & trimws(as.character(sample_id_group)) != "",
      as.character(sample_id_group),
      paste(plate_id, well_id, sep = "_")
    )
  )

families   <- sort(unique(na.omit(raw_df$family_id_group)))
treatments <- sort(unique(na.omit(raw_df$treatment_group)))

n_fam <- length(families)
n_trt <- length(treatments)

# Palette strategy:
#   <= 7 groups : Okabe-Ito (gold standard for colorblind-safe figures).
#   >  7 groups : colorspace::qualitative_hcl("Dynamic") scales to any N
#                 using perceptually uniform HCL space — no colour collisions.
# Black (#000000) is excluded from both and reserved for blank wells.
okabe_ito_7 <- c(
  "#E69F00", "#56B4E9", "#009E73", "#F0E442",
  "#0072B2", "#D55E00", "#CC79A7"
)
make_palette <- function(n) {
  if (n == 0L) return(character(0))
  if (n <= length(okabe_ito_7)) return(okabe_ito_7[seq_len(n)])
  colorspace::qualitative_hcl(n, palette = "Dynamic")
}

all_colours   <- make_palette(n_fam + n_trt)
fam_colours   <- setNames(all_colours[seq_len(n_fam)], families)
trt_colours   <- setNames(all_colours[n_fam + seq_len(n_trt)], treatments)

lty_pool <- c("solid", "dashed", "dotted", "dotdash", "longdash")
trt_linetypes <- setNames(
  lty_pool[(seq_len(n_trt) - 1L) %% length(lty_pool) + 1L],
  treatments
)
plate_well_colours <- c(blank = "black", fam_colours)

str(raw_df)
tibble [594 × 17] (S3: tbl_df/tbl/data.frame)
 $ row_id               : chr [1:594] "A" "A" "A" "A" ...
 $ col_id               : int [1:594] 1 2 3 4 1 2 3 4 2 3 ...
 $ well_id              : chr [1:594] "A1" "A2" "A3" "A4" ...
 $ value                : num [1:594] 178 183 192 149 224 149 161 164 178 164 ...
 $ plate_id             : chr [1:594] "b" "b" "b" "b" ...
 $ time_hr              : num [1:594] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank             : logi [1:594] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis: logi [1:594] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_reason       : chr [1:594] NA NA NA NA ...
 $ family_id_group      : chr [1:594] "tweed" "blue" "tweed" "blue" ...
 $ sample_id_group      : chr [1:594] "1" "2" "3" "4" ...
 $ treatment_group      : chr [1:594] "selected" "selected" "control" "control" ...
 $ width_mm_measurement : num [1:594] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:594] NA NA NA NA NA NA NA NA NA NA ...
 $ weight_mg_measurement: num [1:594] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement : num [1:594] 212 194 184 125 298 ...
 $ trace_id             : chr [1:594] "1" "2" "3" "4" ...

6.2 Raw fluorescence by plate (including blanks)

p_raw_plates <- dat %>%
  filter(is.finite(time_hr), is.finite(value)) %>%
  mutate(
    colour_group = if_else(is_blank, "blank",
                           coalesce(family_id_group, "sample")),
    trace_id     = paste(plate_id, well_id, sep = "_")
  ) %>%
  ggplot(aes(x = time_hr, y = value,
             group = trace_id, colour = colour_group)) +
  geom_line(alpha = 0.6) +
  geom_point(size = 1, alpha = 0.7) +
  facet_wrap(~ plate_id) +
  scale_colour_manual(
    values   = plate_well_colours,
    name     = "Group",
    breaks   = names(plate_well_colours),
    na.value = "grey80"
  ) +
  labs(x = "Time (h)", y = "Raw fluorescence (RFU)") +
  theme_classic(base_size = 12) +
  theme(strip.background = element_blank(),
        strip.text       = element_text(face = "bold"))

p_raw_plates

ggsave(file.path(fig_dir, "raw_fluor_by_plate.png"),
       p_raw_plates, width = 10, height = 8)

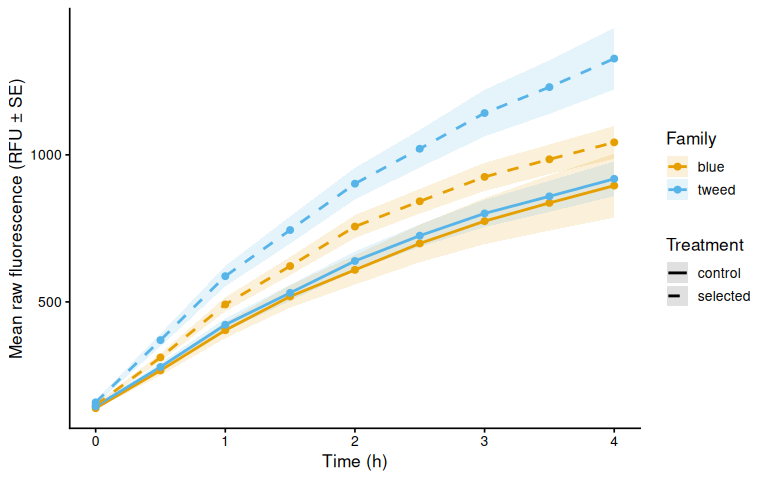

6.3 Mean raw fluorescence by family

raw_family_summary <- raw_df %>%
  group_by(family_id_group, treatment_group, time_hr) %>%
  summarise(
    mean_fluor = mean(value, na.rm = TRUE),
    se_fluor   = sd(value, na.rm = TRUE) /
      sqrt(sum(!is.na(value))),
    n          = sum(!is.na(value)),
    .groups    = "drop"
  )

p_raw_mean <- ggplot(raw_family_summary,
    aes(x = time_hr, y = mean_fluor,
        colour = family_id_group, linetype = treatment_group,
        group = interaction(family_id_group, treatment_group))) +
  geom_ribbon(aes(ymin = mean_fluor - se_fluor,
                  ymax = mean_fluor + se_fluor,
                  fill = family_id_group),
              alpha = 0.15, colour = NA) +
  geom_line(linewidth = 1) +
  geom_point(size = 2) +
  scale_colour_manual(values = fam_colours, name = "Family") +
  scale_fill_manual(values = fam_colours, name = "Family") +
  scale_linetype_manual(values = trt_linetypes, name = "Treatment") +
  labs(x = "Time (h)", y = "Mean raw fluorescence (RFU ± SE)") +
  theme_classic(base_size = 13)

p_raw_mean

ggsave(file.path(fig_dir, "raw_mean_by_family.png"),
       p_raw_mean, width = 8, height = 5)

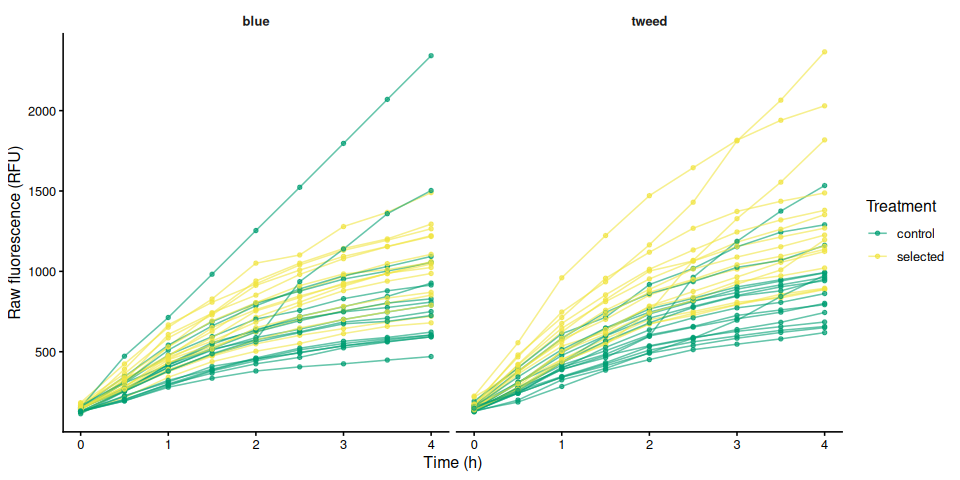

6.4 Individual raw fluorescence traces by family

p_raw_by_family <- raw_df %>%
  ggplot(aes(x = time_hr, y = value,
             group = trace_id, colour = treatment_group)) +
  geom_line(alpha = 0.6) +
  geom_point(size = 1.2, alpha = 0.7) +
  facet_wrap(~ family_id_group) +
  scale_colour_manual(values = trt_colours, name = "Treatment") +
  labs(x = "Time (h)", y = "Raw fluorescence (RFU)") +
  theme_classic(base_size = 12) +
  theme(strip.background = element_blank(),
        strip.text       = element_text(face = "bold"))

p_raw_by_family

ggsave(file.path(fig_dir, "raw_individual_by_family.png"),
       p_raw_by_family, width = 10, height = 5)

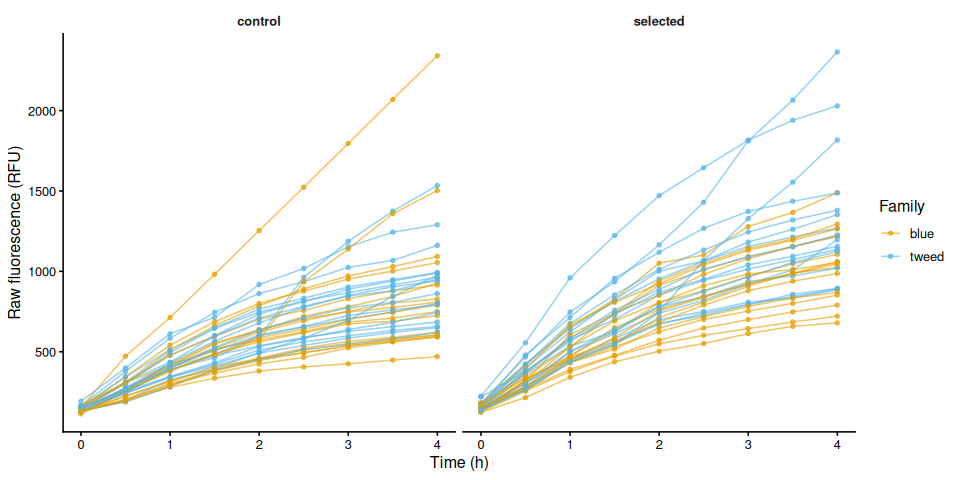

6.5 Individual raw fluorescence traces by treatment

p_raw_by_treatment <- raw_df %>%
  ggplot(aes(x = time_hr, y = value,
             group = trace_id, colour = family_id_group)) +
  geom_line(alpha = 0.6) +
  geom_point(size = 1.2, alpha = 0.7) +
  facet_wrap(~ treatment_group) +
  scale_colour_manual(values = fam_colours, name = "Family") +
  labs(x = "Time (h)", y = "Raw fluorescence (RFU)") +
  theme_classic(base_size = 12) +
  theme(strip.background = element_blank(),
        strip.text       = element_text(face = "bold"))

p_raw_by_treatment

ggsave(file.path(fig_dir, "raw_individual_by_treatment.png"),
       p_raw_by_treatment, width = 10, height = 5)

6.6 Excluded samples

Wells flagged exclude_from_analysis = TRUE appear in the raw fluorescence plots above but are omitted from all analyses that follow.

excluded_wells <- dat %>%
  filter(!is_blank, exclude_from_analysis) %>%
  mutate(
    sample = if_else(
      !is.na(sample_id_group) & trimws(as.character(sample_id_group)) != "",
      as.character(sample_id_group),
      paste(plate_id, well_id, sep = "_")
    )
  ) %>%
  select(plate_id, well_id, sample, family_id_group, treatment_group,
         any_of("exclude_reason")) %>%
  distinct() %>%
  arrange(plate_id, well_id)

if (nrow(excluded_wells) > 0) {
  col_names <- c("Plate", "Well", "Sample", "Family", "Treatment")
  if ("exclude_reason" %in% names(excluded_wells))
    col_names <- c(col_names, "Reason")
  cat(knitr::kable(excluded_wells, col.names = col_names), sep = "\n")
} else {
  cat("No wells are excluded from analysis.\n")
}

No wells are excluded from analysis.

7 Blank Correction via Fold-Change Normalization

Following Huffmyer et al.: fluorescence is first expressed as fold-change relative to each well’s own T0 reading (applied to samples and blanks alike), the mean fold-change of blank wells (per plate, per timepoint) is then subtracted. All samples therefore start at exactly 0 at T0 by construction, eliminating the risk of negative starting values from pipetting variance.

7.1 Step 1 – Fold-change relative to T0 for all wells

t0_all <- dat %>%
  filter(is.finite(time_hr), is.finite(value)) %>%
  group_by(plate_id, well_id) %>%
  slice_min(time_hr, n = 1, with_ties = FALSE) %>%
  select(plate_id, well_id, value_t0 = value) %>%
  ungroup()

dat_fc <- dat %>%
  left_join(t0_all, by = c("plate_id", "well_id")) %>%
  mutate(fold_change = if_else(
    is.finite(value_t0) & value_t0 > 0,
    value / value_t0,
    NA_real_
  ))

str(dat_fc)
tibble [648 × 18] (S3: tbl_df/tbl/data.frame)
 $ row_id               : chr [1:648] "A" "A" "A" "A" ...
 $ col_id               : int [1:648] 1 2 3 4 1 2 3 4 1 2 ...
 $ well_id              : chr [1:648] "A1" "A2" "A3" "A4" ...
 $ value                : num [1:648] 178 183 192 149 224 149 161 164 114 178 ...
 $ plate_id             : chr [1:648] "b" "b" "b" "b" ...
 $ time_hr              : num [1:648] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank             : logi [1:648] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis: logi [1:648] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_reason       : chr [1:648] NA NA NA NA ...
 $ family_id_group      : chr [1:648] "tweed" "blue" "tweed" "blue" ...
 $ sample_id_group      : chr [1:648] "1" "2" "3" "4" ...
 $ treatment_group      : chr [1:648] "selected" "selected" "control" "control" ...
 $ width_mm_measurement : num [1:648] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:648] NA NA NA NA NA NA NA NA NA NA ...
 $ weight_mg_measurement: num [1:648] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement : num [1:648] 212 194 184 125 298 ...
 $ value_t0             : num [1:648] 178 183 192 149 224 149 161 164 114 178 ...
 $ fold_change          : num [1:648] 1 1 1 1 1 1 1 1 1 1 ...

7.2 Step 2 – Mean blank fold-change per plate per timepoint

blank_fc_ref <- dat_fc %>%
  filter(is_blank) %>%
  group_by(plate_id, time_hr) %>%
  summarise(mean_blank_fc = mean(fold_change, na.rm = TRUE),
            .groups = "drop")

str(blank_fc_ref)
tibble [54 × 3] (S3: tbl_df/tbl/data.frame)
 $ plate_id     : chr [1:54] "b" "b" "b" "b" ...
 $ time_hr      : num [1:54] 0 0.5 1 1.5 2 2.5 3 3.5 4 0 ...
 $ mean_blank_fc: num [1:54] 1 1.01 1.04 1.07 1.1 ...

7.3 Step 3 – Subtract blank fold-change from sample fold-change

samples <- dat_fc %>%
  filter(!is_blank, !exclude_from_analysis) %>%
  mutate(
    trace_id = if_else(
      !is.na(sample_id_group) & trimws(as.character(sample_id_group)) != "",
      as.character(sample_id_group),
      paste(plate_id, well_id, sep = "_")
    )
  ) %>%
  left_join(blank_fc_ref, by = c("plate_id", "time_hr")) %>%
  mutate(corrected_fc = fold_change - mean_blank_fc)

str(samples)
tibble [594 × 21] (S3: tbl_df/tbl/data.frame)
 $ row_id               : chr [1:594] "A" "A" "A" "A" ...
 $ col_id               : int [1:594] 1 2 3 4 1 2 3 4 2 3 ...
 $ well_id              : chr [1:594] "A1" "A2" "A3" "A4" ...
 $ value                : num [1:594] 178 183 192 149 224 149 161 164 178 164 ...
 $ plate_id             : chr [1:594] "b" "b" "b" "b" ...
 $ time_hr              : num [1:594] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank             : logi [1:594] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis: logi [1:594] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_reason       : chr [1:594] NA NA NA NA ...
 $ family_id_group      : chr [1:594] "tweed" "blue" "tweed" "blue" ...
 $ sample_id_group      : chr [1:594] "1" "2" "3" "4" ...
 $ treatment_group      : chr [1:594] "selected" "selected" "control" "control" ...
 $ width_mm_measurement : num [1:594] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:594] NA NA NA NA NA NA NA NA NA NA ...
 $ weight_mg_measurement: num [1:594] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement : num [1:594] 212 194 184 125 298 ...
 $ value_t0             : num [1:594] 178 183 192 149 224 149 161 164 178 164 ...
 $ fold_change          : num [1:594] 1 1 1 1 1 1 1 1 1 1 ...
 $ trace_id             : chr [1:594] "1" "2" "3" "4" ...
 $ mean_blank_fc        : num [1:594] 1 1 1 1 1 1 1 1 1 1 ...
 $ corrected_fc         : num [1:594] 0 0 0 0 0 0 0 0 0 0 ...

8 Blank-Corrected Fold-Change

8.1 Mean by family

bc_fc_summary <- samples %>%
  group_by(family_id_group, treatment_group, time_hr) %>%
  summarise(
    mean_val = mean(corrected_fc, na.rm = TRUE),
    se_val   = sd(corrected_fc, na.rm = TRUE) /
      sqrt(sum(!is.na(corrected_fc))),
    n        = sum(!is.na(corrected_fc)),
    .groups  = "drop"
  )

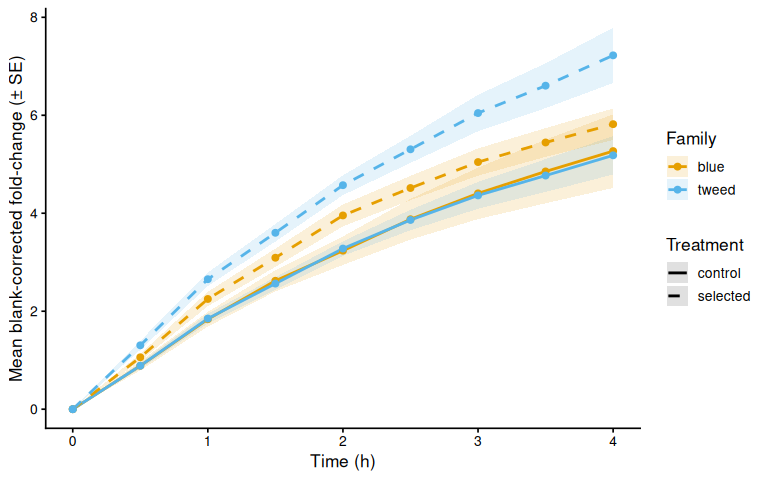

p_bc_fc_mean <- ggplot(bc_fc_summary,
    aes(x = time_hr, y = mean_val,
        colour = family_id_group, linetype = treatment_group,
        group = interaction(family_id_group, treatment_group))) +
  geom_ribbon(aes(ymin = mean_val - se_val,
                  ymax = mean_val + se_val,
                  fill = family_id_group),
              alpha = 0.15, colour = NA) +
  geom_line(linewidth = 1) +
  geom_point(size = 2) +
  scale_colour_manual(values = fam_colours, name = "Family") +
  scale_fill_manual(values = fam_colours, name = "Family") +
  scale_linetype_manual(values = trt_linetypes, name = "Treatment") +
  labs(x = "Time (h)",
       y = "Mean blank-corrected fold-change (± SE)") +
  theme_classic(base_size = 13)

p_bc_fc_mean

ggsave(file.path(fig_dir, "blank_corrected_fc_mean_by_family.png"),
       p_bc_fc_mean, width = 8, height = 5)

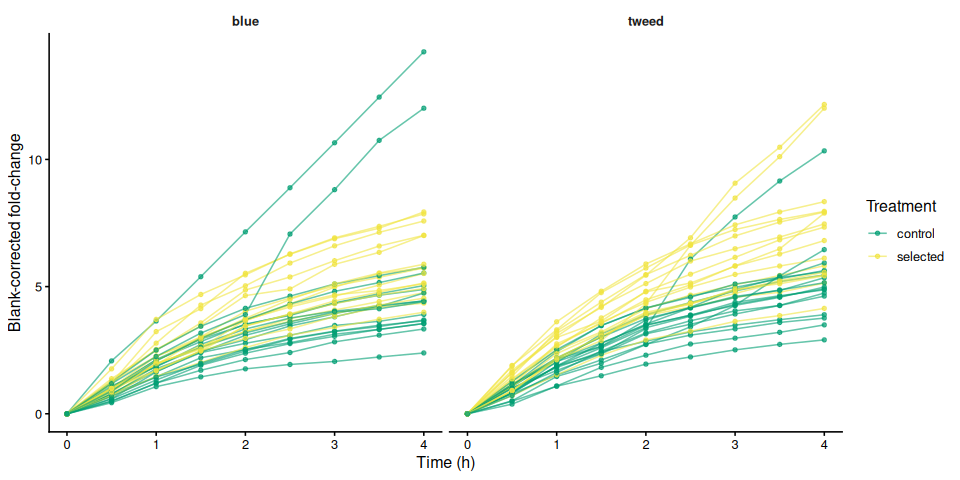

8.2 Individual traces by family

p_bc_fc_by_family <- samples %>%
  ggplot(aes(x = time_hr, y = corrected_fc,
             group = trace_id, colour = treatment_group)) +
  geom_line(alpha = 0.6) +
  geom_point(size = 1.2, alpha = 0.7) +
  facet_wrap(~ family_id_group) +
  scale_colour_manual(values = trt_colours, name = "Treatment") +
  labs(x = "Time (h)", y = "Blank-corrected fold-change") +
  theme_classic(base_size = 12) +
  theme(strip.background = element_blank(),
        strip.text       = element_text(face = "bold"))

p_bc_fc_by_family

ggsave(file.path(fig_dir, "blank_corrected_fc_by_family.png"),
       p_bc_fc_by_family, width = 10, height = 5)

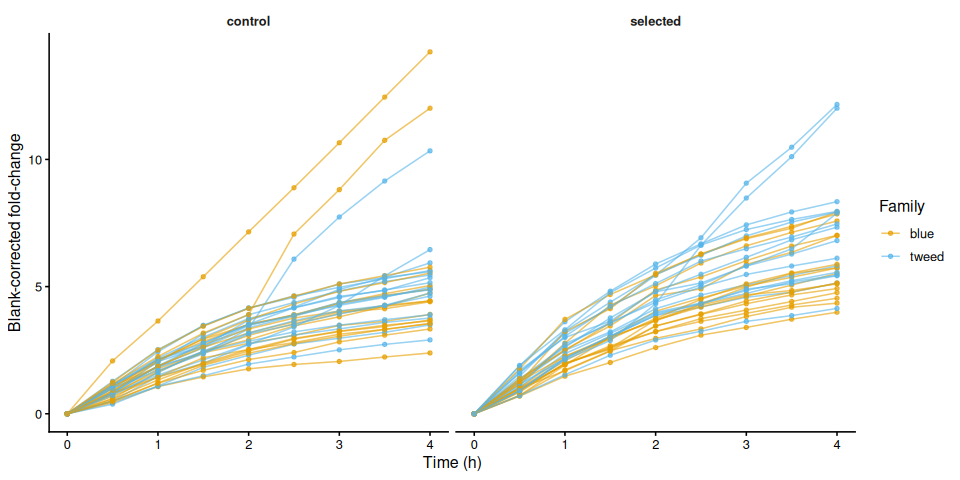

8.3 Individual blank-corrected fold-change traces by treatment

p_bc_fc_by_treatment <- samples %>%
  ggplot(aes(x = time_hr, y = corrected_fc,
             group = trace_id, colour = family_id_group)) +
  geom_line(alpha = 0.6) +
  geom_point(size = 1.2, alpha = 0.7) +
  facet_wrap(~ treatment_group) +
  scale_colour_manual(values = fam_colours, name = "Family") +
  labs(x = "Time (h)", y = "Blank-corrected fold-change") +
  theme_classic(base_size = 12) +
  theme(strip.background = element_blank(),
        strip.text       = element_text(face = "bold"))

p_bc_fc_by_treatment

ggsave(file.path(fig_dir, "blank_corrected_fc_by_treatment.png"),
       p_bc_fc_by_treatment, width = 10, height = 5)

9 Metabolism (Size-Normalised Fold-Change)

Blank-corrected fold-change divided by each active measurement column. This is “metabolism” as defined in Huffmyer et al.

if (length(active_meas_cols) == 0) {
  message("No active measurement columns: skipping metabolism calculation.")
  metabolism_df <- tibble()
} else {
  metabolism_df <- samples
  for (mc in active_meas_cols) {
    out_col <- paste0("metabolism_per_", mc)
    metabolism_df <- metabolism_df %>%
      mutate(!!out_col := if_else(
        is.finite(.data[[mc]]) & .data[[mc]] > 0 &
          is.finite(corrected_fc),
        corrected_fc / .data[[mc]],
        NA_real_
      ))
  }
}

str(metabolism_df)
tibble [594 × 22] (S3: tbl_df/tbl/data.frame)
 $ row_id                             : chr [1:594] "A" "A" "A" "A" ...
 $ col_id                             : int [1:594] 1 2 3 4 1 2 3 4 2 3 ...
 $ well_id                            : chr [1:594] "A1" "A2" "A3" "A4" ...
 $ value                              : num [1:594] 178 183 192 149 224 149 161 164 178 164 ...
 $ plate_id                           : chr [1:594] "b" "b" "b" "b" ...
 $ time_hr                            : num [1:594] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank                           : logi [1:594] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis              : logi [1:594] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_reason                     : chr [1:594] NA NA NA NA ...
 $ family_id_group                    : chr [1:594] "tweed" "blue" "tweed" "blue" ...
 $ sample_id_group                    : chr [1:594] "1" "2" "3" "4" ...
 $ treatment_group                    : chr [1:594] "selected" "selected" "control" "control" ...
 $ width_mm_measurement               : num [1:594] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement              : num [1:594] NA NA NA NA NA NA NA NA NA NA ...
 $ weight_mg_measurement              : num [1:594] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement               : num [1:594] 212 194 184 125 298 ...
 $ value_t0                           : num [1:594] 178 183 192 149 224 149 161 164 178 164 ...
 $ fold_change                        : num [1:594] 1 1 1 1 1 1 1 1 1 1 ...
 $ trace_id                           : chr [1:594] "1" "2" "3" "4" ...
 $ mean_blank_fc                      : num [1:594] 1 1 1 1 1 1 1 1 1 1 ...
 $ corrected_fc                       : num [1:594] 0 0 0 0 0 0 0 0 0 0 ...
 $ metabolism_per_area_mm2_measurement: num [1:594] 0 0 0 0 0 0 0 0 0 0 ...

9.1 Mean metabolism by family

if (nrow(metabolism_df) > 0) {

  metab_cols <- paste0("metabolism_per_", active_meas_cols)

  for (col in metab_cols) {
    if (!col %in% names(metabolism_df)) next
    mc_label <- str_remove(col, "^metabolism_per_")

    metab_summary <- metabolism_df %>%
      group_by(family_id_group, treatment_group, time_hr) %>%
      summarise(
        mean_val = mean(.data[[col]], na.rm = TRUE),
        se_val   = sd(.data[[col]], na.rm = TRUE) /
          sqrt(sum(!is.na(.data[[col]]))),
        .groups  = "drop"
      )

    p_metab_mean <- ggplot(metab_summary,
        aes(x = time_hr, y = mean_val,
            colour = family_id_group, linetype = treatment_group,
            group = interaction(family_id_group, treatment_group))) +
      geom_ribbon(aes(ymin = mean_val - se_val,
                      ymax = mean_val + se_val,
                      fill = family_id_group),
                  alpha = 0.15, colour = NA) +
      geom_line(linewidth = 1) +
      geom_point(size = 2) +
      scale_colour_manual(values = fam_colours, name = "Family") +
      scale_fill_manual(values = fam_colours, name = "Family") +
      scale_linetype_manual(values = trt_linetypes, name = "Treatment") +
      labs(x = "Time (h)",
           y = paste0(metabolism_y_label(col), " (± SE)")) +
      theme_classic(base_size = 13)

    print(p_metab_mean)
    ggsave(
      file.path(fig_dir,
                paste0("metabolism_mean_", mc_label, ".png")),
      p_metab_mean, width = 8, height = 5)
  }
}

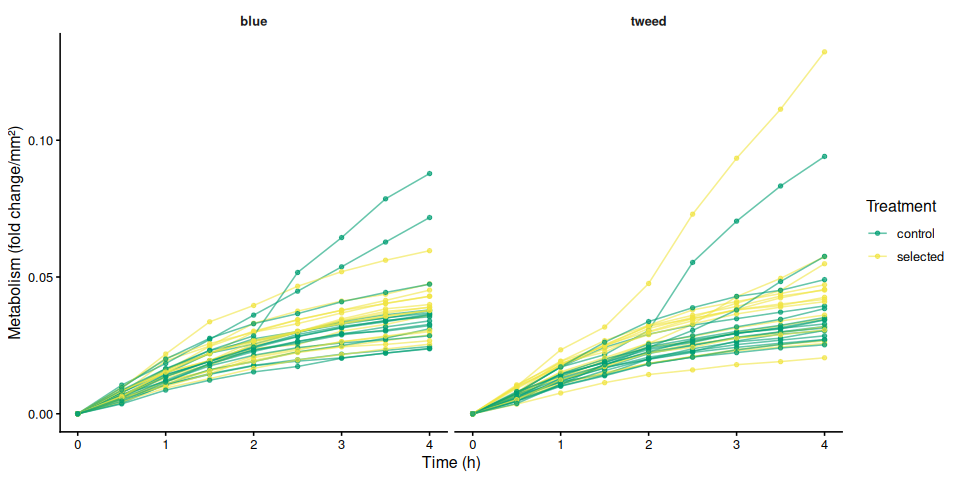

9.2 Individual metabolism traces by family

if (nrow(metabolism_df) > 0) {

  for (col in metab_cols) {
    if (!col %in% names(metabolism_df)) next
    mc_label <- str_remove(col, "^metabolism_per_")

    p_metab_by_family <- ggplot(metabolism_df,
        aes(x = time_hr, y = .data[[col]],
            group = trace_id, colour = treatment_group)) +
      geom_line(alpha = 0.6) +
      geom_point(size = 1.2, alpha = 0.7) +
      facet_wrap(~ family_id_group) +
      scale_colour_manual(values = trt_colours, name = "Treatment") +
      labs(x = "Time (h)", y = metabolism_y_label(col)) +
      theme_classic(base_size = 12) +
      theme(strip.background = element_blank(),
            strip.text       = element_text(face = "bold"))

    print(p_metab_by_family)
    ggsave(
      file.path(fig_dir,
                paste0("metabolism_individual_", mc_label, "_by_family.png")),
      p_metab_by_family, width = 10, height = 5)

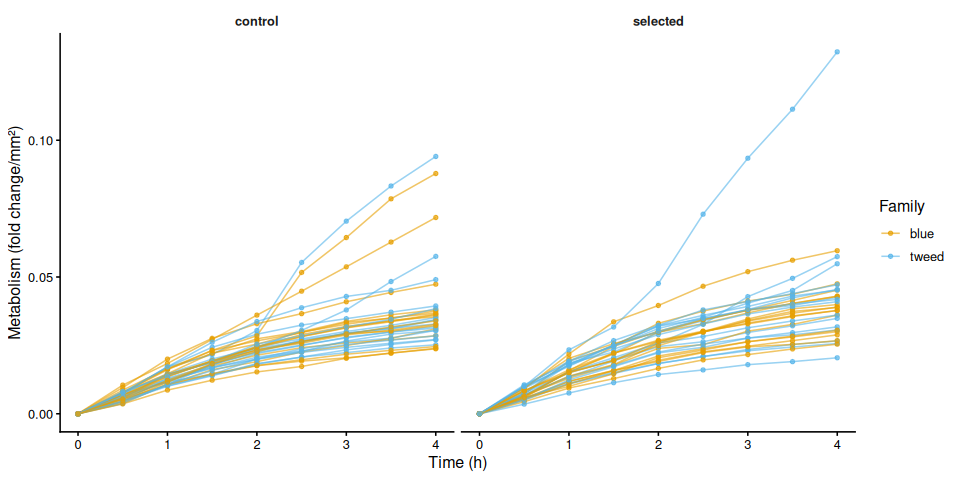

    p_metab_by_treatment <- ggplot(metabolism_df,
        aes(x = time_hr, y = .data[[col]],
            group = trace_id, colour = family_id_group)) +
      geom_line(alpha = 0.6) +
      geom_point(size = 1.2, alpha = 0.7) +
      facet_wrap(~ treatment_group) +
      scale_colour_manual(values = fam_colours, name = "Family") +
      labs(x = "Time (h)", y = metabolism_y_label(col)) +
      theme_classic(base_size = 12) +
      theme(strip.background = element_blank(),
            strip.text       = element_text(face = "bold"))

    print(p_metab_by_treatment)
    ggsave(
      file.path(fig_dir,
                paste0("metabolism_individual_", mc_label, "_by_treatment.png")),
      p_metab_by_treatment, width = 10, height = 5)
  }
}

10 Time-Series Statistical Analysis

Linear mixed effects models test the effect of experimental variables on metabolism over time. Individual (sample_id_group) is included as a random intercept to account for repeated measures across timepoints. Type III ANOVA with Satterthwaite’s approximation (lmerTest) assesses significance; post-hoc pairwise comparisons use estimated marginal means (emmeans, Tukey adjustment).

run_ts_stats <- function(df, value_col) {
  has_family    <- "family_id_group" %in% names(df) &&
    length(unique(na.omit(df$family_id_group))) > 1
  has_treatment <- "treatment_group" %in% names(df) &&
    length(unique(na.omit(df$treatment_group))) > 1

  if (!has_family && !has_treatment) return(NULL)

  df <- df %>%
    filter(is.finite(.data[[value_col]]), is.finite(time_hr)) %>%
    mutate(
      time_f     = factor(time_hr),
      individual = factor(trace_id)
    )

  if (nrow(df) == 0) return(NULL)

  if (has_family)    df <- df %>% mutate(family    = factor(family_id_group))
  if (has_treatment) df <- df %>% mutate(treatment = factor(treatment_group))

  if (has_family    && length(unique(na.omit(df$family)))    < 2) return(NULL)
  if (has_treatment && length(unique(na.omit(df$treatment))) < 2) return(NULL)

  fixed <- if (has_family && has_treatment)
    paste0(value_col, " ~ time_f * family * treatment")
  else if (has_family)
    paste0(value_col, " ~ time_f * family")
  else
    paste0(value_col, " ~ time_f * treatment")

  model <- lmer(
    as.formula(paste0(fixed, " + (1 | individual)")),
    data = df
  )

  anova_res <- anova(model, type = 3, ddf = "Satterthwaite")

  # Pairwise comparisons of group combinations at each timepoint
  emm_spec <- if (has_family && has_treatment)
    ~ family * treatment | time_f
  else if (has_family)
    ~ family | time_f
  else
    ~ treatment | time_f

  emm       <- emmeans(model, emm_spec)
  pairs_res <- as.data.frame(pairs(emm, adjust = "tukey"))

  # Main-effect marginal means (collapsed across time)
  emm_main <- if (has_family && has_treatment)
    emmeans(model, ~ family * treatment)
  else if (has_family)
    emmeans(model, ~ family)
  else
    emmeans(model, ~ treatment)

  pairs_main <- as.data.frame(pairs(emm_main, adjust = "tukey"))

  list(
    model         = model,
    anova         = anova_res,
    pairs_by_time = pairs_res,
    pairs_main    = pairs_main,
    has_family    = has_family,
    has_treatment = has_treatment
  )
}

ts_stats <- list()
if (nrow(metabolism_df) > 0) {
  for (mc in active_meas_cols) {
    col <- paste0("metabolism_per_", mc)
    if (col %in% names(metabolism_df))
      ts_stats[[col]] <- run_ts_stats(metabolism_df, col)
  }
}

10.1 Results

for (col in names(ts_stats)) {
  res <- ts_stats[[col]]
  if (is.null(res)) next

  cat("\n\n----\n### Metric:", col, "\n\n")

  cat("**Type III ANOVA (Satterthwaite approximation):**\n")
  print(res$anova)

  cat("\n**Marginal means – main effects (collapsed across time):**\n")
  print(res$pairs_main)

  cat("\n**Pairwise comparisons by timepoint (Tukey):**\n")
  print(res$pairs_by_time)
}

Metric: metabolism_per_area_mm2_measurement

Signif. codes: 0 ‘’ 0.001 ’’ 0.01 ’’ 0.05 ‘.’ 0.1 ’ ’ 1

Marginal means – main effects (collapsed across time): contrast estimate SE df t.ratio p.value blue control - tweed control 0.000680895 0.002543685 62 0.268 0.9932 blue control - blue selected -0.000437304 0.002583124 62 -0.169 0.9983 blue control - tweed selected -0.002860697 0.002583124 62 -1.107 0.6863 tweed control - blue selected -0.001118199 0.002583124 62 -0.433 0.9726 tweed control - tweed selected -0.003541592 0.002583124 62 -1.371 0.5221 blue selected - tweed selected -0.002423393 0.002621970 62 -0.924 0.7920

Results are averaged over the levels of: time_f Degrees-of-freedom method: kenward-roger P value adjustment: tukey method for comparing a family of 4 estimates

Pairwise comparisons by timepoint (Tukey): time_f = 0: contrast estimate SE df t.ratio p.value blue control - tweed control 0.000000000 0.003339923 172.95 0.000 1.0000 blue control - blue selected 0.000000000 0.003391708 172.95 0.000 1.0000 blue control - tweed selected 0.000000000 0.003391708 172.95 0.000 1.0000 tweed control - blue selected 0.000000000 0.003391708 172.95 0.000 1.0000 tweed control - tweed selected 0.000000000 0.003391708 172.95 0.000 1.0000 blue selected - tweed selected 0.000000000 0.003442714 172.95 0.000 1.0000

time_f = 0.5: contrast estimate SE df t.ratio p.value blue control - tweed control 0.000344532 0.003339923 172.95 0.103 0.9996 blue control - blue selected -0.000290340 0.003391708 172.95 -0.086 0.9998 blue control - tweed selected -0.001054881 0.003391708 172.95 -0.311 0.9895 tweed control - blue selected -0.000634871 0.003391708 172.95 -0.187 0.9977 tweed control - tweed selected -0.001399413 0.003391708 172.95 -0.413 0.9762 blue selected - tweed selected -0.000764541 0.003442714 172.95 -0.222 0.9961

time_f = 1: contrast estimate SE df t.ratio p.value blue control - tweed control 0.000605307 0.003339923 172.95 0.181 0.9979 blue control - blue selected -0.000917146 0.003391708 172.95 -0.270 0.9931 blue control - tweed selected -0.001910684 0.003391708 172.95 -0.563 0.9428 tweed control - blue selected -0.001522453 0.003391708 172.95 -0.449 0.9698 tweed control - tweed selected -0.002515992 0.003391708 172.95 -0.742 0.8800 blue selected - tweed selected -0.000993538 0.003442714 172.95 -0.289 0.9916

time_f = 1.5: contrast estimate SE df t.ratio p.value blue control - tweed control 0.001339686 0.003339923 172.95 0.401 0.9781 blue control - blue selected -0.000638811 0.003391708 172.95 -0.188 0.9976 blue control - tweed selected -0.001623578 0.003391708 172.95 -0.479 0.9637 tweed control - blue selected -0.001978497 0.003391708 172.95 -0.583 0.9370 tweed control - tweed selected -0.002963264 0.003391708 172.95 -0.874 0.8185 blue selected - tweed selected -0.000984767 0.003442714 172.95 -0.286 0.9918

time_f = 2: contrast estimate SE df t.ratio p.value blue control - tweed control 0.000658167 0.003339923 172.95 0.197 0.9973 blue control - blue selected -0.001709140 0.003391708 172.95 -0.504 0.9581 blue control - tweed selected -0.003119752 0.003391708 172.95 -0.920 0.7943 tweed control - blue selected -0.002367307 0.003391708 172.95 -0.698 0.8977 tweed control - tweed selected -0.003777919 0.003391708 172.95 -1.114 0.6815 blue selected - tweed selected -0.001410612 0.003442714 172.95 -0.410 0.9767

time_f = 2.5: contrast estimate SE df t.ratio p.value blue control - tweed control 0.000808764 0.003339923 172.95 0.242 0.9950 blue control - blue selected -0.000739850 0.003391708 172.95 -0.218 0.9963 blue control - tweed selected -0.003282586 0.003391708 172.95 -0.968 0.7679 tweed control - blue selected -0.001548615 0.003391708 172.95 -0.457 0.9683 tweed control - tweed selected -0.004091351 0.003391708 172.95 -1.206 0.6237 blue selected - tweed selected -0.002542736 0.003442714 172.95 -0.739 0.8814

time_f = 3: contrast estimate SE df t.ratio p.value blue control - tweed control 0.000848650 0.003339923 172.95 0.254 0.9942 blue control - blue selected -0.000388090 0.003391708 172.95 -0.114 0.9995 blue control - tweed selected -0.004165918 0.003391708 172.95 -1.228 0.6098 tweed control - blue selected -0.001236740 0.003391708 172.95 -0.365 0.9834 tweed control - tweed selected -0.005014568 0.003391708 172.95 -1.478 0.4527 blue selected - tweed selected -0.003777828 0.003442714 172.95 -1.097 0.6916

time_f = 3.5: contrast estimate SE df t.ratio p.value blue control - tweed control 0.000889021 0.003339923 172.95 0.266 0.9934 blue control - blue selected 0.000115348 0.003391708 172.95 0.034 1.0000 blue control - tweed selected -0.004672041 0.003391708 172.95 -1.377 0.5152 tweed control - blue selected -0.000773674 0.003391708 172.95 -0.228 0.9958 tweed control - tweed selected -0.005561063 0.003391708 172.95 -1.640 0.3592 blue selected - tweed selected -0.004787389 0.003442714 172.95 -1.391 0.5069

time_f = 4: contrast estimate SE df t.ratio p.value blue control - tweed control 0.000633928 0.003339923 172.95 0.190 0.9976 blue control - blue selected 0.000632290 0.003391708 172.95 0.186 0.9977 blue control - tweed selected -0.005916831 0.003391708 172.95 -1.744 0.3040 tweed control - blue selected -0.000001638 0.003391708 172.95 0.000 1.0000 tweed control - tweed selected -0.006550759 0.003391708 172.95 -1.931 0.2188 blue selected - tweed selected -0.006549121 0.003442714 172.95 -1.902 0.2309

Degrees-of-freedom method: kenward-roger P value adjustment: tukey method for comparing a family of 4 estimates

Area Under the Curve (AUC)

AUC computed per individual via the trapezoid rule across all timepoints. metabolism_per_* is the primary metric matching the paper; corrected_fc and raw_fluorescence are retained for reference.

compute_auc <- function(df, value_col, group_vars) { df %>% filter(is.finite(time_hr), is.finite(.data[[value_col]])) %>% group_by(across(all_of(group_vars))) %>% summarise( AUC = trapezoid_auc(time_hr, .data[[value_col]]), n_timepoints = n(), .groups = “drop” ) %>% filter(is.finite(AUC)) }
\# Only include grouping columns that are actually present in the data individual_vars <- intersect( c(“trace_id”, “family_id_group”, “treatment_group”), names(metabolism_df) )
auc_metab_list <- list() if (nrow(metabolism_df) > 0) { for (mc in active_meas_cols) { col <- paste0(“metabolism_per_”, mc) if (col %in% names(metabolism_df)) { auc_metab_list[[col]] <- compute_auc(metabolism_df, col, individual_vars) %>% mutate(metric = col) } } }
auc_all <- bind_rows(auc_metab_list)
str(auc_all)
tibble [66 × 6] (S3: tbl_df/tbl/data.frame) $ trace_id       : chr [1:66] "1" "10" "11" "12" ... $ family_id_group: chr [1:66] "tweed" "blue" "tweed" "blue" ... $ treatment_group: chr [1:66] "selected" "selected" "control" "control" ... $ AUC            : num [1:66] 0.1109 0.0737 0.0778 0.0963 0.1092 ... $ n_timepoints   : int [1:66] 9 9 9 9 9 9 9 9 9 9 ... $ metric         : chr [1:66] "metabolism_per_area_mm2_measurement" "metabolism_per_area_mm2_measurement" "metabolism_per_area_mm2_measurement" "metabolism_per_area_mm2_measurement" ...

AUC summary tables

sum_vars <- intersect( c(“metric”, “family_id_group”, “treatment_group”), names(auc_all) ) auc_summary <- auc_all %>% group_by(across(all_of(sum_vars))) %>% summarise( n = n(), mean = mean(AUC, na.rm = TRUE), sd = sd(AUC, na.rm = TRUE), se = sd / sqrt(n), median = median(AUC, na.rm = TRUE), .groups = “drop” )
print(auc_summary)
# A tibble: 4 × 8 metric      family_id_group treatment_group     n   mean     sd      se median <chr>       <chr>           <chr>           <int>  <dbl>  <dbl>   <dbl>  <dbl> 1 metabolism… blue            control            17 0.0904 0.0275 0.00667 0.0870 2 metabolism… blue            selected           16 0.0925 0.0212 0.00531 0.0936 3 metabolism… tweed           control            17 0.0875 0.0248 0.00601 0.0801 4 metabolism… tweed           selected           16 0.102  0.0396 0.00991 0.106

Statistical Analysis

Each individual clam (sample_id_group) is the observational unit. The model is built from whichever grouping factors are present: both family and treatment (with interaction) when both exist, or a one-way model when only one factor is available. Each plate maps to a unique family × treatment combination, so plate-level and group-level variance are confounded; interpret accordingly.

has_treatment <- “treatment_group” %in% names(auc_df) && length(unique(na.omit(auc_df\(treatment_group))) > 1 if (!has_family && !has_treatment) { return(list(model = NULL, anova = NULL, pairs_full = empty, pairs_family = empty, pairs_trt = empty, has_family = FALSE, has_treatment = FALSE)) } if (has_family) auc_df <- auc_df %>% mutate(family = factor(family_id_group)) if (has_treatment) auc_df <- auc_df %>% mutate(treatment = factor(treatment_group)) formula_str <- if (has_family && has_treatment) “AUC ~ family * treatment” else if (has_family) “AUC ~ family” else “AUC ~ treatment” model <- lm(as.formula(formula_str), data = auc_df) anova_res <- anova(model) if (has_family && has_treatment) { pairs_full <- as.data.frame(pairs(emmeans(model, ~ family * treatment), adjust = “tukey”)) pairs_family <- as.data.frame(pairs(emmeans(model, ~ family), adjust = “tukey”)) pairs_trt <- as.data.frame(pairs(emmeans(model, ~ treatment), adjust = “tukey”)) } else if (has_family) { pairs_family <- as.data.frame(pairs(emmeans(model, ~ family), adjust = “tukey”)) pairs_full <- pairs_family pairs_trt <- empty } else { pairs_trt <- as.data.frame(pairs(emmeans(model, ~ treatment), adjust = “tukey”)) pairs_full <- pairs_trt pairs_family <- empty } list( model = model, anova = anova_res, pairs_full = pairs_full, pairs_family = pairs_family, pairs_trt = pairs_trt, has_family = has_family, has_treatment = has_treatment ) } metrics_to_test <- unique(auc_all\)metric) stats_results <- map( set_names(metrics_to_test), ~ run_auc_stats(auc_all %>% filter(metric == .x)) ) ``` ## Results by metric

10.1.1 Metric: metabolism_per_area_mm2_measurement

ANOVA: Analysis of Variance Table

Response: AUC Df Sum Sq Mean Sq F value Pr(>F) family 1 0.000148 0.00014818 0.1758 0.6764 treatment 1 0.001112 0.00111188 1.3194 0.2551 family:treatment 1 0.000611 0.00061074 0.7247 0.3979 Residuals 62 0.052248 0.00084271

Pairwise: family × treatment (Tukey): contrast estimate SE df t.ratio p.value blue control - tweed control 0.002905546 0.009957039 62 0.292 0.9913 blue control - blue selected -0.002125942 0.010111421 62 -0.210 0.9967 blue control - tweed selected -0.011393928 0.010111421 62 -1.127 0.6745 tweed control - blue selected -0.005031488 0.010111421 62 -0.498 0.9593 tweed control - tweed selected -0.014299474 0.010111421 62 -1.414 0.4954 blue selected - tweed selected -0.009267986 0.010263481 62 -0.903 0.8033

P value adjustment: tukey method for comparing a family of 4 estimates

Pairwise: family main effect: contrast estimate SE df t.ratio p.value blue - tweed -0.00318122 0.007149854 62 -0.445 0.6579

Results are averaged over the levels of: treatment

Pairwise: treatment main effect: contrast estimate SE df t.ratio p.value control - selected -0.008212708 0.007149854 62 -1.149 0.2551

Results are averaged over the levels of: family

11 AUC Box Plots with Statistical Annotations

Significance labels: *** p < 0.001, ** p < 0.01, * p < 0.05. Brackets are drawn only for significant pairs (p < 0.05). Plots are generated for whichever grouping factors are present: treatment-only, family-only, all-groups, within-family, and within-treatment.

sig_label <- function(p) {
  case_when(p < 0.001 ~ "***", p < 0.01 ~ "**", p < 0.05 ~ "*",
            TRUE ~ "ns")
}

# Add significance brackets to an existing ggplot.
# pairs_df   : data frame with $contrast and $p.value columns
# group_levels: ordered character vector matching x-axis factor levels
# y_vals     : numeric vector of AUC values used to set bracket heights
add_sig_brackets <- function(p, pairs_df, group_levels, y_vals) {
  sig_pairs <- pairs_df %>%
    mutate(label = sig_label(p.value)) %>%
    filter(label != "ns")
  if (nrow(sig_pairs) == 0) return(p)

  y_max   <- max(y_vals, na.rm = TRUE)
  y_range <- diff(range(y_vals, na.rm = TRUE))
  step    <- y_range * 0.12

  for (i in seq_len(nrow(sig_pairs))) {
    parts <- str_split(as.character(sig_pairs$contrast[i]), " - ", 2)[[1]]
    g1 <- trimws(parts[1])
    g2 <- trimws(parts[2])
    x1 <- match(g1, group_levels)
    x2 <- match(g2, group_levels)
    if (is.na(x1) || is.na(x2)) next
    bar_y <- y_max + i * step
    p <- p +
      annotate("segment", x = x1, xend = x2,
               y = bar_y, yend = bar_y,
               colour = "black", linewidth = 0.6) +
      annotate("segment", x = x1, xend = x1,
               y = bar_y, yend = bar_y - step * 0.3,
               colour = "black", linewidth = 0.6) +
      annotate("segment", x = x2, xend = x2,
               y = bar_y, yend = bar_y - step * 0.3,
               colour = "black", linewidth = 0.6) +
      annotate("text", x = (x1 + x2) / 2,
               y = bar_y + step * 0.15,
               label = sig_pairs$label[i], size = 4.5)
  }
  p
}
for (met in metrics_to_test) {
  df      <- auc_all %>% filter(metric == met)
  stats   <- stats_results[[met]]
  y_lab   <- auc_y_label(met)
  has_fam <- stats$has_family
  has_trt <- stats$has_treatment

  # ── Treatment main effect (x = treatment, tick = treatment name) ───────
  if (has_trt) {
    df_p <- df %>%
      mutate(x = factor(treatment_group, levels = sort(unique(treatment_group))))
    grps <- levels(df_p$x)
    p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
      geom_boxplot(alpha = 0.6, outlier.shape = NA) +
      geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
      scale_fill_manual(values = trt_colours[grps], guide = "none") +
      labs(x = "Treatment", y = y_lab) +
      theme_classic(base_size = 13)
    p <- add_sig_brackets(p, stats$pairs_trt, grps, df_p$AUC)
    print(p)
    ggsave(file.path(fig_dir, paste0("auc_treatment_", met, ".png")),
           p, width = 5, height = 5)
  }

  # ── Family main effect (x = family, tick = family name) ───────────────
  if (has_fam) {
    df_p <- df %>%
      mutate(x = factor(family_id_group, levels = sort(unique(family_id_group))))
    grps <- levels(df_p$x)
    p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
      geom_boxplot(alpha = 0.6, outlier.shape = NA) +
      geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
      scale_fill_manual(values = fam_colours[grps], guide = "none") +
      labs(x = "Family", y = y_lab) +
      theme_classic(base_size = 13)
    p <- add_sig_brackets(p, stats$pairs_family, grps, df_p$AUC)
    print(p)
    ggsave(file.path(fig_dir, paste0("auc_family_", met, ".png")),
           p, width = 5, height = 5)
  }

  # Remaining plots require both factors
  if (!has_fam || !has_trt) next

  # ── All family:treatment groups (x = family:treatment) ─────────────────
  # emmeans contrasts use spaces; convert to colon to match tick labels
  pairs_fc <- stats$pairs_full %>%
    mutate(contrast = str_replace_all(
      contrast,
      "([a-z]+) ([a-z]+)( - )([a-z]+) ([a-z]+)",
      "\\1:\\2\\3\\4:\\5"
    ))
  df_p <- df %>%
    mutate(x = factor(
      paste(family_id_group, treatment_group, sep = ":"),
      levels = sort(unique(paste(family_id_group, treatment_group, sep = ":")))
    ))
  grps     <- levels(df_p$x)
  fill_map <- setNames(make_palette(length(grps)), grps)
  p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
    geom_boxplot(alpha = 0.6, outlier.shape = NA) +
    geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
    scale_fill_manual(values = fill_map, guide = "none") +
    labs(x = "Family : Treatment", y = y_lab) +
    theme_classic(base_size = 13) +
    theme(axis.text.x = element_text(angle = 20, hjust = 1))
  p <- add_sig_brackets(p, pairs_fc, grps, df_p$AUC)
  print(p)
  ggsave(file.path(fig_dir, paste0("auc_all_groups_", met, ".png")),
         p, width = 6, height = 5)

  # ── Within each family: treatment comparison (x = family:treatment) ────
  # Tick labels are family:treatment so these plots are visually distinct
  # from the treatment main-effect plot above.
  for (fam in sort(unique(df$family_id_group))) {
    df_p <- df %>%
      filter(family_id_group == fam) %>%
      mutate(x = factor(
        paste(family_id_group, treatment_group, sep = ":"),
        levels = sort(unique(paste(family_id_group, treatment_group, sep = ":")))
      ))
    grps     <- levels(df_p$x)
    pairs_sub <- pairs_fc %>%
      filter(str_count(contrast, paste0(fam, ":")) == 2)
    p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
      geom_boxplot(alpha = 0.6, outlier.shape = NA) +
      geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
      scale_fill_manual(values = fill_map[grps], guide = "none") +
      labs(x = "Family : Treatment", y = y_lab) +
      theme_classic(base_size = 13)
    p <- add_sig_brackets(p, pairs_sub, grps, df_p$AUC)
    print(p)
    ggsave(file.path(fig_dir, paste0("auc_", fam, "_trt_", met, ".png")),
           p, width = 5, height = 5)
  }

  # ── Within each treatment: family comparison (x = family:treatment) ────
  # Tick labels are family:treatment so these plots are visually distinct
  # from the family main-effect plot above.
  for (trt in sort(unique(df$treatment_group))) {
    df_p <- df %>%
      filter(treatment_group == trt) %>%
      mutate(x = factor(
        paste(family_id_group, treatment_group, sep = ":"),
        levels = sort(unique(paste(family_id_group, treatment_group, sep = ":")))
      ))
    grps      <- levels(df_p$x)
    pairs_sub <- pairs_fc %>%
      filter(str_count(contrast, paste0(":", trt)) == 2)
    p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
      geom_boxplot(alpha = 0.6, outlier.shape = NA) +
      geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
      scale_fill_manual(values = fill_map[grps], guide = "none") +
      labs(x = "Family : Treatment", y = y_lab) +
      theme_classic(base_size = 13)
    p <- add_sig_brackets(p, pairs_sub, grps, df_p$AUC)
    print(p)
    ggsave(file.path(fig_dir, paste0("auc_", trt, "_fam_", met, ".png")),
           p, width = 5, height = 5)
  }
}

12 Save Output Data

write_csv(auc_all,      file.path(out_dir, "auc_all_metrics.csv"))
write_csv(auc_summary,  file.path(out_dir, "auc_summary.csv"))

if (nrow(metabolism_df) > 0)
  write_csv(metabolism_df,
            file.path(out_dir, "metabolism.csv"))

stats_compiled <- map_dfr(metrics_to_test, function(met) {
  bind_rows(
    stats_results[[met]]$pairs_full %>%
      mutate(comparison = "family:treatment"),
    stats_results[[met]]$pairs_family %>%
      mutate(comparison = "family"),
    stats_results[[met]]$pairs_trt %>%
      mutate(comparison = "treatment")
  ) %>% mutate(metric = met)
})

write_csv(stats_compiled,
          file.path(out_dir, "pairwise_stats.csv"))

message("Output files written to: ", out_dir)
