Resazurin Assays - USDA M.gigas Families in Response to Temperature Stress

2026
resazurin
Magallana gigas
Crassostrea gigas
Pacific oyster
heat stress
Author

Sam White

Published

June 24, 2026

INTRO

Notebook was knitted from 01.00-resazurin-20260624-mgig-33C.Rmd

RESULTS

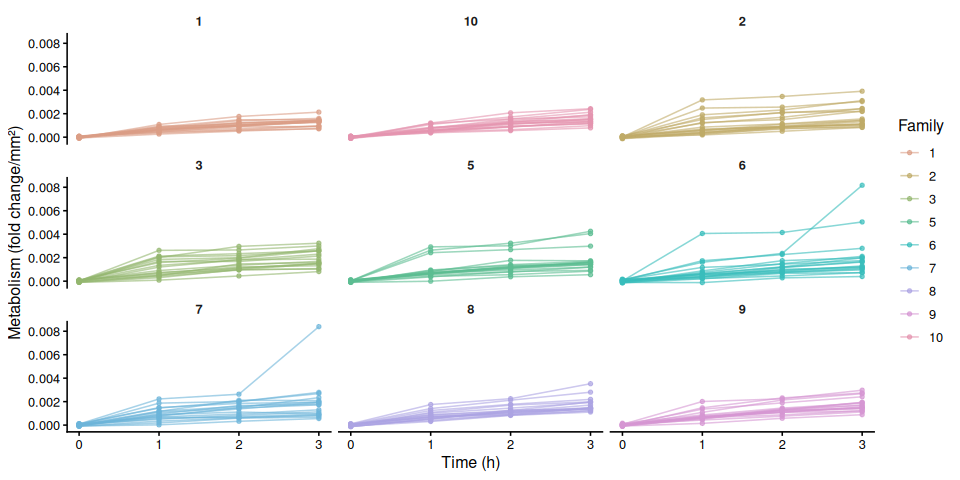

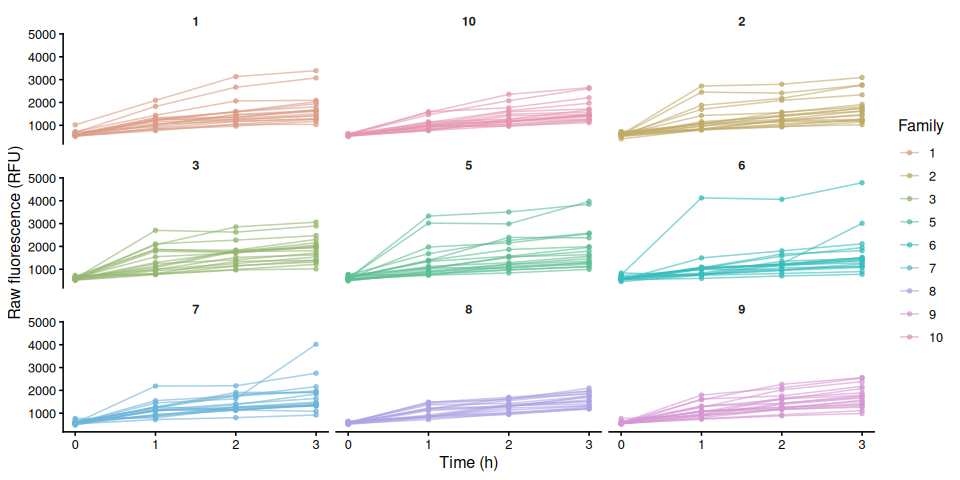

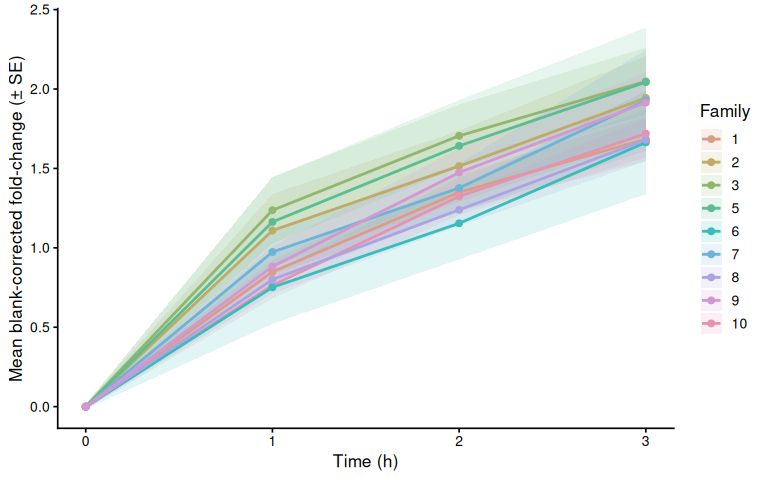

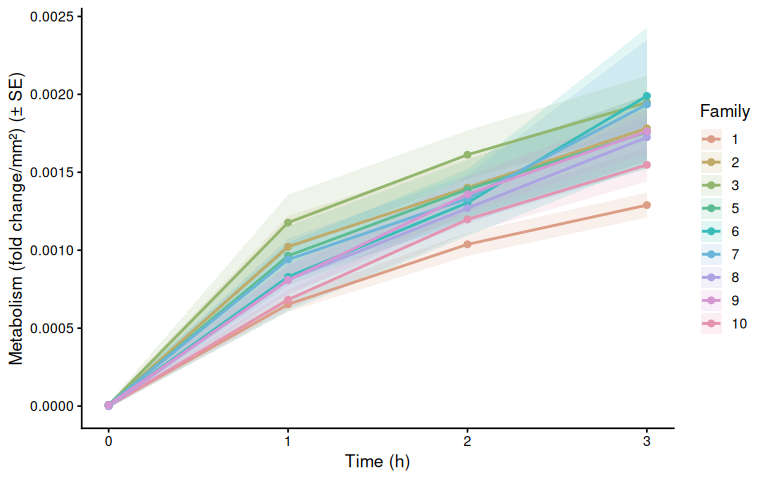

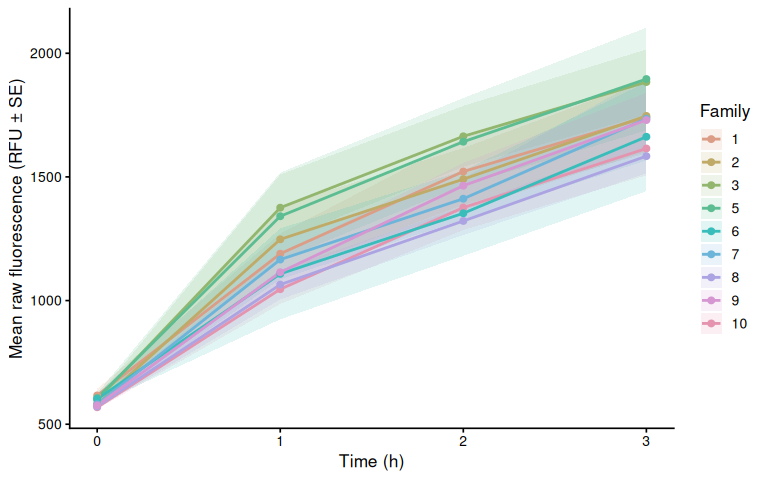

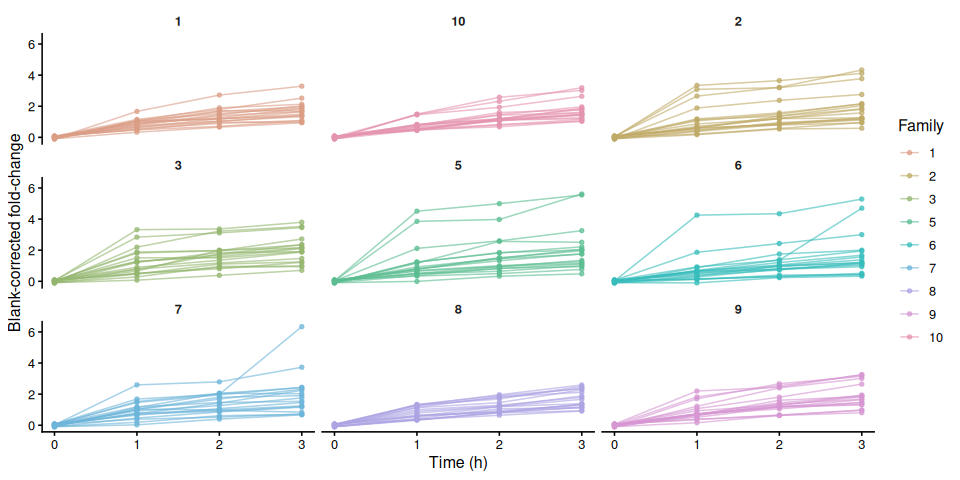

Resazurin-based metabolic activity was measured in nine USDA M. gigas families (1, 2, 3, 5, 6, 7, 8, 9, 10) at four timepoints (0, 1, 2, 3 h) during 33°C heat stress, with fluorescence normalized to shell area (mm²) across three replicate measurement rounds (n = 18 individuals per family).

Metabolic activity increased significantly over time (Type III LME ANOVA: F₃,₄₅₉ = 389.9, p < 0.0001), confirming that the resazurin assay detected a biologically meaningful response to heat exposure. However, no significant differences in metabolism were detected among families, either as a main effect (F₈,₁₅₃ = 0.95, p = 0.48) or as a family × time interaction (F₂₄,₄₅₉ = 0.94, p = 0.54).

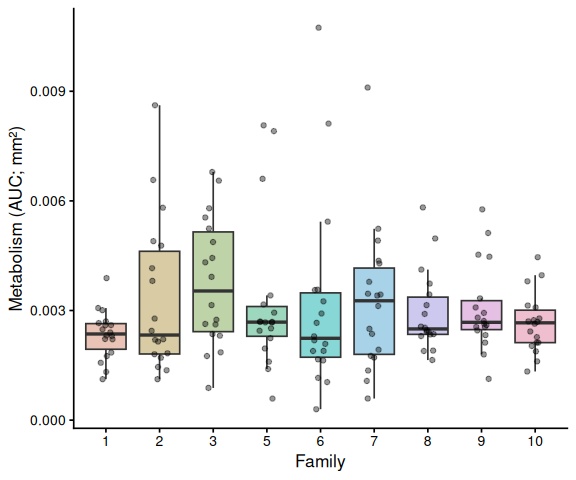

AUC (area under the curve) analysis corroborated these findings: the one-way ANOVA on per-individual AUC values showed no significant family effect (F₈,₁₅₃ = 1.03, p = 0.42), and no pairwise family comparisons reached significance after Tukey adjustment (all p ≥ 0.24). Family 3 had the numerically highest mean AUC (0.00377 ± 0.000414 SE) and Family 1 the lowest (0.00234 ± 0.000157 SE), but these differences were not statistically distinguishable given the high within-family variability.

1 Background

Adult oysters from nine USDA families were placed in plastic cups and submerged in ~100 mL of freshly prepared resazurin working solution at room temperature (~22°C). Cups were incubated in a water table at 33°C. Three rounds of measurements were performed, with different individuals from each family used in each round. At designated timepoints, 200 µL of resazurin was sampled from each cup and placed in a 96-well plate. Fluorescence was measured using a Synergy HTX (Agilent) plate reader.

See Resazurin/data/20260624-mgig-33C/README.md for full experimental notes.

1.1 Expected inputs

Path Description
Resazurin/data/20260624-mgig-33C/plate-*-T*.txt Plate reader fluorescence exports (one file per plate per timepoint)
Resazurin/data/20260624-mgig-33C/layout.csv Well metadata: plate ID, well ID, blank flag, family groups, cup ID (cup_ID.group), measurement round (round.group), unique individual ID (sample_ID.group), area measurements (mm², from ImageJ)

1.2 Expected outputs

All outputs are written to Resazurin/outputs/01.00-resazurin-20260624-mgig-33C/.

File Description
figures/ All plots generated by this script
auc_all_metrics.csv Per-individual AUC values for every active measurement metric
auc_summary.csv Group-level AUC summary statistics (mean, SD, SE, median)
metabolism.csv Full per-well per-timepoint metabolism data frame
pairwise_stats.csv Tukey-adjusted pairwise comparisons from AUC linear models

2 Setup

2.1 Knitr options

knitr::opts_chunk$set(
  echo = TRUE,         # Display code chunks
  eval = TRUE,        # Evaluate code chunks
  warning = FALSE,     # Hide warnings
  message = FALSE,     # Hide messages
  comment = "",         # Prevents appending '##' to beginning of lines in code output
  results = 'hold'     # Holds output so it's all printed together after code chunk
)

2.2 Load libraries

library(tidyverse)
library(pracma)       # trapz()
library(lme4)
library(lmerTest)
library(emmeans)
library(multcompView)
library(cowplot)
library(colorspace)   # qualitative_hcl() for large palettes

3 Helper Functions

normalize_well_id <- function(x) {
  x <- toupper(trimws(x))
  valid <- str_detect(x, "^[A-Z]+[0-9]+$")
  out <- rep(NA_character_, length(x))
  if (!any(valid)) return(out)
  m <- str_match(x[valid], "^([A-Z]+)([0-9]+)$")
  out[valid] <- paste0(m[, 2], as.integer(m[, 3]))
  out
}

parse_time_hr <- function(path) {
  hit <- str_match(basename(path),
                   "(?i)[_-]T([0-9]+(?:\\.[0-9]+)?)\\.txt$")
  as.numeric(hit[, 2])
}

parse_plate_id <- function(path) {
  hit <- str_match(basename(path),
    "(?i)^[0-9]{8}_(round[0-9]+)_T[0-9]+(?:\\.[0-9]+)?\\.txt$")
  id <- hit[, 2]
  ifelse(is.na(id), "unknown", id)
}

extract_results_block <- function(lines) {
  results_idx <- which(trimws(lines) == "Results")
  if (length(results_idx) == 0) stop("No Results section found")
  idx <- results_idx[1]
  header_tokens <- str_split(lines[idx + 1], "\\t")[[1]] |> trimws()
  col_ids <- header_tokens[
    header_tokens != "" & str_detect(header_tokens, "^[0-9]+$")]
  j <- idx + 2
  data_lines <- character()
  while (j <= length(lines)) {
    line <- lines[j]
    if (trimws(line) == "") break
    if (!str_detect(line, "^[A-Za-z]\\t")) break
    data_lines <- c(data_lines, line)
    j <- j + 1
  }
  list(col_ids = col_ids, data_lines = data_lines)
}

parse_plate_export <- function(path) {
  lines <- readLines(path, warn = FALSE)
  res <- extract_results_block(lines)

  map_dfr(res$data_lines, function(line) {
    tokens <- str_split(line, "\\t")[[1]] |> trimws()
    tokens <- tokens[tokens != ""]
    row_letter <- tokens[1]
    nums <- suppressWarnings(as.numeric(tokens[-1]))
    valid_idx <- which(!is.na(nums))
    if (length(valid_idx) == 0) return(tibble())
    vals <- nums[valid_idx]
    n <- min(length(vals), length(res$col_ids))
    tibble(
      row_id  = toupper(row_letter),
      col_id  = as.integer(res$col_ids[seq_len(n)]),
      well_id = normalize_well_id(
        paste0(toupper(row_letter), res$col_ids[seq_len(n)])),
      value   = vals[seq_len(n)]
    )
  }) %>%
    mutate(
      plate_id = str_to_lower(parse_plate_id(path)),
      time_hr  = parse_time_hr(path)
    )
}

trapezoid_auc <- function(time_hr, value) {
  ok <- is.finite(time_hr) & is.finite(value)
  t <- time_hr[ok]
  v <- value[ok]
  if (length(t) < 2) return(NA_real_)
  ord <- order(t)
  t <- t[ord]; v <- v[ord]
  sum(diff(t) * (head(v, -1) + tail(v, -1)) / 2)
}

# Shared helper: extract display unit string from a measurement column name.
# e.g. "area_mm2_measurement" -> "mm²", "weight_mg_measurement" -> "mg"
parse_meas_unit <- function(col_name) {
  unit_raw <- col_name |>
    str_remove("^metabolism_per_") |>
    str_remove("_measurement$") |>
    str_extract("[^_]+$")
  case_when(
    unit_raw == "mm2" ~ "mm²",
    unit_raw == "cm2" ~ "cm²",
    unit_raw == "mm3" ~ "mm³",
    unit_raw == "cm3" ~ "cm³",
    TRUE              ~ unit_raw
  )
}

# y-axis label for metabolism line plots: "fold change/mm²"
metabolism_y_label <- function(col_name) {
  paste0("Metabolism (fold change/", parse_meas_unit(col_name), ")")
}

# y-axis label for AUC box plots: "Metabolism (AUC; mm²)"
auc_y_label <- function(metric_name) {
  paste0("Metabolism (AUC; ", parse_meas_unit(metric_name), ")")
}

4 Load Data

4.1 Plate export files

proj_root <- rprojroot::find_rstudio_root_file()
data_dir  <- file.path(proj_root, "Resazurin", "data", "20260624-mgig-33C")
out_dir   <- file.path(proj_root, "Resazurin", "outputs",
                        "01.00-resazurin-20260624-mgig-33C")
fig_dir   <- file.path(out_dir, "figures")

dir.create(fig_dir, recursive = TRUE, showWarnings = FALSE)
dir.create(out_dir, recursive = TRUE, showWarnings = FALSE)

plate_files <- list.files(
  data_dir,
  pattern = "(?i)^[0-9]{8}_round[0-9]+_T[0-9]+(?:\\.[0-9]+)?\\.txt$",
  full.names = TRUE
)

plate_raw <- map_dfr(plate_files, function(path) {
  tryCatch(parse_plate_export(path),
           error = function(e) {
             message("Parse error in ", basename(path), ": ", e$message)
             tibble()
           })
})

str(plate_raw)
tibble [1,152 × 6] (S3: tbl_df/tbl/data.frame)
 $ row_id  : chr [1:1152] "A" "A" "A" "A" ...
 $ col_id  : int [1:1152] 1 2 3 4 5 6 7 8 9 10 ...
 $ well_id : chr [1:1152] "A1" "A2" "A3" "A4" ...
 $ value   : num [1:1152] 627 598 599 580 563 752 577 559 568 565 ...
 $ plate_id: chr [1:1152] "round1" "round1" "round1" "round1" ...
 $ time_hr : num [1:1152] 0 0 0 0 0 0 0 0 0 0 ...

4.2 Plate consistency check

Checks that every plate has the same number of wells at every timepoint. The expected well count is the mode across all plate × timepoint reads. Any plate with at least one deviating read is flagged and dropped entirely before any further analysis — removing only the aberrant timepoint would break the fold-change baseline calculation.

well_counts <- plate_raw %>%
  group_by(plate_id, time_hr) %>%
  summarise(n_wells = n_distinct(well_id), .groups = "drop")

expected_n_wells <- as.integer(
  names(which.max(table(well_counts$n_wells)))
)

inconsistent_reads <- well_counts %>%
  filter(n_wells != expected_n_wells) %>%
  arrange(plate_id, time_hr)

inconsistent_plate_ids <- unique(inconsistent_reads$plate_id)

if (nrow(inconsistent_reads) > 0) {
  cat("**Plate consistency check FAILED.**",
      "Expected", expected_n_wells, "wells per plate-timepoint read.",
      length(inconsistent_plate_ids),
      "plate(s) have at least one deviating read and are excluded",
      "from all analyses:\n\n")
  cat(knitr::kable(
    inconsistent_reads,
    col.names = c("Plate", "Time (h)", "Wells read"),
    caption   = paste("Expected:", expected_n_wells, "wells per read")
  ), sep = "\n")
  cat("\n")
  plate_raw <- plate_raw %>%
    filter(!plate_id %in% inconsistent_plate_ids)
  message(length(inconsistent_plate_ids),
          " plate(s) removed from plate_raw: ",
          paste(inconsistent_plate_ids, collapse = ", "))
} else {
  cat("Plate consistency check passed: all",
      n_distinct(well_counts$plate_id), "plates have",
      expected_n_wells, "wells at every timepoint.\n")
}

Plate consistency check passed: all 3 plates have 96 wells at every timepoint.

4.3 Layout file

layout_path <- file.path(data_dir, "layout.csv")

layout_raw <- read_csv(layout_path,
                       col_types = cols(.default = "c"),
                       show_col_types = FALSE)

# Standardise column names to snake_case
names(layout_raw) <- names(layout_raw) |>
  str_to_lower() |>
  str_replace_all("[^a-z0-9]+", "_") |>
  str_replace_all("_+", "_") |>
  str_replace("_$", "")

# Normalise plate_id to match plate file ids (strip "plate-" prefix)
layout_clean <- layout_raw %>%
  mutate(
    plate_id = str_remove(str_to_lower(plate_id), "^plate-"),
    well_id  = normalize_well_id(plate_well),
    is_blank = if ("is_blank" %in% names(layout_raw))
      toupper(trimws(is_blank)) %in% c("TRUE", "T", "1", "YES", "Y")
    else
      FALSE
  )

found_exclude_col <- intersect(
  c("exclude_from_analysis", "exclude", "omit", "not_analyzed"),
  names(layout_clean)
)[1]
layout_clean <- layout_clean %>%
  mutate(
    exclude_from_analysis = if (!is.na(found_exclude_col))
      toupper(trimws(.data[[found_exclude_col]])) %in%
        c("TRUE", "T", "1", "YES", "Y")
    else
      FALSE
  )

# Identify measurement columns and group columns
measurement_cols <- names(layout_clean)[
  str_detect(names(layout_clean), "_measurement$")]
group_cols <- names(layout_clean)[
  str_detect(names(layout_clean), "_group$")]

# Cast measurement columns to numeric
layout_clean <- layout_clean %>%
  mutate(across(all_of(measurement_cols),
                ~ suppressWarnings(as.numeric(.x))))

# Determine which measurement columns actually contain finite data
active_meas_cols <- measurement_cols[
  sapply(measurement_cols, function(col)
    any(is.finite(layout_clean[[col]]), na.rm = TRUE))]

# Normalise group values to lowercase so they match colour scale definitions
layout_clean <- layout_clean %>%
  mutate(across(all_of(group_cols),
                ~ str_to_lower(trimws(as.character(.x)))))

message("Group columns: ", paste(group_cols, collapse = ", "))
message("Active measurement columns: ",
        paste(active_meas_cols, collapse = ", "))

str(layout_clean)
tibble [180 × 16] (S3: tbl_df/tbl/data.frame)
 $ plate_id             : chr [1:180] "round1" "round1" "round1" "round1" ...
 $ plate_well           : chr [1:180] "A1" "A2" "A3" "A4" ...
 $ is_blank             : logi [1:180] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ family_id_group      : chr [1:180] "1" "2" "3" "5" ...
 $ cup_id_group         : chr [1:180] "1" "2" "3" "4" ...
 $ round_group          : chr [1:180] "1" "1" "1" "1" ...
 $ sample_id_group      : chr [1:180] "1_01" "1_02" "1_03" "1_04" ...
 $ exclude_from_analysis: logi [1:180] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_reason       : chr [1:180] NA NA NA NA ...
 $ weight_g_measurement : num [1:180] NA NA NA NA NA NA NA NA NA NA ...
 $ width_mm_measurement : num [1:180] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:180] NA NA NA NA NA NA NA NA NA NA ...
 $ treatment_group      : chr [1:180] NA NA NA NA ...
 $ area_mm2_measurement : num [1:180] 1441 1594 1362 1860 1407 ...
 $ imagej_id            : chr [1:180] "2" "2" "1" "1" ...
 $ well_id              : chr [1:180] "A1" "A2" "A3" "A4" ...

5 Merge Plate Data with Layout

dat <- plate_raw %>%
  left_join(
    layout_clean %>%
      select(plate_id, well_id, is_blank, exclude_from_analysis,
             any_of("exclude_reason"),
             all_of(group_cols), all_of(measurement_cols)),
    by = c("plate_id", "well_id")
  ) %>%
  mutate(
    is_blank = replace_na(is_blank, FALSE),
    exclude_from_analysis = replace_na(exclude_from_analysis, FALSE)
  )

str(dat)
tibble [1,152 × 18] (S3: tbl_df/tbl/data.frame)
 $ row_id               : chr [1:1152] "A" "A" "A" "A" ...
 $ col_id               : int [1:1152] 1 2 3 4 5 6 7 8 9 10 ...
 $ well_id              : chr [1:1152] "A1" "A2" "A3" "A4" ...
 $ value                : num [1:1152] 627 598 599 580 563 752 577 559 568 565 ...
 $ plate_id             : chr [1:1152] "round1" "round1" "round1" "round1" ...
 $ time_hr              : num [1:1152] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank             : logi [1:1152] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis: logi [1:1152] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_reason       : chr [1:1152] NA NA NA NA ...
 $ family_id_group      : chr [1:1152] "1" "2" "3" "5" ...
 $ cup_id_group         : chr [1:1152] "1" "2" "3" "4" ...
 $ round_group          : chr [1:1152] "1" "1" "1" "1" ...
 $ sample_id_group      : chr [1:1152] "1_01" "1_02" "1_03" "1_04" ...
 $ treatment_group      : chr [1:1152] NA NA NA NA ...
 $ weight_g_measurement : num [1:1152] NA NA NA NA NA NA NA NA NA NA ...
 $ width_mm_measurement : num [1:1152] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:1152] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement : num [1:1152] 1441 1594 1362 1860 1407 ...

6 Raw Fluorescence

6.1 Data frame

# Wells in the plate reader output that have no layout entry get all-NA group
# columns after the join. Keep only wells assigned to at least one group.
active_gc <- intersect(group_cols, names(dat))

raw_df <- dat %>%
  filter(
    !is_blank,
    if (length(active_gc) > 0)
      if_any(all_of(active_gc), ~ !is.na(.))
    else
      TRUE
  ) %>%
  mutate(
    trace_id = if_else(
      !is.na(sample_id_group) & trimws(as.character(sample_id_group)) != "",
      as.character(sample_id_group),
      paste(plate_id, well_id, sep = "_")
    )
  )

families   <- str_sort(unique(na.omit(raw_df$family_id_group)), numeric = TRUE)
treatments <- sort(unique(na.omit(raw_df$treatment_group)))

n_fam <- length(families)
n_trt <- length(treatments)

# Palette strategy:
#   <= 7 groups : Okabe-Ito (gold standard for colorblind-safe figures).
#   >  7 groups : colorspace::qualitative_hcl("Dynamic") scales to any N
#                 using perceptually uniform HCL space — no colour collisions.
# Black (#000000) is excluded from both and reserved for blank wells.
okabe_ito_7 <- c(
  "#E69F00", "#56B4E9", "#009E73", "#F0E442",
  "#0072B2", "#D55E00", "#CC79A7"
)
make_palette <- function(n) {
  if (n == 0L) return(character(0))
  if (n <= length(okabe_ito_7)) return(okabe_ito_7[seq_len(n)])
  colorspace::qualitative_hcl(n, palette = "Dynamic")
}

all_colours   <- make_palette(n_fam + n_trt)
fam_colours   <- setNames(all_colours[seq_len(n_fam)], families)
trt_colours   <- setNames(all_colours[n_fam + seq_len(n_trt)], treatments)

lty_pool <- c("solid", "dashed", "dotted", "dotdash", "longdash")
trt_linetypes <- setNames(
  lty_pool[(seq_len(n_trt) - 1L) %% length(lty_pool) + 1L],
  treatments
)
plate_well_colours <- c(blank = "black", fam_colours)

has_trt <- n_trt > 0

str(raw_df)
tibble [648 × 19] (S3: tbl_df/tbl/data.frame)
 $ row_id               : chr [1:648] "A" "A" "A" "A" ...
 $ col_id               : int [1:648] 1 2 3 4 5 6 7 8 9 11 ...
 $ well_id              : chr [1:648] "A1" "A2" "A3" "A4" ...
 $ value                : num [1:648] 627 598 599 580 563 752 577 559 568 596 ...
 $ plate_id             : chr [1:648] "round1" "round1" "round1" "round1" ...
 $ time_hr              : num [1:648] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank             : logi [1:648] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis: logi [1:648] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_reason       : chr [1:648] NA NA NA NA ...
 $ family_id_group      : chr [1:648] "1" "2" "3" "5" ...
 $ cup_id_group         : chr [1:648] "1" "2" "3" "4" ...
 $ round_group          : chr [1:648] "1" "1" "1" "1" ...
 $ sample_id_group      : chr [1:648] "1_01" "1_02" "1_03" "1_04" ...
 $ treatment_group      : chr [1:648] NA NA NA NA ...
 $ weight_g_measurement : num [1:648] NA NA NA NA NA NA NA NA NA NA ...
 $ width_mm_measurement : num [1:648] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:648] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement : num [1:648] 1441 1594 1362 1860 1407 ...
 $ trace_id             : chr [1:648] "1_01" "1_02" "1_03" "1_04" ...

6.2 Raw fluorescence by plate (including blanks)

p_raw_plates <- dat %>%
  filter(is.finite(time_hr), is.finite(value)) %>%
  mutate(
    colour_group = if_else(is_blank, "blank",
                           coalesce(family_id_group, "sample")),
    trace_id     = paste(plate_id, well_id, sep = "_")
  ) %>%
  ggplot(aes(x = time_hr, y = value,
             group = trace_id, colour = colour_group)) +
  geom_line(alpha = 0.6) +
  geom_point(size = 1, alpha = 0.7) +
  facet_wrap(~ plate_id) +
  scale_colour_manual(
    values   = plate_well_colours,
    name     = "Group",
    breaks   = names(plate_well_colours),
    na.value = "grey80"
  ) +
  labs(x = "Time (h)", y = "Raw fluorescence (RFU)") +
  theme_classic(base_size = 12) +
  theme(strip.background = element_blank(),
        strip.text       = element_text(face = "bold"))

p_raw_plates

ggsave(file.path(fig_dir, "raw_fluor_by_plate.png"),
       p_raw_plates, width = 10, height = 8)

6.3 Mean raw fluorescence by family

raw_family_summary <- raw_df %>%
  filter(!is.na(family_id_group), !exclude_from_analysis) %>%
  group_by(family_id_group, treatment_group, time_hr) %>%
  summarise(
    mean_fluor = mean(value, na.rm = TRUE),
    se_fluor   = sd(value, na.rm = TRUE) /
      sqrt(sum(!is.na(value))),
    n          = sum(!is.na(value)),
    .groups    = "drop"
  ) %>%
  mutate(group_var = if (has_trt)
    paste(family_id_group, treatment_group, sep = ".")
  else
    family_id_group)

p_raw_mean <- ggplot(raw_family_summary,
    aes(x = time_hr, y = mean_fluor,
        colour = family_id_group,
        group = group_var)) +
  geom_ribbon(aes(ymin = mean_fluor - se_fluor,
                  ymax = mean_fluor + se_fluor,
                  fill = family_id_group),
              alpha = 0.15, colour = NA) +
  geom_line(
    mapping   = if (has_trt) aes(linetype = treatment_group) else NULL,
    linewidth = 1) +
  geom_point(size = 2) +
  scale_colour_manual(values = fam_colours, name = "Family",
                      breaks = families) +
  scale_fill_manual(values = fam_colours, name = "Family",
                    breaks = families) +
  labs(x = "Time (h)", y = "Mean raw fluorescence (RFU ± SE)") +
  theme_classic(base_size = 13) +
  if (has_trt) scale_linetype_manual(values = trt_linetypes, name = "Treatment") else NULL

p_raw_mean

ggsave(file.path(fig_dir, "raw_mean_by_family.png"),
       p_raw_mean, width = 8, height = 5)

6.4 Individual raw fluorescence traces by family

p_raw_by_family <- raw_df %>%
  filter(!is.na(family_id_group)) %>%
  ggplot(aes(x = time_hr, y = value, group = trace_id,
             colour = .data[[if (has_trt) "treatment_group" else "family_id_group"]])) +
  geom_line(alpha = 0.6) +
  geom_point(size = 1.2, alpha = 0.7) +
  facet_wrap(~ family_id_group) +
  scale_colour_manual(
    values = if (has_trt) trt_colours else fam_colours,
    name   = if (has_trt) "Treatment" else "Family",
    breaks = if (has_trt) treatments else families) +
  labs(x = "Time (h)", y = "Raw fluorescence (RFU)") +
  theme_classic(base_size = 12) +
  theme(strip.background = element_blank(),
        strip.text       = element_text(face = "bold"))

p_raw_by_family

ggsave(file.path(fig_dir, "raw_individual_by_family.png"),
       p_raw_by_family, width = 10, height = 5)

6.5 Individual raw fluorescence traces by treatment

if (has_trt) {
  p_raw_by_treatment <- raw_df %>%
    ggplot(aes(x = time_hr, y = value,
               group = trace_id, colour = family_id_group)) +
    geom_line(alpha = 0.6) +
    geom_point(size = 1.2, alpha = 0.7) +
    facet_wrap(~ treatment_group) +
    scale_colour_manual(values = fam_colours, name = "Family",
                        breaks = families) +
    labs(x = "Time (h)", y = "Raw fluorescence (RFU)") +
    theme_classic(base_size = 12) +
    theme(strip.background = element_blank(),
          strip.text       = element_text(face = "bold"))

  p_raw_by_treatment
  ggsave(file.path(fig_dir, "raw_individual_by_treatment.png"),
         p_raw_by_treatment, width = 10, height = 5)
}

6.6 Excluded samples

Wells flagged exclude_from_analysis = TRUE appear in the raw fluorescence plots above but are omitted from all analyses that follow.

excluded_wells <- dat %>%
  filter(!is_blank, exclude_from_analysis) %>%
  mutate(
    sample = if_else(
      !is.na(sample_id_group) & trimws(as.character(sample_id_group)) != "",
      as.character(sample_id_group),
      paste(plate_id, well_id, sep = "_")
    )
  ) %>%
  select(plate_id, well_id, sample, family_id_group, treatment_group,
         any_of("exclude_reason")) %>%
  distinct() %>%
  arrange(plate_id, well_id)

if (nrow(excluded_wells) > 0) {
  col_names <- c("Plate", "Well", "Sample", "Family", "Treatment")
  if ("exclude_reason" %in% names(excluded_wells))
    col_names <- c(col_names, "Reason")
  cat(knitr::kable(excluded_wells, col.names = col_names), sep = "\n")
} else {
  cat("No wells are excluded from analysis.\n")
}

No wells are excluded from analysis.

7 Blank Correction via Fold-Change Normalization

T0 is the earliest timepoint present in the dataset (not necessarily 0 hr). Sample fold-change is expressed relative to each individual’s T0 reading, resolved by sample_id_group when that column is populated — allowing the same animal to be tracked across plates — or by plate_id + well_id when no sample IDs exist (backward-compatible with single-plate, multi-timepoint designs). Blank fold-change is the per-plate mean blank RFU at each timepoint divided by the pooled mean blank RFU at T0. Subtracting blank fold-change from sample fold-change removes background fluorescence drift; all samples start at exactly 0 at T0 by construction.

7.1 Step 1 – Identify T0 and compute per-sample fold-change

# T0 = earliest timepoint present in the dataset
t0_time <- min(dat$time_hr[is.finite(dat$time_hr)], na.rm = TRUE)
message("T0 timepoint: ", t0_time, " hr")

# T0 reference value per individual.
# Resolved by sample_id_group (cross-plate tracking) when available;
# falls back to plate+well for layouts without explicit sample IDs.
t0_all <- dat %>%
  filter(time_hr == t0_time, !is_blank, is.finite(value)) %>%
  mutate(sample_key = if_else(
    !is.na(sample_id_group) & trimws(as.character(sample_id_group)) != "",
    as.character(sample_id_group),
    paste(plate_id, well_id, sep = "_")
  )) %>%
  group_by(sample_key) %>%
  summarise(value_t0 = mean(value, na.rm = TRUE), .groups = "drop")

dat_fc <- dat %>%
  mutate(sample_key = if_else(
    !is_blank &
      !is.na(sample_id_group) & trimws(as.character(sample_id_group)) != "",
    as.character(sample_id_group),
    paste(plate_id, well_id, sep = "_")
  )) %>%
  left_join(t0_all, by = "sample_key") %>%
  mutate(fold_change = if_else(
    !is_blank & is.finite(value_t0) & value_t0 > 0,
    value / value_t0,
    NA_real_
  ))

str(dat_fc)
tibble [1,152 × 21] (S3: tbl_df/tbl/data.frame)
 $ row_id               : chr [1:1152] "A" "A" "A" "A" ...
 $ col_id               : int [1:1152] 1 2 3 4 5 6 7 8 9 10 ...
 $ well_id              : chr [1:1152] "A1" "A2" "A3" "A4" ...
 $ value                : num [1:1152] 627 598 599 580 563 752 577 559 568 565 ...
 $ plate_id             : chr [1:1152] "round1" "round1" "round1" "round1" ...
 $ time_hr              : num [1:1152] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank             : logi [1:1152] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis: logi [1:1152] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_reason       : chr [1:1152] NA NA NA NA ...
 $ family_id_group      : chr [1:1152] "1" "2" "3" "5" ...
 $ cup_id_group         : chr [1:1152] "1" "2" "3" "4" ...
 $ round_group          : chr [1:1152] "1" "1" "1" "1" ...
 $ sample_id_group      : chr [1:1152] "1_01" "1_02" "1_03" "1_04" ...
 $ treatment_group      : chr [1:1152] NA NA NA NA ...
 $ weight_g_measurement : num [1:1152] NA NA NA NA NA NA NA NA NA NA ...
 $ width_mm_measurement : num [1:1152] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:1152] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement : num [1:1152] 1441 1594 1362 1860 1407 ...
 $ sample_key           : chr [1:1152] "1_01" "1_02" "1_03" "1_04" ...
 $ value_t0             : num [1:1152] 627 598 599 580 563 752 577 559 568 NA ...
 $ fold_change          : num [1:1152] 1 1 1 1 1 1 1 1 1 NA ...

7.2 Step 2 – Blank fold-change reference per plate per timepoint

# Pooled mean blank RFU at T0 across all T0 plates
mean_blank_t0 <- dat %>%
  filter(is_blank, time_hr == t0_time, is.finite(value)) %>%
  pull(value) %>%
  mean(na.rm = TRUE)

if (!is.finite(mean_blank_t0))
  message("No blank readings found at T0 (", t0_time,
          " hr); blank correction will produce NA.")

# Per-plate per-timepoint mean blank expressed as fold-change relative to T0
blank_fc_ref <- dat %>%
  filter(is_blank, is.finite(value)) %>%
  group_by(plate_id, time_hr) %>%
  summarise(mean_blank_rfu = mean(value, na.rm = TRUE), .groups = "drop") %>%
  mutate(mean_blank_fc = mean_blank_rfu / mean_blank_t0)

str(blank_fc_ref)
tibble [12 × 4] (S3: tbl_df/tbl/data.frame)
 $ plate_id      : chr [1:12] "round1" "round1" "round1" "round1" ...
 $ time_hr       : num [1:12] 0 1 2 3 0 1 2 3 0 1 ...
 $ mean_blank_rfu: num [1:12] 568 715 612 630 632 ...
 $ mean_blank_fc : num [1:12] 0.979 1.232 1.055 1.085 1.089 ...

7.3 Step 3 – Subtract blank fold-change from sample fold-change

samples <- dat_fc %>%
  filter(!is_blank, !exclude_from_analysis) %>%
  mutate(
    trace_id = if_else(
      !is.na(sample_id_group) & trimws(as.character(sample_id_group)) != "",
      as.character(sample_id_group),
      paste(plate_id, well_id, sep = "_")
    )
  ) %>%
  left_join(blank_fc_ref, by = c("plate_id", "time_hr")) %>%
  mutate(corrected_fc = fold_change - mean_blank_fc)

str(samples)
tibble [1,080 × 25] (S3: tbl_df/tbl/data.frame)
 $ row_id               : chr [1:1080] "A" "A" "A" "A" ...
 $ col_id               : int [1:1080] 1 2 3 4 5 6 7 8 9 11 ...
 $ well_id              : chr [1:1080] "A1" "A2" "A3" "A4" ...
 $ value                : num [1:1080] 627 598 599 580 563 752 577 559 568 596 ...
 $ plate_id             : chr [1:1080] "round1" "round1" "round1" "round1" ...
 $ time_hr              : num [1:1080] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank             : logi [1:1080] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis: logi [1:1080] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_reason       : chr [1:1080] NA NA NA NA ...
 $ family_id_group      : chr [1:1080] "1" "2" "3" "5" ...
 $ cup_id_group         : chr [1:1080] "1" "2" "3" "4" ...
 $ round_group          : chr [1:1080] "1" "1" "1" "1" ...
 $ sample_id_group      : chr [1:1080] "1_01" "1_02" "1_03" "1_04" ...
 $ treatment_group      : chr [1:1080] NA NA NA NA ...
 $ weight_g_measurement : num [1:1080] NA NA NA NA NA NA NA NA NA NA ...
 $ width_mm_measurement : num [1:1080] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement: num [1:1080] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement : num [1:1080] 1441 1594 1362 1860 1407 ...
 $ sample_key           : chr [1:1080] "1_01" "1_02" "1_03" "1_04" ...
 $ value_t0             : num [1:1080] 627 598 599 580 563 752 577 559 568 596 ...
 $ fold_change          : num [1:1080] 1 1 1 1 1 1 1 1 1 1 ...
 $ trace_id             : chr [1:1080] "1_01" "1_02" "1_03" "1_04" ...
 $ mean_blank_rfu       : num [1:1080] 568 568 568 568 568 ...
 $ mean_blank_fc        : num [1:1080] 0.979 0.979 0.979 0.979 0.979 ...
 $ corrected_fc         : num [1:1080] 0.0206 0.0206 0.0206 0.0206 0.0206 ...

8 Blank-Corrected Fold-Change

8.1 Mean by family

bc_fc_summary <- samples %>%
  filter(!is.na(family_id_group), !exclude_from_analysis) %>%
  group_by(family_id_group, treatment_group, time_hr) %>%
  summarise(
    mean_val = mean(corrected_fc, na.rm = TRUE),
    se_val   = sd(corrected_fc, na.rm = TRUE) /
      sqrt(sum(!is.na(corrected_fc))),
    n        = sum(!is.na(corrected_fc)),
    .groups  = "drop"
  ) %>%
  mutate(group_var = if (has_trt)
    paste(family_id_group, treatment_group, sep = ".")
  else
    family_id_group)

p_bc_fc_mean <- ggplot(bc_fc_summary,
    aes(x = time_hr, y = mean_val,
        colour = family_id_group,
        group = group_var)) +
  geom_ribbon(aes(ymin = mean_val - se_val,
                  ymax = mean_val + se_val,
                  fill = family_id_group),
              alpha = 0.15, colour = NA) +
  geom_line(
    mapping   = if (has_trt) aes(linetype = treatment_group) else NULL,
    linewidth = 1) +
  geom_point(size = 2) +
  scale_colour_manual(values = fam_colours, name = "Family",
                      breaks = families) +
  scale_fill_manual(values = fam_colours, name = "Family",
                    breaks = families) +
  labs(x = "Time (h)",
       y = "Mean blank-corrected fold-change (± SE)") +
  theme_classic(base_size = 13) +
  if (has_trt) scale_linetype_manual(values = trt_linetypes, name = "Treatment") else NULL

p_bc_fc_mean

ggsave(file.path(fig_dir, "blank_corrected_fc_mean_by_family.png"),
       p_bc_fc_mean, width = 8, height = 5)

8.2 Individual traces by family

p_bc_fc_by_family <- samples %>%
  filter(!is.na(family_id_group)) %>%
  ggplot(aes(x = time_hr, y = corrected_fc, group = trace_id,
             colour = .data[[if (has_trt) "treatment_group" else "family_id_group"]])) +
  geom_line(alpha = 0.6) +
  geom_point(size = 1.2, alpha = 0.7) +
  facet_wrap(~ family_id_group) +
  scale_colour_manual(
    values = if (has_trt) trt_colours else fam_colours,
    name   = if (has_trt) "Treatment" else "Family",
    breaks = if (has_trt) treatments else families) +
  labs(x = "Time (h)", y = "Blank-corrected fold-change") +
  theme_classic(base_size = 12) +
  theme(strip.background = element_blank(),
        strip.text       = element_text(face = "bold"))

p_bc_fc_by_family

ggsave(file.path(fig_dir, "blank_corrected_fc_by_family.png"),
       p_bc_fc_by_family, width = 10, height = 5)

8.3 Individual blank-corrected fold-change traces by treatment

if (has_trt) {
  p_bc_fc_by_treatment <- samples %>%
    ggplot(aes(x = time_hr, y = corrected_fc,
               group = trace_id, colour = family_id_group)) +
    geom_line(alpha = 0.6) +
    geom_point(size = 1.2, alpha = 0.7) +
    facet_wrap(~ treatment_group) +
    scale_colour_manual(values = fam_colours, name = "Family",
                        breaks = families) +
    labs(x = "Time (h)", y = "Blank-corrected fold-change") +
    theme_classic(base_size = 12) +
    theme(strip.background = element_blank(),
          strip.text       = element_text(face = "bold"))

  p_bc_fc_by_treatment
  ggsave(file.path(fig_dir, "blank_corrected_fc_by_treatment.png"),
         p_bc_fc_by_treatment, width = 10, height = 5)
}

9 Metabolism (Size-Normalised Fold-Change)

Blank-corrected fold-change divided by each active measurement column. This is “metabolism” as defined in Huffmyer et al.

if (length(active_meas_cols) == 0) {
  message("No active measurement columns: skipping metabolism calculation.")
  metabolism_df <- tibble()
} else {
  metabolism_df <- samples
  for (mc in active_meas_cols) {
    out_col <- paste0("metabolism_per_", mc)
    metabolism_df <- metabolism_df %>%
      mutate(!!out_col := if_else(
        is.finite(.data[[mc]]) & .data[[mc]] > 0 &
          is.finite(corrected_fc),
        corrected_fc / .data[[mc]],
        NA_real_
      ))
  }
}

str(metabolism_df)
tibble [1,080 × 26] (S3: tbl_df/tbl/data.frame)
 $ row_id                             : chr [1:1080] "A" "A" "A" "A" ...
 $ col_id                             : int [1:1080] 1 2 3 4 5 6 7 8 9 11 ...
 $ well_id                            : chr [1:1080] "A1" "A2" "A3" "A4" ...
 $ value                              : num [1:1080] 627 598 599 580 563 752 577 559 568 596 ...
 $ plate_id                           : chr [1:1080] "round1" "round1" "round1" "round1" ...
 $ time_hr                            : num [1:1080] 0 0 0 0 0 0 0 0 0 0 ...
 $ is_blank                           : logi [1:1080] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_from_analysis              : logi [1:1080] FALSE FALSE FALSE FALSE FALSE FALSE ...
 $ exclude_reason                     : chr [1:1080] NA NA NA NA ...
 $ family_id_group                    : chr [1:1080] "1" "2" "3" "5" ...
 $ cup_id_group                       : chr [1:1080] "1" "2" "3" "4" ...
 $ round_group                        : chr [1:1080] "1" "1" "1" "1" ...
 $ sample_id_group                    : chr [1:1080] "1_01" "1_02" "1_03" "1_04" ...
 $ treatment_group                    : chr [1:1080] NA NA NA NA ...
 $ weight_g_measurement               : num [1:1080] NA NA NA NA NA NA NA NA NA NA ...
 $ width_mm_measurement               : num [1:1080] NA NA NA NA NA NA NA NA NA NA ...
 $ length_mm_measurement              : num [1:1080] NA NA NA NA NA NA NA NA NA NA ...
 $ area_mm2_measurement               : num [1:1080] 1441 1594 1362 1860 1407 ...
 $ sample_key                         : chr [1:1080] "1_01" "1_02" "1_03" "1_04" ...
 $ value_t0                           : num [1:1080] 627 598 599 580 563 752 577 559 568 596 ...
 $ fold_change                        : num [1:1080] 1 1 1 1 1 1 1 1 1 1 ...
 $ trace_id                           : chr [1:1080] "1_01" "1_02" "1_03" "1_04" ...
 $ mean_blank_rfu                     : num [1:1080] 568 568 568 568 568 ...
 $ mean_blank_fc                      : num [1:1080] 0.979 0.979 0.979 0.979 0.979 ...
 $ corrected_fc                       : num [1:1080] 0.0206 0.0206 0.0206 0.0206 0.0206 ...
 $ metabolism_per_area_mm2_measurement: num [1:1080] 1.43e-05 1.29e-05 1.51e-05 1.11e-05 1.46e-05 ...

9.1 Mean metabolism by family

if (nrow(metabolism_df) > 0) {

  metab_cols <- paste0("metabolism_per_", active_meas_cols)

  for (col in metab_cols) {
    if (!col %in% names(metabolism_df)) next
    mc_label <- str_remove(col, "^metabolism_per_")

    metab_summary <- metabolism_df %>%
      filter(!is.na(family_id_group), !exclude_from_analysis) %>%
      group_by(family_id_group, treatment_group, time_hr) %>%
      summarise(
        mean_val = mean(.data[[col]], na.rm = TRUE),
        se_val   = sd(.data[[col]], na.rm = TRUE) /
          sqrt(sum(!is.na(.data[[col]]))),
        .groups  = "drop"
      ) %>%
      mutate(group_var = if (has_trt)
        paste(family_id_group, treatment_group, sep = ".")
      else
        family_id_group)

    p_metab_mean <- ggplot(metab_summary,
        aes(x = time_hr, y = mean_val,
            colour = family_id_group,
            group = group_var)) +
      geom_ribbon(aes(ymin = mean_val - se_val,
                      ymax = mean_val + se_val,
                      fill = family_id_group),
                  alpha = 0.15, colour = NA) +
      geom_line(
        mapping   = if (has_trt) aes(linetype = treatment_group) else NULL,
        linewidth = 1) +
      geom_point(size = 2) +
      scale_colour_manual(values = fam_colours, name = "Family",
                          breaks = families) +
      scale_fill_manual(values = fam_colours, name = "Family",
                        breaks = families) +
      labs(x = "Time (h)",
           y = paste0(metabolism_y_label(col), " (± SE)")) +
      theme_classic(base_size = 13) +
      if (has_trt) scale_linetype_manual(values = trt_linetypes, name = "Treatment") else NULL

    print(p_metab_mean)
    ggsave(
      file.path(fig_dir,
                paste0("metabolism_mean_", mc_label, ".png")),
      p_metab_mean, width = 8, height = 5)
  }
}

9.2 Individual metabolism traces by family

if (nrow(metabolism_df) > 0) {

  for (col in metab_cols) {
    if (!col %in% names(metabolism_df)) next
    mc_label <- str_remove(col, "^metabolism_per_")

    p_metab_by_family <- metabolism_df %>%
      filter(!is.na(family_id_group)) %>%
      ggplot(aes(x = time_hr, y = .data[[col]], group = trace_id,
                 colour = .data[[if (has_trt) "treatment_group" else "family_id_group"]])) +
      geom_line(alpha = 0.6) +
      geom_point(size = 1.2, alpha = 0.7) +
      facet_wrap(~ family_id_group) +
      scale_colour_manual(
        values = if (has_trt) trt_colours else fam_colours,
        name   = if (has_trt) "Treatment" else "Family",
        breaks = if (has_trt) treatments else families) +
      labs(x = "Time (h)", y = metabolism_y_label(col)) +
      theme_classic(base_size = 12) +
      theme(strip.background = element_blank(),
            strip.text       = element_text(face = "bold"))

    print(p_metab_by_family)
    ggsave(
      file.path(fig_dir,
                paste0("metabolism_individual_", mc_label, "_by_family.png")),
      p_metab_by_family, width = 10, height = 5)

    if (has_trt) {
      p_metab_by_treatment <- ggplot(metabolism_df,
          aes(x = time_hr, y = .data[[col]],
              group = trace_id, colour = family_id_group)) +
        geom_line(alpha = 0.6) +
        geom_point(size = 1.2, alpha = 0.7) +
        facet_wrap(~ treatment_group) +
        scale_colour_manual(values = fam_colours, name = "Family",
                            breaks = families) +
        labs(x = "Time (h)", y = metabolism_y_label(col)) +
        theme_classic(base_size = 12) +
        theme(strip.background = element_blank(),
              strip.text       = element_text(face = "bold"))

      print(p_metab_by_treatment)
      ggsave(
        file.path(fig_dir,
                  paste0("metabolism_individual_", mc_label, "_by_treatment.png")),
        p_metab_by_treatment, width = 10, height = 5)
    }
  }
}

10 Time-Series Statistical Analysis

Linear mixed effects models test the effect of experimental variables on metabolism over time. Individual (sample_id_group) is included as a random intercept to account for repeated measures across timepoints. Type III ANOVA with Satterthwaite’s approximation (lmerTest) assesses significance; post-hoc pairwise comparisons use estimated marginal means (emmeans, Tukey adjustment).

run_ts_stats <- function(df, value_col) {
  has_family    <- "family_id_group" %in% names(df) &&
    length(unique(na.omit(df$family_id_group))) > 1
  has_treatment <- "treatment_group" %in% names(df) &&
    length(unique(na.omit(df$treatment_group))) > 1

  if (!has_family && !has_treatment) return(NULL)

  df <- df %>%
    filter(is.finite(.data[[value_col]]), is.finite(time_hr)) %>%
    mutate(
      time_f     = factor(time_hr),
      individual = factor(trace_id)
    )

  if (nrow(df) == 0) return(NULL)

  if (has_family)    df <- df %>% mutate(family    = factor(family_id_group))
  if (has_treatment) df <- df %>% mutate(treatment = factor(treatment_group))

  if (has_family    && length(unique(na.omit(df$family)))    < 2) return(NULL)
  if (has_treatment && length(unique(na.omit(df$treatment))) < 2) return(NULL)

  fixed <- if (has_family && has_treatment) {
    paste0(value_col, " ~ time_f * family * treatment")
  } else if (has_family) {
    paste0(value_col, " ~ time_f * family")
  } else {
    paste0(value_col, " ~ time_f * treatment")
  }

  model <- lmer(
    as.formula(paste0(fixed, " + (1 | individual)")),
    data = df
  )

  anova_res <- anova(model, type = 3, ddf = "Satterthwaite")

  # Pairwise comparisons of group combinations at each timepoint
  emm_spec <- if (has_family && has_treatment) {
    ~ family * treatment | time_f
  } else if (has_family) {
    ~ family | time_f
  } else {
    ~ treatment | time_f
  }

  emm       <- emmeans(model, emm_spec)
  pairs_res <- as.data.frame(pairs(emm, adjust = "tukey"))

  # Main-effect marginal means (collapsed across time)
  emm_main <- if (has_family && has_treatment) {
    emmeans(model, ~ family * treatment)
  } else if (has_family) {
    emmeans(model, ~ family)
  } else {
    emmeans(model, ~ treatment)
  }

  pairs_main <- as.data.frame(pairs(emm_main, adjust = "tukey"))

  list(
    model         = model,
    anova         = anova_res,
    pairs_by_time = pairs_res,
    pairs_main    = pairs_main,
    has_family    = has_family,
    has_treatment = has_treatment
  )
}

ts_stats <- list()
if (nrow(metabolism_df) > 0) {
  for (mc in active_meas_cols) {
    col <- paste0("metabolism_per_", mc)
    if (col %in% names(metabolism_df))
      ts_stats[[col]] <- run_ts_stats(metabolism_df, col)
  }
}

10.1 Results

for (col in names(ts_stats)) {
  res <- ts_stats[[col]]
  if (is.null(res)) next

  cat("\n\n### Metric:", col, "\n\n")

  cat("**Type III ANOVA (Satterthwaite approximation):**\n\n")
  cat(knitr::kable(as.data.frame(res$anova), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")

  cat("**Marginal means – main effects (collapsed across time):**\n\n")
  cat(knitr::kable(as.data.frame(res$pairs_main), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")

  cat("**Pairwise comparisons by timepoint (Tukey):**\n\n")
  cat(knitr::kable(as.data.frame(res$pairs_by_time), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")
}

10.1.1 Metric: metabolism_per_area_mm2_measurement

Type III ANOVA (Satterthwaite approximation):

Sum Sq Mean Sq NumDF DenDF F value Pr(>F)
time_f 3e-04 1e-04 3 459 389.9429 0.0000
family 0e+00 0e+00 8 153 0.9504 0.4772
time_f:family 0e+00 0e+00 24 459 0.9440 0.5411

Marginal means – main effects (collapsed across time):

contrast estimate SE df t.ratio p.value
family1 - family10 -1e-04 2e-04 153 -0.6072 0.9995
family1 - family2 -3e-04 2e-04 153 -1.6690 0.7643
family1 - family3 -4e-04 2e-04 153 -2.3926 0.2956
family1 - family5 -3e-04 2e-04 153 -1.5462 0.8316
family1 - family6 -3e-04 2e-04 153 -1.5621 0.8236
family1 - family7 -3e-04 2e-04 153 -1.6770 0.7595
family1 - family8 -2e-04 2e-04 153 -1.1174 0.9708
family1 - family9 -2e-04 2e-04 153 -1.2970 0.9309
family10 - family2 -2e-04 2e-04 153 -1.0618 0.9787
family10 - family3 -3e-04 2e-04 153 -1.7854 0.6917
family10 - family5 -2e-04 2e-04 153 -0.9390 0.9903
family10 - family6 -2e-04 2e-04 153 -0.9549 0.9892
family10 - family7 -2e-04 2e-04 153 -1.0698 0.9776
family10 - family8 -1e-04 2e-04 153 -0.5102 0.9999
family10 - family9 -1e-04 2e-04 153 -0.6898 0.9989
family2 - family3 -1e-04 2e-04 153 -0.7236 0.9984
family2 - family5 0e+00 2e-04 153 0.1227 1.0000
family2 - family6 0e+00 2e-04 153 0.1068 1.0000
family2 - family7 0e+00 2e-04 153 -0.0081 1.0000
family2 - family8 1e-04 2e-04 153 0.5516 0.9998
family2 - family9 1e-04 2e-04 153 0.3719 1.0000
family3 - family5 2e-04 2e-04 153 0.8463 0.9952
family3 - family6 2e-04 2e-04 153 0.8304 0.9958
family3 - family7 1e-04 2e-04 153 0.7155 0.9985
family3 - family8 2e-04 2e-04 153 1.2752 0.9371
family3 - family9 2e-04 2e-04 153 1.0955 0.9741
family5 - family6 0e+00 2e-04 153 -0.0159 1.0000
family5 - family7 0e+00 2e-04 153 -0.1308 1.0000
family5 - family8 1e-04 2e-04 153 0.4288 1.0000
family5 - family9 0e+00 2e-04 153 0.2492 1.0000
family6 - family7 0e+00 2e-04 153 -0.1149 1.0000
family6 - family8 1e-04 2e-04 153 0.4447 1.0000
family6 - family9 0e+00 2e-04 153 0.2651 1.0000
family7 - family8 1e-04 2e-04 153 0.5596 0.9998
family7 - family9 1e-04 2e-04 153 0.3800 1.0000
family8 - family9 0e+00 2e-04 153 -0.1796 1.0000

Pairwise comparisons by timepoint (Tukey):

contrast time_f estimate SE df t.ratio p.value
family1 - family10 0 0e+00 2e-04 340.5445 0.0072 1.0000
family1 - family2 0 0e+00 2e-04 340.5445 -0.0015 1.0000
family1 - family3 0 0e+00 2e-04 340.5445 -0.0038 1.0000
family1 - family5 0 0e+00 2e-04 340.5445 -0.0159 1.0000
family1 - family6 0 0e+00 2e-04 340.5445 -0.0190 1.0000
family1 - family7 0 0e+00 2e-04 340.5445 -0.0231 1.0000
family1 - family8 0 0e+00 2e-04 340.5445 0.0169 1.0000
family1 - family9 0 0e+00 2e-04 340.5445 -0.0200 1.0000
family10 - family2 0 0e+00 2e-04 340.5445 -0.0086 1.0000
family10 - family3 0 0e+00 2e-04 340.5445 -0.0109 1.0000
family10 - family5 0 0e+00 2e-04 340.5445 -0.0230 1.0000
family10 - family6 0 0e+00 2e-04 340.5445 -0.0261 1.0000
family10 - family7 0 0e+00 2e-04 340.5445 -0.0303 1.0000
family10 - family8 0 0e+00 2e-04 340.5445 0.0098 1.0000
family10 - family9 0 0e+00 2e-04 340.5445 -0.0271 1.0000
family2 - family3 0 0e+00 2e-04 340.5445 -0.0023 1.0000
family2 - family5 0 0e+00 2e-04 340.5445 -0.0144 1.0000
family2 - family6 0 0e+00 2e-04 340.5445 -0.0175 1.0000
family2 - family7 0 0e+00 2e-04 340.5445 -0.0216 1.0000
family2 - family8 0 0e+00 2e-04 340.5445 0.0184 1.0000
family2 - family9 0 0e+00 2e-04 340.5445 -0.0185 1.0000
family3 - family5 0 0e+00 2e-04 340.5445 -0.0121 1.0000
family3 - family6 0 0e+00 2e-04 340.5445 -0.0152 1.0000
family3 - family7 0 0e+00 2e-04 340.5445 -0.0194 1.0000
family3 - family8 0 0e+00 2e-04 340.5445 0.0207 1.0000
family3 - family9 0 0e+00 2e-04 340.5445 -0.0162 1.0000
family5 - family6 0 0e+00 2e-04 340.5445 -0.0031 1.0000
family5 - family7 0 0e+00 2e-04 340.5445 -0.0073 1.0000
family5 - family8 0 0e+00 2e-04 340.5445 0.0328 1.0000
family5 - family9 0 0e+00 2e-04 340.5445 -0.0041 1.0000
family6 - family7 0 0e+00 2e-04 340.5445 -0.0042 1.0000
family6 - family8 0 0e+00 2e-04 340.5445 0.0359 1.0000
family6 - family9 0 0e+00 2e-04 340.5445 -0.0010 1.0000
family7 - family8 0 0e+00 2e-04 340.5445 0.0401 1.0000
family7 - family9 0 0e+00 2e-04 340.5445 0.0031 1.0000
family8 - family9 0 0e+00 2e-04 340.5445 -0.0369 1.0000
family1 - family10 1 0e+00 2e-04 340.5445 -0.1282 1.0000
family1 - family2 1 -4e-04 2e-04 340.5445 -1.6047 0.8019
family1 - family3 1 -5e-04 2e-04 340.5445 -2.2758 0.3598
family1 - family5 1 -3e-04 2e-04 340.5445 -1.3509 0.9149
family1 - family6 1 -2e-04 2e-04 340.5445 -0.7646 0.9977
family1 - family7 1 -3e-04 2e-04 340.5445 -1.2464 0.9454
family1 - family8 1 -2e-04 2e-04 340.5445 -0.6868 0.9989
family1 - family9 1 -2e-04 2e-04 340.5445 -0.6725 0.9991
family10 - family2 1 -3e-04 2e-04 340.5445 -1.4765 0.8658
family10 - family3 1 -5e-04 2e-04 340.5445 -2.1476 0.4427
family10 - family5 1 -3e-04 2e-04 340.5445 -1.2227 0.9511
family10 - family6 1 -1e-04 2e-04 340.5445 -0.6363 0.9994
family10 - family7 1 -3e-04 2e-04 340.5445 -1.1181 0.9712
family10 - family8 1 -1e-04 2e-04 340.5445 -0.5585 0.9998
family10 - family9 1 -1e-04 2e-04 340.5445 -0.5442 0.9998
family2 - family3 1 -2e-04 2e-04 340.5445 -0.6711 0.9991
family2 - family5 1 1e-04 2e-04 340.5445 0.2538 1.0000
family2 - family6 1 2e-04 2e-04 340.5445 0.8402 0.9955
family2 - family7 1 1e-04 2e-04 340.5445 0.3583 1.0000
family2 - family8 1 2e-04 2e-04 340.5445 0.9180 0.9919
family2 - family9 1 2e-04 2e-04 340.5445 0.9323 0.9910
family3 - family5 1 2e-04 2e-04 340.5445 0.9249 0.9914
family3 - family6 1 3e-04 2e-04 340.5445 1.5113 0.8498
family3 - family7 1 2e-04 2e-04 340.5445 1.0294 0.9828
family3 - family8 1 4e-04 2e-04 340.5445 1.5891 0.8104
family3 - family9 1 4e-04 2e-04 340.5445 1.6034 0.8026
family5 - family6 1 1e-04 2e-04 340.5445 0.5863 0.9997
family5 - family7 1 0e+00 2e-04 340.5445 0.1045 1.0000
family5 - family8 1 2e-04 2e-04 340.5445 0.6641 0.9992
family5 - family9 1 2e-04 2e-04 340.5445 0.6784 0.9990
family6 - family7 1 -1e-04 2e-04 340.5445 -0.4818 0.9999
family6 - family8 1 0e+00 2e-04 340.5445 0.0778 1.0000
family6 - family9 1 0e+00 2e-04 340.5445 0.0921 1.0000
family7 - family8 1 1e-04 2e-04 340.5445 0.5596 0.9998
family7 - family9 1 1e-04 2e-04 340.5445 0.5739 0.9997
family8 - family9 1 0e+00 2e-04 340.5445 0.0143 1.0000
family1 - family10 2 -2e-04 2e-04 340.5445 -0.6956 0.9988
family1 - family2 2 -4e-04 2e-04 340.5445 -1.5803 0.8151
family1 - family3 2 -6e-04 2e-04 340.5445 -2.4948 0.2382
family1 - family5 2 -4e-04 2e-04 340.5445 -1.5321 0.8397
family1 - family6 2 -3e-04 2e-04 340.5445 -1.1611 0.9639
family1 - family7 2 -3e-04 2e-04 340.5445 -1.2772 0.9374
family1 - family8 2 -2e-04 2e-04 340.5445 -1.0070 0.9851
family1 - family9 2 -3e-04 2e-04 340.5445 -1.3926 0.9002
family10 - family2 2 -2e-04 2e-04 340.5445 -0.8846 0.9937
family10 - family3 2 -4e-04 2e-04 340.5445 -1.7991 0.6828
family10 - family5 2 -2e-04 2e-04 340.5445 -0.8365 0.9957
family10 - family6 2 -1e-04 2e-04 340.5445 -0.4654 0.9999
family10 - family7 2 -1e-04 2e-04 340.5445 -0.5815 0.9997
family10 - family8 2 -1e-04 2e-04 340.5445 -0.3113 1.0000
family10 - family9 2 -2e-04 2e-04 340.5445 -0.6969 0.9988
family2 - family3 2 -2e-04 2e-04 340.5445 -0.9145 0.9921
family2 - family5 2 0e+00 2e-04 340.5445 0.0482 1.0000
family2 - family6 2 1e-04 2e-04 340.5445 0.4192 1.0000
family2 - family7 2 1e-04 2e-04 340.5445 0.3031 1.0000
family2 - family8 2 1e-04 2e-04 340.5445 0.5733 0.9997
family2 - family9 2 0e+00 2e-04 340.5445 0.1877 1.0000
family3 - family5 2 2e-04 2e-04 340.5445 0.9627 0.9889
family3 - family6 2 3e-04 2e-04 340.5445 1.3337 0.9206
family3 - family7 2 3e-04 2e-04 340.5445 1.2176 0.9523
family3 - family8 2 3e-04 2e-04 340.5445 1.4878 0.8607
family3 - family9 2 3e-04 2e-04 340.5445 1.1022 0.9737
family5 - family6 2 1e-04 2e-04 340.5445 0.3710 1.0000
family5 - family7 2 1e-04 2e-04 340.5445 0.2549 1.0000
family5 - family8 2 1e-04 2e-04 340.5445 0.5252 0.9999
family5 - family9 2 0e+00 2e-04 340.5445 0.1395 1.0000
family6 - family7 2 0e+00 2e-04 340.5445 -0.1161 1.0000
family6 - family8 2 0e+00 2e-04 340.5445 0.1541 1.0000
family6 - family9 2 -1e-04 2e-04 340.5445 -0.2315 1.0000
family7 - family8 2 1e-04 2e-04 340.5445 0.2702 1.0000
family7 - family9 2 0e+00 2e-04 340.5445 -0.1154 1.0000
family8 - family9 2 -1e-04 2e-04 340.5445 -0.3856 1.0000
family1 - family10 3 -3e-04 2e-04 340.5445 -1.1211 0.9708
family1 - family2 3 -5e-04 2e-04 340.5445 -2.1400 0.4478
family1 - family3 3 -7e-04 2e-04 340.5445 -2.8615 0.1020
family1 - family5 3 -5e-04 2e-04 340.5445 -2.0359 0.5194
family1 - family6 3 -7e-04 2e-04 340.5445 -3.0409 0.0630
family1 - family7 3 -6e-04 2e-04 340.5445 -2.8055 0.1175
family1 - family8 3 -4e-04 2e-04 340.5445 -1.8894 0.6216
family1 - family9 3 -5e-04 2e-04 340.5445 -2.0545 0.5064
family10 - family2 3 -2e-04 2e-04 340.5445 -1.0189 0.9839
family10 - family3 3 -4e-04 2e-04 340.5445 -1.7403 0.7211
family10 - family5 3 -2e-04 2e-04 340.5445 -0.9148 0.9921
family10 - family6 3 -4e-04 2e-04 340.5445 -1.9198 0.6005
family10 - family7 3 -4e-04 2e-04 340.5445 -1.6844 0.7558
family10 - family8 3 -2e-04 2e-04 340.5445 -0.7683 0.9976
family10 - family9 3 -2e-04 2e-04 340.5445 -0.9333 0.9909
family2 - family3 3 -2e-04 2e-04 340.5445 -0.7215 0.9985
family2 - family5 3 0e+00 2e-04 340.5445 0.1041 1.0000
family2 - family6 3 -2e-04 2e-04 340.5445 -0.9009 0.9928
family2 - family7 3 -2e-04 2e-04 340.5445 -0.6655 0.9991
family2 - family8 3 1e-04 2e-04 340.5445 0.2506 1.0000
family2 - family9 3 0e+00 2e-04 340.5445 0.0855 1.0000
family3 - family5 3 2e-04 2e-04 340.5445 0.8255 0.9960
family3 - family6 3 0e+00 2e-04 340.5445 -0.1795 1.0000
family3 - family7 3 0e+00 2e-04 340.5445 0.0559 1.0000
family3 - family8 3 2e-04 2e-04 340.5445 0.9721 0.9881
family3 - family9 3 2e-04 2e-04 340.5445 0.8070 0.9966
family5 - family6 3 -2e-04 2e-04 340.5445 -1.0050 0.9853
family5 - family7 3 -2e-04 2e-04 340.5445 -0.7696 0.9976
family5 - family8 3 0e+00 2e-04 340.5445 0.1465 1.0000
family5 - family9 3 0e+00 2e-04 340.5445 -0.0186 1.0000
family6 - family7 3 1e-04 2e-04 340.5445 0.2354 1.0000
family6 - family8 3 3e-04 2e-04 340.5445 1.1515 0.9656
family6 - family9 3 2e-04 2e-04 340.5445 0.9865 0.9869
family7 - family8 3 2e-04 2e-04 340.5445 0.9161 0.9920
family7 - family9 3 2e-04 2e-04 340.5445 0.7511 0.9980
family8 - family9 3 0e+00 2e-04 340.5445 -0.1651 1.0000

11 Area Under the Curve (AUC)

AUC computed per individual via the trapezoid rule across all timepoints. metabolism_per_* is the primary metric matching the paper; corrected_fc and raw_fluorescence are retained for reference.

compute_auc <- function(df, value_col, group_vars) {
  df %>%
    filter(is.finite(time_hr), is.finite(.data[[value_col]])) %>%
    group_by(across(all_of(group_vars))) %>%
    summarise(
      AUC          = trapezoid_auc(time_hr, .data[[value_col]]),
      n_timepoints = n(),
      .groups      = "drop"
    ) %>%
    filter(is.finite(AUC))
}

# Only include grouping columns that are actually present in the data
individual_vars <- intersect(
  c("trace_id", "family_id_group", "treatment_group"),
  names(metabolism_df)
)

auc_metab_list <- list()
if (nrow(metabolism_df) > 0) {
  for (mc in active_meas_cols) {
    col <- paste0("metabolism_per_", mc)
    if (col %in% names(metabolism_df)) {
      auc_metab_list[[col]] <-
        compute_auc(metabolism_df, col, individual_vars) %>%
        mutate(metric = col)
    }
  }
}

auc_all <- bind_rows(auc_metab_list)

str(auc_all)
tibble [162 × 6] (S3: tbl_df/tbl/data.frame)
 $ trace_id       : chr [1:162] "1_01" "1_02" "1_03" "1_04" ...
 $ family_id_group: chr [1:162] "1" "2" "3" "5" ...
 $ treatment_group: chr [1:162] NA NA NA NA ...
 $ AUC            : num [1:162] 0.0023 0.0018 0.00275 0.0066 0.00341 ...
 $ n_timepoints   : int [1:162] 4 4 4 4 4 4 4 4 4 4 ...
 $ metric         : chr [1:162] "metabolism_per_area_mm2_measurement" "metabolism_per_area_mm2_measurement" "metabolism_per_area_mm2_measurement" "metabolism_per_area_mm2_measurement" ...

11.1 AUC summary tables

sum_vars <- intersect(
  c("metric", "family_id_group", "treatment_group"),
  names(auc_all)
)
auc_summary <- auc_all %>%
  group_by(across(all_of(sum_vars))) %>%
  summarise(
    n      = n(),
    mean   = mean(AUC, na.rm = TRUE),
    sd     = sd(AUC, na.rm = TRUE),
    se     = sd / sqrt(n),
    median = median(AUC, na.rm = TRUE),
    .groups = "drop"
  )

print(auc_summary)
# A tibble: 9 × 8
  metric   family_id_group treatment_group     n    mean      sd      se  median
  <chr>    <chr>           <chr>           <int>   <dbl>   <dbl>   <dbl>   <dbl>
1 metabol… 1               <NA>               18 0.00234 6.64e-4 1.57e-4 0.00236
2 metabol… 10              <NA>               18 0.00265 8.16e-4 1.92e-4 0.00266
3 metabol… 2               <NA>               18 0.00332 2.09e-3 4.94e-4 0.00233
4 metabol… 3               <NA>               18 0.00377 1.76e-3 4.14e-4 0.00353
5 metabol… 5               <NA>               18 0.00324 2.10e-3 4.95e-4 0.00268
6 metabol… 6               <NA>               18 0.00313 2.60e-3 6.13e-4 0.00224
7 metabol… 7               <NA>               18 0.00324 1.98e-3 4.67e-4 0.00327
8 metabol… 8               <NA>               18 0.00294 1.11e-3 2.61e-4 0.00250
9 metabol… 9               <NA>               18 0.00305 1.19e-3 2.80e-4 0.00268

12 Statistical Analysis

Each individual oyster (sample_id_group) is the observational unit. The model is built from whichever grouping factors are present: both family and treatment (with interaction) when both exist, or a one-way model when only one factor is available. Each plate maps to a unique family × treatment combination, so plate-level and group-level variance are confounded; interpret accordingly.

run_auc_stats <- function(auc_df) {
  empty <- tibble()

  has_family    <- "family_id_group" %in% names(auc_df) &&
    length(unique(na.omit(auc_df$family_id_group))) > 1
  has_treatment <- "treatment_group" %in% names(auc_df) &&
    length(unique(na.omit(auc_df$treatment_group))) > 1

  if (!has_family && !has_treatment) {
    return(list(model = NULL, anova = NULL,
                pairs_full = empty, pairs_family = empty,
                pairs_trt = empty,
                has_family = FALSE, has_treatment = FALSE))
  }

  if (has_family)    auc_df <- auc_df %>% mutate(family    = factor(family_id_group))
  if (has_treatment) auc_df <- auc_df %>% mutate(treatment = factor(treatment_group))

  formula_str <- if (has_family && has_treatment) {
    "AUC ~ family * treatment"
  } else if (has_family) {
    "AUC ~ family"
  } else {
    "AUC ~ treatment"
  }
  model     <- lm(as.formula(formula_str), data = auc_df)
  anova_res <- anova(model)

  if (has_family && has_treatment) {
    pairs_full   <- as.data.frame(pairs(emmeans(model, ~ family * treatment),
                                        adjust = "tukey"))
    pairs_family <- as.data.frame(pairs(emmeans(model, ~ family),
                                        adjust = "tukey"))
    pairs_trt    <- as.data.frame(pairs(emmeans(model, ~ treatment),
                                        adjust = "tukey"))
  } else if (has_family) {
    pairs_family <- as.data.frame(pairs(emmeans(model, ~ family),
                                        adjust = "tukey"))
    pairs_full   <- pairs_family
    pairs_trt    <- empty
  } else {
    pairs_trt    <- as.data.frame(pairs(emmeans(model, ~ treatment),
                                        adjust = "tukey"))
    pairs_full   <- pairs_trt
    pairs_family <- empty
  }

  list(
    model         = model,
    anova         = anova_res,
    pairs_full    = pairs_full,
    pairs_family  = pairs_family,
    pairs_trt     = pairs_trt,
    has_family    = has_family,
    has_treatment = has_treatment
  )
}

metrics_to_test <- unique(auc_all$metric)
stats_results   <- map(
  set_names(metrics_to_test),
  ~ run_auc_stats(auc_all %>% filter(metric == .x))
)

12.1 Results by metric

for (met in metrics_to_test) {
  stats <- stats_results[[met]]
  cat("\n\n### Metric:", met, "\n\n")
  cat("**ANOVA:**\n\n")
  cat(knitr::kable(as.data.frame(stats$anova), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")
  if (stats$has_family && stats$has_treatment) {
    cat("**Pairwise: family × treatment (Tukey):**\n\n")
    cat(knitr::kable(as.data.frame(stats$pairs_full), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")
    cat("**Pairwise: family main effect:**\n\n")
    cat(knitr::kable(as.data.frame(stats$pairs_family), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")
    cat("**Pairwise: treatment main effect:**\n\n")
    cat(knitr::kable(as.data.frame(stats$pairs_trt), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")
  } else if (stats$has_family) {
    cat("**Pairwise: family (Tukey):**\n\n")
    cat(knitr::kable(as.data.frame(stats$pairs_family), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")
  } else if (stats$has_treatment) {
    cat("**Pairwise: treatment (Tukey):**\n\n")
    cat(knitr::kable(as.data.frame(stats$pairs_trt), digits = 4, format = "pipe"), sep = "\n")
  cat("\n")
  }
}

12.1.1 Metric: metabolism_per_area_mm2_measurement

ANOVA:

Df Sum Sq Mean Sq F value Pr(>F)
family 8 0e+00 0 1.0252 0.4195
Residuals 153 4e-04 0 NA NA

Pairwise: family (Tukey):

contrast estimate SE df t.ratio p.value
family1 - family10 -0.0003 6e-04 153 -0.5578 0.9998
family1 - family2 -0.0010 6e-04 153 -1.7192 0.7339
family1 - family3 -0.0014 6e-04 153 -2.5059 0.2375
family1 - family5 -0.0009 6e-04 153 -1.5791 0.8147
family1 - family6 -0.0008 6e-04 153 -1.3959 0.8978
family1 - family7 -0.0009 6e-04 153 -1.5908 0.8085
family1 - family8 -0.0006 6e-04 153 -1.0624 0.9786
family1 - family9 -0.0007 6e-04 153 -1.2532 0.9429
family10 - family2 -0.0007 6e-04 153 -1.1613 0.9632
family10 - family3 -0.0011 6e-04 153 -1.9481 0.5817
family10 - family5 -0.0006 6e-04 153 -1.0212 0.9833
family10 - family6 -0.0005 6e-04 153 -0.8381 0.9955
family10 - family7 -0.0006 6e-04 153 -1.0329 0.9821
family10 - family8 -0.0003 6e-04 153 -0.5046 0.9999
family10 - family9 -0.0004 6e-04 153 -0.6954 0.9988
family2 - family3 -0.0004 6e-04 153 -0.7867 0.9971
family2 - family5 0.0001 6e-04 153 0.1401 1.0000
family2 - family6 0.0002 6e-04 153 0.3232 1.0000
family2 - family7 0.0001 6e-04 153 0.1284 1.0000
family2 - family8 0.0004 6e-04 153 0.6568 0.9992
family2 - family9 0.0003 6e-04 153 0.4660 0.9999
family3 - family5 0.0005 6e-04 153 0.9268 0.9911
family3 - family6 0.0006 6e-04 153 1.1099 0.9720
family3 - family7 0.0005 6e-04 153 0.9151 0.9918
family3 - family8 0.0008 6e-04 153 1.4435 0.8790
family3 - family9 0.0007 6e-04 153 1.2527 0.9430
family5 - family6 0.0001 6e-04 153 0.1831 1.0000
family5 - family7 0.0000 6e-04 153 -0.0117 1.0000
family5 - family8 0.0003 6e-04 153 0.5167 0.9999
family5 - family9 0.0002 6e-04 153 0.3259 1.0000
family6 - family7 -0.0001 6e-04 153 -0.1948 1.0000
family6 - family8 0.0002 6e-04 153 0.3335 1.0000
family6 - family9 0.0001 6e-04 153 0.1427 1.0000
family7 - family8 0.0003 6e-04 153 0.5284 0.9998
family7 - family9 0.0002 6e-04 153 0.3376 1.0000
family8 - family9 -0.0001 6e-04 153 -0.1908 1.0000

13 AUC Box Plots with Statistical Annotations

Significance labels: *** p < 0.001, ** p < 0.01, * p < 0.05. Brackets are drawn only for significant pairs (p < 0.05). Plots are generated for whichever grouping factors are present: treatment-only, family-only, all-groups, within-family, and within-treatment.

sig_label <- function(p) {
  case_when(p < 0.001 ~ "***", p < 0.01 ~ "**", p < 0.05 ~ "*",
            TRUE ~ "ns")
}

# Add significance brackets to an existing ggplot.
# pairs_df   : data frame with $contrast and $p.value columns
# group_levels: ordered character vector matching x-axis factor levels
# y_vals     : numeric vector of AUC values used to set bracket heights
add_sig_brackets <- function(p, pairs_df, group_levels, y_vals) {
  sig_pairs <- pairs_df %>%
    mutate(label = sig_label(p.value)) %>%
    filter(label != "ns")
  if (nrow(sig_pairs) == 0) return(p)

  y_max   <- max(y_vals, na.rm = TRUE)
  y_range <- diff(range(y_vals, na.rm = TRUE))
  step    <- y_range * 0.12

  for (i in seq_len(nrow(sig_pairs))) {
    parts <- str_split(as.character(sig_pairs$contrast[i]), " - ", 2)[[1]]
    g1 <- trimws(parts[1])
    g2 <- trimws(parts[2])
    x1 <- match(g1, group_levels)
    x2 <- match(g2, group_levels)
    if (is.na(x1) || is.na(x2)) next
    bar_y <- y_max + i * step
    p <- p +
      annotate("segment", x = x1, xend = x2,
               y = bar_y, yend = bar_y,
               colour = "black", linewidth = 0.6) +
      annotate("segment", x = x1, xend = x1,
               y = bar_y, yend = bar_y - step * 0.3,
               colour = "black", linewidth = 0.6) +
      annotate("segment", x = x2, xend = x2,
               y = bar_y, yend = bar_y - step * 0.3,
               colour = "black", linewidth = 0.6) +
      annotate("text", x = (x1 + x2) / 2,
               y = bar_y + step * 0.15,
               label = sig_pairs$label[i], size = 4.5)
  }
  p
}
for (met in metrics_to_test) {
  df      <- auc_all %>% filter(metric == met)
  stats   <- stats_results[[met]]
  y_lab   <- auc_y_label(met)
  has_fam <- stats$has_family
  has_trt <- stats$has_treatment

  # ── Treatment main effect (x = treatment, tick = treatment name) ───────
  if (has_trt) {
    df_p <- df %>%
      mutate(x = factor(treatment_group, levels = sort(unique(treatment_group))))
    grps <- levels(df_p$x)
    p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
      geom_boxplot(alpha = 0.6, outlier.shape = NA) +
      geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
      scale_fill_manual(values = trt_colours[grps], guide = "none") +
      labs(x = "Treatment", y = y_lab) +
      theme_classic(base_size = 13)
    p <- add_sig_brackets(p, stats$pairs_trt, grps, df_p$AUC)
    print(p)
    ggsave(file.path(fig_dir, paste0("auc_treatment_", met, ".png")),
           p, width = 5, height = 5)
  }

  # ── Family main effect (x = family, tick = family name) ───────────────
  if (has_fam) {
    df_p <- df %>%
      mutate(x = factor(family_id_group,
                        levels = str_sort(unique(family_id_group), numeric = TRUE)))
    grps <- levels(df_p$x)
    p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
      geom_boxplot(alpha = 0.6, outlier.shape = NA) +
      geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
      scale_fill_manual(values = fam_colours[grps], guide = "none") +
      labs(x = "Family", y = y_lab) +
      theme_classic(base_size = 13)
    p <- add_sig_brackets(p, stats$pairs_family, grps, df_p$AUC)
    print(p)
    ggsave(file.path(fig_dir, paste0("auc_family_", met, ".png")),
           p, width = 5, height = 5)
  }

  # Remaining plots require both factors
  if (!has_fam || !has_trt) next

  # ── All family:treatment groups (x = family:treatment) ─────────────────
  # emmeans contrasts use spaces; convert to colon to match tick labels
  pairs_fc <- stats$pairs_full %>%
    mutate(contrast = str_replace_all(
      contrast,
      "([a-z]+) ([a-z]+)( - )([a-z]+) ([a-z]+)",
      "\\1:\\2\\3\\4:\\5"
    ))
  df_p <- df %>%
    mutate(x = factor(
      paste(family_id_group, treatment_group, sep = ":"),
      levels = str_sort(unique(paste(family_id_group, treatment_group, sep = ":")),
                        numeric = TRUE)
    ))
  grps     <- levels(df_p$x)
  fill_map <- setNames(make_palette(length(grps)), grps)
  p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
    geom_boxplot(alpha = 0.6, outlier.shape = NA) +
    geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
    scale_fill_manual(values = fill_map, guide = "none") +
    labs(x = "Family : Treatment", y = y_lab) +
    theme_classic(base_size = 13) +
    theme(axis.text.x = element_text(angle = 20, hjust = 1))
  p <- add_sig_brackets(p, pairs_fc, grps, df_p$AUC)
  print(p)
  ggsave(file.path(fig_dir, paste0("auc_all_groups_", met, ".png")),
         p, width = 6, height = 5)

  # ── Within each family: treatment comparison (x = family:treatment) ────
  # Tick labels are family:treatment so these plots are visually distinct
  # from the treatment main-effect plot above.
  for (fam in str_sort(unique(df$family_id_group), numeric = TRUE)) {
    df_p <- df %>%
      filter(family_id_group == fam) %>%
      mutate(x = factor(
        paste(family_id_group, treatment_group, sep = ":"),
        levels = str_sort(unique(paste(family_id_group, treatment_group, sep = ":")),
                          numeric = TRUE)
      ))
    grps     <- levels(df_p$x)
    pairs_sub <- pairs_fc %>%
      filter(str_count(contrast, paste0(fam, ":")) == 2)
    p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
      geom_boxplot(alpha = 0.6, outlier.shape = NA) +
      geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
      scale_fill_manual(values = fill_map[grps], guide = "none") +
      labs(x = "Family : Treatment", y = y_lab) +
      theme_classic(base_size = 13)
    p <- add_sig_brackets(p, pairs_sub, grps, df_p$AUC)
    print(p)
    ggsave(file.path(fig_dir, paste0("auc_", fam, "_trt_", met, ".png")),
           p, width = 5, height = 5)
  }

  # ── Within each treatment: family comparison (x = family:treatment) ────
  # Tick labels are family:treatment so these plots are visually distinct
  # from the family main-effect plot above.
  for (trt in sort(unique(df$treatment_group))) {
    df_p <- df %>%
      filter(treatment_group == trt) %>%
      mutate(x = factor(
        paste(family_id_group, treatment_group, sep = ":"),
        levels = str_sort(unique(paste(family_id_group, treatment_group, sep = ":")),
                          numeric = TRUE)
      ))
    grps      <- levels(df_p$x)
    pairs_sub <- pairs_fc %>%
      filter(str_count(contrast, paste0(":", trt)) == 2)
    p <- ggplot(df_p, aes(x = x, y = AUC, fill = x)) +
      geom_boxplot(alpha = 0.6, outlier.shape = NA) +
      geom_jitter(width = 0.15, alpha = 0.4, size = 1.5) +
      scale_fill_manual(values = fill_map[grps], guide = "none") +
      labs(x = "Family : Treatment", y = y_lab) +
      theme_classic(base_size = 13)
    p <- add_sig_brackets(p, pairs_sub, grps, df_p$AUC)
    print(p)
    ggsave(file.path(fig_dir, paste0("auc_", trt, "_fam_", met, ".png")),
           p, width = 5, height = 5)
  }
}

14 Save Output Data

write_csv(auc_all,      file.path(out_dir, "auc_all_metrics.csv"))
write_csv(auc_summary,  file.path(out_dir, "auc_summary.csv"))

if (nrow(metabolism_df) > 0)
  write_csv(metabolism_df,
            file.path(out_dir, "metabolism.csv"))

stats_compiled <- map_dfr(metrics_to_test, function(met) {
  bind_rows(
    stats_results[[met]]$pairs_full %>%
      mutate(comparison = "family:treatment"),
    stats_results[[met]]$pairs_family %>%
      mutate(comparison = "family"),
    stats_results[[met]]$pairs_trt %>%
      mutate(comparison = "treatment")
  ) %>% mutate(metric = met)
})

write_csv(stats_compiled,
          file.path(out_dir, "pairwise_stats.csv"))

message("Output files written to: ", out_dir)
