INTRO
Continuing citrate synthase assays on Family 5 from the June 2026 SORMI experiment, I assayed ctenidia from the eight Magallana gigas (Pacific oyster) Family 5 individuals held at 36°C (heat-stress exposure) using the Citrate Synthase Assay Kit (ABCAM; cat: ab239712). Samples had been previously homogenized on 20260811 (Notebook entry), and protein concentrations for normalization were determined on 20260813 (Notebook entry). This is the companion plate to the Family 5 ambient assay run on 20260811 (Notebook entry).
Important
The plate reader assay time differed between this run and the 20260811 run.
| Run | Read duration | Reads | Interval |
|---|---|---|---|
| 20260811 - Family 5 ambient | 40 min | 21 | 2 min |
| 20260814 - Family 5 36°C (this run) | 20 min | 11 | 2 min |
This plate was read for 20 minutes (11 reads), half the 40-minute (21-read) kinetic window used on 20260811. Both runs used 2-minute read intervals at 412 nm and 25°C, so the difference is purely in how long the kinetics were followed.
Rate extraction uses a fixed-width sliding window (5 points = 8 min) rather than the full trace, so the shorter read does not change the width of the window a rate is fit over — only how many candidate windows are available to slide across. It does change where the steepest window lands. On this plate every sample well was fitted on the window running from 12 to 20 min — the final five reads of the run. On 20260811, where traces rose immediately and then decelerated, the great majority of wells were fitted on the initial 0-8 min window.
The fits themselves are excellent (every sample well R2 > 0.99), so the reported rates are well determined over the window used. But since the steepest window here is the last one in the run, there is no read time after it to confirm the reaction had reached its maximum rate. Any ambient-vs-36°C comparison should note that the two plates did not sample the same portion of the kinetic curve, and read duration should be standardized before further families are run.
All data/code/analysis is available here:
MATERIALS & METHODS
Citrate Synthase Assay
The Citrate Synthase Assay Kit (ABCAM; cat: ab239712) was used according to the manufacturer’s instructions (ABCAM-Citrate-Synthase-Assay-v4a-ab239712.pdf (GitHub; PDF)).
Homogenates were thawed and 2 µL of undiluted homogenate was combined with 48 µL of Assay Buffer 7 per well, followed by 50 µL of Reaction Mix. Each sample was assayed in technical triplicate in a clear, flat-bottomed 96-well plate. Every sample also received a paired triplicate of background control wells, which receive Background Control Mix (no CS Substrate Mix) to correct for pre-existing free thiol in the homogenate. A six-point GSH standard curve (0, 8, 16, 24, 32, 40 nmol/well) and a CS positive control were included in triplicate on the same plate.
Master Mix Calcs
REACTION MIX
| REAGENT | SINGLE_RXN_VOLUME (uL) | REACTIONS | TOTAL_VOLUME (uL) |
|---|---|---|---|
| Assay Buffer 7 | 43 | 50 | 2150 |
| DTNB | 5 | 50 | 250 |
| CS Substrate | 2 | 50 | 100 |
BACKGROUND MIX
| REAGENT | SINGLE_RXN_VOLUME (uL) | REACTIONS | TOTAL_VOLUME (uL) |
|---|---|---|---|
| Assay Buffer 7 | 45 | 30 | 1350 |
| DTNB | 5 | 30 | 150 |
Absorbance was read at 412 nm in kinetic mode at 25°C on a Synergy HTX plate reader (Agilent), at 2-minute intervals. This plate was read for 20 minutes (11 reads); see the callout above.
Normalization

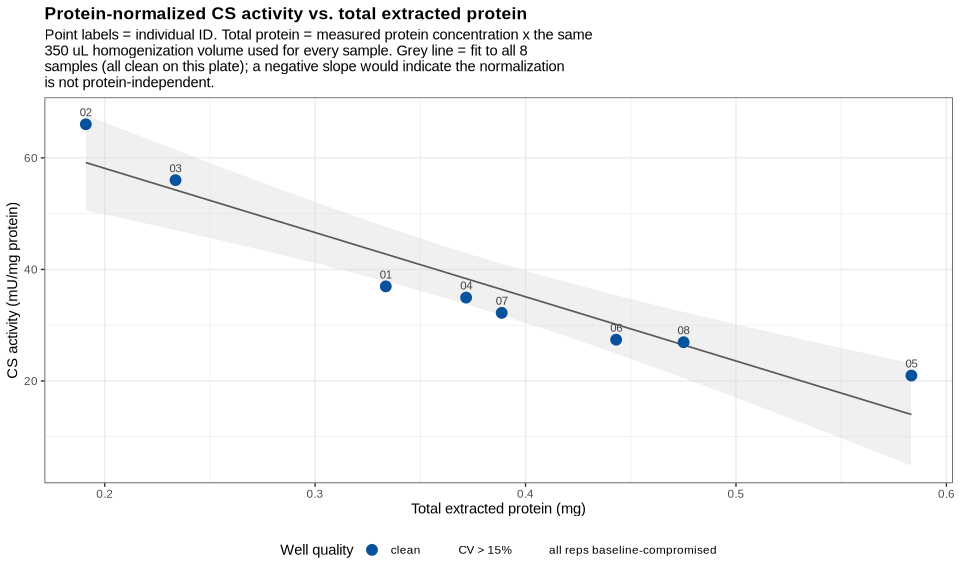

Activity was normalized to total extracted protein rather than tissue weight. Tissue was homogenized in 350 µL of Assay Buffer 7, and protein concentration in each homogenate was quantified separately on 20260813 (Notebook entry) using the Bradford assay. Total protein mass per sample is that concentration multiplied by the 350 µL homogenization volume. Tissue weights are recorded in the plate layout labels for provenance only and play no role in the activity calculation.
Analysis
Data were analyzed in R. The Rmd file is here (GitHub):
Knitted markdown is below.
Data files
Plate reader files
Plate reader files (*.xpt) are available here (require Gen5 software to open):
- https://github.com/RobertsLab/sormi-assay-development/tree/main/Citrate_synthase/data/plate_reader_files
Raw absorbance data
Raw absorbance data (*.csv), plate layouts, and Gen5 full reports are available here:
- https://github.com/RobertsLab/sormi-assay-development/tree/main/Citrate_synthase/data/raw_absorbance
RESULTS
This plate ran cleanly. All 24 sample wells rise monotonically with replicate-level R2 > 0.99, no well required exclusion, all eight samples pass the 15% technical CV threshold (highest is F05_08_36C at 7.8%), and the positive control was linear at 2.8-3.0 mA412/min. The GSH standard curve fails QC only by a single clearly-identified outlier well (F5, 40 nmol); excluding it drops that concentration’s CV from 15.9% to 0.5% and lifts the replicate-level R2 to 0.9985. This plate does not need re-assay.

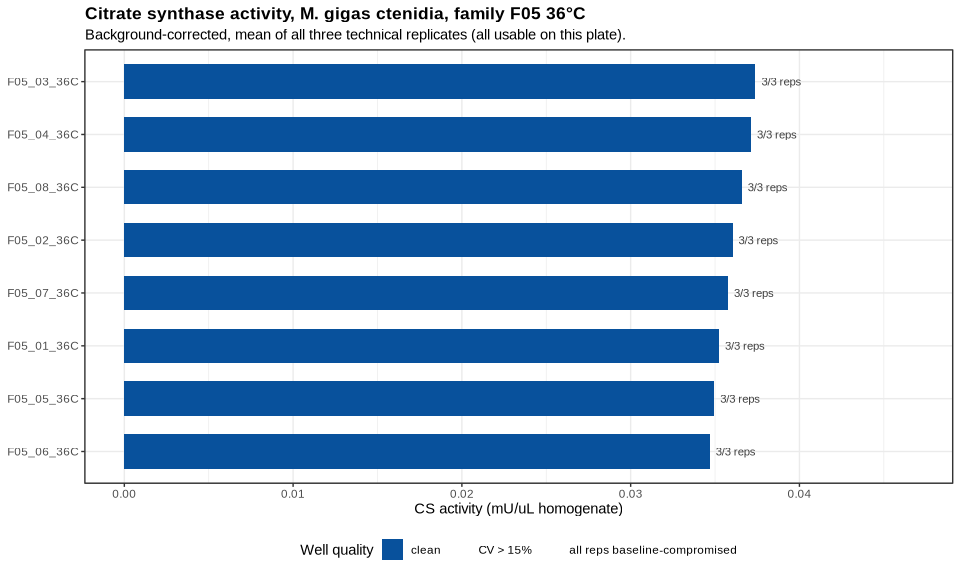

Background-corrected rates cluster tightly — 2.13 to 2.30 mA412/min across all eight individuals, a spread of only 7.8% against 1-8% technical CV per sample. No striking within-family variation in raw CS activity is apparent at 36°C.
| Sample | Reps used | CV all reps (%) | Corrected rate (mA412/min) | Activity (mU/mg protein) | Interpretation |
|---|---|---|---|---|---|
| F05_01_36C | 3/3 | 3.3 | 2.17 | 37.0 | usable |
| F05_02_36C | 3/3 | 2.4 | 2.22 | 66.0 | usable |
| F05_03_36C | 3/3 | 3.5 | 2.30 | 56.0 | usable |
| F05_04_36C | 3/3 | 2.3 | 2.28 | 35.0 | usable |
| F05_05_36C | 3/3 | 1.2 | 2.15 | 21.0 | usable |
| F05_06_36C | 3/3 | 2.4 | 2.13 | 27.4 | usable |
| F05_07_36C | 3/3 | 1.2 | 2.20 | 32.2 | usable |
| F05_08_36C | 3/3 | 7.8 | 2.25 | 26.9 | usable |
Two items still need follow-up. One background well (C8) showed the signature of a Reaction Mix / Background Control Mix swap — the same dispensing issue seen more extensively on the 20260811 plate — and is dropped automatically, leaving F05_03_36C with 2 of 3 background replicates. Separately, raw rate (mU/µL) is essentially flat against total extracted protein here (r = -0.48, p = 0.23) while mU/mg protein trends negatively with it, which points to the normalized figures reflecting a division artifact rather than a biological effect. Raw rate is the safer basis for downstream comparison until a dilution series resolves this.
1 BACKGROUND
Citrate synthase (CS) activity in ctenidia of eight Magallana gigas (Pacific oyster) individuals from family F05 held at 36 °C (heat-stress exposure), assayed 2026-08-14 with the Abcam Citrate Synthase Assay Kit (ab239712), v4a. The kit is a coupled kinetic assay. CS condenses acetyl-CoA and oxaloacetate, releasing free CoA-SH; the liberated thiol reduces DTNB to TNB2-, which absorbs at 412 nm. The rate of A412 increase is proportional to CS activity, and absolute nmol of thiol are assigned from a GSH (reduced glutathione) standard curve read on the same plate.
Absorbance was read at 412 nm in kinetic mode, 25 °C, every 2 min for 20 min (11 reads) on a Synergy HTX. See note 1.
This document is fully self-contained: layout parsing, kinetic QC, standard-curve fitting, rate extraction, CV computation, protein normalization, and results assembly are all defined directly below (see ## Pipeline functions under SETUP) rather than sourced from a separate script, so the whole analysis can be reproduced from this one file.
1.1 Sample naming convention
Well labels follow <family>_<individual>_<temperature>[_BG]-<assay_type>-<weight>-df.<n> for sample/background wells (e.g. F05_01_36C-citrate_synthase-12.8-df.0), STD-<assay_type>-<nmol_per_well> for GSH standards, and POS-<assay_type> for the positive control, with the temperature exposure encoded in the well label as _36C. The trailing number in the sample label (e.g. 12.8) is tissue weight in mg, which is not used for normalization here (note 2); it is parsed and validated but plays no role in the activity calculation.
1.2 Notes
- Read duration for this plate is 20 minutes (11 reads at 2-min intervals). The assay parameters below set
read_duration_min = 20to match. Rate extraction uses a fixed-width sliding window (rate_window_n = 5points = 8 min) rather than the full trace, so this only changes how many windows are available to slide across; see the KINETIC TRACES section for whether the assay is still in its linear phase over this window. - Activity is normalized to total extracted protein, not tissue weight, because protein concentration was measured directly (BCA-style assay,
sample_protein_concentrations_*.csv), and controls for extraction efficiency in a way tissue weight cannot. - Protein concentrations are read from both supplied CSV files. This plate’s
F05_07_36Crecord is only present in file 1, and under a slightly different string (F-05_07_36C, extra hyphen) — corrected viasample_id_fixesin theprotein-concentrationchunk.
library(knitr)
library(ggplot2)
library(dplyr)##
## Attaching package: 'dplyr'
## The following objects are masked from 'package:stats':
##
## filter, lag
## The following objects are masked from 'package:base':
##
## intersect, setdiff, setequal, unionlibrary(tidyr)
knitr::opts_chunk$set(
echo = TRUE, # Display code chunks
eval = TRUE, # Evaluate code chunks
warning = FALSE, # Hide warnings
message = FALSE, # Hide messages
comment = "", # Prevents appending '##' to beginning of lines in code output
results = 'hold' # Holds output so it's all printed together after code chunk
)1.3 Pipeline functions
All layout parsing, kinetic QC, standard-curve fitting, rate extraction, CV computation, protein normalization, and results assembly are defined directly in this document (rather than sourced from a separate script) so that it is fully self-contained and reproducible from this single file. The functions are grouped below by pipeline stage; each is called in the DATA / KINETIC TRACES / ANOMALY DETECTION / GSH STANDARD CURVE / RATE EXTRACTION / BACKGROUND CORRECTION / TECHNICAL REPLICATE PRECISION / CITRATE SYNTHASE ACTIVITY / QC SUMMARY sections that follow. Nothing plate-specific (typo fixes, disqualified samples, thresholds) is hardcoded in any function – it is always passed in as an argument, from the assay_params list defined further below or from a plate-specific fix list.
1.3.1 Data import and layout parsing
Reads the raw Gen5 exports (kinetic absorbance CSV, full-report text backup, plate-layout CSV), reconciles them against each other, and attaches well-type/sample-id/replicate metadata plus measured protein concentrations to every well.
## -----------------------------------------------------------------------
## elapsed_to_min()
## Purpose : Convert Gen5 "H:MM:SS" elapsed-time strings to decimal minutes.
## Inputs : x - character vector of "H:MM:SS" strings
## Outputs : numeric vector of elapsed minutes, same length as x
## -----------------------------------------------------------------------
elapsed_to_min <- function(x) {
vapply(strsplit(x, ":"), function(p) {
p <- as.numeric(p)
p[1] * 60 + p[2] + p[3] / 60
}, numeric(1))
}
## -----------------------------------------------------------------------
## read_absorbance_csv()
## Purpose : Parse a Gen5 "absorbance-*.csv" kinetic export: wavelength
## header, a "Time," row, a temperature row, then one row per well
## (well ID in column 1, one OD reading per timepoint thereafter).
## Inputs : path - path to the absorbance-*.csv file
## Outputs : long-format data.frame, one row per well x timepoint:
## well (chr), time_min (dbl), od (dbl)
## -----------------------------------------------------------------------
read_absorbance_csv <- function(path) {
ln <- iconv(readLines(path, warn = FALSE, encoding = "latin1"), "latin1", "UTF-8")
time_i <- grep("^Time,", ln)[1]
time_str <- strsplit(ln[time_i], ",")[[1]]
time_str <- time_str[!time_str %in% c("", "Time")]
tmin <- elapsed_to_min(time_str)
well_ln <- ln[grepl("^[A-H][0-9]{1,2},", ln)]
bind_rows(lapply(strsplit(well_ln, ","), function(p) {
data.frame(well = p[1], time_min = tmin,
od = as.numeric(p[seq_along(tmin) + 1]),
stringsAsFactors = FALSE)
}))
}
## -----------------------------------------------------------------------
## read_full_report()
## Purpose : Parse a Gen5 "full_report-*.txt" export: tab-delimited, wells
## across columns, timepoints down rows. Used only as an
## independent cross-check against the absorbance CSV, never as a
## primary data source.
## Inputs : path - path to the full_report-*.txt file
## Outputs : long-format data.frame, one row per well x timepoint:
## well (chr), time_min (dbl), od (dbl)
## -----------------------------------------------------------------------
read_full_report <- function(path) {
ln <- iconv(readLines(path, warn = FALSE, encoding = "latin1"), "latin1", "UTF-8")
hdr_i <- grep("^Time\t.*\tA1\t", ln)[1]
hdr <- trimws(strsplit(ln[hdr_i], "\t")[[1]])
rows <- ln[grepl("^[0-9]:[0-9]{2}:[0-9]{2}\t", ln)]
m <- do.call(rbind, strsplit(rows, "\t"))
tmin <- elapsed_to_min(m[, 1])
well_cols <- which(grepl("^[A-H][0-9]{1,2}$", hdr))
bind_rows(lapply(well_cols, function(j) {
data.frame(well = hdr[j], time_min = tmin,
od = as.numeric(m[, j]), stringsAsFactors = FALSE)
}))
}
## -----------------------------------------------------------------------
## parse_plate_layout()
## Purpose : Convert a raw Gen5 plate-layout CSV export into one row per
## occupied well with its descriptive label. Auto-detects two
## export formats seen in practice:
## "single" - one row per plate row (row 1 = column numbers,
## column 1 = row letter, last column = "Name" tag);
## each cell already holds the full descriptive label.
## "double" - each plate row is exported as TWO rows: a
## "Well ID" row (SPL codes) immediately followed by
## a "Name" row (the descriptive label actually used
## downstream).
## The format is detected from column 1: if a value repeats twice
## in a row (once for the well-ID row, once for the label row)
## immediately below a numeric header, it is treated as "double".
## Inputs : path - path to the layout-*.csv file
## Outputs : data.frame, one row per occupied well:
## well (chr, e.g. "A1"), plate_row (chr), plate_col (int),
## label (chr, trimmed descriptive label)
## -----------------------------------------------------------------------
parse_plate_layout <- function(path) {
plate_layout <- read.csv(path, header = FALSE, stringsAsFactors = FALSE)
col1 <- trimws(plate_layout$V1)
# "double" format: row letters appear twice in a row in column 1
# (once tagging the Well-ID row, once tagging the Name row), e.g.
# "A", "A", "B", "B", ... Detect by checking whether non-empty,
# non-header values in col1 are each immediately followed by a repeat.
data_rows <- which(col1 != "" & !is.na(col1))[-1] # drop header row (row 1)
is_double <- length(data_rows) >= 2 &&
all(col1[data_rows[c(TRUE, FALSE)]] == col1[data_rows[c(FALSE, TRUE)]][seq_len(floor(length(data_rows) / 2))])
if (is_double) {
# Pair each row-letter row with the following label row.
row_letter_rows <- data_rows[c(TRUE, FALSE)]
label_rows <- data_rows[c(FALSE, TRUE)]
stopifnot(length(row_letter_rows) == length(label_rows))
out <- expand.grid(pair_idx = seq_along(row_letter_rows),
col_idx = 2:(ncol(plate_layout) - 1)) %>%
mutate(
plate_row = col1[row_letter_rows[pair_idx]],
plate_col = as.integer(plate_layout[1, col_idx]),
well = paste0(plate_row, plate_col),
label = trimws(mapply(function(i, j) plate_layout[i, j],
label_rows[pair_idx], col_idx))
) %>%
filter(label != "") %>%
select(well, plate_row, plate_col, label) %>%
arrange(plate_row, plate_col)
} else {
# "single" format: row 1 = column numbers, column 1 = row letters,
# last column = "Name" tag; each cell already holds the full label.
out <- expand.grid(row_idx = 2:nrow(plate_layout),
col_idx = 2:(ncol(plate_layout) - 1)) %>%
mutate(
plate_row = plate_layout$V1[row_idx],
plate_col = as.integer(plate_layout[1, col_idx]),
well = paste0(plate_row, plate_col),
label = trimws(mapply(function(i, j) plate_layout[i, j], row_idx, col_idx))
) %>%
filter(label != "") %>%
select(well, plate_row, plate_col, label) %>%
arrange(plate_row, plate_col)
}
attr(out, "layout_format") <- ifelse(is_double, "double", "single")
out
}
## -----------------------------------------------------------------------
## reconcile_kinetic_sources()
## Purpose : Cross-check the absorbance CSV (primary data source) against
## the full_report text export (independent instrument export)
## and the plate layout (expected well set). Fails loudly
## (stopifnot) if any layout well is missing from the CSV, or if
## the two kinetic sources disagree on any shared reading.
## Inputs : absorbance_csv - long-format data.frame from read_absorbance_csv()
## full_report - long-format data.frame from read_full_report()
## layout_wells - data.frame from parse_plate_layout()
## tolerance - max allowed |CSV - report| absolute difference
## (default 1e-9, i.e. exact agreement)
## Outputs : list(plate_readings, overlap_check, summary), where
## plate_readings = absorbance_csv with a `source` column added,
## summary = named list of counts for reporting
## -----------------------------------------------------------------------
reconcile_kinetic_sources <- function(absorbance_csv, full_report, layout_wells,
tolerance = 1e-9) {
wells_csv <- unique(absorbance_csv$well)
wells_report <- unique(full_report$well)
wells_report_not_csv <- setdiff(wells_report, wells_csv)
wells_layout_not_csv <- setdiff(layout_wells$well, wells_csv)
wells_csv_not_layout <- setdiff(wells_csv, layout_wells$well)
overlap_check <- inner_join(absorbance_csv, full_report,
by = c("well", "time_min"), suffix = c("_csv", "_report")) %>%
mutate(abs_diff = abs(od_csv - od_report))
max_disagreement <- if (nrow(overlap_check) > 0) max(overlap_check$abs_diff) else NA_real_
stopifnot(
length(wells_layout_not_csv) == 0,
is.na(max_disagreement) || max_disagreement < tolerance
)
plate_readings <- absorbance_csv %>% mutate(source = "absorbance_csv")
list(
plate_readings = plate_readings,
overlap_check = overlap_check,
summary = list(
n_wells_csv = length(wells_csv),
n_wells_report = length(wells_report),
n_wells_report_not_csv = length(wells_report_not_csv),
n_wells_layout_not_csv = length(wells_layout_not_csv),
n_wells_csv_not_layout = length(wells_csv_not_layout),
n_shared_readings = nrow(overlap_check),
max_disagreement = max_disagreement
)
)
}
## -----------------------------------------------------------------------
## annotate_wells()
## Purpose : Join layout labels onto the kinetic readings and parse each
## label into well_type, sample_id, family, individual,
## temperature, tissue weight, and standard concentration.
## Expected label grammar:
## sample/background : <family>_<individual>_<temperature>[_BG]-<assay_type>-<weight>-df.<n>
## standard : STD-<assay_type>-<nmol_per_well>
## positive control : POS-<assay_type>
## Label typos (e.g. a misspelled assay_type) are corrected before
## parsing via `label_fixes`, a named character vector of
## c(pattern = replacement) pairs applied in order with gsub().
## Inputs : plate_readings - data.frame from reconcile_kinetic_sources()$plate_readings
## layout_wells - data.frame from parse_plate_layout()
## label_fixes - optional named character vector, e.g.
## c("citrate_synthasse" = "citrate_synthase")
## Outputs : plate_long - fully annotated long-format data.frame, one row
## per well x timepoint, with well_type, sample_id, family,
## individual, temperature, weight_mg, std_nmol columns added
## -----------------------------------------------------------------------
annotate_wells <- function(plate_readings, layout_wells, label_fixes = NULL) {
plate_long <- plate_readings %>%
left_join(layout_wells, by = "well") %>%
mutate(
well_type = case_when(
grepl("^STD-", label) ~ "standard",
grepl("^POS-", label) ~ "positive_control",
grepl("_BG-", label) ~ "background",
TRUE ~ "sample"
),
label_clean = label
)
if (!is.null(label_fixes)) {
for (pat in names(label_fixes)) {
plate_long$label_clean <- gsub(pat, label_fixes[[pat]], plate_long$label_clean)
}
}
plate_long <- plate_long %>%
mutate(
sample_id = ifelse(well_type %in% c("sample", "background"),
sub("(_BG)?-[a-zA-Z_]+-.*$", "", label_clean), NA_character_),
family = ifelse(!is.na(sample_id), sub("^(F[0-9]+)_.*$", "\\1", sample_id), NA_character_),
individual = ifelse(!is.na(sample_id), sub("^F[0-9]+_([0-9]+)_.*$", "\\1", sample_id), NA_character_),
temperature = ifelse(!is.na(sample_id), sub("^F[0-9]+_[0-9]+_(.*)$", "\\1", sample_id), NA_character_),
weight_mg = ifelse(well_type %in% c("sample", "background"),
as.numeric(sub("^.*-[a-zA-Z_]+-([0-9.]+)-df\\..*$", "\\1", label_clean)),
NA_real_),
std_nmol = ifelse(well_type == "standard",
as.numeric(sub("^STD-[a-zA-Z_]+-", "", label_clean)), NA_real_)
) %>%
arrange(well_type, sample_id, well, time_min)
# Fail loudly rather than silently dropping malformed labels
stopifnot(
!any(is.na(plate_long$well_type)),
!any(is.na(plate_long$weight_mg[plate_long$well_type %in% c("sample", "background")])),
!any(is.na(plate_long$std_nmol[plate_long$well_type == "standard"]))
)
plate_long
}
## -----------------------------------------------------------------------
## load_protein_concentrations()
## Purpose : Load one or more BCA/Bradford-style protein-concentration CSV
## exports, concatenate them, and match each plate sample to
## exactly one protein-concentration record. Fails loudly if any
## plate sample has zero or more than one match. Converts
## concentration (ug/mL) to total protein mass (mg) in the full
## homogenate using the measured homogenization volume.
## Inputs : protein_files - character vector of CSV paths, each with
## columns `Sample` and
## `Calculated concentration (ug/mL)`
## plate_sample_ids - character vector of this plate's sample IDs
## homogenate_volume_uL - measured homogenization volume (uL),
## applied identically to every sample
## sample_id_fixes - optional named character vector of
## c(pattern = replacement) label-typo
## corrections applied to the protein
## file's Sample column before matching,
## e.g. c("F-05_07_36C" = "F05_07_36C")
## Outputs : data.frame, one row per plate sample:
## sample_id, source_file, conc_ug_mL, total_protein_mg
## -----------------------------------------------------------------------
load_protein_concentrations <- function(protein_files, plate_sample_ids,
homogenate_volume_uL,
sample_id_fixes = NULL) {
protein_all <- protein_files %>%
purrr::map_dfr(~ read.csv(.x, check.names = FALSE) %>%
mutate(source_file = basename(.x))) %>%
rename(sample_id_protein = Sample, conc_ug_mL = `Calculated concentration (ug/mL)`) %>%
select(sample_id_protein, source_file, conc_ug_mL)
if (!is.null(sample_id_fixes)) {
for (pat in names(sample_id_fixes)) {
protein_all$sample_id_protein <- gsub(pat, sample_id_fixes[[pat]],
protein_all$sample_id_protein)
}
}
protein_matches <- protein_all %>% filter(sample_id_protein %in% plate_sample_ids)
match_counts <- protein_matches %>% count(sample_id_protein, name = "n_matches")
stopifnot(
all(plate_sample_ids %in% protein_matches$sample_id_protein),
all(match_counts$n_matches == 1)
)
protein_matches %>%
rename(sample_id = sample_id_protein) %>%
mutate(total_protein_mg = conc_ug_mL * homogenate_volume_uL / 1e6) %>%
arrange(sample_id)
}1.3.2 Well-level kinetic QC
Flags read glitches, non-rising (‘decreasing’) traces, elevated t0 baselines, and other well-level anomalies before any rate is trusted.
## -----------------------------------------------------------------------
## local_step_excess()
## Purpose : For a kinetic trace, measure how much each read-to-read step
## departs from the AVERAGE of its two immediate neighbouring
## steps. A large local excess flags a read glitch; comparing to
## local neighbours (rather than the trace's overall median step)
## tolerates traces that smoothly decelerate throughout.
## Inputs : od - numeric vector of OD readings in time order
## Outputs : numeric vector of length length(od) - 1 (one per step)
## -----------------------------------------------------------------------
local_step_excess <- function(od) {
d <- diff(od)
n <- length(d)
local_expect <- vapply(seq_len(n), function(i) {
mean(d[intersect(c(i - 1L, i + 1L), seq_len(n))])
}, numeric(1))
d - local_expect
}
## -----------------------------------------------------------------------
## compute_well_diagnostics()
## Purpose : Compute four independent per-well trace-shape diagnostics from
## the raw kinetic trace, before any rate fitting: direction
## (net change), monotonicity (fraction of rising steps),
## over-range (any read above the photometric linearity ceiling),
## and discontinuity (a read-to-read glitch via local_step_excess).
## Also flags an elevated starting absorbance for sample wells,
## and background wells that behave like active reactions.
## Inputs : plate_long - data.frame from annotate_wells()
## assay_params - list with od_linear_max, glitch_excess_od,
## sample_baseline_od, bg_flat_od_max,
## bg_flat_drift_max
## Outputs : well_diagnostics - one row per well, with od_first, od_last,
## od_max, net_change, frac_rising, max_step, typical_step,
## step_excess, glitch_at_min, and flag_* / n_flags columns
## -----------------------------------------------------------------------
compute_well_diagnostics <- function(plate_long, assay_params) {
plate_long %>%
arrange(well, time_min) %>%
group_by(well, plate_row, plate_col, well_type, sample_id, label, std_nmol, source) %>%
summarise(
od_first = first(od),
od_last = last(od),
od_max = max(od),
net_change = last(od) - first(od),
frac_rising = mean(diff(od) > 0),
max_step = diff(od)[which.max(abs(diff(od)))],
typical_step = median(abs(diff(od))),
step_excess = local_step_excess(od)[which.max(abs(local_step_excess(od)))],
glitch_at_min = time_min[which.max(abs(local_step_excess(od))) + 1L],
.groups = "drop"
) %>%
mutate(
step_ratio = abs(max_step) / pmax(typical_step, 0.001),
flag_decreasing = net_change <= 0,
flag_over_range = od_max > assay_params$od_linear_max,
flag_glitch = abs(step_excess) > assay_params$glitch_excess_od,
flag_high_baseline = well_type == "sample" & od_first > assay_params$sample_baseline_od,
flag_bg_active = well_type == "background" &
(od_first > assay_params$bg_flat_od_max |
abs(net_change) > assay_params$bg_flat_drift_max),
n_flags = flag_decreasing + flag_over_range + flag_glitch +
flag_bg_active + flag_high_baseline
)
}
## -----------------------------------------------------------------------
## compute_baseline_diagnostics()
## Purpose : Classify sample/background wells by starting absorbance
## (elevated vs. normal) and summarize, per sample, how many of
## its replicates are baseline-compromised. A sample with all
## replicates elevated has no clean replicate at all.
## Inputs : well_diagnostics - data.frame from compute_well_diagnostics()
## assay_params - list with sample_baseline_od
## Outputs : list(baseline_check, baseline_per_sample)
## -----------------------------------------------------------------------
compute_baseline_diagnostics <- function(well_diagnostics, assay_params) {
baseline_check <- well_diagnostics %>%
filter(well_type %in% c("sample", "background")) %>%
mutate(baseline = ifelse(od_first > assay_params$sample_baseline_od,
"elevated", "normal")) %>%
arrange(desc(od_first))
baseline_per_sample <- baseline_check %>%
filter(well_type == "sample") %>%
group_by(sample_id) %>%
summarise(n_elevated = sum(baseline == "elevated"), n = n(),
median_baseline = median(od_first), .groups = "drop") %>%
arrange(desc(n_elevated))
list(baseline_check = baseline_check, baseline_per_sample = baseline_per_sample)
}1.3.3 Standard curve and rate extraction
Fits the GSH standard curve, extracts each well’s rate via a sliding-window linear regression gated on R-squared, and summarizes the positive control.
## -----------------------------------------------------------------------

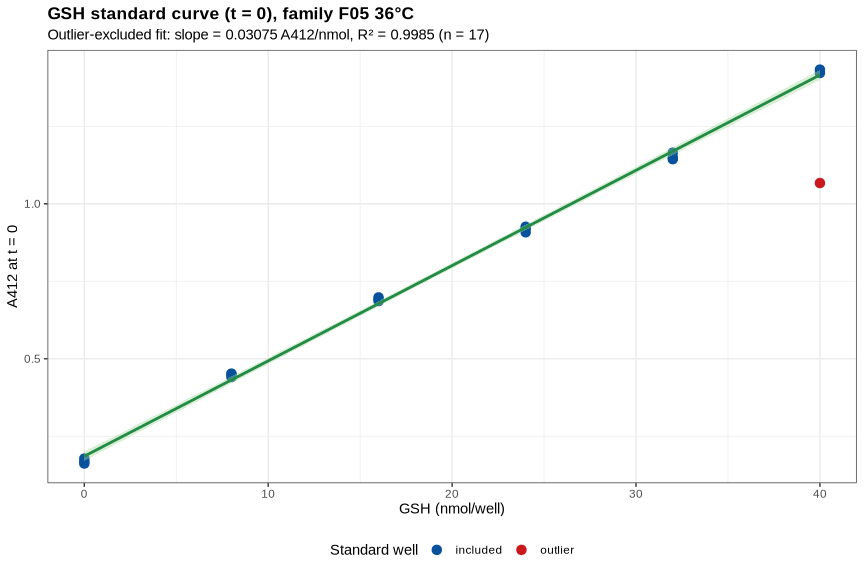

## fit_standard_curve()
## Purpose : Extract t=0 GSH standard readings, quantify signal drift over
## the run, compute per-concentration replicate statistics, flag
## outlier wells by deviation from their triplicate median, and
## fit three candidate calibration lines (all wells, per-
## concentration means, outlier-excluded). The outlier-excluded
## fit is the calibration used downstream.
## Inputs : plate_long - data.frame from annotate_wells()
## assay_params - list with std_outlier_od
## Outputs : list with standards_t0, standard_drift, standard_summary,
## standards_flagged, fit_all_wells, fit_means, fit_no_outliers,
## fit_comparison, std_slope, std_intercept, std_r2, std_nmol_max
## -----------------------------------------------------------------------
fit_standard_curve <- function(plate_long, assay_params) {
standards_all <- plate_long %>%
filter(well_type == "standard") %>%
select(well, std_nmol, time_min, od, source)
standards_t0 <- standards_all %>%
filter(time_min == 0) %>%
select(well, std_nmol, od, source) %>%
arrange(std_nmol, well)
standard_drift <- standards_all %>%
group_by(well, std_nmol) %>%
summarise(od_t0 = od[time_min == 0], od_t40 = od[time_min == max(time_min)],
drift = od_t40 - od_t0, .groups = "drop") %>%
arrange(std_nmol, well)
standard_summary <- standards_t0 %>%
group_by(std_nmol) %>%
summarise(n = n(), mean_od = mean(od), sd_od = sd(od),
se_od = sd(od) / sqrt(n()), cv_pct = 100 * sd(od) / mean(od),
median_od = median(od), .groups = "drop") %>%
arrange(std_nmol) %>%
mutate(net_od = mean_od - mean_od[std_nmol == 0],
od_per_nmol = ifelse(std_nmol > 0, net_od / std_nmol, NA_real_))
standards_flagged <- standards_t0 %>%
group_by(std_nmol) %>%
mutate(triplicate_median = median(od),
deviation = od - triplicate_median,
is_outlier = abs(deviation) > assay_params$std_outlier_od) %>%
ungroup() %>%
arrange(desc(abs(deviation)))
fit_all_wells <- lm(od ~ std_nmol, data = standards_flagged)
fit_means <- lm(mean_od ~ std_nmol, data = standard_summary)
fit_no_outliers <- lm(od ~ std_nmol, data = standards_flagged %>% filter(!is_outlier))
fit_comparison <- bind_rows(
data.frame(fit = "all wells", n = nobs(fit_all_wells),
slope = coef(fit_all_wells)[2], intercept = coef(fit_all_wells)[1],
r_squared = summary(fit_all_wells)$r.squared),
data.frame(fit = "concentration means", n = nobs(fit_means),
slope = coef(fit_means)[2], intercept = coef(fit_means)[1],
r_squared = summary(fit_means)$r.squared),
data.frame(fit = "outlier-excluded", n = nobs(fit_no_outliers),
slope = coef(fit_no_outliers)[2], intercept = coef(fit_no_outliers)[1],
r_squared = summary(fit_no_outliers)$r.squared)
)
list(
standards_all = standards_all,
standards_t0 = standards_t0,
standard_drift = standard_drift,
standard_summary = standard_summary,
standards_flagged = standards_flagged,
fit_all_wells = fit_all_wells,
fit_means = fit_means,
fit_no_outliers = fit_no_outliers,
fit_comparison = fit_comparison,
std_slope = unname(coef(fit_no_outliers)[2]),
std_intercept = unname(coef(fit_no_outliers)[1]),
std_r2 = summary(fit_no_outliers)$r.squared,
std_nmol_max = max(standard_summary$std_nmol)
)
}
## -----------------------------------------------------------------------
## window_slopes()
## Purpose : Fit every sliding window of `w` consecutive timepoints on one
## kinetic trace and return the slope (mOD/min) and R^2 of each.
## Inputs : t - numeric vector of timepoints (min)
## y - numeric vector of OD readings, same length as t
## w - window width in number of points
## Outputs : data.frame, one row per window: t_start, t_end,
## slope_mOD_min, r2
## -----------------------------------------------------------------------
window_slopes <- function(t, y, w) {
n <- length(y)
bind_rows(lapply(seq_len(n - w + 1), function(s) {
i <- s:(s + w - 1)
f <- lm(y[i] ~ t[i])
r2 <- summary(f)$r.squared
data.frame(t_start = t[i[1]], t_end = t[i[w]],
slope_mOD_min = unname(coef(f)[2]) * 1000,
r2 = ifelse(is.na(r2), 0, r2))
}))
}
## -----------------------------------------------------------------------
## compute_well_rates()
## Purpose : For every well, scan all sliding windows of assay_params$
## rate_window_n consecutive reads and record the max-increasing
## window (used for activity) and the max-absolute window
## (diagnostic only -- matches Gen5's own `Max V` convention,
## which can report large negative "rates" for degrading wells).
## A rate is `rate_usable` only if its R^2 clears the floor, the
## well's net change is positive, and no read glitch falls inside
## the fitted window.
## Inputs : plate_long - data.frame from annotate_wells()
## well_diagnostics - data.frame from compute_well_diagnostics()
## assay_params - list with rate_window_n, rate_min_r2
## Outputs : well_rates - one row per well: t_start, t_end, slope_mOD_min,
## r2, max_abs_slope_mOD_min, abs_window_is_negative,
## glitch_in_window, rate_usable (plus diagnostic columns joined in)
## -----------------------------------------------------------------------
compute_well_rates <- function(plate_long, well_diagnostics, assay_params) {
plate_long %>%
arrange(well, time_min) %>%
group_by(well, well_type, sample_id, std_nmol) %>%
group_modify(~ {
w <- window_slopes(.x$time_min, .x$od, assay_params$rate_window_n)
inc <- w[which.max(w$slope_mOD_min), ]
abs_ <- w[which.max(abs(w$slope_mOD_min)), ]
data.frame(
t_start = inc$t_start, t_end = inc$t_end,
slope_mOD_min = inc$slope_mOD_min, r2 = inc$r2,
max_abs_slope_mOD_min = abs_$slope_mOD_min,
abs_window_is_negative = abs_$slope_mOD_min < 0
)
}) %>%
ungroup() %>%
left_join(well_diagnostics %>% select(well, net_change, frac_rising, od_max,
flag_decreasing, flag_over_range,
flag_glitch, glitch_at_min,
flag_bg_active, n_flags),
by = "well") %>%
mutate(
glitch_in_window = flag_glitch & glitch_at_min > t_start & glitch_at_min <= t_end,
rate_usable = r2 >= assay_params$rate_min_r2 & net_change > 0 & !glitch_in_window
)
}
## -----------------------------------------------------------------------
## compute_positive_control()
## Purpose : Compute the CS Positive Control's rate and activity, and check
## that its replicates rose linearly -- the plate's proof that the
## reaction chemistry (DTNB, coupling, reader) worked, independent
## of any sample-specific problem.
## Inputs : well_rates - data.frame from compute_well_rates()
## std_slope - calibration slope (A412/nmol), from fit_standard_curve()
## assay_params - list with sample_volume_uL, dilution_factor
## Outputs : pos_control - one row per positive-control well: t_start, t_end,
## slope_mOD_min, r2, net_change, activity_mU_uL
## -----------------------------------------------------------------------
compute_positive_control <- function(well_rates, std_slope, assay_params) {
well_rates %>%
filter(well_type == "positive_control") %>%
mutate(activity_mU_uL = (slope_mOD_min / 1000) / std_slope /
assay_params$sample_volume_uL * assay_params$dilution_factor)
}1.3.4 Background correction, replicate CV, and activity calculation
Estimates background rate from flat background wells, computes technical-replicate coefficients of variation, and converts corrected rates into protein-normalized CS activity.
## -----------------------------------------------------------------------
## compute_background_correction()
## Purpose : Estimate each sample's background rate from its flat
## (well-behaved) background-control replicates only, since
## anomalous background wells do not measure background.
## Inputs : well_rates - data.frame from compute_well_rates()
## Outputs : background_per_sample - one row per sample: n_bg_total,
## n_bg_flat, bg_rate_flat (NA if no flat replicate exists),
## bg_rate_all
## -----------------------------------------------------------------------
compute_background_correction <- function(well_rates) {
well_rates %>%
filter(well_type == "background") %>%
group_by(sample_id) %>%
summarise(
n_bg_total = n(),
n_bg_flat = sum(!flag_bg_active),
bg_rate_flat = ifelse(sum(!flag_bg_active) > 0,
mean(slope_mOD_min[!flag_bg_active]), NA_real_),
bg_rate_all = mean(slope_mOD_min),
.groups = "drop"
)
}
## -----------------------------------------------------------------------
## compute_replicate_cv()
## Purpose : Compute technical-replicate coefficient of variation (CV%) on
## the extracted rate, both across ALL three replicates and
## across USABLE replicates only (rate_usable == TRUE). Flags any
## sample whose CV exceeds assay_params$cv_threshold_pct.
## Inputs : well_rates - data.frame from compute_well_rates()
## sample_id_order - character vector giving the row order /
## complete sample-ID set to report (typically
## the plate's sample IDs, e.g. from
## protein_by_sample$sample_id)
## assay_params - list with cv_threshold_pct
## Outputs : cv_summary - one row per sample: n_all, mean_all, sd_all,
## cv_all, n_usable, mean_usable, sd_usable, cv_usable,
## excluded_wells, fails_cv_all, fails_cv_usable
## -----------------------------------------------------------------------
compute_replicate_cv <- function(well_rates, sample_id_order, assay_params) {
sample_rates <- well_rates %>% filter(well_type == "sample") %>% arrange(sample_id, well)
cv_all <- sample_rates %>%
group_by(sample_id) %>%
summarise(n_all = n(), mean_all = mean(slope_mOD_min), sd_all = sd(slope_mOD_min),
cv_all = 100 * sd(slope_mOD_min) / mean(slope_mOD_min), .groups = "drop")
cv_usable <- sample_rates %>%
filter(rate_usable) %>%
group_by(sample_id) %>%
summarise(n_usable = n(), mean_usable = mean(slope_mOD_min),
sd_usable = sd(slope_mOD_min),
cv_usable = 100 * sd(slope_mOD_min) / mean(slope_mOD_min), .groups = "drop")
data.frame(sample_id = sample_id_order, stringsAsFactors = FALSE) %>%
left_join(cv_all, by = "sample_id") %>%
left_join(cv_usable, by = "sample_id") %>%
mutate(
excluded_wells = vapply(sample_id, function(s) {
w <- sample_rates$well[sample_rates$sample_id == s & !sample_rates$rate_usable]
if (length(w) == 0) "-" else paste(w, collapse = ", ")
}, character(1)),
fails_cv_all = cv_all > assay_params$cv_threshold_pct,
fails_cv_usable = !is.na(cv_usable) & cv_usable > assay_params$cv_threshold_pct
) %>%
arrange(sample_id)
}
## -----------------------------------------------------------------------
## calculate_cs_activity()
## Purpose : Compute per-sample CS activity following Abcam sec 10.3, using
## only usable replicates, corrected for background rate, scaled
## through the standard curve, and normalized to total extracted
## protein (rather than tissue weight).
## Inputs : well_rates - data.frame from compute_well_rates()
## protein_by_sample - data.frame from load_protein_concentrations()
## background_per_sample - data.frame from compute_background_correction()
## std_slope - calibration slope (A412/nmol), from fit_standard_curve()
## std_nmol_max - max calibrated GSH concentration, from fit_standard_curve()
## assay_params - list with sample_volume_uL, dilution_factor,
## homogenate_volume_uL, read_duration_min
## plate_long - data.frame from annotate_wells(), used to
## attach family/individual/temperature
## Outputs : cs_activity - one row per sample: n_reps_used, mean_rate_mOD_min,
## sd_rate, cv_rate, family, individual, temperature, conc_ug_mL,
## total_protein_mg, bg_rate_mOD_min, corrected_mOD_min,
## activity_mU_per_uL, total_mU_in_homogenate,
## activity_mU_per_mg_protein, within_std_range
## -----------------------------------------------------------------------
calculate_cs_activity <- function(well_rates, protein_by_sample, background_per_sample,
std_slope, std_nmol_max, assay_params, plate_long) {
sample_rates <- well_rates %>% filter(well_type == "sample") %>% arrange(sample_id, well)
sample_rates %>%
filter(rate_usable) %>%
group_by(sample_id) %>%
summarise(n_reps_used = n(), mean_rate_mOD_min = mean(slope_mOD_min),
sd_rate = sd(slope_mOD_min),
cv_rate = 100 * sd(slope_mOD_min) / mean(slope_mOD_min), .groups = "drop") %>%
left_join(plate_long %>% filter(well_type == "sample") %>%
distinct(sample_id, family, individual, temperature),
by = "sample_id") %>%
left_join(protein_by_sample %>% select(sample_id, conc_ug_mL, total_protein_mg),
by = "sample_id") %>%
left_join(background_per_sample %>% select(sample_id, bg_rate_flat, n_bg_flat),
by = "sample_id") %>%
mutate(
bg_rate_mOD_min = ifelse(is.na(bg_rate_flat), 0, bg_rate_flat),
corrected_mOD_min = mean_rate_mOD_min - bg_rate_mOD_min,
rate_OD_min = corrected_mOD_min / 1000,
nmol_per_min = rate_OD_min / std_slope,
activity_mU_per_uL = nmol_per_min / assay_params$sample_volume_uL *
assay_params$dilution_factor,
total_mU_in_homogenate = activity_mU_per_uL * assay_params$homogenate_volume_uL,
activity_mU_per_mg_protein = total_mU_in_homogenate / total_protein_mg,
nmol_in_window = nmol_per_min * (assay_params$read_duration_min),
within_std_range = nmol_in_window <= std_nmol_max
) %>%
arrange(sample_id)
}
## -----------------------------------------------------------------------
## build_results_table()
## Purpose : Assemble the final, presentation-ready per-sample results
## table from cs_activity, cv_summary and baseline diagnostics,
## with a plain-language Interpretation column.
## Inputs : cs_activity - data.frame from calculate_cs_activity()
## cv_summary - data.frame from compute_replicate_cv()
## baseline_per_sample - data.frame from compute_baseline_diagnostics()
## assay_params - list with cv_threshold_pct, homogenate_volume_uL
## Outputs : results_table - formatted data.frame, ready for kable()/write.csv()
## -----------------------------------------------------------------------
build_results_table <- function(cs_activity, cv_summary, baseline_per_sample, assay_params) {
cs_activity %>%
left_join(cv_summary %>% select(sample_id, n_all, cv_all), by = "sample_id") %>%
left_join(baseline_per_sample %>% select(sample_id, n_elevated), by = "sample_id") %>%
transmute(
Sample = sample_id,
Family = family,
Individual = individual,
Temperature = temperature,
`Protein conc (ug/mL)` = round(conc_ug_mL, 1),
`Total protein (mg)` = round(total_protein_mg, 3),
`Reps used` = paste0(n_reps_used, "/", n_all),
`CV all reps (%)` = round(cv_all, 1),
`CV used reps (%)` = round(cv_rate, 1),
`Rate (mA412/min)` = round(mean_rate_mOD_min, 2),
`BG rate (mA412/min)` = round(bg_rate_mOD_min, 3),
`Corrected rate (mA412/min)` = round(corrected_mOD_min, 2),
`Activity (mU/uL)` = round(activity_mU_per_uL, 4),
`Activity (mU/mg protein)` = round(activity_mU_per_mg_protein, 3),
`CV flag` = ifelse(cv_all > assay_params$cv_threshold_pct,
paste0("FAIL >", assay_params$cv_threshold_pct, "%"), "pass"),
`Elevated baseline reps` = paste0(n_elevated, "/3"),
Interpretation = case_when(
n_elevated == 3 ~ "DO NOT USE - no clean replicate",
n_elevated > 0 ~ "caution - some reps compromised",
cv_rate > assay_params$cv_threshold_pct | is.na(cv_rate) ~ "caution - imprecise",
TRUE ~ "usable"
)
)
}1.3.5 QC summary and narrative generation
Assembles the per-well QC summary table and auto-generates the plain-language QC findings bullets used in the QC SUMMARY section below.
## -----------------------------------------------------------------------
## build_qc_summary_table()
## Purpose : Consolidate every QC check performed across the pipeline into a
## single two-column (check, value) table, suitable for kable() and
## for writing to qc_summary.csv. Mirrors the individual find
## functions but as compact, at-a-glance figures rather than prose.
## Inputs : layout_wells, reconcile_summary, std_curve, well_diagnostics,
## well_rates, cv_summary, baseline_per_sample, pos_control,
## assay_params
## Outputs : qc_summary - data.frame with columns check, value (both chr)
## -----------------------------------------------------------------------
build_qc_summary_table <- function(layout_wells, reconcile_summary, std_curve,
well_diagnostics, well_rates, cv_summary,
baseline_per_sample, pos_control, assay_params) {
standard_summary <- std_curve$standard_summary
standards_flagged <- std_curve$standards_flagged
standard_drift <- std_curve$standard_drift
sample_rates <- well_rates %>% filter(well_type == "sample")
data.frame(
check = c(
"Occupied wells in layout",
"Layout wells missing from absorbance CSV",
"Max disagreement between absorbance CSV and full report",
"Standard concentrations with replicate CV > threshold",
"Standard wells flagged as outliers",
"Standard curve R^2 (outlier-excluded, replicate level)",
"Standard curve R^2 (all wells, replicate level)",
"Standard wells that LOST signal over the run",
"Standards above photometric linearity ceiling",
"Background control wells behaving as active reactions",
"Sample wells with a decreasing trace",
"Sample wells with an elevated starting A412",
"Samples with ALL THREE replicates baseline-compromised",
"Sample wells with a read glitch",
"Sample wells usable for rate extraction",
"Samples with technical CV > threshold (all reps)",
"Samples with technical CV > threshold (usable reps)",
"Positive control replicates rising and linear"
),
value = c(
nrow(layout_wells),
reconcile_summary$n_wells_layout_not_csv,
sprintf("%.g", reconcile_summary$max_disagreement),
paste(standard_summary$std_nmol[standard_summary$cv_pct > assay_params$cv_threshold_pct],
collapse = ", "),
paste0(sum(standards_flagged$is_outlier), "/", nrow(standards_flagged), " (",
paste(standards_flagged$well[standards_flagged$is_outlier], collapse = ", "), ")"),
sprintf("%.4f", std_curve$std_r2),
sprintf("%.4f", summary(std_curve$fit_all_wells)$r.squared),
paste0(sum(standard_drift$drift < 0), "/", nrow(standard_drift)),
paste(standard_summary$std_nmol[standard_summary$mean_od > assay_params$od_linear_max],
collapse = ", "),
paste0(sum(well_diagnostics$flag_bg_active), "/",
sum(well_diagnostics$well_type == "background")),
paste0(sum(well_diagnostics$flag_decreasing & well_diagnostics$well_type == "sample"), "/",
sum(well_diagnostics$well_type == "sample")),
paste0(sum(well_diagnostics$flag_high_baseline), "/",
sum(well_diagnostics$well_type == "sample"), " (",
paste(well_diagnostics$well[well_diagnostics$flag_high_baseline], collapse = ", "), ")"),
paste0(sum(baseline_per_sample$n_elevated == baseline_per_sample$n), "/",
nrow(baseline_per_sample), " (",
paste(baseline_per_sample$sample_id[baseline_per_sample$n_elevated == baseline_per_sample$n],
collapse = ", "), ")"),
paste0(sum(well_diagnostics$flag_glitch & well_diagnostics$well_type == "sample"), "/",
sum(well_diagnostics$well_type == "sample")),
paste0(sum(sample_rates$rate_usable), "/", nrow(sample_rates)),
paste0(sum(cv_summary$fails_cv_all), "/", nrow(cv_summary)),
paste0(sum(cv_summary$fails_cv_usable), "/", nrow(cv_summary)),
paste0(sum(pos_control$net_change > 0 & pos_control$r2 > 0.99), "/", nrow(pos_control))
),
stringsAsFactors = FALSE
)
}
## -----------------------------------------------------------------------
## generate_qc_findings()
## Purpose : Walk the QC/CV/anomaly objects for a plate and emit a
## consistent, generic-language markdown bullet list of findings
## (decreasing/glitched/high-baseline wells, background-control
## mix-ups, standard-curve QC failures, CV failures, disqualified
## samples). Intended to seed the SUMMARY section of a plate's
## .Rmd; a short hand-written subsection for plate-specific
## interpretation should follow it.
## Inputs : well_diagnostics - data.frame from compute_well_diagnostics()
## well_rates - data.frame from compute_well_rates()
## cv_summary - data.frame from compute_replicate_cv()
## baseline_per_sample - data.frame from compute_baseline_diagnostics()
## std_curve - list from fit_standard_curve()
## reconcile_summary - list from reconcile_kinetic_sources()$summary
## assay_params - list with cv_threshold_pct, od_linear_max
## Outputs : character vector, one markdown bullet per finding (empty
## findings are omitted, so a clean plate returns a short list)
## -----------------------------------------------------------------------
generate_qc_findings <- function(well_diagnostics, well_rates, cv_summary,
baseline_per_sample, std_curve,
reconcile_summary, assay_params) {
bullets <- character(0)
# Source reconciliation
if (reconcile_summary$n_wells_layout_not_csv > 0 ||
(!is.na(reconcile_summary$max_disagreement) && reconcile_summary$max_disagreement >= 1e-9)) {
bullets <- c(bullets, sprintf(
"**Kinetic source disagreement.** %d layout well(s) missing from the absorbance CSV; max disagreement between absorbance CSV and full report was %.4g A412.",
reconcile_summary$n_wells_layout_not_csv, reconcile_summary$max_disagreement))
} else {
bullets <- c(bullets, sprintf(
"**Kinetic sources agree.** absorbance CSV and full report agree exactly on all %d shared well x timepoint readings; all layout wells are present.",
reconcile_summary$n_shared_readings))
}
# Sample wells with decreasing kinetics
dec_samples <- well_diagnostics %>% filter(well_type == "sample", flag_decreasing)
if (nrow(dec_samples) > 0) {
bullets <- c(bullets, sprintf(
"**Decreasing kinetics.** %d sample well(s) end lower than (or equal to) their starting A412 and are excluded from rate extraction: %s.",
nrow(dec_samples), paste(dec_samples$well, collapse = ", ")))
}
# Read glitches
glitch_samples <- well_diagnostics %>% filter(well_type == "sample", flag_glitch)
if (nrow(glitch_samples) > 0) {
bullets <- c(bullets, sprintf(
"**Read glitches.** %d sample well(s) contain a single read-to-read step inconsistent with its neighbours: %s (only disqualifying if it falls inside the fitted rate window).",
nrow(glitch_samples), paste(glitch_samples$well, collapse = ", ")))
}
# Elevated baseline
high_baseline <- well_diagnostics %>% filter(well_type == "sample", flag_high_baseline)
if (nrow(high_baseline) > 0) {
bullets <- c(bullets, sprintf(
"**Elevated starting absorbance.** %d sample well(s) start above the baseline threshold (A412 > %s), indicating pre-existing thiol/contamination before the reaction began: %s.",
nrow(high_baseline), assay_params$sample_baseline_od, paste(high_baseline$well, collapse = ", ")))
}
# Samples fully disqualified by baseline
disqualified <- baseline_per_sample %>% filter(n_elevated == n)
if (nrow(disqualified) > 0) {
bullets <- c(bullets, sprintf(
"**Sample(s) with no clean replicate.** Every replicate of %s has an elevated starting A412; these samples have no usable measurement on this plate regardless of CV.",
paste(disqualified$sample_id, collapse = ", ")))
}
# Over-range wells
over_range <- well_diagnostics %>% filter(flag_over_range)
if (nrow(over_range) > 0) {
bullets <- c(bullets, sprintf(
"**Over-range wells.** %d well(s) exceed the photometric linearity ceiling (A412 > %s): %s.",
nrow(over_range), assay_params$od_linear_max, paste(over_range$well, collapse = ", ")))
}
# Background wells behaving as active reactions
bg_active <- well_diagnostics %>% filter(well_type == "background", flag_bg_active)
if (nrow(bg_active) > 0) {
bullets <- c(bullets, sprintf(
"**Background control wells behaving as active reactions.** %d of %d background wells show a starting A412 or drift inconsistent with a flat, inactive well: %s.",
nrow(bg_active), sum(well_diagnostics$well_type == "background"),
paste(bg_active$well, collapse = ", ")))
}
# Standard curve QC
std_summary <- std_curve$standard_summary
cv_fail_std <- std_summary %>% filter(cv_pct > assay_params$cv_threshold_pct)
if (nrow(cv_fail_std) > 0) {
bullets <- c(bullets, sprintf(
"**GSH standard curve replicate imprecision.** %d of %d concentrations exceed %s%% CV: %s nmol/well.",
nrow(cv_fail_std), nrow(std_summary), assay_params$cv_threshold_pct,
paste(cv_fail_std$std_nmol, collapse = ", ")))
}
n_std_outliers <- sum(std_curve$standards_flagged$is_outlier)
if (n_std_outliers > 0) {
bullets <- c(bullets, sprintf(
"**Standard outlier wells.** %d of %d standard wells deviate from their triplicate median by more than %s A412: %s.",
n_std_outliers, nrow(std_curve$standards_flagged), assay_params$std_outlier_od,
paste(std_curve$standards_flagged$well[std_curve$standards_flagged$is_outlier], collapse = ", ")))
}
over_range_std <- std_summary %>% filter(mean_od > assay_params$od_linear_max)
if (nrow(over_range_std) > 0) {
bullets <- c(bullets, sprintf(
"**Standards above the photometric linear range.** %s nmol/well read above A412 %s; the calibration is trustworthy only below these concentrations.",
paste(over_range_std$std_nmol, collapse = ", "), assay_params$od_linear_max))
}
n_drift_neg <- sum(std_curve$standard_drift$drift < 0)
if (n_drift_neg > 0) {
bullets <- c(bullets, sprintf(
"**Standard signal decay.** %d of %d standard wells lost signal over the run (TNB instability); the standard curve is read at t = 0.",
n_drift_neg, nrow(std_curve$standard_drift)))
}
bullets <- c(bullets, sprintf(
"**Standard curve fit (outlier-excluded):** slope = %.5f A412/nmol, R^2 = %.4f (all-wells R^2 = %.4f).",
std_curve$std_slope, std_curve$std_r2, summary(std_curve$fit_all_wells)$r.squared))
# Technical replicate CV failures
fail_all <- cv_summary %>% filter(fails_cv_all)
if (nrow(fail_all) > 0) {
bullets <- c(bullets, sprintf(
"**Technical replicate CV > %s%% (all replicates).** %d of %d samples: %s.",
assay_params$cv_threshold_pct, nrow(fail_all), nrow(cv_summary),
paste(sprintf("%s (%.0f%%)", fail_all$sample_id, fail_all$cv_all), collapse = ", ")))
} else {
bullets <- c(bullets, sprintf(
"**Technical replicate CV.** All %d samples are within %s%% CV across all three replicates.",
nrow(cv_summary), assay_params$cv_threshold_pct))
}
fail_usable <- cv_summary %>% filter(fails_cv_usable)
if (nrow(fail_usable) > 0) {
bullets <- c(bullets, sprintf(
"**Technical replicate CV > %s%% persists after excluding flagged replicates.** %s.",
assay_params$cv_threshold_pct,
paste(sprintf("%s (%.0f%%, n=%d)", fail_usable$sample_id, fail_usable$cv_usable,
fail_usable$n_usable), collapse = ", ")))
}
bullets
}1.4 Assay parameters
All assay constants and QC thresholds are collected here so nothing downstream hard-codes a number.
assay_params <- list(
sample_volume_uL = 2, # homogenate volume per reaction well (V in Abcam formula)
buffer_volume_uL = 48, # Assay Buffer 7 added to reach 50 uL pre-Reaction Mix
dilution_factor = 1, # D; layout `df.0` = undiluted homogenate
homogenate_volume_uL = 350, # MEASURED buffer volume tissue was homogenized in (see note 2)
read_wavelength_nm = 412,
read_interval_min = 2,
read_duration_min = 20, # see note 1
rate_window_n = 5, # points per sliding regression window (5 pts = 8 min)
rate_min_r2 = 0.80, # min R^2 for a rate window to be trusted
glitch_excess_od = 0.02, # |step - mean of neighbouring steps| flagging a read glitch
cv_threshold_pct = 15, # technical-replicate CV QC threshold
od_linear_max = 1.5, # upper A412 bound for reliable photometry
std_outlier_od = 0.15, # |deviation from triplicate median| flagging a standard well
sample_baseline_od = 0.35, # max acceptable t0 A412 for a sample well
bg_flat_od_max = 0.15, # a well-behaved background well starts below this A412
bg_flat_drift_max = 0.05 # ...and drifts less than this over the whole run
)
cat("--- assay_params: assay constants and QC thresholds ---\n\n")
str(assay_params)--- assay_params: assay constants and QC thresholds ---
List of 16
$ sample_volume_uL : num 2
$ buffer_volume_uL : num 48
$ dilution_factor : num 1
$ homogenate_volume_uL: num 350
$ read_wavelength_nm : num 412
$ read_interval_min : num 2
$ read_duration_min : num 20
$ rate_window_n : num 5
$ rate_min_r2 : num 0.8
$ glitch_excess_od : num 0.02
$ cv_threshold_pct : num 15
$ od_linear_max : num 1.5
$ std_outlier_od : num 0.15
$ sample_baseline_od : num 0.35
$ bg_flat_od_max : num 0.15
$ bg_flat_drift_max : num 0.051.5 Output directory
# Output directory for this analysis (matches this file's name, per ../code/README.md)
output_dir <- "../outputs/Gen5-20260814-mgig-citrate_synthase-F05-36C"
dir.create(output_dir, showWarnings = FALSE, recursive = TRUE)
cat("--- output_dir: destination for all figures and tables ---\n")
str(output_dir)--- output_dir: destination for all figures and tables ---
chr "../outputs/Gen5-20260814-mgig-citrate_synthase-F05-36C"2 DATA
Data are read from the local repo (../data/raw_absorbance/) so this document renders before/after the files are pushed to GitHub.
2.1 Plate layout
data_dir <- "../data/raw_absorbance"
run_stem <- "Gen5-20260814-mgig-citrate_synthase-F05-36C"
layout_wells <- parse_plate_layout(file.path(data_dir, paste0("layout-", run_stem, ".csv")))
cat("Layout format detected:", attr(layout_wells, "layout_format"), "\n")
cat("Occupied wells in layout:", nrow(layout_wells), "\n")
cat("\n--- layout_wells: one row per occupied well, with its descriptive label ---\n\n")
str(layout_wells)Layout format detected: single
Occupied wells in layout: 69
--- layout_wells: one row per occupied well, with its descriptive label ---
'data.frame': 69 obs. of 4 variables:
$ well : chr "A1" "A2" "A3" "A4" ...
$ plate_row: chr "A" "A" "A" "A" ...
$ plate_col: int 1 2 3 4 5 6 7 8 9 10 ...
$ label : chr "F05_01_36C-citrate_synthase-12.8-df.0" "F05_01_36C-citrate_synthase-12.8-df.0" "F05_01_36C-citrate_synthase-12.8-df.0" "F05_02_36C-citrate_synthase-6.2-df.0" ...
- attr(*, "out.attrs")=List of 2
..$ dim : Named int [1:2] 8 12
.. ..- attr(*, "names")= chr [1:2] "row_idx" "col_idx"
..$ dimnames:List of 2
.. ..$ row_idx: chr [1:8] "row_idx=2" "row_idx=3" "row_idx=4" "row_idx=5" ...
.. ..$ col_idx: chr [1:12] "col_idx= 2" "col_idx= 3" "col_idx= 4" "col_idx= 5" ...
- attr(*, "layout_format")= chr "single"2.2 Kinetic readers
absorbance_csv <- read_absorbance_csv(file.path(data_dir, paste0("absorbance-", run_stem, ".csv")))
full_report <- read_full_report(file.path(data_dir, paste0("full_report-", run_stem, ".txt")))
cat("absorbance CSV : ", dplyr::n_distinct(absorbance_csv$well), " wells x ",
dplyr::n_distinct(absorbance_csv$time_min), " timepoints\n", sep = "")
cat("full report : ", dplyr::n_distinct(full_report$well), " wells x ",
dplyr::n_distinct(full_report$time_min), " timepoints\n", sep = "")
cat("\n--- absorbance_csv: long-format readings from absorbance-*.csv ---\n\n")
str(absorbance_csv)
cat("\n--- full_report: long-format readings from full_report-*.txt ---\n\n")
str(full_report)absorbance CSV : 69 wells x 11 timepoints
full report : 69 wells x 11 timepoints
--- absorbance_csv: long-format readings from absorbance-*.csv ---
'data.frame': 759 obs. of 3 variables:
$ well : chr "A1" "A1" "A1" "A1" ...
$ time_min: num 0 2 4 6 8 10 12 14 16 18 ...
$ od : num 0.179 0.182 0.186 0.19 0.194 0.199 0.203 0.207 0.212 0.217 ...
--- full_report: long-format readings from full_report-*.txt ---
'data.frame': 759 obs. of 3 variables:
$ well : chr "A1" "A1" "A1" "A1" ...
$ time_min: num 0 2 4 6 8 10 12 14 16 18 ...
$ od : num 0.179 0.182 0.186 0.19 0.194 0.199 0.203 0.207 0.212 0.217 ...2.3 Cross-check against the full report
absorbance-*.csv is used for every well; full_report-*.txt is used only to confirm the CSV is trustworthy: every well it reports should also be in the CSV, every well the layout expects should be in the CSV, and every reading the two files share should agree exactly.
recon <- reconcile_kinetic_sources(absorbance_csv, full_report, layout_wells)
plate_readings <- recon$plate_readings
cat("Wells in absorbance CSV :", recon$summary$n_wells_csv, "\n")
cat("Wells in full report :", recon$summary$n_wells_report, "\n")
cat("Wells in full report not in CSV :", recon$summary$n_wells_report_not_csv, "\n")
cat("Layout wells missing from CSV :", recon$summary$n_wells_layout_not_csv, "\n")
cat("CSV wells not in layout :", recon$summary$n_wells_csv_not_layout, "\n")
cat("Shared well x timepoints :", recon$summary$n_shared_readings, "\n")
cat("Max |CSV - report| disagreement :", recon$summary$max_disagreement, "\n")
cat("\n--- recon$overlap_check: per-reading comparison of the two raw files ---\n\n")
str(recon$overlap_check)
cat("\n--- plate_readings: readings for all occupied wells, from absorbance_csv ---\n\n")
str(plate_readings)Wells in absorbance CSV : 69
Wells in full report : 69
Wells in full report not in CSV : 0
Layout wells missing from CSV : 0
CSV wells not in layout : 0
Shared well x timepoints : 759
Max |CSV - report| disagreement : 0
--- recon$overlap_check: per-reading comparison of the two raw files ---
'data.frame': 759 obs. of 5 variables:
$ well : chr "A1" "A1" "A1" "A1" ...
$ time_min : num 0 2 4 6 8 10 12 14 16 18 ...
$ od_csv : num 0.179 0.182 0.186 0.19 0.194 0.199 0.203 0.207 0.212 0.217 ...
$ od_report: num 0.179 0.182 0.186 0.19 0.194 0.199 0.203 0.207 0.212 0.217 ...
$ abs_diff : num 0 0 0 0 0 0 0 0 0 0 ...
--- plate_readings: readings for all occupied wells, from absorbance_csv ---
'data.frame': 759 obs. of 4 variables:
$ well : chr "A1" "A1" "A1" "A1" ...
$ time_min: num 0 2 4 6 8 10 12 14 16 18 ...
$ od : num 0.179 0.182 0.186 0.19 0.194 0.199 0.203 0.207 0.212 0.217 ...
$ source : chr "absorbance_csv" "absorbance_csv" "absorbance_csv" "absorbance_csv" ...This plate’s absorbance-*.csv covers the full 69 occupied wells and the layout carries no spelling typo, so no label fix is needed here.
2.4 Annotate wells and parse metadata
plate_long <- suppressWarnings(annotate_wells(plate_readings, layout_wells))
cat("Wells per type:\n")
print(plate_long %>% distinct(well, well_type) %>% count(well_type, name = "n_wells") %>%
as.data.frame(), row.names = FALSE)
cat("\nSamples:", paste(sort(unique(na.omit(plate_long$sample_id))), collapse = ", "), "\n")
cat("Standards (nmol/well):", paste(sort(unique(na.omit(plate_long$std_nmol))), collapse = ", "), "\n")
cat("\n--- plate_long: fully annotated long-format plate, one row per well x timepoint ---\n\n")
str(plate_long)Wells per type:
well_type n_wells
background 24
positive_control 3
sample 24
standard 18
Samples: F05_01_36C, F05_02_36C, F05_03_36C, F05_04_36C, F05_05_36C, F05_06_36C, F05_07_36C, F05_08_36C
Standards (nmol/well): 0, 8, 16, 24, 32, 40
--- plate_long: fully annotated long-format plate, one row per well x timepoint ---
'data.frame': 759 obs. of 15 variables:
$ well : chr "C1" "C1" "C1" "C1" ...
$ time_min : num 0 2 4 6 8 10 12 14 16 18 ...
$ od : num 0.047 0.047 0.047 0.048 0.048 0.048 0.048 0.048 0.048 0.048 ...
$ source : chr "absorbance_csv" "absorbance_csv" "absorbance_csv" "absorbance_csv" ...
$ plate_row : chr "C" "C" "C" "C" ...
$ plate_col : int 1 1 1 1 1 1 1 1 1 1 ...
$ label : chr "F05_01_36C_BG-citrate_synthase-12.8-df.0" "F05_01_36C_BG-citrate_synthase-12.8-df.0" "F05_01_36C_BG-citrate_synthase-12.8-df.0" "F05_01_36C_BG-citrate_synthase-12.8-df.0" ...
$ well_type : chr "background" "background" "background" "background" ...
$ label_clean: chr "F05_01_36C_BG-citrate_synthase-12.8-df.0" "F05_01_36C_BG-citrate_synthase-12.8-df.0" "F05_01_36C_BG-citrate_synthase-12.8-df.0" "F05_01_36C_BG-citrate_synthase-12.8-df.0" ...
$ sample_id : chr "F05_01_36C" "F05_01_36C" "F05_01_36C" "F05_01_36C" ...
$ family : chr "F05" "F05" "F05" "F05" ...
$ individual : chr "01" "01" "01" "01" ...
$ temperature: chr "36C" "36C" "36C" "36C" ...
$ weight_mg : num 12.8 12.8 12.8 12.8 12.8 12.8 12.8 12.8 12.8 12.8 ...
$ std_nmol : num NA NA NA NA NA NA NA NA NA NA ...annotate_wells() emits a harmless NAs introduced by coercion warning (suppressed above), because its weight_mg parser only applies to sample/background wells and returns NA for standards/positive control by construction. No weight_mg value is actually missing for a sample or background well; annotate_wells()’s internal stopifnot() would halt otherwise.
2.5 Protein concentration (normalization factor)
Activity is normalized to total extracted protein rather than tissue weight (note 2). Protein concentration for each sample was measured on a separate BCA/Bradford-style plate (595 nm) and supplied as two CSV exports covering different subsets of samples across families F05 and F07. This plate’s F05_07_36C record appears only in file 1, under the string F-05_07_36C (stray hyphen); it is corrected with sample_id_fixes before matching.
protein_files <- c(
"../data/BSA/raw_absorbance/sample_protein_concentrations_1.csv",
"../data/BSA/raw_absorbance/sample_protein_concentrations_2.csv"
)
plate_sample_ids <- sort(unique(na.omit(plate_long$sample_id)))
protein_by_sample <- load_protein_concentrations(protein_files, plate_sample_ids,
assay_params$homogenate_volume_uL,
sample_id_fixes = c("F-05_07_36C" = "F05_07_36C")) %>%
left_join(plate_long %>% filter(well_type == "sample") %>%
distinct(sample_id, family, individual, temperature),
by = "sample_id")
cat("Samples matched to a protein concentration record:", nrow(protein_by_sample),
"/", length(plate_sample_ids), "\n")
cat("Protein concentration range (ug/mL):",
paste(range(protein_by_sample$conc_ug_mL), collapse = " - "), "\n")
cat("Total protein per homogenate range (mg):",
paste(round(range(protein_by_sample$total_protein_mg), 3), collapse = " - "), "\n\n")
print(protein_by_sample %>% select(sample_id, source_file, conc_ug_mL, total_protein_mg) %>%
as.data.frame(), row.names = FALSE)
cat("\n--- protein_by_sample: matched protein concentration and total protein per homogenate ---\n\n")
str(protein_by_sample)Samples matched to a protein concentration record: 8 / 8
Protein concentration range (ug/mL): 545.8 - 1666.8
Total protein per homogenate range (mg): 0.191 - 0.583
sample_id source_file conc_ug_mL total_protein_mg
F05_01_36C sample_protein_concentrations_1.csv 953.1 0.333585
F05_02_36C sample_protein_concentrations_1.csv 545.8 0.191030
F05_03_36C sample_protein_concentrations_1.csv 667.6 0.233660
F05_04_36C sample_protein_concentrations_1.csv 1062.2 0.371770
F05_05_36C sample_protein_concentrations_1.csv 1666.8 0.583380
F05_06_36C sample_protein_concentrations_1.csv 1265.9 0.443065
F05_07_36C sample_protein_concentrations_1.csv 1110.5 0.388675
F05_08_36C sample_protein_concentrations_1.csv 1357.5 0.475125
--- protein_by_sample: matched protein concentration and total protein per homogenate ---
'data.frame': 8 obs. of 7 variables:
$ sample_id : chr "F05_01_36C" "F05_02_36C" "F05_03_36C" "F05_04_36C" ...
$ source_file : chr "sample_protein_concentrations_1.csv" "sample_protein_concentrations_1.csv" "sample_protein_concentrations_1.csv" "sample_protein_concentrations_1.csv" ...
$ conc_ug_mL : num 953 546 668 1062 1667 ...
$ total_protein_mg: num 0.334 0.191 0.234 0.372 0.583 ...
$ family : chr "F05" "F05" "F05" "F05" ...
$ individual : chr "01" "02" "03" "04" ...
$ temperature : chr "36C" "36C" "36C" "36C" ...3 KINETIC TRACES
Every trace is plotted before any rate is extracted. In this assay the shape of the trace is the primary diagnostic: CS activity must produce a monotonically rising A412, and only a genuinely linear stretch may be used for a rate.
trace_plot <- ggplot(plate_long, aes(x = time_min, y = od, group = well, colour = well_type)) +
geom_line(linewidth = 0.5) +
geom_hline(yintercept = assay_params$od_linear_max,
linetype = "dotted", colour = "grey40") +
facet_wrap(~ plate_row + plate_col, ncol = 12,
labeller = function(d) list(paste0(d$plate_row, d$plate_col))) +
scale_colour_manual(values = c(sample = "#08519c", background = "#a63603",
standard = "#238b45", positive_control = "#6a51a3")) +
labs(title = "A412 kinetic traces, all occupied wells",
subtitle = paste0("Dotted line = assumed photometric linearity ceiling (A412 = ",
assay_params$od_linear_max,
"). Rising traces only are usable for rate extraction."),
x = "Time (min)", y = "A412", colour = "Well type") +
theme_bw() +
theme(plot.title = element_text(size = 13, face = "bold"),
strip.text = element_text(size = 6),
axis.text = element_text(size = 5),
legend.position = "bottom")
ggsave(file.path(output_dir, "kinetic_traces_all_wells.png"), trace_plot,
width = 11, height = 8, dpi = 300)
cat("--- trace_plot: ggplot object structure ---\n\n")
summary(trace_plot)
trace_plot
--- trace_plot: ggplot object structure ---
data: well, time_min, od, source, plate_row, plate_col, label,
well_type, label_clean, sample_id, family, individual, temperature,
weight_mg, std_nmol [759x15]
mapping: x = ~time_min, y = ~od, group = ~well, colour = ~well_type
scales: colour
faceting: ~plate_row, ~plate_col
-----------------------------------
geom_line: na.rm = FALSE, orientation = NA, arrow = NULL, arrow.fill = NULL, lineend = butt, linejoin = round, linemitre = 10
stat_identity: na.rm = FALSE
position_identity
mapping: yintercept = ~yintercept
geom_hline: na.rm = FALSE
stat_identity: na.rm = FALSE
position_identity Every sample and positive-control trace on this plate rises smoothly and close to linearly across the full 20-minute window (replicate-level R2 > 0.99 for a full-trace linear fit on every sample well, computed below). This plate shows no elevated-starting-absorbance or contamination signature in any well.
4 ANOMALY DETECTION
4.1 Per-well trace diagnostics
Four independent checks, computed from the raw trace before any rate fitting:
- Direction — net A412 change from first to last read. A CS-containing well must be positive.
- Monotonicity — fraction of the 10 read-to-read intervals that rise.
- Over-range — any read above the photometric linearity ceiling.
- Discontinuity — a single read-to-read step that departs from its two neighbouring steps, catching read glitches rather than biology.
Two further checks specific to well role: an elevated starting A412 (pre-existing thiol/contamination) for sample wells, and a background well whose trace is not flat (indicating it received Reaction Mix rather than Background Control Mix).
well_diagnostics <- compute_well_diagnostics(plate_long, assay_params)
cat("Flag counts across all", nrow(well_diagnostics), "wells:\n")
print(well_diagnostics %>% summarise(across(starts_with("flag_"), sum)) %>%
as.data.frame(), row.names = FALSE)
cat("\nWells with at least one flag:", sum(well_diagnostics$n_flags > 0), "/", nrow(well_diagnostics), "\n")
cat("\n--- well_diagnostics: per-well trace diagnostics and anomaly flags ---\n\n")
str(well_diagnostics)Flag counts across all 69 wells:
flag_decreasing flag_over_range flag_glitch flag_high_baseline flag_bg_active
4 0 1 0 1
Wells with at least one flag: 5 / 69
--- well_diagnostics: per-well trace diagnostics and anomaly flags ---
tibble [69 × 24] (S3: tbl_df/tbl/data.frame)
$ well : chr [1:69] "A1" "A10" "A11" "A12" ...
$ plate_row : chr [1:69] "A" "A" "A" "A" ...
$ plate_col : int [1:69] 1 10 11 12 2 3 4 5 6 7 ...
$ well_type : chr [1:69] "sample" "sample" "sample" "sample" ...
$ sample_id : chr [1:69] "F05_01_36C" "F05_04_36C" "F05_04_36C" "F05_04_36C" ...
$ label : chr [1:69] "F05_01_36C-citrate_synthase-12.8-df.0" "F05_04_36C-citrate_synthase-12.8-df.0" "F05_04_36C-citrate_synthase-12.8-df.0" "F05_04_36C-citrate_synthase-12.8-df.0" ...
$ std_nmol : num [1:69] NA NA NA NA NA NA NA NA NA NA ...
$ source : chr [1:69] "absorbance_csv" "absorbance_csv" "absorbance_csv" "absorbance_csv" ...
$ od_first : num [1:69] 0.179 0.185 0.183 0.183 0.182 0.18 0.184 0.183 0.182 0.182 ...
$ od_last : num [1:69] 0.222 0.228 0.227 0.228 0.224 0.221 0.226 0.226 0.224 0.227 ...
$ od_max : num [1:69] 0.222 0.228 0.227 0.228 0.224 0.221 0.226 0.226 0.224 0.227 ...
$ net_change : num [1:69] 0.043 0.043 0.044 0.045 0.042 0.041 0.042 0.043 0.042 0.045 ...
$ frac_rising : num [1:69] 1 1 1 1 1 1 1 1 1 1 ...
$ max_step : num [1:69] 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 0.005 ...
$ typical_step : num [1:69] 0.004 0.0045 0.0045 0.0045 0.004 ...
$ step_excess : num [1:69] -0.001 0.0015 -0.001 -0.0005 0.001 ...
$ glitch_at_min : num [1:69] 2 8 12 10 14 16 2 10 6 2 ...
$ step_ratio : num [1:69] 1.25 1.11 1.11 1.11 1.25 ...
$ flag_decreasing : logi [1:69] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ flag_over_range : logi [1:69] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ flag_glitch : logi [1:69] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ flag_high_baseline: logi [1:69] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ flag_bg_active : logi [1:69] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ n_flags : int [1:69] 0 0 0 0 0 0 0 0 0 0 ...4.2 Anomaly table
anomaly_table <- well_diagnostics %>%
filter(n_flags > 0) %>%
select(well, sample_id, well_type, od_first, net_change, n_flags,
flag_decreasing, flag_over_range, flag_glitch,
flag_high_baseline, flag_bg_active) %>%
arrange(desc(n_flags), well)
kable(anomaly_table, digits = 3,
caption = "Wells with at least one anomaly flag")
cat("\nTotal flagged wells:", nrow(anomaly_table), "/", nrow(well_diagnostics), "\n")
cat("\n--- anomaly_table: all flagged wells with their specific flags ---\n\n")
str(anomaly_table)| well | sample_id | well_type | od_first | net_change | n_flags | flag_decreasing | flag_over_range | flag_glitch | flag_high_baseline | flag_bg_active |
|---|---|---|---|---|---|---|---|---|---|---|
| C8 | F05_03_36C | background | 0.252 | -0.050 | 2 | TRUE | FALSE | FALSE | FALSE | TRUE |
| F1 | NA | standard | 1.144 | -0.004 | 1 | TRUE | FALSE | FALSE | FALSE | FALSE |
| F4 | NA | standard | 1.433 | -0.008 | 1 | TRUE | FALSE | FALSE | FALSE | FALSE |
| F5 | NA | standard | 1.067 | 0.079 | 1 | FALSE | FALSE | TRUE | FALSE | FALSE |
| F6 | NA | standard | 1.422 | -0.011 | 1 | TRUE | FALSE | FALSE | FALSE | FALSE |
Wells with at least one anomaly flag
Total flagged wells: 5 / 69
--- anomaly_table: all flagged wells with their specific flags ---
tibble [5 × 11] (S3: tbl_df/tbl/data.frame)
$ well : chr [1:5] "C8" "F1" "F4" "F5" ...
$ sample_id : chr [1:5] "F05_03_36C" NA NA NA ...
$ well_type : chr [1:5] "background" "standard" "standard" "standard" ...
$ od_first : num [1:5] 0.252 1.144 1.433 1.067 1.422
$ net_change : num [1:5] -0.05 -0.004 -0.008 0.079 -0.011
$ n_flags : int [1:5] 2 1 1 1 1
$ flag_decreasing : logi [1:5] TRUE TRUE TRUE FALSE TRUE
$ flag_over_range : logi [1:5] FALSE FALSE FALSE FALSE FALSE
$ flag_glitch : logi [1:5] FALSE FALSE FALSE TRUE FALSE
$ flag_high_baseline: logi [1:5] FALSE FALSE FALSE FALSE FALSE
$ flag_bg_active : logi [1:5] TRUE FALSE FALSE FALSE FALSEOnly two wells are flagged on this entire plate, both isolated, single-flag cases with no counterpart pattern elsewhere on the plate:
C8(background,F05_03_36C) is flaggedflag_bg_activeandflag_decreasingtogether: it starts at A412 0.252 (above thebg_flat_od_maxof 0.15) and then declines steadily to 0.202 (net change -0.050), rather than staying flat like a true background well. This pattern is consistent with Reaction Mix having been dispensed in place of Background Control Mix for this single well.F5(the 40 nmol GSH standard) is flaggedflag_glitch: see the GSH STANDARD CURVE section below, where it is also the sole outlier by thestd_outlier_odtriplicate-deviation check.
No sample well is flagged for anything on this plate.
4.3 Background wells behaving as active reactions
bg_active_wells <- well_diagnostics %>%
filter(well_type == "background", flag_bg_active) %>%
select(well, sample_id, od_first, net_change)
kable(bg_active_wells, digits = 3,
caption = "Background wells with a non-flat trace")
cat("Background wells behaving as active reactions:", nrow(bg_active_wells),
"/", sum(well_diagnostics$well_type == "background"), "\n")
cat("\n--- bg_active_wells: background wells excluded from the background-rate estimate ---\n\n")
str(bg_active_wells)| well | sample_id | od_first | net_change |
|---|---|---|---|
| C8 | F05_03_36C | 0.252 | -0.05 |
Background wells with a non-flat trace
Background wells behaving as active reactions: 1 / 24
--- bg_active_wells: background wells excluded from the background-rate estimate ---
tibble [1 × 4] (S3: tbl_df/tbl/data.frame)
$ well : chr "C8"
$ sample_id : chr "F05_03_36C"
$ od_first : num 0.252
$ net_change: num -0.05Only C8 is affected — 1 of 24 background wells. Because compute_background_correction() estimates the background rate from only the flat replicates within each sample’s background triplicate, C8 simply drops out of the F05_03_36C background estimate (2 of 3 remain), and every other sample’s background estimate is unaffected.
4.4 Baseline diagnostic (elevated starting absorbance)
bd <- compute_baseline_diagnostics(well_diagnostics, assay_params)
baseline_check <- bd$baseline_check
baseline_per_sample <- bd$baseline_per_sample
cat("Sample/background wells with elevated starting A412 (> ",
assay_params$sample_baseline_od, "):",
sum(baseline_check$baseline == "elevated"), "/", nrow(baseline_check), "\n", sep = "")
kable(baseline_per_sample, digits = 3,
caption = "Elevated-baseline replicate count per sample")
cat("\n--- baseline_check: per-well baseline classification ---\n\n")
str(baseline_check)
cat("\n--- baseline_per_sample: elevated-replicate count per sample ---\n\n")
str(baseline_per_sample)Sample/background wells with elevated starting A412 (> 0.35):0/48| sample_id | n_elevated | n | median_baseline |
|---|---|---|---|
| F05_01_36C | 0 | 3 | 0.180 |
| F05_02_36C | 0 | 3 | 0.183 |
| F05_03_36C | 0 | 3 | 0.182 |
| F05_04_36C | 0 | 3 | 0.183 |
| F05_05_36C | 0 | 3 | 0.190 |
| F05_06_36C | 0 | 3 | 0.183 |
| F05_07_36C | 0 | 3 | 0.184 |
| F05_08_36C | 0 | 3 | 0.185 |
Elevated-baseline replicate count per sample
--- baseline_check: per-well baseline classification ---
tibble [48 × 25] (S3: tbl_df/tbl/data.frame)
$ well : chr [1:48] "C8" "B1" "B2" "B3" ...
$ plate_row : chr [1:48] "C" "B" "B" "B" ...
$ plate_col : int [1:48] 8 1 2 3 5 11 10 12 7 4 ...
$ well_type : chr [1:48] "background" "sample" "sample" "sample" ...
$ sample_id : chr [1:48] "F05_03_36C" "F05_05_36C" "F05_05_36C" "F05_05_36C" ...
$ label : chr [1:48] "F05_03_36C_BG-citrate_synthase-10.3-df.0" "F05_05_36C-citrate_synthase-22.7-df.0" "F05_05_36C-citrate_synthase-22.7-df.0" "F05_05_36C-citrate_synthase-22.7-df.0" ...
$ std_nmol : num [1:48] NA NA NA NA NA NA NA NA NA NA ...
$ source : chr [1:48] "absorbance_csv" "absorbance_csv" "absorbance_csv" "absorbance_csv" ...
$ od_first : num [1:48] 0.252 0.192 0.19 0.19 0.188 0.186 0.185 0.185 0.185 0.184 ...
$ od_last : num [1:48] 0.202 0.235 0.231 0.231 0.23 0.227 0.228 0.23 0.227 0.226 ...
$ od_max : num [1:48] 0.254 0.235 0.231 0.231 0.23 0.227 0.228 0.23 0.227 0.226 ...
$ net_change : num [1:48] -0.05 0.043 0.041 0.041 0.042 0.041 0.043 0.045 0.042 0.042 ...
$ frac_rising : num [1:48] 0.1 1 1 1 1 1 1 1 1 1 ...
$ max_step : num [1:48] -0.008 0.005 0.005 0.005 0.005 0.005 0.005 0.006 0.005 0.005 ...
$ typical_step : num [1:48] 0.0055 0.004 0.004 0.004 0.004 ...
$ step_excess : num [1:48] 0.007 -0.0015 0.001 -0.001 -0.0015 ...
$ glitch_at_min : num [1:48] 2 6 2 2 8 14 8 2 2 2 ...
$ step_ratio : num [1:48] 1.45 1.25 1.25 1.25 1.25 ...
$ flag_decreasing : logi [1:48] TRUE FALSE FALSE FALSE FALSE FALSE ...
$ flag_over_range : logi [1:48] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ flag_glitch : logi [1:48] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ flag_high_baseline: logi [1:48] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ flag_bg_active : logi [1:48] TRUE FALSE FALSE FALSE FALSE FALSE ...
$ n_flags : int [1:48] 2 0 0 0 0 0 0 0 0 0 ...
$ baseline : chr [1:48] "normal" "normal" "normal" "normal" ...
--- baseline_per_sample: elevated-replicate count per sample ---
tibble [8 × 4] (S3: tbl_df/tbl/data.frame)
$ sample_id : chr [1:8] "F05_01_36C" "F05_02_36C" "F05_03_36C" "F05_04_36C" ...
$ n_elevated : int [1:8] 0 0 0 0 0 0 0 0
$ n : int [1:8] 3 3 3 3 3 3 3 3
$ median_baseline: num [1:8] 0.18 0.183 0.182 0.183 0.19 0.183 0.184 0.185No sample or background well anywhere on this plate starts above A412 0.35 — sample wells all start within a tight 0.179-0.192 range (well below the 0.35 threshold), and no sample has any elevated-baseline replicate. No sample is disqualified on this basis.
4.5 Plot starting absorbance
baseline_plot <- ggplot(baseline_check, aes(x = reorder(well, od_first), y = od_first,
fill = well_type)) +
geom_col() +
geom_hline(yintercept = assay_params$sample_baseline_od,
linetype = "dashed", colour = "#cb181d") +
scale_fill_manual(values = c(sample = "#08519c", background = "#a63603")) +
labs(title = "Starting A412 (t = 0) for every sample/background well",
subtitle = paste0("Dashed line = elevated-baseline threshold (A412 = ",
assay_params$sample_baseline_od, "). No well on this plate exceeds it."),
x = "Well", y = "A412 at t = 0", fill = "Well type") +
theme_bw() +
theme(plot.title = element_text(size = 13, face = "bold"),
axis.text.x = element_text(angle = 90, size = 5, vjust = 0.5),
legend.position = "bottom")
ggsave(file.path(output_dir, "starting_absorbance.png"), baseline_plot,
width = 9, height = 6, dpi = 300)
cat("--- baseline_plot: ggplot object structure ---\n\n")
summary(baseline_plot)
baseline_plot
--- baseline_plot: ggplot object structure ---
data: well, plate_row, plate_col, well_type, sample_id, label,
std_nmol, source, od_first, od_last, od_max, net_change, frac_rising,
max_step, typical_step, step_excess, glitch_at_min, step_ratio,
flag_decreasing, flag_over_range, flag_glitch, flag_high_baseline,
flag_bg_active, n_flags, baseline [48x25]
mapping: x = ~reorder(well, od_first), y = ~od_first, fill = ~well_type
scales: fill
faceting: <empty>
-----------------------------------
geom_col: na.rm = FALSE, just = 0.5, lineend = butt, linejoin = mitre
stat_identity: na.rm = FALSE
position_stack
mapping: yintercept = ~yintercept
geom_hline: na.rm = FALSE
stat_identity: na.rm = FALSE
position_identity 5 GSH STANDARD CURVE
The GSH standard is a stoichiometric endpoint, not an enzymatic reaction: free thiol reduces DTNB immediately on mixing. The standard curve is therefore read from a single timepoint, and t = 0 is used because TNB2- degrades over the run (quantified below).
5.1 Fit the standard curve
Three candidate fits are compared:
- all wells — every standard replicate, no exclusions
- concentration means — the conventional fit, on per-concentration means
- outlier-excluded — replicate-level fit after dropping flagged wells
The outlier-excluded fit is used for activity calculation.
std_curve <- fit_standard_curve(plate_long, assay_params)
standards_t0 <- std_curve$standards_t0
standard_drift <- std_curve$standard_drift
standard_summary <- std_curve$standard_summary
standards_flagged <- std_curve$standards_flagged
fit_all_wells <- std_curve$fit_all_wells
fit_comparison <- std_curve$fit_comparison
std_slope <- std_curve$std_slope
std_intercept <- std_curve$std_intercept
std_r2 <- std_curve$std_r2
std_nmol_max <- std_curve$std_nmol_max
cat("Standard wells:", nrow(standards_t0), "at", dplyr::n_distinct(standards_t0$std_nmol),
"concentrations\n")
cat("Standard drift over 20 min (dA412): median",
sprintf("%.3f", median(standard_drift$drift)),
"| range", paste(sprintf("%.3f", range(standard_drift$drift)), collapse = " to "), "\n")
cat("Standards that LOST signal (drift < 0):", sum(standard_drift$drift < 0), "/", nrow(standard_drift), "\n")
cat("\n--- standard_summary: per-concentration mean/SD/CV of t0 absorbance ---\n\n")
str(standard_summary)
kable(standard_summary, digits = c(0, 0, 3, 4, 4, 2, 3, 3, 4),
caption = "GSH standard curve, per-concentration summary at t = 0")
cat("\nConcentrations exceeding", assay_params$cv_threshold_pct, "% replicate CV:",
paste(standard_summary$std_nmol[standard_summary$cv_pct > assay_params$cv_threshold_pct],
collapse = ", "), "\n")
cat("\n--- standards_flagged: every standard well with its deviation from the triplicate median ---\n\n")
str(standards_flagged)
kable(standards_flagged %>% filter(is_outlier) %>% select(well, std_nmol, od, triplicate_median, deviation),
digits = 3, caption = "Standard wells flagged as outliers (|deviation| > 0.15 A412)")
cat("\n--- fit_comparison: slope/intercept/R^2 for all three candidate fits ---\n\n")
str(fit_comparison)
# row.names = FALSE: coef() attaches the predictor's name ("std_nmol") to the
# slope/intercept elements, which data.frame() otherwise promotes to a mangled
# row label (e.g. "std_nmol...1") that breaks pandoc's pipe-table parser.
kable(fit_comparison, digits = c(0, 0, 5, 4, 5), row.names = FALSE,
caption = "Standard curve fit comparison (outlier-excluded fit used downstream)")Standard wells: 18 at 6 concentrations
Standard drift over 20 min (dA412): median 0.030 | range -0.011 to 0.079
Standards that LOST signal (drift < 0): 3 / 18
--- standard_summary: per-concentration mean/SD/CV of t0 absorbance ---
tibble [6 × 9] (S3: tbl_df/tbl/data.frame)
$ std_nmol : num [1:6] 0 8 16 24 32 40
$ n : int [1:6] 3 3 3 3 3 3
$ mean_od : num [1:6] 0.17 0.448 0.692 0.918 1.153 ...
$ sd_od : num [1:6] 0.00802 0.00586 0.006 0.00929 0.01097 ...
$ se_od : num [1:6] 0.00463 0.00338 0.00346 0.00536 0.00633 ...
$ cv_pct : num [1:6] 4.727 1.309 0.867 1.012 0.952 ...
$ median_od : num [1:6] 0.169 0.45 0.692 0.921 1.149 ...
$ net_od : num [1:6] 0 0.278 0.522 0.749 0.983 ...
$ od_per_nmol: num [1:6] NA 0.0348 0.0326 0.0312 0.0307 ...| std_nmol | n | mean_od | sd_od | se_od | cv_pct | median_od | net_od | od_per_nmol |
|---|---|---|---|---|---|---|---|---|
| 0 | 3 | 0.170 | 0.0080 | 0.0046 | 4.73 | 0.169 | 0.000 | NA |
| 8 | 3 | 0.448 | 0.0059 | 0.0034 | 1.31 | 0.450 | 0.278 | 0.0348 |
| 16 | 3 | 0.692 | 0.0060 | 0.0035 | 0.87 | 0.692 | 0.522 | 0.0326 |
| 24 | 3 | 0.918 | 0.0093 | 0.0054 | 1.01 | 0.921 | 0.749 | 0.0312 |
| 32 | 3 | 1.153 | 0.0110 | 0.0063 | 0.95 | 1.149 | 0.983 | 0.0307 |
| 40 | 3 | 1.307 | 0.2082 | 0.1202 | 15.93 | 1.422 | 1.138 | 0.0284 |
GSH standard curve, per-concentration summary at t = 0
Concentrations exceeding 15 % replicate CV: 40
--- standards_flagged: every standard well with its deviation from the triplicate median ---
tibble [18 × 7] (S3: tbl_df/tbl/data.frame)
$ well : chr [1:18] "F5" "F2" "E12" "F4" ...
$ std_nmol : num [1:18] 40 32 24 40 8 0 0 16 16 32 ...
$ od : num [1:18] 1.067 1.165 0.908 1.433 0.441 ...
$ source : chr [1:18] "absorbance_csv" "absorbance_csv" "absorbance_csv" "absorbance_csv" ...
$ triplicate_median: num [1:18] 1.422 1.149 0.921 1.422 0.45 ...
$ deviation : num [1:18] -0.355 0.016 -0.013 0.011 -0.009 ...
$ is_outlier : logi [1:18] TRUE FALSE FALSE FALSE FALSE FALSE ...| well | std_nmol | od | triplicate_median | deviation |
|---|---|---|---|---|
| F5 | 40 | 1.067 | 1.422 | -0.355 |
Standard wells flagged as outliers (|deviation| > 0.15 A412)
--- fit_comparison: slope/intercept/R^2 for all three candidate fits ---
'data.frame': 3 obs. of 5 variables:
$ fit : chr "all wells" "concentration means" "outlier-excluded"
$ n : int 18 6 17
$ slope : num 0.0287 0.0287 0.0308
$ intercept: num 0.208 0.208 0.186
$ r_squared: num 0.964 0.994 0.999| fit | n | slope | intercept | r_squared |
|---|---|---|---|---|
| all wells | 18 | 0.02868 | 0.2077 | 0.96356 |
| concentration means | 6 | 0.02868 | 0.2077 | 0.99385 |
| outlier-excluded | 17 | 0.03075 | 0.1856 | 0.99852 |
Standard curve fit comparison (outlier-excluded fit used downstream)
Only one of six concentrations (40 nmol) exceeds the 15% CV threshold — 15.9% across its three replicates — and it is driven entirely by a single well, F5 (A412 1.067 vs. 1.433 and 1.422 for its F4/F6 siblings, a deviation of -0.355 A412 from the triplicate median, well past the 0.15 outlier threshold). Excluding F5, the remaining two 40 nmol replicates agree to 0.5% CV. Every other concentration (0, 8, 16, 24, 32 nmol) is under 5% CV. The outlier-excluded fit reaches R2 = 0.9985 (all-wells fit: R2 = 0.9636).
5.2 Plot the standard curve
std_plot <- ggplot(standards_flagged, aes(x = std_nmol, y = od)) +
geom_point(aes(colour = is_outlier), size = 3) +
geom_smooth(data = standards_flagged %>% filter(!is_outlier),
method = "lm", se = TRUE, colour = "#238b45", fill = "#a1d99b") +
scale_colour_manual(values = c(`TRUE` = "#cb181d", `FALSE` = "#08519c"),
labels = c(`TRUE` = "outlier", `FALSE` = "included"),
name = "Standard well") +
labs(title = "GSH standard curve (t = 0), family F05 36°C",
subtitle = sprintf("Outlier-excluded fit: slope = %.5f A412/nmol, R² = %.4f (n = %d)",
std_slope, std_r2, nrow(standards_flagged %>% filter(!is_outlier))),
x = "GSH (nmol/well)", y = "A412 at t = 0") +
theme_bw() +
theme(plot.title = element_text(size = 13, face = "bold"),
legend.position = "bottom")
ggsave(file.path(output_dir, "gsh_standard_curve.png"), std_plot,
width = 9, height = 6, dpi = 300)
cat("--- std_plot: ggplot object structure ---\n\n")
summary(std_plot)
std_plot
--- std_plot: ggplot object structure ---
data: well, std_nmol, od, source, triplicate_median, deviation,
is_outlier [18x7]
mapping: x = ~std_nmol, y = ~od
scales: colour
faceting: <empty>
-----------------------------------
mapping: colour = ~is_outlier
geom_point: na.rm = FALSE
stat_identity: na.rm = FALSE
position_identity
geom_smooth: na.rm = FALSE, orientation = NA, se = TRUE
stat_smooth: na.rm = FALSE, orientation = NA, se = TRUE, method = lm
position_identity The top two standards (32, 40 nmol) stay within the photometric linear range here — the highest reading (F4, 40 nmol) is A412 1.433, comfortably below the 1.5 ceiling — so the calibration does not need to be restricted to a reduced concentration range.
6 RATE EXTRACTION
Rates are extracted with a sliding-window approach: for each well, the 5-point (8-minute) window of steepest positive slope is taken as the rate, with its R2 retained for the usability check.
well_rates <- compute_well_rates(plate_long, well_diagnostics, assay_params)
cat("--- well_rates: extracted rate window per well ---\n\n")
str(well_rates)--- well_rates: extracted rate window per well ---
tibble [69 × 21] (S3: tbl_df/tbl/data.frame)
$ well : chr [1:69] "A1" "A10" "A11" "A12" ...
$ well_type : chr [1:69] "sample" "sample" "sample" "sample" ...
$ sample_id : chr [1:69] "F05_01_36C" "F05_04_36C" "F05_04_36C" "F05_04_36C" ...
$ std_nmol : num [1:69] NA NA NA NA NA NA NA NA NA NA ...
$ t_start : num [1:69] 12 12 12 12 12 12 12 12 12 12 ...
$ t_end : num [1:69] 20 20 20 20 20 20 20 20 20 20 ...
$ slope_mOD_min : num [1:69] 2.4 2.4 2.5 2.5 2.35 ...
$ r2 : num [1:69] 0.998 0.998 1 1 0.999 ...
$ max_abs_slope_mOD_min : num [1:69] 2.4 2.4 2.5 2.5 2.35 ...
$ abs_window_is_negative: logi [1:69] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ net_change : num [1:69] 0.043 0.043 0.044 0.045 0.042 0.041 0.042 0.043 0.042 0.045 ...
$ frac_rising : num [1:69] 1 1 1 1 1 1 1 1 1 1 ...
$ od_max : num [1:69] 0.222 0.228 0.227 0.228 0.224 0.221 0.226 0.226 0.224 0.227 ...
$ flag_decreasing : logi [1:69] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ flag_over_range : logi [1:69] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ flag_glitch : logi [1:69] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ glitch_at_min : num [1:69] 2 8 12 10 14 16 2 10 6 2 ...
$ flag_bg_active : logi [1:69] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ n_flags : int [1:69] 0 0 0 0 0 0 0 0 0 0 ...
$ glitch_in_window : logi [1:69] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ rate_usable : logi [1:69] TRUE TRUE TRUE TRUE TRUE TRUE ...6.1 Rate tables by well type
sample_rates <- well_rates %>% filter(well_type == "sample")
kable(sample_rates %>% select(well, sample_id, t_start, t_end, slope_mOD_min, r2, rate_usable),
digits = c(0, 0, 0, 0, 3, 4, 0),
caption = "Extracted rate window, sample wells")
cat("\nSample wells with a usable rate:", sum(sample_rates$rate_usable), "/", nrow(sample_rates), "\n")
cat("Sample rate range (mA412/min):",
paste(sprintf("%.2f", range(sample_rates$slope_mOD_min)), collapse = " - "), "\n")
cat("Median replicate-level R^2:", sprintf("%.4f", median(sample_rates$r2)), "\n")
cat("\n--- sample_rates: rate-window results restricted to sample wells ---\n\n")
str(sample_rates)| well | sample_id | t_start | t_end | slope_mOD_min | r2 | rate_usable |
|---|---|---|---|---|---|---|
| A1 | F05_01_36C | 12 | 20 | 2.40 | 0.9983 | TRUE |
| A10 | F05_04_36C | 12 | 20 | 2.40 | 0.9983 | TRUE |
| A11 | F05_04_36C | 12 | 20 | 2.50 | 1.0000 | TRUE |
| A12 | F05_04_36C | 12 | 20 | 2.50 | 1.0000 | TRUE |
| A2 | F05_01_36C | 12 | 20 | 2.35 | 0.9986 | TRUE |
| A3 | F05_01_36C | 12 | 20 | 2.25 | 0.9985 | TRUE |
| A4 | F05_02_36C | 12 | 20 | 2.40 | 0.9983 | TRUE |
| A5 | F05_02_36C | 12 | 20 | 2.40 | 0.9983 | TRUE |
| A6 | F05_02_36C | 12 | 20 | 2.30 | 0.9981 | TRUE |
| A7 | F05_03_36C | 12 | 20 | 2.50 | 1.0000 | TRUE |
| A8 | F05_03_36C | 12 | 20 | 2.35 | 0.9986 | TRUE |
| A9 | F05_03_36C | 12 | 20 | 2.50 | 1.0000 | TRUE |
| B1 | F05_05_36C | 12 | 20 | 2.35 | 0.9986 | TRUE |
| B10 | F05_08_36C | 12 | 20 | 2.30 | 0.9944 | TRUE |
| B11 | F05_08_36C | 12 | 20 | 2.35 | 0.9986 | TRUE |
| B12 | F05_08_36C | 12 | 20 | 2.65 | 0.9989 | TRUE |
| B2 | F05_05_36C | 12 | 20 | 2.30 | 0.9981 | TRUE |
| B3 | F05_05_36C | 12 | 20 | 2.35 | 0.9986 | TRUE |
| B4 | F05_06_36C | 12 | 20 | 2.40 | 0.9983 | TRUE |
| B5 | F05_06_36C | 12 | 20 | 2.40 | 0.9983 | TRUE |
| B6 | F05_06_36C | 12 | 20 | 2.30 | 0.9981 | TRUE |
| B7 | F05_07_36C | 12 | 20 | 2.35 | 0.9986 | TRUE |
| B8 | F05_07_36C | 12 | 20 | 2.40 | 0.9983 | TRUE |
| B9 | F05_07_36C | 12 | 20 | 2.35 | 0.9986 | TRUE |
Extracted rate window, sample wells
Sample wells with a usable rate: 24 / 24
Sample rate range (mA412/min): 2.25 - 2.65
Median replicate-level R^2: 0.9986
--- sample_rates: rate-window results restricted to sample wells ---
tibble [24 × 21] (S3: tbl_df/tbl/data.frame)
$ well : chr [1:24] "A1" "A10" "A11" "A12" ...
$ well_type : chr [1:24] "sample" "sample" "sample" "sample" ...
$ sample_id : chr [1:24] "F05_01_36C" "F05_04_36C" "F05_04_36C" "F05_04_36C" ...
$ std_nmol : num [1:24] NA NA NA NA NA NA NA NA NA NA ...
$ t_start : num [1:24] 12 12 12 12 12 12 12 12 12 12 ...
$ t_end : num [1:24] 20 20 20 20 20 20 20 20 20 20 ...
$ slope_mOD_min : num [1:24] 2.4 2.4 2.5 2.5 2.35 ...
$ r2 : num [1:24] 0.998 0.998 1 1 0.999 ...
$ max_abs_slope_mOD_min : num [1:24] 2.4 2.4 2.5 2.5 2.35 ...
$ abs_window_is_negative: logi [1:24] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ net_change : num [1:24] 0.043 0.043 0.044 0.045 0.042 0.041 0.042 0.043 0.042 0.045 ...
$ frac_rising : num [1:24] 1 1 1 1 1 1 1 1 1 1 ...
$ od_max : num [1:24] 0.222 0.228 0.227 0.228 0.224 0.221 0.226 0.226 0.224 0.227 ...
$ flag_decreasing : logi [1:24] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ flag_over_range : logi [1:24] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ flag_glitch : logi [1:24] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ glitch_at_min : num [1:24] 2 8 12 10 14 16 2 10 6 2 ...
$ flag_bg_active : logi [1:24] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ n_flags : int [1:24] 0 0 0 0 0 0 0 0 0 0 ...
$ glitch_in_window : logi [1:24] FALSE FALSE FALSE FALSE FALSE FALSE ...
$ rate_usable : logi [1:24] TRUE TRUE TRUE TRUE TRUE TRUE ...Every one of the 24 sample wells clears the R2 >= 0.80 and positive-net-change usability bar; in fact every replicate-level R2 exceeds 0.99. No well needed to be excluded from rate extraction on this plate — a direct consequence of the clean, monotonically-rising traces noted above.
6.2 Positive control
pos_control <- compute_positive_control(well_rates, std_curve$std_slope, assay_params)
kable(pos_control %>% select(well, t_start, t_end, slope_mOD_min, r2, net_change, activity_mU_uL),
digits = c(0, 0, 0, 3, 4, 3, 4),
caption = "Positive control replicates")
cat("Positive control mean rate:", sprintf("%.3f", mean(pos_control$slope_mOD_min)), "mA412/min\n")
cat("Positive control CV:", sprintf("%.1f",
100 * sd(pos_control$slope_mOD_min) / mean(pos_control$slope_mOD_min)), "%\n")
cat("All replicates rising and linear (R^2 > 0.99):",
all(pos_control$net_change > 0 & pos_control$r2 > 0.99), "\n")
cat("\n--- pos_control: positive control rate and R^2 per replicate ---\n\n")
str(pos_control)| well | t_start | t_end | slope_mOD_min | r2 | net_change | activity_mU_uL |
|---|---|---|---|---|---|---|
| F7 | 12 | 20 | 2.8 | 0.9987 | 0.050 | 0.0455 |
| F8 | 12 | 20 | 3.0 | 1.0000 | 0.053 | 0.0488 |
| F9 | 12 | 20 | 3.0 | 1.0000 | 0.054 | 0.0488 |
Positive control replicates
Positive control mean rate: 2.933 mA412/min
Positive control CV: 3.9 %
All replicates rising and linear (R^2 > 0.99): TRUE
--- pos_control: positive control rate and R^2 per replicate ---
tibble [3 × 22] (S3: tbl_df/tbl/data.frame)
$ well : chr [1:3] "F7" "F8" "F9"
$ well_type : chr [1:3] "positive_control" "positive_control" "positive_control"
$ sample_id : chr [1:3] NA NA NA
$ std_nmol : num [1:3] NA NA NA
$ t_start : num [1:3] 12 12 12
$ t_end : num [1:3] 20 20 20
$ slope_mOD_min : num [1:3] 2.8 3 3
$ r2 : num [1:3] 0.999 1 1
$ max_abs_slope_mOD_min : num [1:3] 2.8 3 3
$ abs_window_is_negative: logi [1:3] FALSE FALSE FALSE
$ net_change : num [1:3] 0.05 0.053 0.054
$ frac_rising : num [1:3] 1 1 1
$ od_max : num [1:3] 0.301 0.303 0.306
$ flag_decreasing : logi [1:3] FALSE FALSE FALSE
$ flag_over_range : logi [1:3] FALSE FALSE FALSE
$ flag_glitch : logi [1:3] FALSE FALSE FALSE
$ glitch_at_min : num [1:3] 2 2 12
$ flag_bg_active : logi [1:3] FALSE FALSE FALSE
$ n_flags : int [1:3] 0 0 0
$ glitch_in_window : logi [1:3] FALSE FALSE FALSE
$ rate_usable : logi [1:3] TRUE TRUE TRUE
$ activity_mU_uL : num [1:3] 0.0455 0.0488 0.0488The positive control again performed exactly as expected: all three replicates rise linearly (R2 > 0.998) at 2.8-3.0 mA412/min with low replicate CV, confirming the core reaction chemistry and reader were functioning normally on this plate.
7 BACKGROUND CORRECTION
The background rate is estimated from only the flat (well-behaved) background replicates, since a well flagged flag_bg_active does not measure background.
background_per_sample <- compute_background_correction(well_rates)
cat("Background rate from flat wells only (mA412/min):\n")
print(background_per_sample %>% as.data.frame(), row.names = FALSE, digits = 3)
cat("\nMedian flat-background rate:",
sprintf("%.3f", median(background_per_sample$bg_rate_flat, na.rm = TRUE)),
"mA412/min\n")
cat("Median sample rate:",
sprintf("%.2f", median(sample_rates$slope_mOD_min)), "mA412/min\n")
cat("Background as % of sample signal:",
sprintf("%.1f", 100 * median(background_per_sample$bg_rate_flat, na.rm = TRUE) /
median(sample_rates$slope_mOD_min)), "%\n")
cat("\n--- background_per_sample: per-sample background rate estimates ---\n\n")
str(background_per_sample)Background rate from flat wells only (mA412/min):
sample_id n_bg_total n_bg_flat bg_rate_flat bg_rate_all
F05_01_36C 3 3 0.167 0.167
F05_02_36C 3 3 0.150 0.150
F05_03_36C 3 2 0.150 -0.433
F05_04_36C 3 3 0.183 0.183
F05_05_36C 3 3 0.183 0.183
F05_06_36C 3 3 0.233 0.233
F05_07_36C 3 3 0.167 0.167
F05_08_36C 3 3 0.183 0.183
Median flat-background rate: 0.175 mA412/min
Median sample rate: 2.37 mA412/min
Background as % of sample signal: 7.4 %
--- background_per_sample: per-sample background rate estimates ---
tibble [8 × 5] (S3: tbl_df/tbl/data.frame)
$ sample_id : chr [1:8] "F05_01_36C" "F05_02_36C" "F05_03_36C" "F05_04_36C" ...
$ n_bg_total : int [1:8] 3 3 3 3 3 3 3 3
$ n_bg_flat : int [1:8] 3 3 2 3 3 3 3 3
$ bg_rate_flat: num [1:8] 0.167 0.15 0.15 0.183 0.183 ...
$ bg_rate_all : num [1:8] 0.167 0.15 -0.433 0.183 0.183 ...Background correction remains a minor term (~7% of sample signal), and the one active-background well (C8, F05_03_36C) simply drops from that sample’s flat-well average without leaving any sample without a background estimate.
7.1 Background significance test
The flat/active threshold classification above is backed by an explicit significance test: a Welch two-sample t-test of well-level rate (background vs. sample), plus an ANOVA on the OD trajectory over time. This mirrors the one-time background ANOVA validation done by Cattau et al. (2023) on the legacy version of this assay.
bg_sample_rates <- well_rates %>%
filter(well_type %in% c("sample", "background"))
bg_significance_test <- t.test(slope_mOD_min ~ well_type, data = bg_sample_rates)
cat("--- Welch two-sample t-test: well-level rate (background vs. sample) ---\n\n")
print(bg_significance_test)
bg_trend_anova <- anova(lm(od ~ well_type * time_min,
data = plate_long %>% filter(well_type %in% c("sample", "background"))))
cat("\n--- ANOVA: OD trajectory by well_type x time_min (background vs sample wells) ---\n\n")
print(bg_trend_anova)
cat("\nInterpretation: mean background-well rate is",
sprintf("%.2f", unname(bg_significance_test$estimate["mean in group background"])),
"mA412/min vs.", sprintf("%.2f", unname(bg_significance_test$estimate["mean in group sample"])),
"mA412/min for sample wells (p =", format.pval(bg_significance_test$p.value, digits = 3),
"). Background wells are statistically distinct from, and far slower\n",
"than, reaction wells on this plate -- consistent with the per-well\n",
"flat/active classification above.\n")
cat("\n--- bg_significance_test: Welch t-test result object ---\n\n")
str(bg_significance_test)
cat("\n--- bg_trend_anova: ANOVA table for OD ~ well_type * time_min ---\n\n")
str(bg_trend_anova)--- Welch two-sample t-test: well-level rate (background vs. sample) ---
Welch Two Sample t-test
data: slope_mOD_min by well_type
t = -29.833, df = 25.695, p-value < 2.2e-16
alternative hypothesis: true difference in means between group background and group sample is not equal to 0
95 percent confidence interval:
-2.442975 -2.127858
sample estimates:
mean in group background mean in group sample
0.1041667 2.3895833
--- ANOVA: OD trajectory by well_type x time_min (background vs sample wells) ---
Analysis of Variance Table
Response: od
Df Sum Sq Mean Sq F value Pr(>F)
well_type 1 2.50292 2.50292 4026.991 < 2.2e-16 ***
time_min 1 0.02404 0.02404 38.683 1.020e-09 ***
well_type:time_min 1 0.02396 0.02396 38.545 1.089e-09 ***
Residuals 524 0.32568 0.00062
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Interpretation: mean background-well rate is 0.10 mA412/min vs. 2.39 mA412/min for sample wells (p = <2e-16 ). Background wells are statistically distinct from, and far slower
than, reaction wells on this plate -- consistent with the per-well
flat/active classification above.
--- bg_significance_test: Welch t-test result object ---
List of 10
$ statistic : Named num -29.8
..- attr(*, "names")= chr "t"
$ parameter : Named num 25.7
..- attr(*, "names")= chr "df"
$ p.value : num 1.82e-21
$ conf.int : num [1:2] -2.44 -2.13
..- attr(*, "conf.level")= num 0.95
$ estimate : Named num [1:2] 0.104 2.39
..- attr(*, "names")= chr [1:2] "mean in group background" "mean in group sample"
$ null.value : Named num 0
..- attr(*, "names")= chr "difference in means between group background and group sample"
$ stderr : num 0.0766
$ alternative: chr "two.sided"
$ method : chr "Welch Two Sample t-test"
$ data.name : chr "slope_mOD_min by well_type"
- attr(*, "class")= chr "htest"
--- bg_trend_anova: ANOVA table for OD ~ well_type * time_min ---
Classes 'anova' and 'data.frame': 4 obs. of 5 variables:
$ Df : int 1 1 1 524
$ Sum Sq : num 2.503 0.024 0.024 0.326
$ Mean Sq: num 2.502918 0.024043 0.023957 0.000622
$ F value: num 4027 38.7 38.5 NA
$ Pr(>F) : num 4.07e-248 1.02e-09 1.09e-09 NA
- attr(*, "heading")= chr [1:2] "Analysis of Variance Table\n" "Response: od"8 TECHNICAL REPLICATE PRECISION
Coefficient of variation across the three technical replicates of each sample, computed on the extracted rate. Both all and usable replicates only are reported; here they are identical for every sample because no replicate was excluded.
cv_summary <- compute_replicate_cv(well_rates, protein_by_sample$sample_id, assay_params)
kable(cv_summary %>% select(sample_id, n_all, mean_all, sd_all, cv_all,
n_usable, mean_usable, sd_usable, cv_usable,
excluded_wells),
digits = c(0, 0, 2, 2, 1, 0, 2, 2, 1, 0),
col.names = c("Sample", "n", "Mean rate", "SD", "CV (%)",
"n usable", "Mean rate", "SD", "CV (%)", "Excluded wells"),
caption = paste0("Technical replicate CV of the extracted rate (mA412/min), ",
"all replicates vs. usable replicates only"))
cat("\nSamples exceeding CV", paste0(assay_params$cv_threshold_pct, "%"),
"on ALL replicates:", sum(cv_summary$fails_cv_all), "/", nrow(cv_summary), "\n")
print(cv_summary %>% filter(fails_cv_all) %>%
select(sample_id, n_all, mean_all, sd_all, cv_all) %>%
as.data.frame(), row.names = FALSE, digits = 4)
cat("\nSamples exceeding CV", paste0(assay_params$cv_threshold_pct, "%"),
"on USABLE replicates:", sum(cv_summary$fails_cv_usable), "\n")
print(cv_summary %>% filter(fails_cv_usable) %>%
select(sample_id, n_usable, mean_usable, sd_usable, cv_usable) %>%
as.data.frame(), row.names = FALSE, digits = 4)
write.csv(cv_summary, file.path(output_dir, "technical_replicate_cv.csv"), row.names = FALSE)
cat("\n--- cv_summary: per-sample technical replicate CV, both variants ---\n\n")
str(cv_summary)| Sample | n | Mean rate | SD | CV (%) | n usable | Mean rate | SD | CV (%) | Excluded wells |
|---|---|---|---|---|---|---|---|---|---|
| F05_01_36C | 3 | 2.33 | 0.08 | 3.3 | 3 | 2.33 | 0.08 | 3.3 | - |
| F05_02_36C | 3 | 2.37 | 0.06 | 2.4 | 3 | 2.37 | 0.06 | 2.4 | - |
| F05_03_36C | 3 | 2.45 | 0.09 | 3.5 | 3 | 2.45 | 0.09 | 3.5 | - |
| F05_04_36C | 3 | 2.47 | 0.06 | 2.3 | 3 | 2.47 | 0.06 | 2.3 | - |
| F05_05_36C | 3 | 2.33 | 0.03 | 1.2 | 3 | 2.33 | 0.03 | 1.2 | - |
| F05_06_36C | 3 | 2.37 | 0.06 | 2.4 | 3 | 2.37 | 0.06 | 2.4 | - |
| F05_07_36C | 3 | 2.37 | 0.03 | 1.2 | 3 | 2.37 | 0.03 | 1.2 | - |
| F05_08_36C | 3 | 2.43 | 0.19 | 7.8 | 3 | 2.43 | 0.19 | 7.8 | - |
Technical replicate CV of the extracted rate (mA412/min), all replicates vs. usable replicates only
Samples exceeding CV 15% on ALL replicates: 0 / 8
[1] sample_id n_all mean_all sd_all cv_all
<0 rows> (or 0-length row.names)
Samples exceeding CV 15% on USABLE replicates: 0
[1] sample_id n_usable mean_usable sd_usable cv_usable
<0 rows> (or 0-length row.names)
--- cv_summary: per-sample technical replicate CV, both variants ---
'data.frame': 8 obs. of 12 variables:
$ sample_id : chr "F05_01_36C" "F05_02_36C" "F05_03_36C" "F05_04_36C" ...
$ n_all : int 3 3 3 3 3 3 3 3
$ mean_all : num 2.33 2.37 2.45 2.47 2.33 ...
$ sd_all : num 0.0764 0.0577 0.0866 0.0577 0.0289 ...
$ cv_all : num 3.27 2.44 3.53 2.34 1.24 ...
$ n_usable : int 3 3 3 3 3 3 3 3
$ mean_usable : num 2.33 2.37 2.45 2.47 2.33 ...
$ sd_usable : num 0.0764 0.0577 0.0866 0.0577 0.0289 ...
$ cv_usable : num 3.27 2.44 3.53 2.34 1.24 ...
$ excluded_wells : Named chr "-" "-" "-" "-" ...
..- attr(*, "names")= chr [1:8] "F05_01_36C" "F05_02_36C" "F05_03_36C" "F05_04_36C" ...
$ fails_cv_all : logi FALSE FALSE FALSE FALSE FALSE FALSE ...
$ fails_cv_usable: logi FALSE FALSE FALSE FALSE FALSE FALSE ...No sample exceeds the 15% CV threshold on this plate. The highest is F05_08_36C at 7.8%; every other sample is under 4%.
8.1 Plot replicate spread
cv_plot_data <- sample_rates %>%
left_join(cv_summary %>% select(sample_id, cv_all), by = "sample_id")
cv_plot <- ggplot(cv_plot_data, aes(x = sample_id, y = slope_mOD_min)) +
geom_point(aes(colour = rate_usable, shape = rate_usable),
size = 3, position = position_jitter(width = 0.12, height = 0)) +
stat_summary(fun = mean, geom = "crossbar", width = 0.5,
colour = "grey30", linewidth = 0.3) +
geom_text(data = cv_summary, aes(x = sample_id, y = Inf,
label = sprintf("CV %.0f%%", cv_all)),
vjust = 1.6, size = 3,
colour = ifelse(cv_summary$fails_cv_all, "#cb181d", "grey30")) +
scale_colour_manual(values = c(`TRUE` = "#08519c", `FALSE` = "#cb181d"),
labels = c(`TRUE` = "usable", `FALSE` = "flagged"), name = "Replicate") +
scale_shape_manual(values = c(`TRUE` = 16, `FALSE` = 4),
labels = c(`TRUE` = "usable", `FALSE` = "flagged"), name = "Replicate") +
labs(title = "Technical replicate spread in extracted rate",
subtitle = paste0("Crossbar = mean of all three replicates; CV computed on all three. ",
"Threshold ", assay_params$cv_threshold_pct, "%."),
x = "Sample", y = "Rate (mA412/min)") +
theme_bw() +
theme(plot.title = element_text(size = 13, face = "bold"),
axis.text.x = element_text(angle = 30, hjust = 1))
ggsave(file.path(output_dir, "technical_replicate_cv.png"), cv_plot,
width = 9, height = 6, dpi = 300)
cat("--- cv_plot: ggplot object structure ---\n\n")
summary(cv_plot)
cv_plot
--- cv_plot: ggplot object structure ---
data: well, well_type, sample_id, std_nmol, t_start, t_end,
slope_mOD_min, r2, max_abs_slope_mOD_min, abs_window_is_negative,
net_change, frac_rising, od_max, flag_decreasing, flag_over_range,
flag_glitch, glitch_at_min, flag_bg_active, n_flags,
glitch_in_window, rate_usable, cv_all [24x22]
mapping: x = ~sample_id, y = ~slope_mOD_min
scales: colour, shape
faceting: <empty>
-----------------------------------
mapping: colour = ~rate_usable, shape = ~rate_usable
geom_point: na.rm = FALSE
stat_identity: na.rm = FALSE
position_jitter
geom_crossbar: na.rm = FALSE, orientation = NA, width = 0.5
stat_summary: fun.data = NULL, fun = function (x, ...)
UseMethod("mean"), fun.max = NULL, fun.min = NULL, fun.args = list(), na.rm = FALSE, orientation = NA
position_identity
mapping: x = ~sample_id, y = Inf, label = ~sprintf("CV %.0f%%", cv_all)
geom_text: na.rm = FALSE, parse = FALSE, check_overlap = FALSE, size.unit = mm
stat_identity: na.rm = FALSE
position_nudge 9 CITRATE SYNTHASE ACTIVITY
9.1 Calculation
Following Abcam Section 10.3:
Sample CS activity = B / (dT x V) x D nmol/min/µL (= mU/µL)
- Rate (A412/min) = max-increasing sliding-window slope / 1000
- Background-corrected rate = sample rate - mean flat background rate
- B/dT (nmol/min) = background-corrected rate / standard curve slope (0.03075 A412 per nmol, from the outlier-excluded fit)
- Activity (mU/µL) = (B/dT) / V x D, with V = 2 µL and D = 1
- Protein-normalized (mU/mg protein) = activity x
homogenate_volume_uL(350 µL, measured) / total protein (mg)
cs_activity <- calculate_cs_activity(well_rates, protein_by_sample, background_per_sample,
std_slope, std_nmol_max, assay_params, plate_long)
cat("Samples with a computed activity:", nrow(cs_activity), "/", nrow(protein_by_sample), "\n")
cat("Activity range (mU/uL):",
paste(sprintf("%.4f", range(cs_activity$activity_mU_per_uL)), collapse = " - "), "\n")
cat("Activity range (mU/mg protein):",
paste(sprintf("%.3f", range(cs_activity$activity_mU_per_mg_protein)), collapse = " - "), "\n")
cat("\n--- cs_activity: per-sample citrate synthase activity ---\n\n")
str(cs_activity)Samples with a computed activity: 8 / 8
Activity range (mU/uL): 0.0347 - 0.0374
Activity range (mU/mg protein): 20.972 - 66.031
--- cs_activity: per-sample citrate synthase activity ---
tibble [8 × 21] (S3: tbl_df/tbl/data.frame)
$ sample_id : chr [1:8] "F05_01_36C" "F05_02_36C" "F05_03_36C" "F05_04_36C" ...
$ n_reps_used : int [1:8] 3 3 3 3 3 3 3 3
$ mean_rate_mOD_min : num [1:8] 2.33 2.37 2.45 2.47 2.33 ...
$ sd_rate : num [1:8] 0.0764 0.0577 0.0866 0.0577 0.0289 ...
$ cv_rate : num [1:8] 3.27 2.44 3.53 2.34 1.24 ...
$ family : chr [1:8] "F05" "F05" "F05" "F05" ...
$ individual : chr [1:8] "01" "02" "03" "04" ...
$ temperature : chr [1:8] "36C" "36C" "36C" "36C" ...
$ conc_ug_mL : num [1:8] 953 546 668 1062 1667 ...
$ total_protein_mg : num [1:8] 0.334 0.191 0.234 0.372 0.583 ...
$ bg_rate_flat : num [1:8] 0.167 0.15 0.15 0.183 0.183 ...
$ n_bg_flat : int [1:8] 3 3 2 3 3 3 3 3
$ bg_rate_mOD_min : num [1:8] 0.167 0.15 0.15 0.183 0.183 ...
$ corrected_mOD_min : num [1:8] 2.17 2.22 2.3 2.28 2.15 ...
$ rate_OD_min : num [1:8] 0.00217 0.00222 0.0023 0.00228 0.00215 ...
$ nmol_per_min : num [1:8] 0.0705 0.0721 0.0748 0.0742 0.0699 ...
$ activity_mU_per_uL : num [1:8] 0.0352 0.036 0.0374 0.0371 0.035 ...
$ total_mU_in_homogenate : num [1:8] 12.3 12.6 13.1 13 12.2 ...
$ activity_mU_per_mg_protein: num [1:8] 37 66 56 34.9 21 ...
$ nmol_in_window : num [1:8] 1.41 1.44 1.5 1.48 1.4 ...
$ within_std_range : logi [1:8] TRUE TRUE TRUE TRUE TRUE TRUE ...9.2 Results table
results_table <- build_results_table(cs_activity, cv_summary, baseline_per_sample, assay_params)
kable(results_table,
caption = paste0("Citrate synthase activity, family F05 36°C (mU/mg protein uses ",
"measured protein concentration x the ", assay_params$homogenate_volume_uL,
" uL homogenization volume)"))
cat("\nInterpretation summary:\n")
print(results_table %>% count(Interpretation, name = "n_samples") %>%
as.data.frame(), row.names = FALSE)
write.csv(results_table, file.path(output_dir, "citrate_synthase_activity_results.csv"),
row.names = FALSE)
cat("\n--- results_table: formatted per-sample results written to CSV ---\n\n")
str(results_table)| Sample | Family | Individual | Temperature | Protein conc (ug/mL) | Total protein (mg) | Reps used | CV all reps (%) | CV used reps (%) | Rate (mA412/min) | BG rate (mA412/min) | Corrected rate (mA412/min) | Activity (mU/uL) | Activity (mU/mg protein) | CV flag | Elevated baseline reps | Interpretation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F05_01_36C | F05 | 01 | 36C | 953.1 | 0.334 | 3/3 | 3.3 | 3.3 | 2.33 | 0.167 | 2.17 | 0.0352 | 36.960 | pass | 0/3 | usable |
| F05_02_36C | F05 | 02 | 36C | 545.8 | 0.191 | 3/3 | 2.4 | 2.4 | 2.37 | 0.150 | 2.22 | 0.0360 | 66.031 | pass | 0/3 | usable |
| F05_03_36C | F05 | 03 | 36C | 667.6 | 0.234 | 3/3 | 3.5 | 3.5 | 2.45 | 0.150 | 2.30 | 0.0374 | 56.014 | pass | 0/3 | usable |
| F05_04_36C | F05 | 04 | 36C | 1062.2 | 0.372 | 3/3 | 2.3 | 2.3 | 2.47 | 0.183 | 2.28 | 0.0371 | 34.950 | pass | 0/3 | usable |
| F05_05_36C | F05 | 05 | 36C | 1666.8 | 0.583 | 3/3 | 1.2 | 1.2 | 2.33 | 0.183 | 2.15 | 0.0350 | 20.972 | pass | 0/3 | usable |
| F05_06_36C | F05 | 06 | 36C | 1265.9 | 0.443 | 3/3 | 2.4 | 2.4 | 2.37 | 0.233 | 2.13 | 0.0347 | 27.399 | pass | 0/3 | usable |
| F05_07_36C | F05 | 07 | 36C | 1110.5 | 0.389 | 3/3 | 1.2 | 1.2 | 2.37 | 0.167 | 2.20 | 0.0358 | 32.210 | pass | 0/3 | usable |
| F05_08_36C | F05 | 08 | 36C | 1357.5 | 0.475 | 3/3 | 7.8 | 7.8 | 2.43 | 0.183 | 2.25 | 0.0366 | 26.948 | pass | 0/3 | usable |
Citrate synthase activity, family F05 36°C (mU/mg protein uses measured protein concentration x the 350 uL homogenization volume)
Interpretation summary:
Interpretation n_samples
usable 8
--- results_table: formatted per-sample results written to CSV ---
tibble [8 × 17] (S3: tbl_df/tbl/data.frame)
$ Sample : chr [1:8] "F05_01_36C" "F05_02_36C" "F05_03_36C" "F05_04_36C" ...
$ Family : chr [1:8] "F05" "F05" "F05" "F05" ...
$ Individual : chr [1:8] "01" "02" "03" "04" ...
$ Temperature : chr [1:8] "36C" "36C" "36C" "36C" ...
$ Protein conc (ug/mL) : num [1:8] 953 546 668 1062 1667 ...
$ Total protein (mg) : num [1:8] 0.334 0.191 0.234 0.372 0.583 0.443 0.389 0.475
$ Reps used : chr [1:8] "3/3" "3/3" "3/3" "3/3" ...
$ CV all reps (%) : num [1:8] 3.3 2.4 3.5 2.3 1.2 2.4 1.2 7.8
$ CV used reps (%) : num [1:8] 3.3 2.4 3.5 2.3 1.2 2.4 1.2 7.8
$ Rate (mA412/min) : num [1:8] 2.33 2.37 2.45 2.47 2.33 2.37 2.37 2.43
$ BG rate (mA412/min) : num [1:8] 0.167 0.15 0.15 0.183 0.183 0.233 0.167 0.183
$ Corrected rate (mA412/min): num [1:8] 2.17 2.22 2.3 2.28 2.15 2.13 2.2 2.25
$ Activity (mU/uL) : num [1:8] 0.0352 0.036 0.0374 0.0371 0.035 0.0347 0.0358 0.0366
$ Activity (mU/mg protein) : num [1:8] 37 66 56 35 21 ...
$ CV flag : chr [1:8] "pass" "pass" "pass" "pass" ...
$ Elevated baseline reps : chr [1:8] "0/3" "0/3" "0/3" "0/3" ...
$ Interpretation : chr [1:8] "usable" "usable" "usable" "usable" ...All eight samples are usable on this plate — no CV flag, no elevated baseline replicate.
9.3 Plot activity
# Three-level quality scheme, kept for consistency with other plate
# documents even though no sample here falls in the flagged categories.
qual_levels <- c("clean", paste0("CV > ", assay_params$cv_threshold_pct, "%"),
"all reps baseline-compromised")
qual_cols <- setNames(c("#08519c", "#cb181d", "grey60"), qual_levels)
activity_plot_data <- cs_activity %>%
left_join(cv_summary %>% select(sample_id, cv_all), by = "sample_id") %>%
left_join(baseline_per_sample %>% select(sample_id, n_elevated, n), by = "sample_id") %>%
mutate(cv_flag = factor(case_when(
n_elevated == n ~ qual_levels[3],
cv_all > assay_params$cv_threshold_pct ~ qual_levels[2],
TRUE ~ qual_levels[1]),
levels = qual_levels),
label_n = paste0(n_reps_used, "/3 reps",
ifelse(n_elevated == n, " - DISQUALIFIED", "")))
activity_plot <- ggplot(activity_plot_data,
aes(x = reorder(sample_id, activity_mU_per_uL),
y = activity_mU_per_uL, fill = cv_flag)) +
geom_col(width = 0.65) +
geom_text(aes(label = label_n), hjust = -0.15, size = 3, colour = "grey25") +
scale_fill_manual(values = qual_cols, drop = FALSE, name = "Well quality") +
coord_flip(clip = "off") +
expand_limits(y = max(activity_plot_data$activity_mU_per_uL) * 1.25) +
labs(title = "Citrate synthase activity, M. gigas ctenidia, family F05 36°C",
subtitle = "Background-corrected, mean of all three technical replicates (all usable on this plate).",
x = NULL, y = "CS activity (mU/uL homogenate)") +
theme_bw() +
theme(plot.title = element_text(size = 13, face = "bold"),
legend.position = "bottom")
ggsave(file.path(output_dir, "citrate_synthase_activity.png"), activity_plot,
width = 10, height = 6, dpi = 300)
cat("--- activity_plot: ggplot object structure ---\n\n")
summary(activity_plot)
activity_plot
--- activity_plot: ggplot object structure ---
data: sample_id, n_reps_used, mean_rate_mOD_min, sd_rate, cv_rate,
family, individual, temperature, conc_ug_mL, total_protein_mg,
bg_rate_flat, n_bg_flat, bg_rate_mOD_min, corrected_mOD_min,
rate_OD_min, nmol_per_min, activity_mU_per_uL,
total_mU_in_homogenate, activity_mU_per_mg_protein, nmol_in_window,
within_std_range, cv_all, n_elevated, n, cv_flag, label_n [8x26]
mapping: x = ~reorder(sample_id, activity_mU_per_uL), y = ~activity_mU_per_uL, fill = ~cv_flag
scales: fill
faceting: <empty>
-----------------------------------
geom_col: na.rm = FALSE, just = 0.5, lineend = butt, linejoin = mitre
stat_identity: na.rm = FALSE
position_stack
mapping: label = ~label_n
geom_text: na.rm = FALSE, parse = FALSE, check_overlap = FALSE, size.unit = mm
stat_identity: na.rm = FALSE
position_nudge
mapping: y = ~y
geom_blank: na.rm = FALSE
stat_identity: na.rm = FALSE
position_identity Raw activity (mU/µL) is remarkably uniform across all eight individuals — 0.0347 to 0.0374, a spread of only 7.8%, against a technical CV of under 8% for any single sample.
9.4 Protein-normalized activity
# All eight samples are clean on this plate, so the trend fit uses all of them.
norm_clean <- activity_plot_data %>% filter(cv_flag == qual_levels[1])
norm_plot <- ggplot(activity_plot_data,
aes(x = total_protein_mg, y = activity_mU_per_mg_protein)) +
geom_smooth(data = norm_clean, method = "lm", se = TRUE,
colour = "grey35", fill = "grey85", linewidth = 0.6) +
geom_point(aes(colour = cv_flag), size = 3.5) +
geom_text(aes(label = individual), vjust = -1, size = 3, colour = "grey25") +
scale_colour_manual(values = qual_cols, drop = FALSE, name = "Well quality") +
labs(title = "Protein-normalized CS activity vs. total extracted protein",
subtitle = paste0("Point labels = individual ID. Total protein = measured protein ",
"concentration x the same\n", assay_params$homogenate_volume_uL,
" uL homogenization volume used for every sample. Grey line = fit to ",
"all 8\nsamples (all clean on this plate); a negative slope would indicate the ",
"normalization\nis not protein-independent."),
x = "Total extracted protein (mg)", y = "CS activity (mU/mg protein)") +
theme_bw() +
theme(plot.title = element_text(size = 13, face = "bold"),
legend.position = "bottom")
protein_trend <- cor.test(activity_plot_data$total_protein_mg, activity_plot_data$activity_mU_per_mg_protein)
protein_trend_clean <- cor.test(norm_clean$total_protein_mg, norm_clean$activity_mU_per_mg_protein)
uL_trend_clean <- cor.test(norm_clean$total_protein_mg, norm_clean$activity_mU_per_uL)
ggsave(file.path(output_dir, "citrate_synthase_activity_normalized.png"), norm_plot,
width = 10, height = 6, dpi = 300)
cat("Correlation of mU/mg protein with total extracted protein\n")
cat(sprintf(" all %d samples : r = %+.3f, p = %.4f\n",
nrow(activity_plot_data), protein_trend$estimate, protein_trend$p.value))
cat(sprintf(" clean samples only : r = %+.3f, p = %.4f (n = %d)\n",
protein_trend_clean$estimate, protein_trend_clean$p.value, nrow(norm_clean)))
cat(sprintf(" clean-sample mU/mg protein range: %.3f to %.3f (%.1f-fold)\n",
min(norm_clean$activity_mU_per_mg_protein), max(norm_clean$activity_mU_per_mg_protein),
max(norm_clean$activity_mU_per_mg_protein) / min(norm_clean$activity_mU_per_mg_protein)))
cat(sprintf(" clean-sample mU/uL range: %.4f to %.4f (%.1f-fold)\n",
min(norm_clean$activity_mU_per_uL), max(norm_clean$activity_mU_per_uL),
max(norm_clean$activity_mU_per_uL) / min(norm_clean$activity_mU_per_uL)))
cat(sprintf("\nArtifact check: r(total protein, mU/uL raw rate) = %+.3f, p = %.4f (n = %d)\n",
uL_trend_clean$estimate, uL_trend_clean$p.value, nrow(norm_clean)))
cat("If mU/uL itself trends with total protein while mU/mg protein trends oppositely,\n",
"the mU/mg protein trend is partly/wholly the arithmetic of dividing by a covariate\n",
"rather than a biological difference in specific activity.\n", sep = "")
cat("\n--- protein_trend_clean: correlation test on clean samples ---\n\n")
str(protein_trend_clean, max.level = 1, give.attr = FALSE)
cat("\n--- norm_clean: clean samples used for the trend fit ---\n\n")
str(norm_clean)
norm_plot
Correlation of mU/mg protein with total extracted protein
all 8 samples : r = -0.948, p = 0.0003
clean samples only : r = -0.948, p = 0.0003 (n = 8)
clean-sample mU/mg protein range: 20.972 to 66.031 (3.1-fold)
clean-sample mU/uL range: 0.0347 to 0.0374 (1.1-fold)
Artifact check: r(total protein, mU/uL raw rate) = -0.479, p = 0.2302 (n = 8)
If mU/uL itself trends with total protein while mU/mg protein trends oppositely,
the mU/mg protein trend is partly/wholly the arithmetic of dividing by a covariate
rather than a biological difference in specific activity.
--- protein_trend_clean: correlation test on clean samples ---
List of 9
$ statistic : Named num -7.31
$ parameter : Named int 6
$ p.value : num 0.000335
$ estimate : Named num -0.948
$ null.value : Named num 0
$ alternative: chr "two.sided"
$ method : chr "Pearson's product-moment correlation"
$ data.name : chr "norm_clean$total_protein_mg and norm_clean$activity_mU_per_mg_protein"
$ conf.int : num [1:2] -0.991 -0.734
--- norm_clean: clean samples used for the trend fit ---
tibble [8 × 26] (S3: tbl_df/tbl/data.frame)
$ sample_id : chr [1:8] "F05_01_36C" "F05_02_36C" "F05_03_36C" "F05_04_36C" ...
$ n_reps_used : int [1:8] 3 3 3 3 3 3 3 3
$ mean_rate_mOD_min : num [1:8] 2.33 2.37 2.45 2.47 2.33 ...
$ sd_rate : num [1:8] 0.0764 0.0577 0.0866 0.0577 0.0289 ...
$ cv_rate : num [1:8] 3.27 2.44 3.53 2.34 1.24 ...
$ family : chr [1:8] "F05" "F05" "F05" "F05" ...
$ individual : chr [1:8] "01" "02" "03" "04" ...
$ temperature : chr [1:8] "36C" "36C" "36C" "36C" ...
$ conc_ug_mL : num [1:8] 953 546 668 1062 1667 ...
$ total_protein_mg : num [1:8] 0.334 0.191 0.234 0.372 0.583 ...
$ bg_rate_flat : num [1:8] 0.167 0.15 0.15 0.183 0.183 ...
$ n_bg_flat : int [1:8] 3 3 2 3 3 3 3 3
$ bg_rate_mOD_min : num [1:8] 0.167 0.15 0.15 0.183 0.183 ...
$ corrected_mOD_min : num [1:8] 2.17 2.22 2.3 2.28 2.15 ...
$ rate_OD_min : num [1:8] 0.00217 0.00222 0.0023 0.00228 0.00215 ...
$ nmol_per_min : num [1:8] 0.0705 0.0721 0.0748 0.0742 0.0699 ...
$ activity_mU_per_uL : num [1:8] 0.0352 0.036 0.0374 0.0371 0.035 ...
$ total_mU_in_homogenate : num [1:8] 12.3 12.6 13.1 13 12.2 ...
$ activity_mU_per_mg_protein: num [1:8] 37 66 56 34.9 21 ...
$ nmol_in_window : num [1:8] 1.41 1.44 1.5 1.48 1.4 ...
$ within_std_range : logi [1:8] TRUE TRUE TRUE TRUE TRUE TRUE ...
$ cv_all : num [1:8] 3.27 2.44 3.53 2.34 1.24 ...
$ n_elevated : int [1:8] 0 0 0 0 0 0 0 0
$ n : int [1:8] 3 3 3 3 3 3 3 3
$ cv_flag : Factor w/ 3 levels "clean","CV > 15%",..: 1 1 1 1 1 1 1 1
$ label_n : chr [1:8] "3/3 reps" "3/3 reps" "3/3 reps" "3/3 reps" ...mU/mg protein correlates negatively with total extracted protein at r = -0.948 (p = 0.0003, n = 8, all 8 samples clean on this plate), while raw mU/µL is essentially flat against protein (r = -0.479, p = 0.23). Because the raw signal used in the numerator is close to protein-independent here, the negative mU/mg protein trend on this plate is substantially closer to a pure division artifact (dividing a near-constant numerator by a 3-fold-varying denominator) than a genuine biological effect. This distinction matters directly for note 3 of the recommendations below.
10 QC SUMMARY
qc_summary <- build_qc_summary_table(layout_wells, recon$summary, std_curve,
well_diagnostics, well_rates, cv_summary,
baseline_per_sample, pos_control, assay_params)
kable(qc_summary, col.names = c("QC check", "Result"),
caption = "Quality control summary for this plate")
write.csv(qc_summary, file.path(output_dir, "qc_summary.csv"), row.names = FALSE)
cat("\n--- qc_summary: consolidated QC checks for the run ---\n\n")
str(qc_summary)| QC check | Result |
|---|---|
| Occupied wells in layout | 69 |
| Layout wells missing from absorbance CSV | 0 |
| Max disagreement between absorbance CSV and full report | 0 |
| Standard concentrations with replicate CV > threshold | 40 |
| Standard wells flagged as outliers | 1/18 (F5) |
| Standard curve R^2 (outlier-excluded, replicate level) | 0.9985 |
| Standard curve R^2 (all wells, replicate level) | 0.9636 |
| Standard wells that LOST signal over the run | 3/18 |
| Standards above photometric linearity ceiling | |
| Background control wells behaving as active reactions | 1/24 |
| Sample wells with a decreasing trace | 0/24 |
| Sample wells with an elevated starting A412 | 0/24 () |
| Samples with ALL THREE replicates baseline-compromised | 0/8 () |
| Sample wells with a read glitch | 0/24 |
| Sample wells usable for rate extraction | 24/24 |
| Samples with technical CV > threshold (all reps) | 0/8 |
| Samples with technical CV > threshold (usable reps) | 0/8 |
| Positive control replicates rising and linear | 3/3 |
Quality control summary for this plate
--- qc_summary: consolidated QC checks for the run ---
'data.frame': 18 obs. of 2 variables:
$ check: chr "Occupied wells in layout" "Layout wells missing from absorbance CSV" "Max disagreement between absorbance CSV and full report" "Standard concentrations with replicate CV > threshold" ...
$ value: chr "69" "0" "0" "40" ...10.1 Auto-generated findings
The bullets below are generated programmatically from the QC/CV/anomaly objects above by generate_qc_findings(), so the same logic that flags a problem here is guaranteed to be the logic that flagged it upstream.
qc_findings <- generate_qc_findings(well_diagnostics, well_rates, cv_summary,
baseline_per_sample, std_curve, recon$summary,
assay_params)
cat(paste0("- ", qc_findings, "\n"), sep = "\n")- **Kinetic sources agree.** absorbance CSV and full report agree exactly on all 759 shared well x timepoint readings; all layout wells are present.
- **Background control wells behaving as active reactions.** 1 of 24 background wells show a starting A412 or drift inconsistent with a flat, inactive well: C8.
- **GSH standard curve replicate imprecision.** 1 of 6 concentrations exceed 15% CV: 40 nmol/well.
- **Standard outlier wells.** 1 of 18 standard wells deviate from their triplicate median by more than 0.15 A412: F5.
- **Standard signal decay.** 3 of 18 standard wells lost signal over the run (TNB instability); the standard curve is read at t = 0.
- **Standard curve fit (outlier-excluded):** slope = 0.03075 A412/nmol, R^2 = 0.9985 (all-wells R^2 = 0.9636).
- **Technical replicate CV.** All 8 samples are within 15% CV across all three replicates.11 SUMMARY
11.1 Anomalies found
- One background well behaves as an active reaction, not a background control.
C8(F05_03_36C’s third background replicate) starts at A412 0.252 (above the 0.15 flat-well threshold) and declines to 0.202 (net change -0.050), rather than staying flat. This pattern is consistent with Reaction Mix having been dispensed instead of Background Control Mix for this single well.compute_background_correction()drops it automatically;F05_03_36C’s background estimate is still based on 2 of 3 replicates. - One GSH standard well is an outlier.
F5(40 nmol) reads A412 1.067 against triplicate siblingsF4/F6at 1.433/1.422 — a deviation of -0.355 A412 from the triplicate median, and also flagged for an internal read-to-read glitch. Excluding it, the 40 nmol triplicate CV drops from 15.9% to 0.5%. It is the sole reason the 40 nmol concentration is the only one of six to exceed the 15% CV threshold. - Three standard wells lost signal over the run (
F1,F4,F6- the 32 and 40 nmol replicates; drift -0.004 to -0.011 A412), consistent with TNB2- instability over the run. The standard curve is read at t = 0 for this reason. - No decreasing kinetics, no read glitches, and no elevated starting absorbance in any sample well. All 24 sample wells rise monotonically and cleanly (replicate-level R2 > 0.99), and none needs exclusion from rate extraction.
- No sample has an elevated starting absorbance or a disqualifying baseline artifact. Sample well starting A412 ranges only 0.179-0.192, well under the 0.35 threshold.
11.2 Technical replicate precision
All eight samples pass the 15% CV threshold — the highest is F05_08_36C at 7.8%, and every other sample is under 4% (F05_01_36C 3.3%, F05_02_36C 2.4%, F05_03_36C 3.5%, F05_04_36C 2.3%, F05_05_36C 1.2%, F05_06_36C 2.4%, F05_07_36C 1.2%). No replicate is excluded from any sample’s rate calculation on this plate, so the “all reps” and “usable reps only” CVs are identical throughout. No sample technical rep exceeds 15% CV on this plate.
11.3 Assay validity
The positive control worked: all three replicates rise linearly (R2 > 0.998) at 2.8-3.0 mA412/min with low replicate CV. The GSH standard curve has a single, clearly-identified outlier well and every sample well’s kinetics are clean, so this plate’s activity values carry low calibration uncertainty.
11.4 Recommendation
Treat the activity values here as reliable, though the open question about the raw-rate/protein relationship still bears on interpretation:
- This plate does not need re-assay. No sample is disqualified, no replicate is excluded, and the standard curve fails QC only by a single, clearly-identified outlier well.
- A dilution series is recommended before treating protein-normalized activity as reliable. Raw rate (mU/µL) is essentially flat against total extracted protein here (r = -0.48, p = 0.23), so a division artifact is the more likely explanation for the observed mU/mg-protein trend (see note 3) rather than a genuine effect of protein content on measured activity. A dilution series run on a single homogenate at multiple concentrations would directly test whether the assay’s raw rate is protein-independent.
- The mU/mg protein negative trend seen on this plate should be treated as attributable to division artifact rather than a biological effect. Because raw mU/µL is flat against protein while mU/mg protein trends negatively with it, the mU/mg protein figures largely reflect dividing a near-constant numerator by a varying denominator rather than a real difference in specific activity.
- Re-confirm the background-well dispensing step, since one well (
C8) showed the signature of a Reaction Mix / Background Control Mix mix-up — worth checking whether it is a one-off pipetting error or a persistent low-rate issue in this step.
11.5 What can be used from this plate
All eight samples are usable, and the raw-rate result is the more striking one for the within-family question this project asks: background-corrected rates cluster tightly — 2.13 to 2.30 mA412/min across all eight F05 individuals at 36 °C, a spread of only 7.8% against 1-8% technical CV per sample. Once normalization artifacts are set aside, no striking within-family variation in raw CS activity is apparent at 36 °C.
- Raw rate is the safer basis for downstream comparison. The median background-corrected rate is ~2.21 mA412/min at 36 °C, with technical and normalization uncertainty small relative to this signal, and it does not require resolving the protein-normalization question first.
- The mU/mg protein figures on this plate should be treated with some caution. Since raw rate (mU/µL) is essentially flat against total extracted protein here (see note 3 above), the observed mU/mg-protein trend is more consistent with a division artifact than a biological effect of protein content on activity. A dilution series run on a single homogenate at multiple concentrations would help resolve whether the assay’s raw rate is genuinely protein-independent.
